OceanStor 5500 V3
|
processor per controller
|
1 x 6-core processor 1x 10-core processor (enhanced)
|
Cache size per controller
|
24 GB (6-core processor only) 48 GB (6-core processor only) 64 GB
|
Maximum number of controllers per enclosure
|
2
|
Maximum number of IP scale-out controllers
|
8
|
Maximum number of disks
|
750
|
Controller enclosure configuration
|

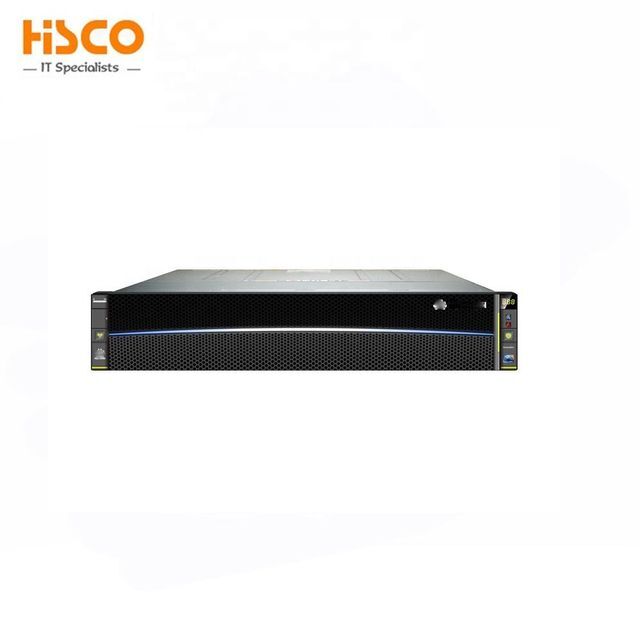

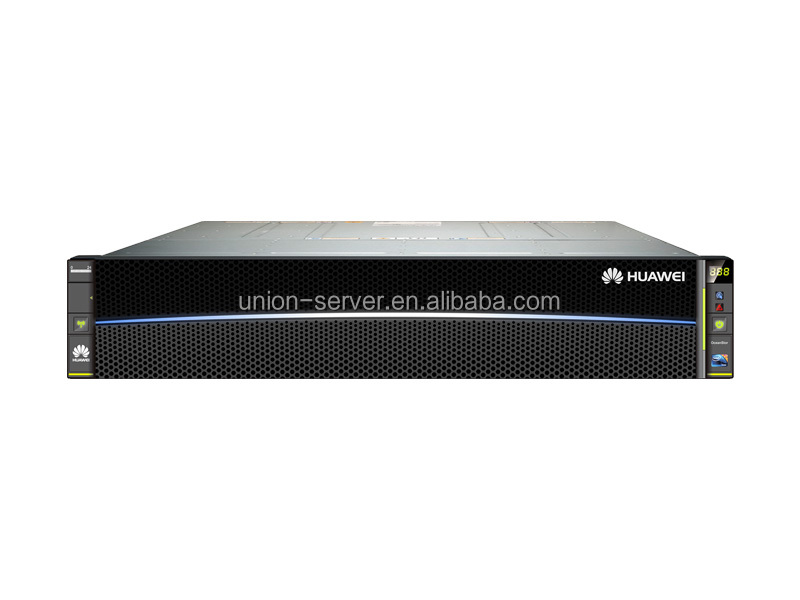

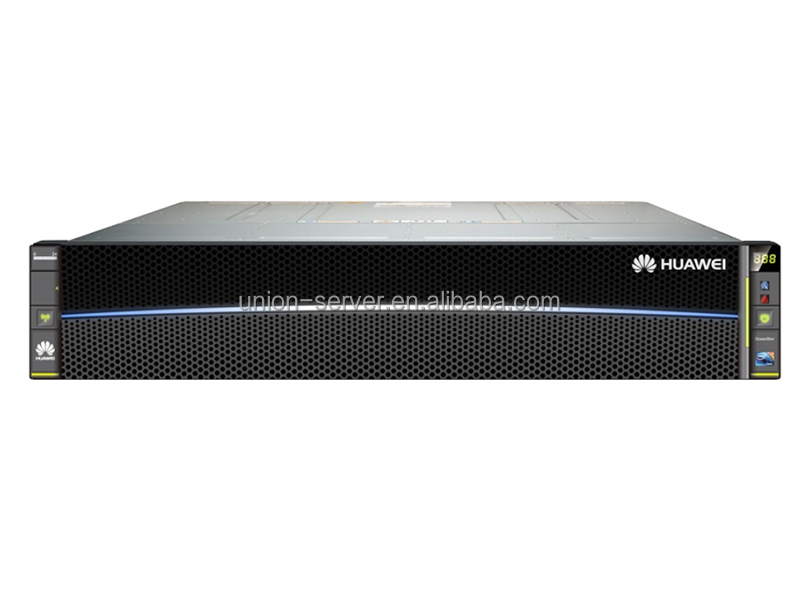

2U controller enclosure, 25 2.5-inch hard drives 2U controller enclosure, 12 3.5-inch hard drives
|
Supported disk enclosure types
|
2U SAS disk enclosure, 25 2.5-inch hard disks 4U SAS disk enclosure, 24 3.5-inch hard disks 4U SAS high-density hard disk enclosure, 75 75×3.5-inch hard disks
|
Maximum number of disk frames
|
2U SAS disk enclosure: 31 4U SAS disk enclosure: 31 4U SAS high-density disk enclosure: 10
|
Maximum number of disk frames connected to backend channels (ports)
|
A pair of SAS ports can connect up to eight SAS disk enclosures. Two are recommended.
Every two pairs of SAS ports can be connected to a maximum of 8 high-density disk enclosures (a pair is two adjacent ports on the same card). Two are recommended.
Common disk enclosures and high-density disk enclosures cannot be mixed in the back-end loop of the same SAS interface module.
|
Supported disk types
|
SSD, SAS and NL-SAS
|

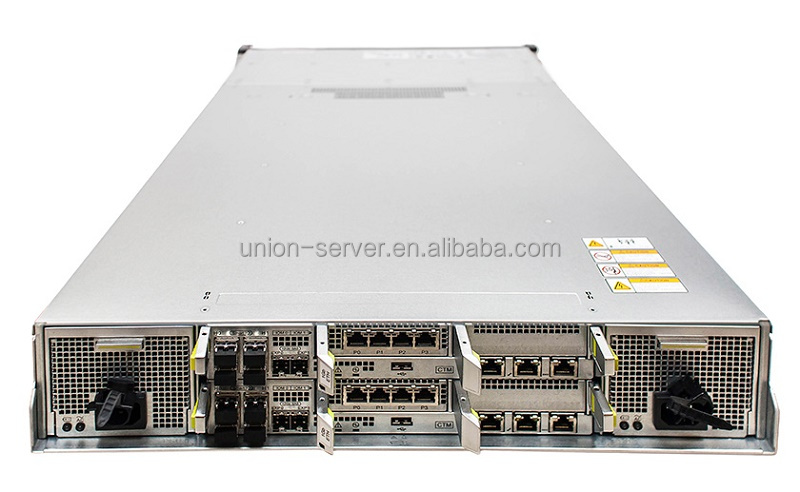

Supported Hot Swap Interface Module Types
|
8 Gbit/s Fibre Channel 16 Git/s Fibre Channel General Electric 10GE (electrical) 10Gbit/s FCoE 56 Gbit/s (4×14 Gbit/s) IB Smart IO
|
Supported hot-plug expansion module types
|
12 Gbit/s SAS
|
Maximum number of hot-swappable I/O interface modules per controller
|
2
|
Extended SAS cable length
|
Ordinary Disk Enclosure Cables: 1 m, 3 m and 5 m Optical cable: 15 m High-density disk enclosure Cable: 5 m
|
Redundancy of major components
|
BBU: 1+1 Power Module: 1+1 Fans: 3+1
|
