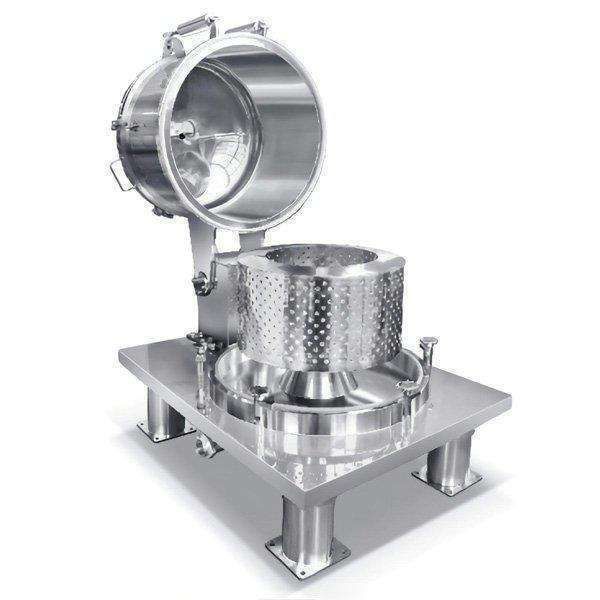

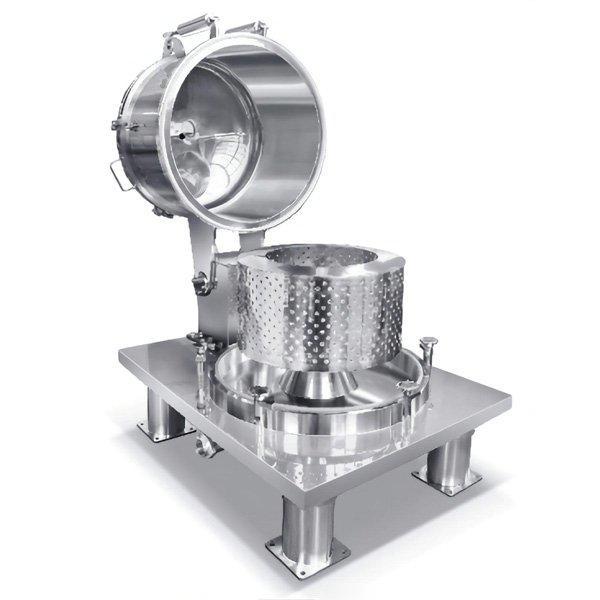

Industrial high-efficiency flat-closed manual top-discharge fully open centrifuge

Product details
Core Components Warranty:1 yearHealth status:new
Supply capacity:15 sets per monthMarketing Type:normal product
place of origin; place of origin:Zhejiang, Chinaweight:600,600
Material:steelCore components:PLC, engine, gearbox, motor, pressure vessel
Dimensions (L*W*H):1550*860*1100Key words:Manual top unloading fully open centrifuge
Mechanical test report:ifProduct Category:centrifuge
brand:royalWarranty:1 year
noise:50dB(A)Main selling point:easy to operate
motor:Brushless Motortype:centrifuge, centrifuge
Applicable industries:Manufacturing Plants, Mechanical Repair Shops, Food and Beverage Plants, Retail, Printing Plants, Construction Works, Otherssize:1550*860*1100
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramVideo external inspection:if
Voltage:2.2kWuse:Work
Showroom location:Canada, Italy, France, Germany, Brazil, Pakistan, India, Russia, Kenya, Argentina, South Korea, Romania, Ukrainestrength:2.2kw,2.2kw
feature:easy to usePackaging Details:export grade packaging
brief introduction
royal product
This product is based on the common loading and unloading model, which realizes full clamshell + large clamshell
Closed operation. Adopt gas/liquid system, one-button automatic control of full flip cover. So that the entire inner cavity has no sanitary dead corners, any corners can be cleaned and verified, and the operation is convenient. Note: F means direct connection, the motor directly drives the drum. This model is suitable for manual and bag centrifuges.
Function list
feature:
1. Simple structure
2. Dead corners are unsanitary
3. Full-width cleaning verification
4. Automatic flip system
5. Optional full explosion-proof system

Product Specifications
Model
RYPSBQ(F)450
RYPSBQ(F)600
RYPSBQ(F)800
RYPSBQ (female) 1000
RYPSBQ (female) 1200
RYPSBQ (female) 1250
Drum diameter [mm]
450
600
800
1000
1200
1250
Effective volume [L]
20
40
100
140
245
330
Maximum load [Kg]
30
70
144
200
350
460
Maximum speed [R/min]
1900
1440
1200
1000
900
970
Separation factor
909
756
645
560
544
658
Motor power [Kw]
2.2
3
5.5
7.5
11
twenty two
Dimensions (L*W*H) [mm]
1550X860X1100
1670X980X113
2410X1460X15
2600x1650x151
2850X1800X15
3000X1800X1800
Weight [kg]
600(550)
840(760)
2000/1900
3200/3000
4000
4500
