HUAWEI EMUA WD2M00EEUM00 EMUB WD2G1EMUB QWF1EMUA B02231GJH Embedded environment monitoring unit

Supplier: Shenzhen Uonel Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Leo yang
Price: $1000.00 / 1 - 9 pieces
$10.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

brand:	Huawei	product status:	stock
Packaging Preview:		payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
power supply:	-48v DC	weight:	5kg
place of origin; place of origin:	Guangdong, China	Certification:	CE FCC RoHS
Supply capacity:	1000 pieces per week	port:	Hong Kong or Shenzhen
model:	EMUA EMUB	Packaging Details:	Export carton packaging according to customer requirements

Product Description

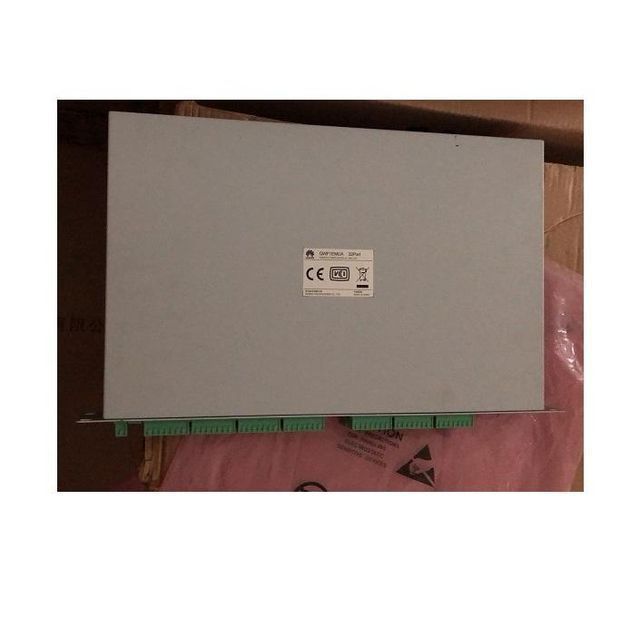

Appearance of Type A EMUA:

Huawei QWF1EMUA EMUA

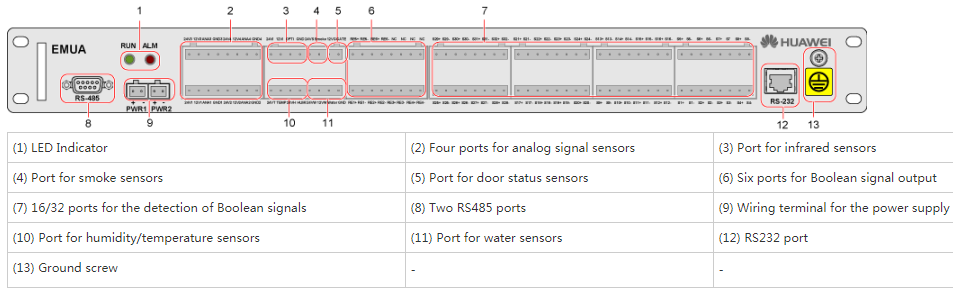

The role of EMUA

power input

EMUA supports input voltage detection. The alarm threshold of the input voltage can be configured on the BTS/NodeB and delivered to the EMUA.

EMUA provides two power input ports to prevent reverse connection.

The EMUA2416 and EMUA2432 support +24 V DC power input with a voltage range of +18 V DC to +36 V DC.
The EMUA4832 supports -48 V DC power input with a voltage range of -36 V DC to -72 V DC.

Environmental monitoring

EMUA provides separate ports for +12 V/+24 V DC current type (4 mA - 20 mA) humidity/temperature sensors. Temperature monitoring range -20^○C [-4^○F] to 80^○C [176^○F].
EMUA provides four ports for monitoring analog signals. Both voltage-type (0 V - 5 V) sensors and current-type (4 mA - 20 mA) sensors can be used. The monitored analog signal type can be configured through the DIP switch settings according to the BTS/NodeB configuration.

Boolean signal monitoring

EMUA provides ports for monitoring Boolean signals. Support dry contact signal and OC signal.

EMUA2416 supports 16 ports for Boolean signal monitoring.
The EMUA2432 or EMUA4832 supports 32 ports for Boolean signal monitoring.

relay node control

EMUA provides six output control ports for relay node type external Boolean signals.

Communication port

EMUA provides two RS-485 ports for communication between EMUA and BTS/NodeB.

If you have any requests or suggestions, please contact me at the information below.

Huawei WD2DUBBPf100 UBBPf1

Huawei WD2DUBBPF0CM UBBPf0

Huawei WD22UBBPem 024CFA1 UBBPem

Huawei UBBPFW1

Huawei QCU1UBRI 030529 UBRI

Huawei WD2DUBBPE200 03057153 UBBPe2

Huawei WD2DUBBPE300 3057154 UBBPe3

Huawei WD2DUBBPE400 03057155 UBBPe4

Huawei WD2DUBBPE600 03057157 UBBPe6

Huawei 03057158 WD2DUBBPE800 UBBPe8

Huawei WD2DUBBPE900 UBBPe9

Huawei WD2DUBBPE101 0305788 UBBPe10

Huawei WD2DUBBPE110 0305788 UBBPe11

Huawei WD2DUBBPE12C 03058245 UBBPe12

Huawei WD22UBBPem 024CFA UBBPem

Huawei WD2DUBBPD900 03022NJR UBBPd9

Huawei WD2DUBBPD600 022HEM WUBBPd6

Huawei WD2DUPPBD500 022HEL UBBPd5

Huawei WD2DUBBPD400 022HEX UBBPd4

Huawei WD2DUBBP0100 022HEG UBBPd1

Huawei UBBPD3 022022HEJ WD2DUBBPD300

Huawei UBBPD8

our service

100% Low Price Guarantee:
Uonel provides high quality products at low wholesale prices
100% Quality Assurance:
All items are original new and genuine.
additionalFree technical support:

Our Huawei expert consultation support is via phone, chat, email or remote login.

100% Money Back Guarantee:
You can exchange or return any product you have purchased from us by contacting our customer service team.

Flexible and secure payment and shipping:
Verified Authorization: Mcafee Secure, VeriSign Secured

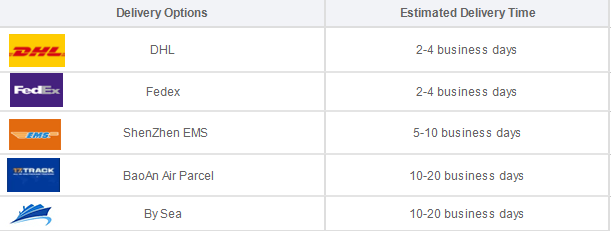

Packaging and Shipping

MOQ: 1 piece

Port: Hong Kong/Shenzhen

Delivery Time: Within 3-10 working days after receiving payment.

Shipping method: express, air, sea

Sample Availability: Yes (Not Free)

Packaging information: carton packaging with original packaging of Huawei/ZTE/Emerson or as discussed
