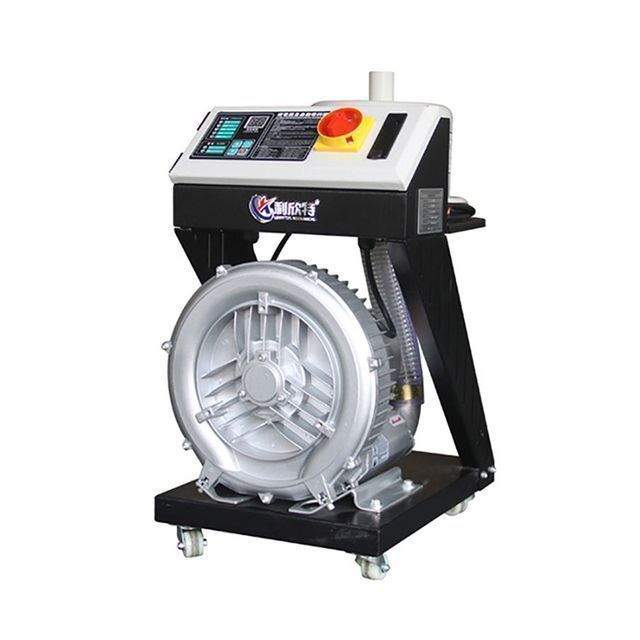

Health status: | new | Packaging Details: | Standard wooden box packing or customized |
Model: | VL-300G | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
usage: | Plastic Particle Conveyor Feeder | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Supply capacity: | 100 sets per week | Showroom location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, Germany, Vietnam, Indonesia, India, Mexico, Japan |

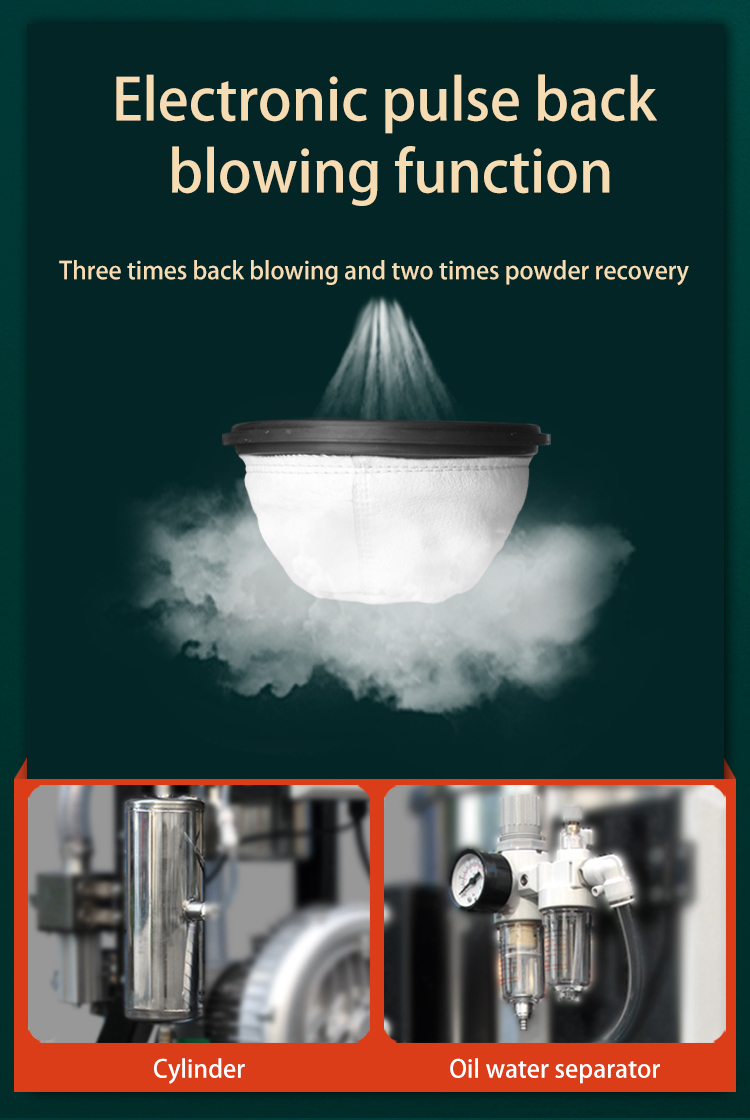

Mechanical test report: | if | Dust collector type: | Automatic reverse cleaning |
Certification: | Chief Executive | Core Components Warranty: | 1 year |

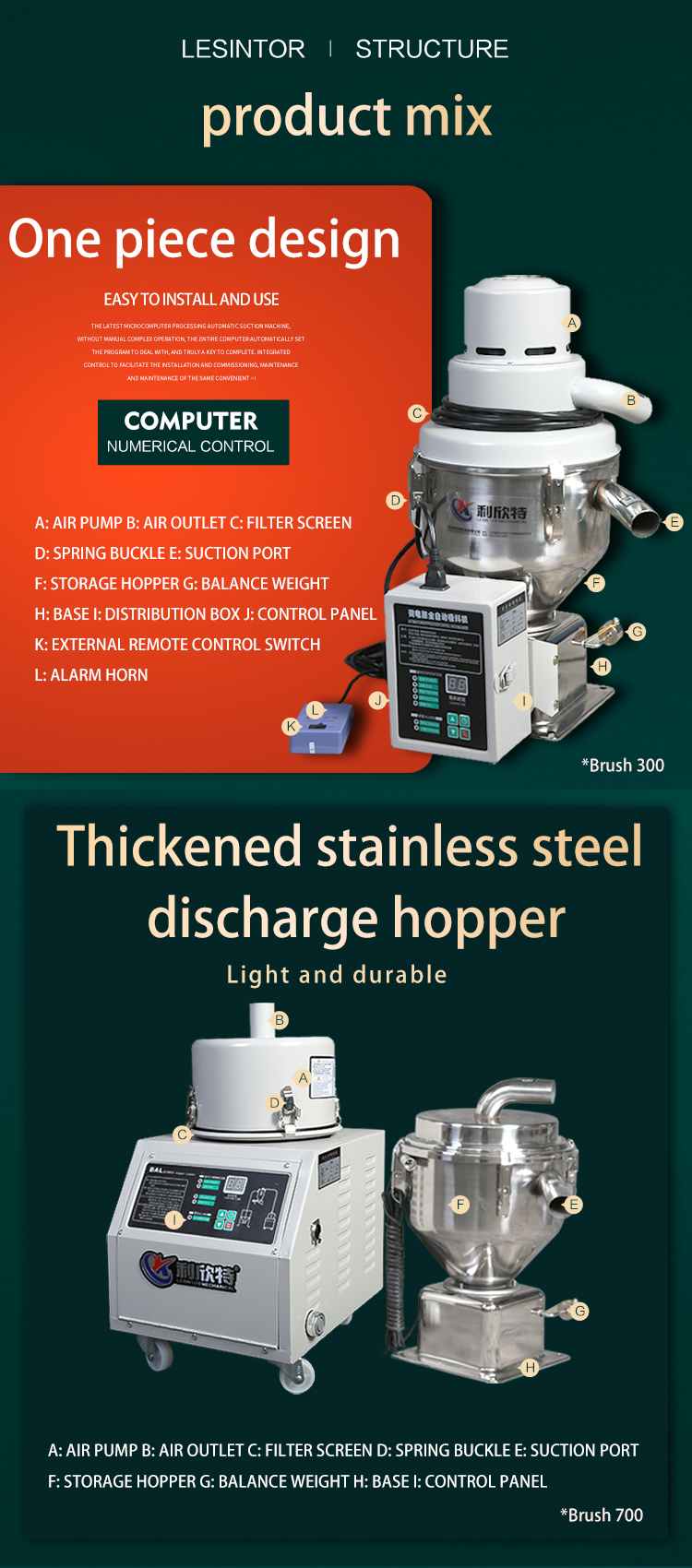

Auxiliary equipment: | Automatic Loader Hopper Loader | product name: | Automatic Vacuum Loader |
Marketing Type: | New Products 2020 | port: | Shanghai or Ningbo |
Dimensions (L*W*H): | 700MM*370MM*500MM | Power (kW): | 2.2 |
After-sales service provided: | Free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, online support, video technical support | type: | carbon brush |
Hopper capacity: | custom made | Local service location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Indonesia, India, Mexico, Russia, Spain, Japan, Australia |
Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies | Warranty: | 1 year |
motor: | Induction/1.1kw/1.5HP | place of origin; place of origin: | Jiangsu, China |
Weight (kg): | 45kg | application: | plastic material loading |
brand: | Lessinto | Video external inspection: | if |
Capacity (kg/hour): | 650 kg/h | Control point: | Extruder output |
Voltage: | 380V or customized | Core components: | motor |
Autoloader: | powder particles |

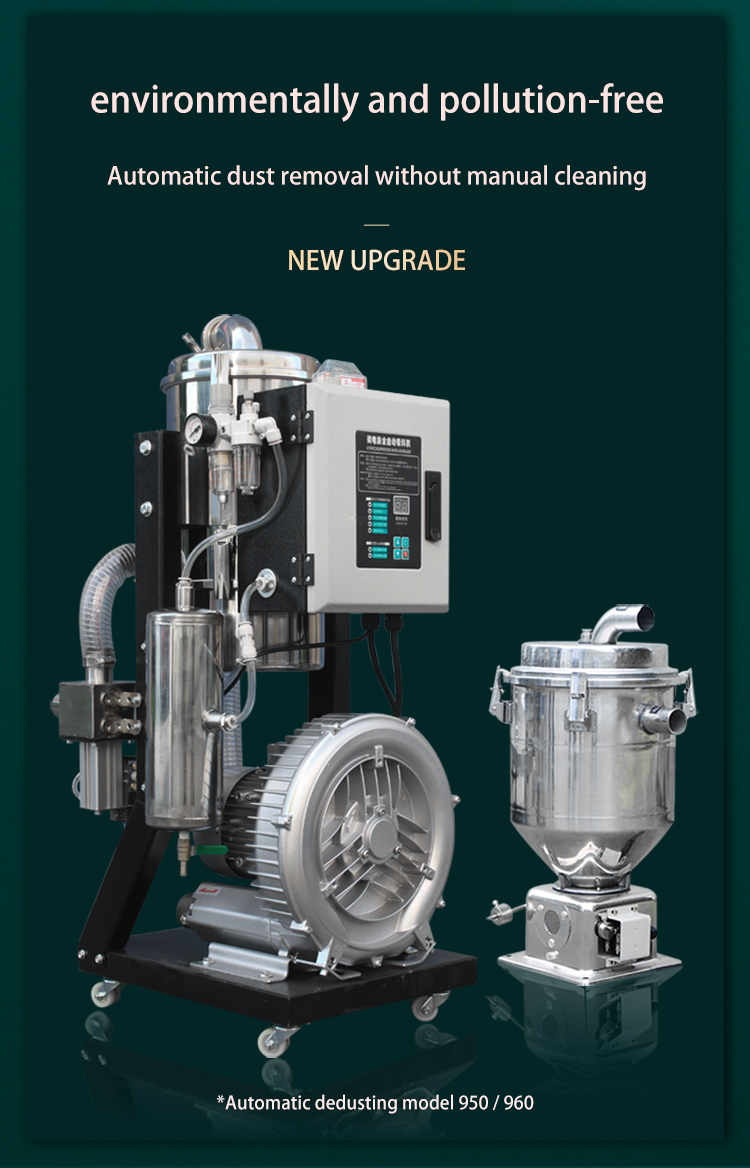

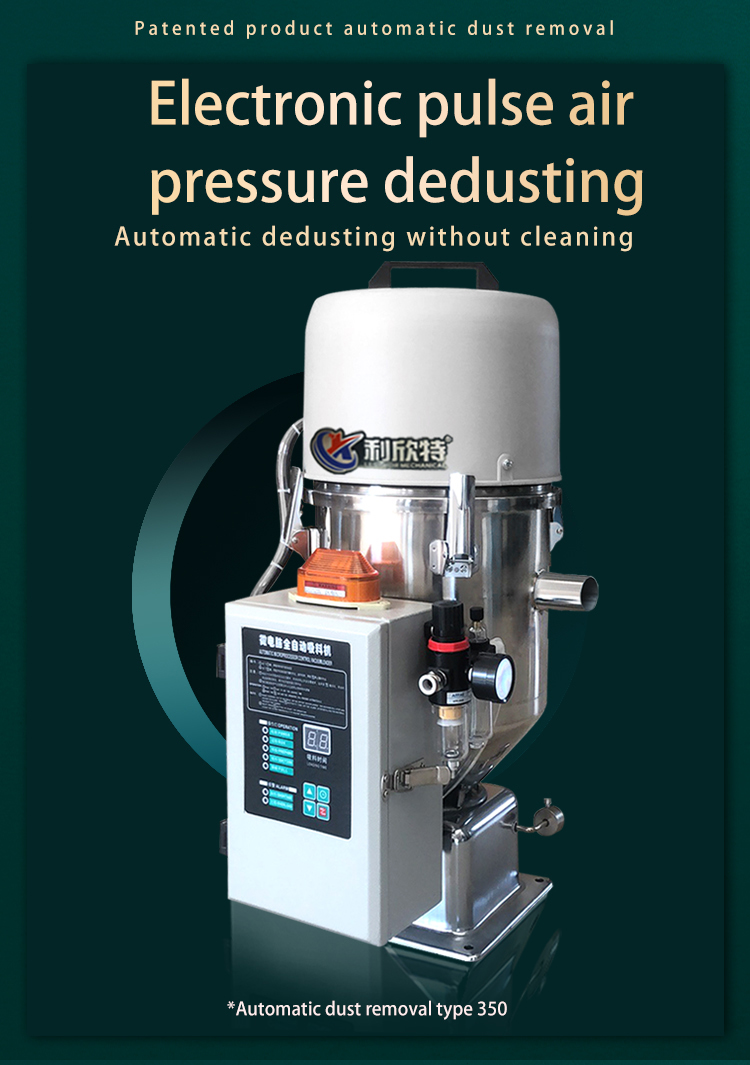

Model | Automatic dust removal 350 | Automatic dust removal 950 | Automatic dust removal 960 |
Motor type | Brush 220V | Inductive 380V | Inductive 380V |
Power(KW) | 1.2 | 1.5 | 2.2 |
Loading capacity (KG/H) | 200-300 | 300-400 | 400-500 |
Filter size (MM) | M185*90H | M188*115H | M188*115H |
Hopper capacity (L) | 20 | 20 | 20 |
Delivery pipe diameter (MM) | 38 | 38 | 38 |
Loader size (MM) | 400*400*700 | 500*450*1050 | 500*450*1050 |
Hopper size (MM) | 400*400*700 | 300*350*570 | 300*350*570 |
Weight(KG) | 18 | 50 | 52 |
Model | 300 | 700 | 800 | 800GE | 800GN | 900 | |||||
Motor type | Brush 220V | Inductive 380V | |||||||||
Motor Specifications | 1100W/1M | 1100W/1M | 1100W/3M | 1500W/3M | 2200W/3M | 2200W/3M | |||||
Loading capacity (KG/H) | 350 | 400 | 450 | 550 | 650 | 650 | |||||
Static wind pressure (mmAq) | 1800 | 1800 | 2400 | 2000 | 2200 | 2200 | |||||
Filter size (MM) | M185*90H | M185*115H | M188*115H | M188*115H | M188*115H | M188*115H | |||||
Hopper capacity (L) | 8 | ||||||||||
Delivery pipe diameter (MM) | M38 | ||||||||||
Loader size (MM) | 550*400*600 | 480*310*430 | 680*370*500 | 700*370*500 | 700*370*500 | 700*370*500 | |||||
Hopper size (MM) | 550*400*600 | 430*440*295 | 430*440*295 | ||||||||
Weight(KG) | 13.5 | 15.5 | 35 | 45 | 45 | 46 |
Model | Loading capacity (L/H) | Electric heating power (KW) | Fan Power(W) | Grade (MM) | Weight(KG) |
20U | 20 | 2 | 90 | 730*575*325 | 18 |
40U | 40 | 3 | 90 | 760*640*390 | 25 |
80U | 80 | 3.9 | 200 | 940*772*472 | 50 |
150U | 150 | 3.9 | 200 | 1210*772*472 | 60 |
300U | 300 | 12 | 400 | 1510*945*695 | 130 |
450U | 450 | 18 | 550 | 1860*1170*920 | 200 |
600U | 600 | twenty four | 1100 | 2800*1300*1050 | 350 |
900U | 900 | 28 | 1100 | 2900*1500*1100 | 370 |
1200U | 1200 | 30 | 1500 | 2900*1800*1200 | 400 |
1500U | 1500 | 40 | 1500 | 3280*1900*1500 | 600 |
2500U | 2500 | 50 | 2200 | 4000*2000*1500 | 700 |
3000U | 3000 | 60 | 3000 | 4200*2400*1900 | 800 |
