Eccentric Drilling Tools With Casing Tube For Water Well Drilling

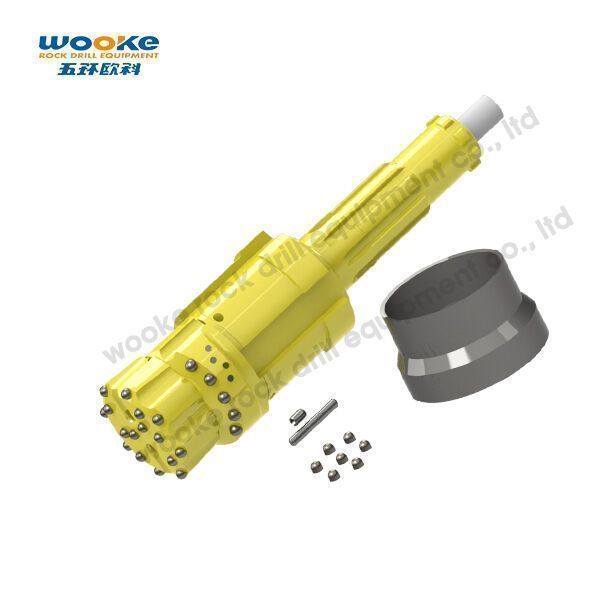

Eccentric Drilling Tools with Casing Tube
Eccentric is the most economical solution because of its ingenious reaming wing the bit is retrievable and can be used at the next hole. This is particularly designed for shallow holes, as is often the case in water well drilling, geothermal wells, and shallow micro-piling work. Odex is ideal for short holes in consolidated overburden.

Eccentric Drilling Tools with casing tube step-by-step:
1. When drilling, the PGZ(Eccentric Drilling Tools) reamer swings out and drills a hole wide enough for the casing tube to slide down behind the reamer.
2. When the required depth is reached, the dill is reversed, and the reamer swings in, allowing the bit to pass through the casing.
3. Casing tube is pulled out directly or fixed at the bottom of the hole by means of cement grout or other ragglutinant.
4. Drilling continues to the desired depth using conventional DTH equipment.

3'' PGZ82-3.5-108/6: shank for TND-IR3.5 / DHD3.5 / TD3.5 hammer
PGZ90-3.5-114/6: shank for TND-IR3.5 / DHD3.5 / TD3.5 hammer
4'' PGZ115-340-142/7: shank for TND-IR340 / DHD340A / TD4 hammer
PGZ115-340-146/8: shank for TND-IR340 / DHD340A / TD4 hammer
5'' PGZ140-350-168/8: shank for TND-IR350 / DHD350R / DHD5 hammer
PGZ145-350-178/9: shank for TND-IR350 / DHD350R / DHD5 hammer
PGZ147-350-183/10: shank for TND-IR350 / DHD350R / DHD5 hammer
6'' PGZ165-360-195/6.5: shank for TND-IR360 / DHD360 / COP64 / DHD6 hammer
PGZ180-360-219/12.5: shank for TND-IR360 / DHD360 / COP64 / DHD6 hammer
PGZ190-360-219/7: shank for TND-IR360 / DHD360 / COP64 / DHD6 hammer
8'' PGZ230-380-273/11.5: shank for TND-IR380 / DHD380 / COP84 / DHD8 hammer
PGZ240-380-273/6.5: shank for TND-IR380 / DHD380 / COP84 / DHD8 hammer
