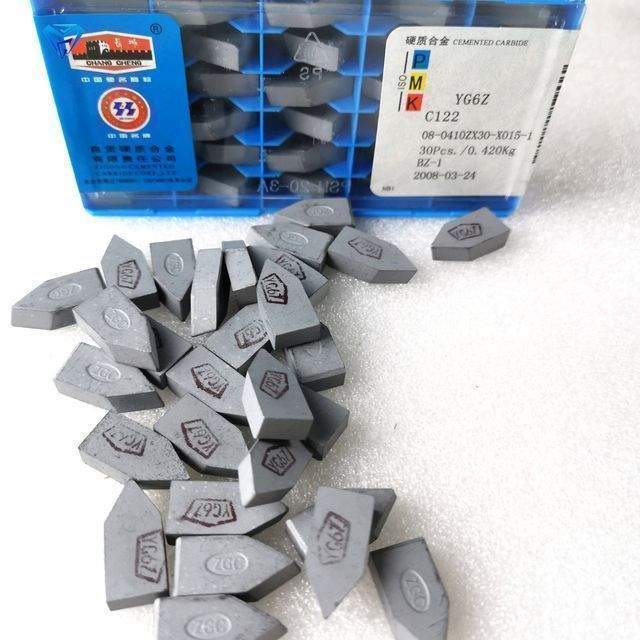

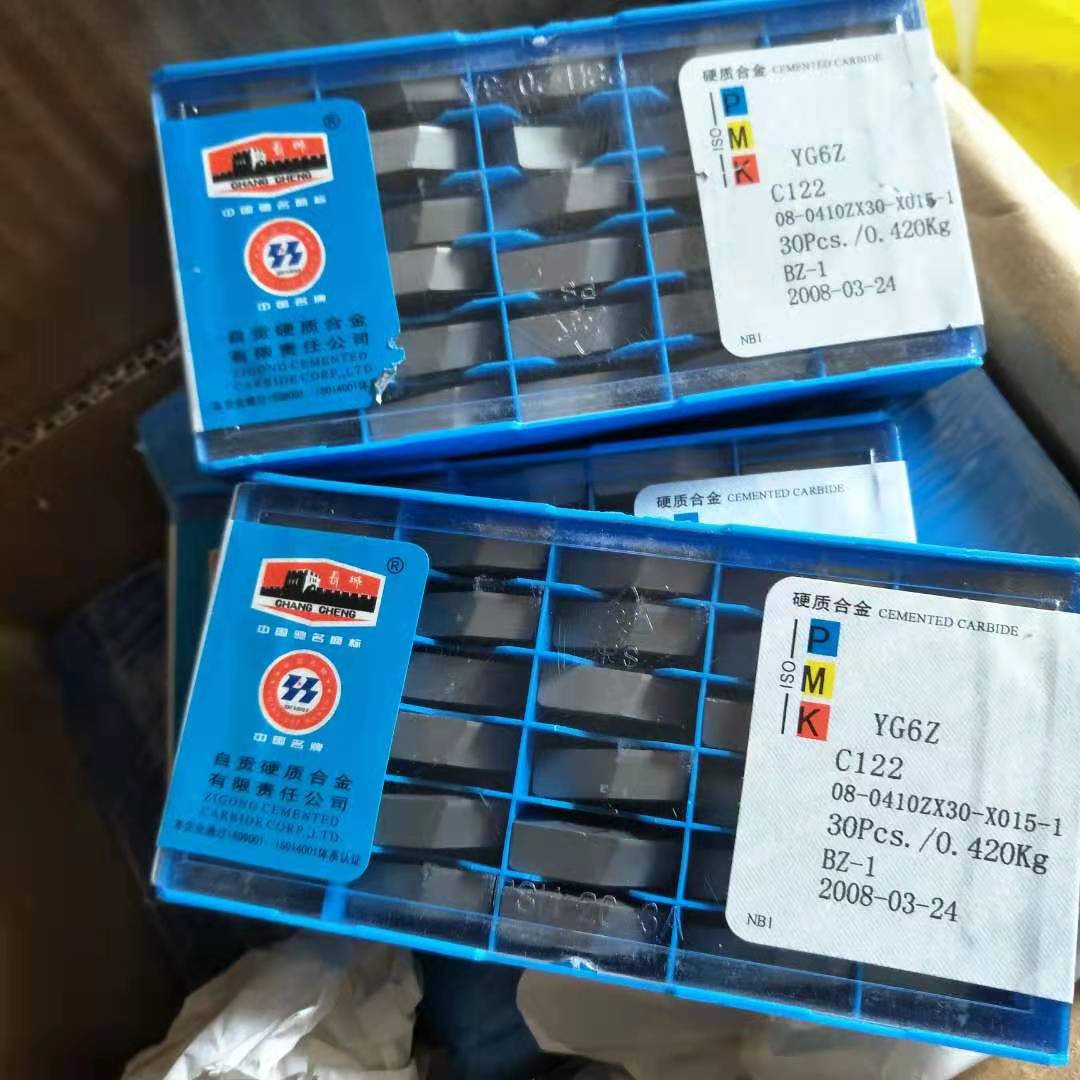

C120/C110/C122/C125 YT15/YG6/YG8/YT14 factory wholesale rough machining cast iron and light alloy carbide tip turning tool cheap

Supplier: Zhuzhou Good Cemented Carbide Co., Ltd.
Region: Hunan, China
Contact: Ms Sunshine Fang
Price: $0.20 /piece
Min. Order: 1 piece

Click here to contact

Product details

hardness:	89.0-93.5HRA	product name:	Diamond CNC Pcd Brazing Tap External Thread Insert Cutting Tools
coating:	No	model:	custom
place of origin; place of origin:	Chinese mainland)	brand:	ZZ good

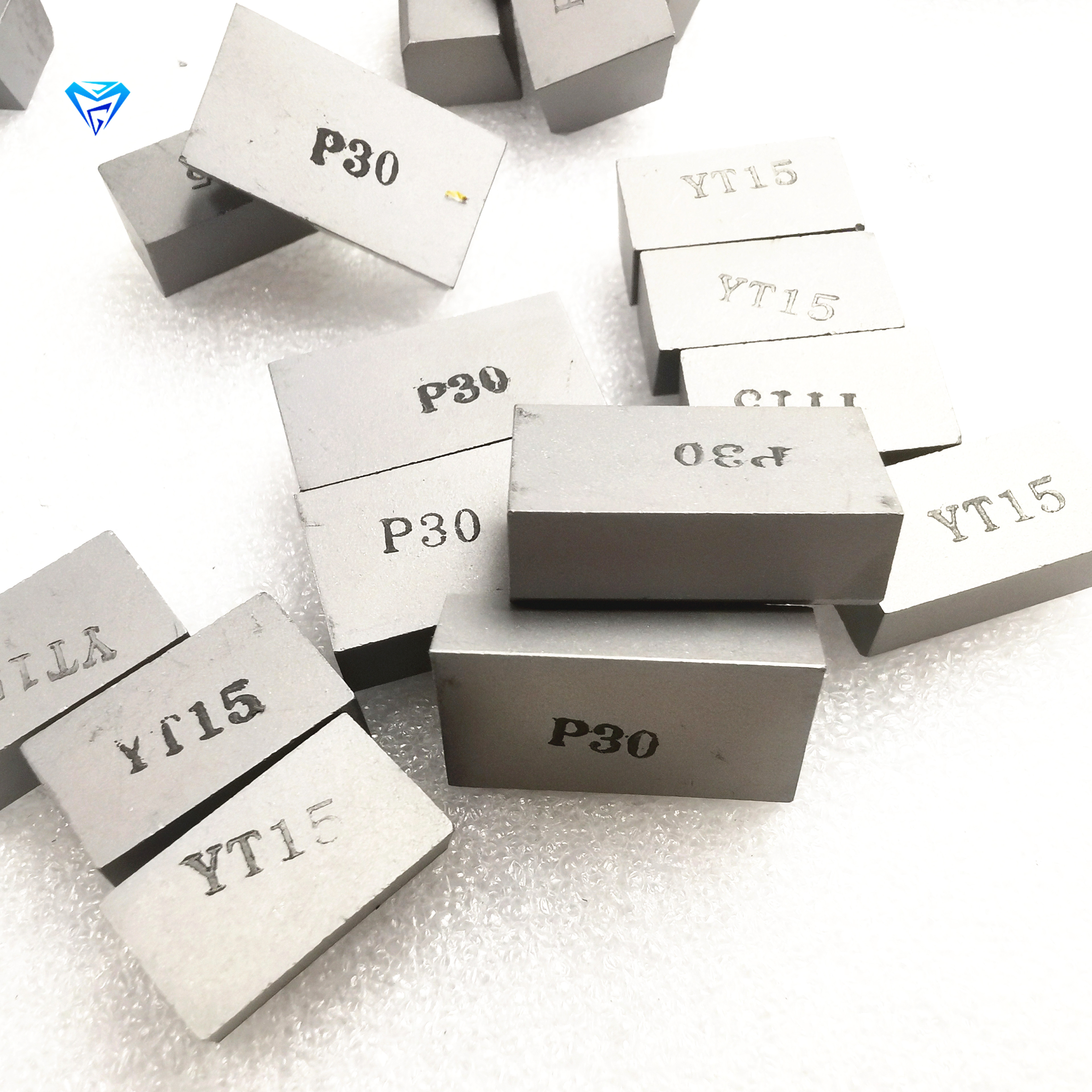

Supply capacity:	10000 kg per month	grade:	YG6 YG8 YT5 YT15 P30 K30 K40 etc.
size:	Standard and customizable	Packaging Details:	Wooden case; export standard packing or according to customer requirements
usage:	Turning Milling Mining Drilling	Components:	WC+CO, 100% Virgin
Certificate:	ISO9001	feature:	Excellent wear resistance and high hardness
Material:	Tungsten Carbide	payment terms:	L/C,Western Union,T/T,MoneyGram
business type:	manufacturer	Trial order:	Yes
port:	Shenzhen, Shanghai, Guangzhou, etc.	pack:	Safety

Quality Tips/k10 Carbide Inserts High Precision China Diamond CNC Pcd Brazing Taps External Thread Inserts Cutting Tools

Product Description

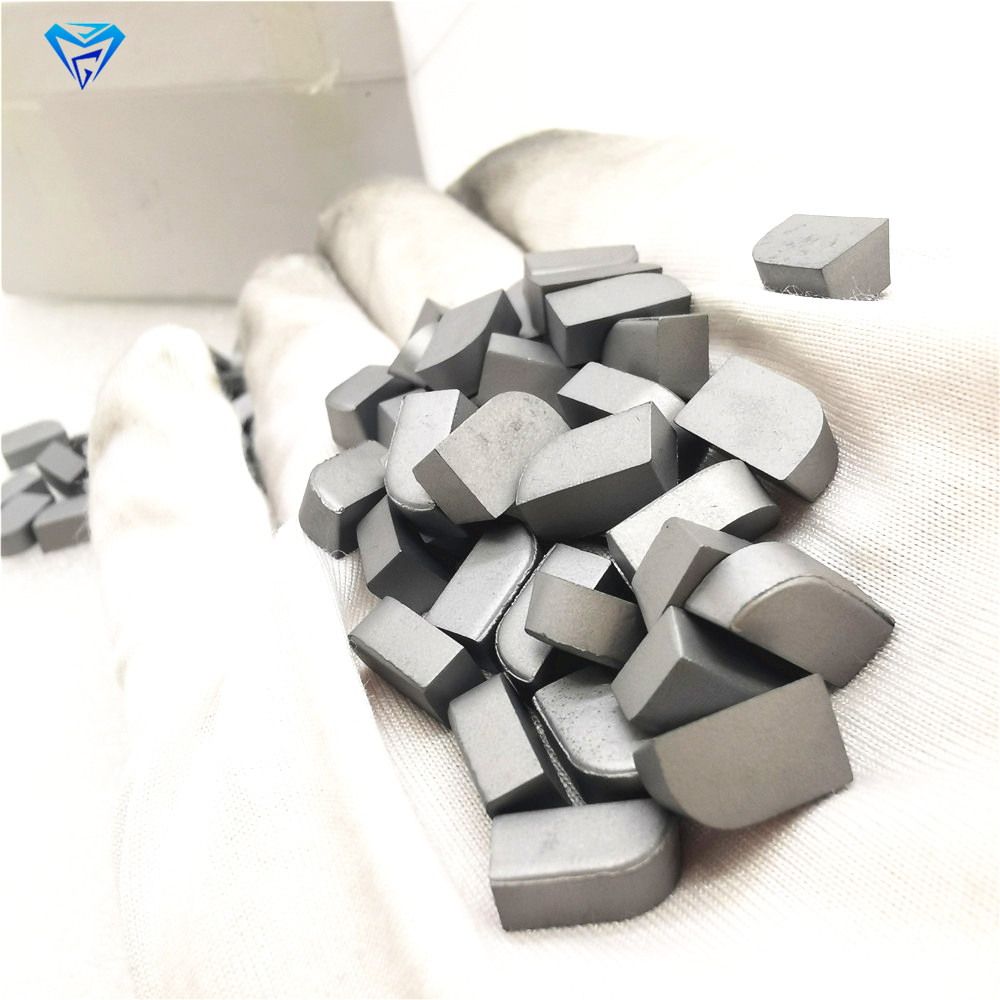

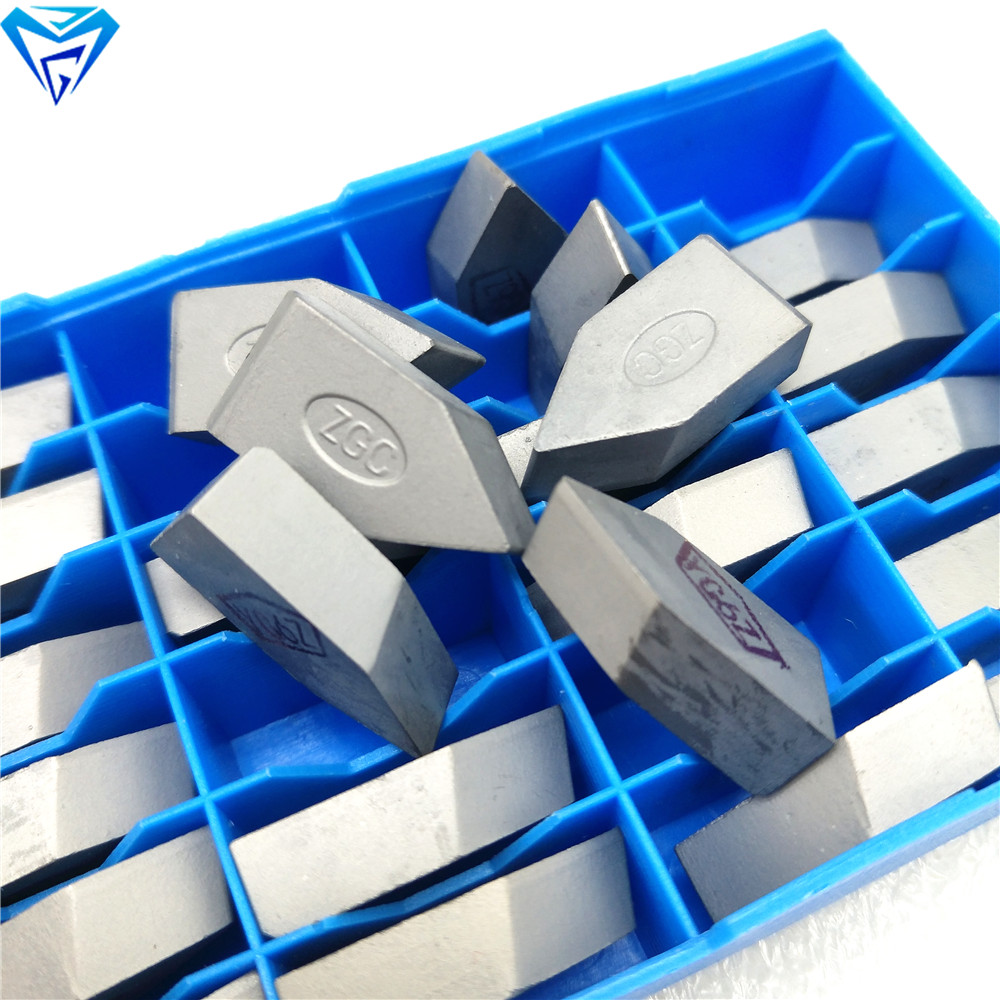

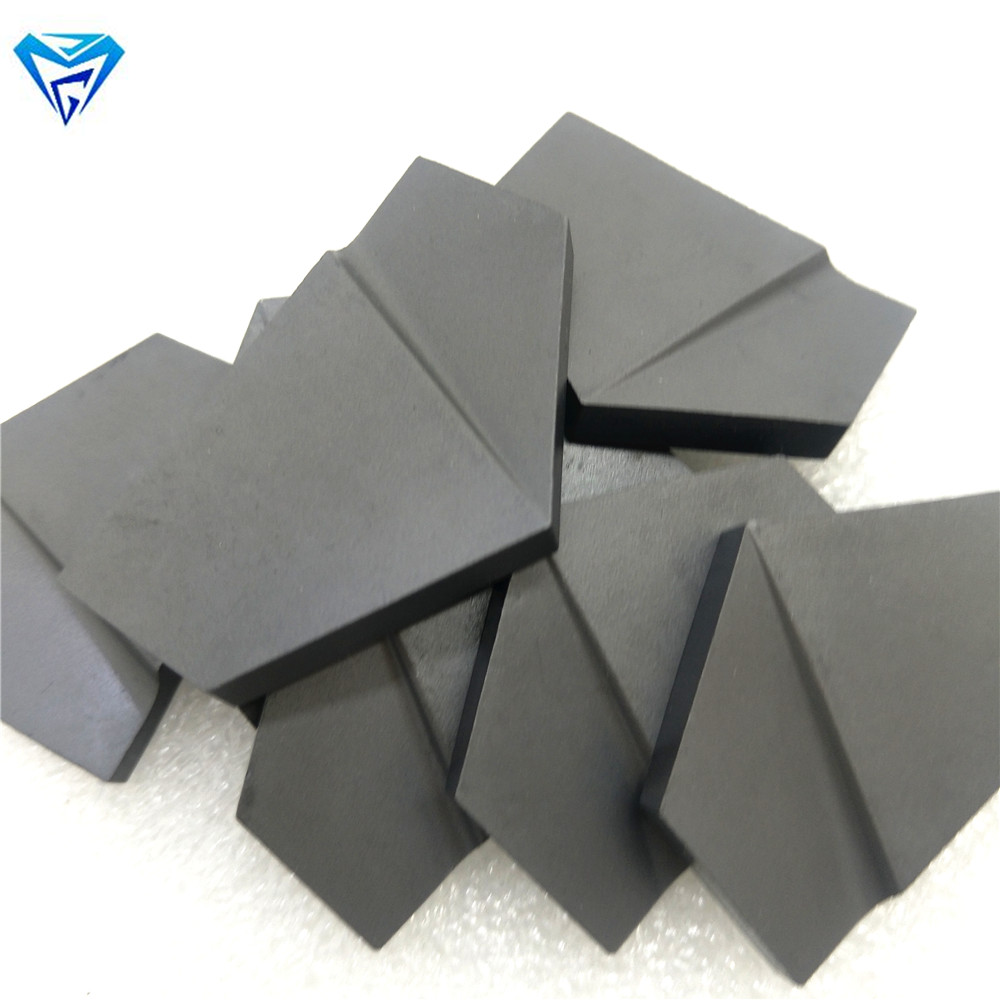

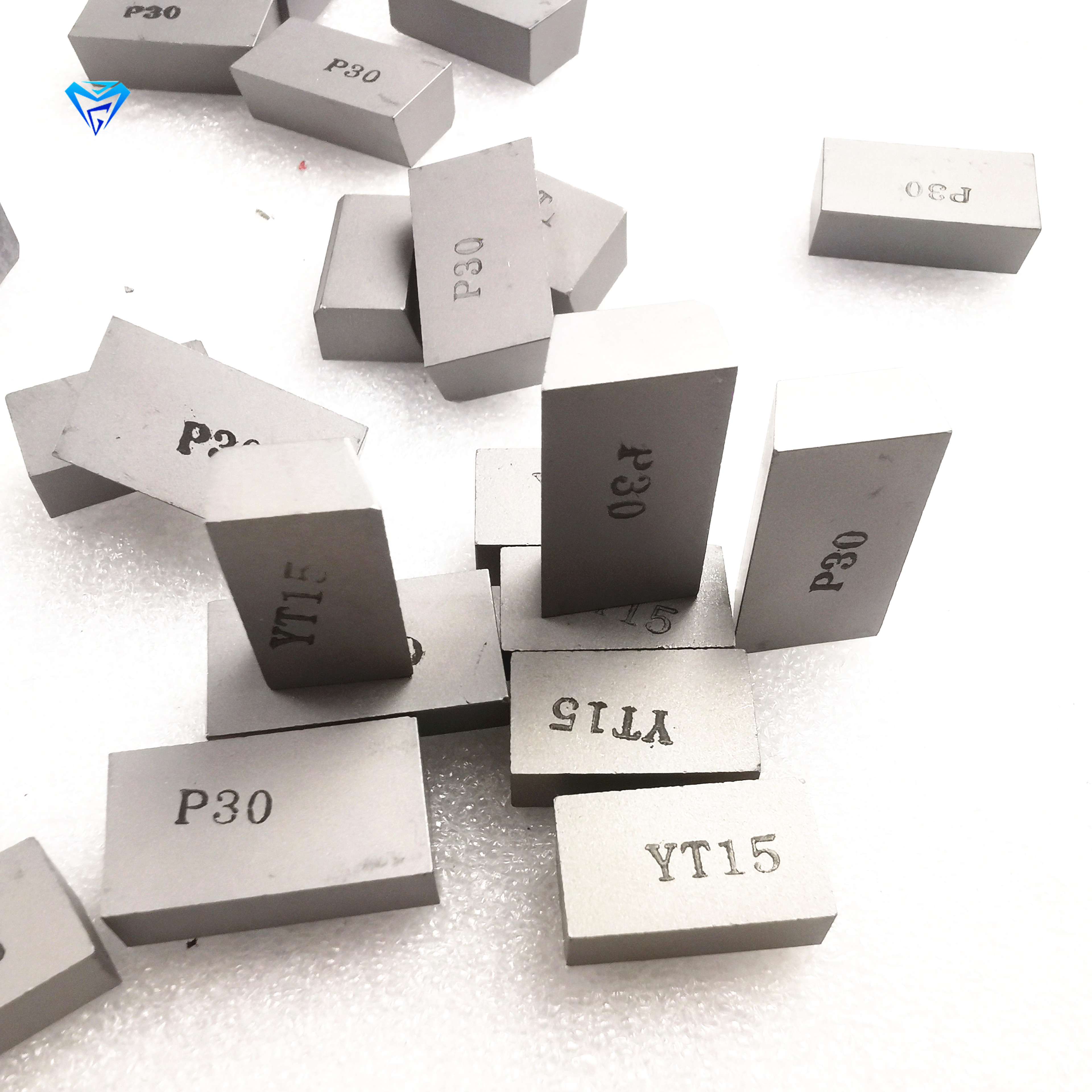

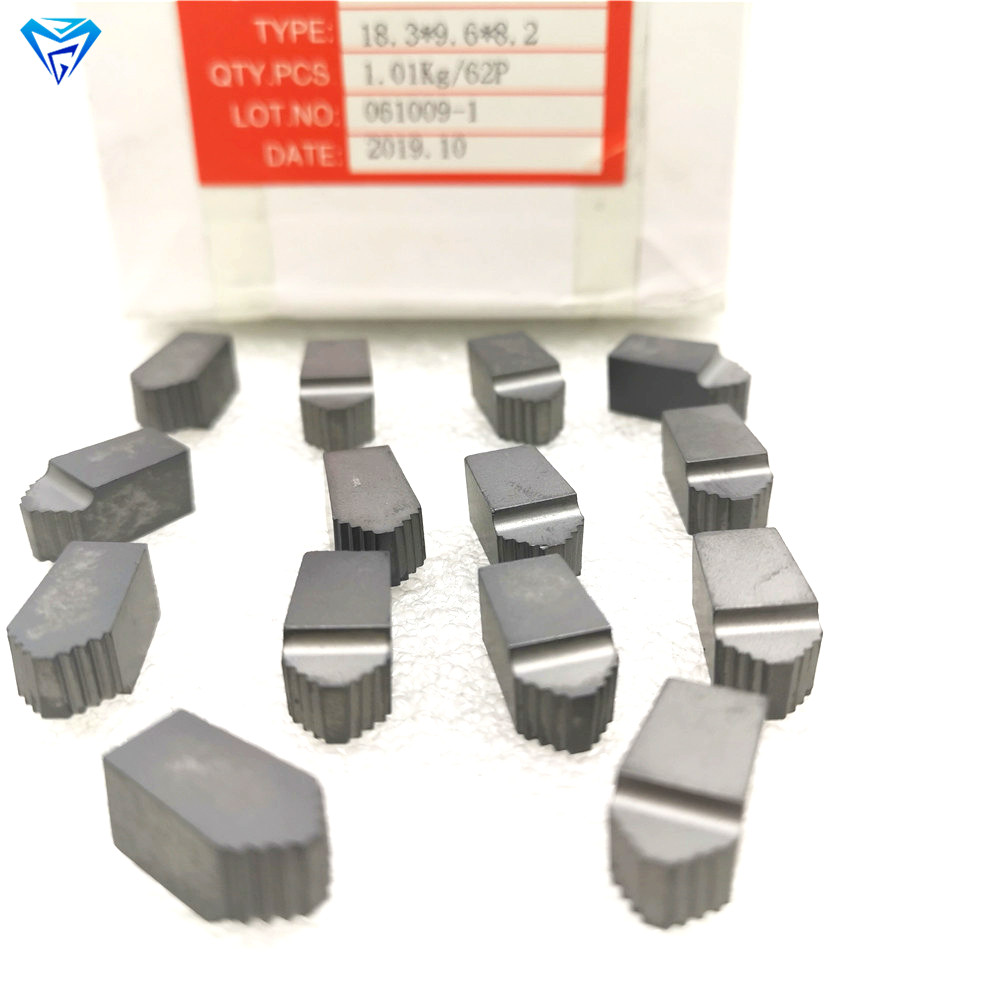

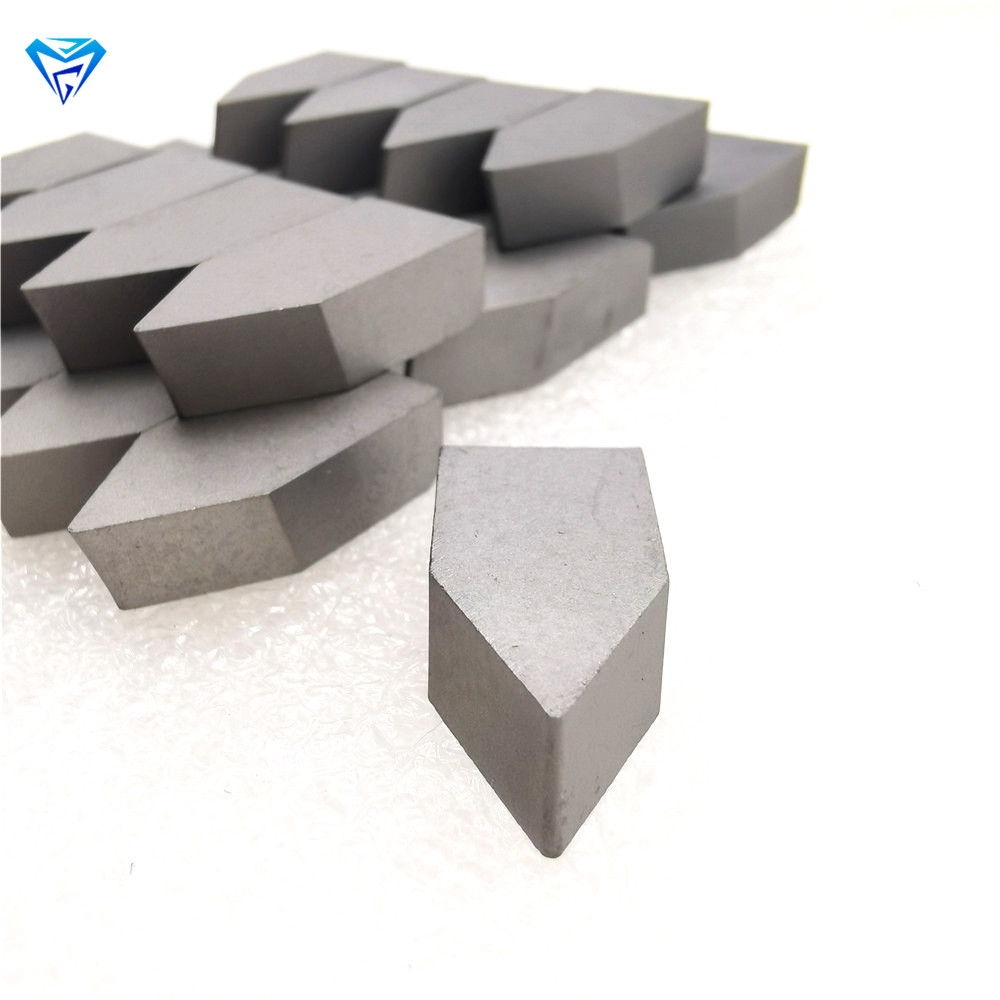

Carbide welded inserts and brazed inserts are used for turning of castings such as cast iron, steel, stainless steel, non-ferrous metals and non-metals.

feature:

1. Top 100% original raw materials
2. Excellent wear resistance
3. High impact resistance
4. Chemically stable
5. Delicate surface treatment, perfect appearance
6. Easier brazing and long service life
7. Precision mold manufacturing, better dimensional accuracy and uniformity
8. Various types and grades are available

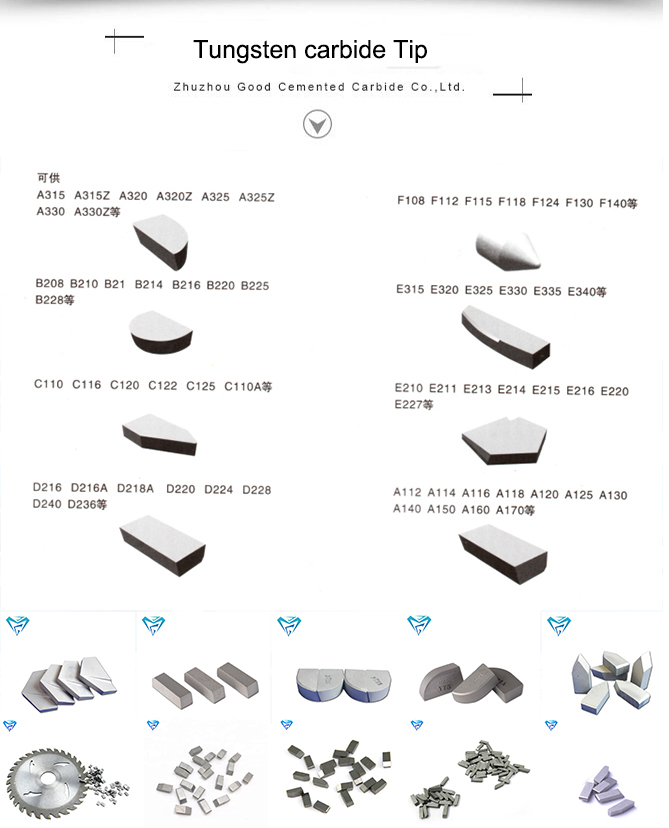

type:

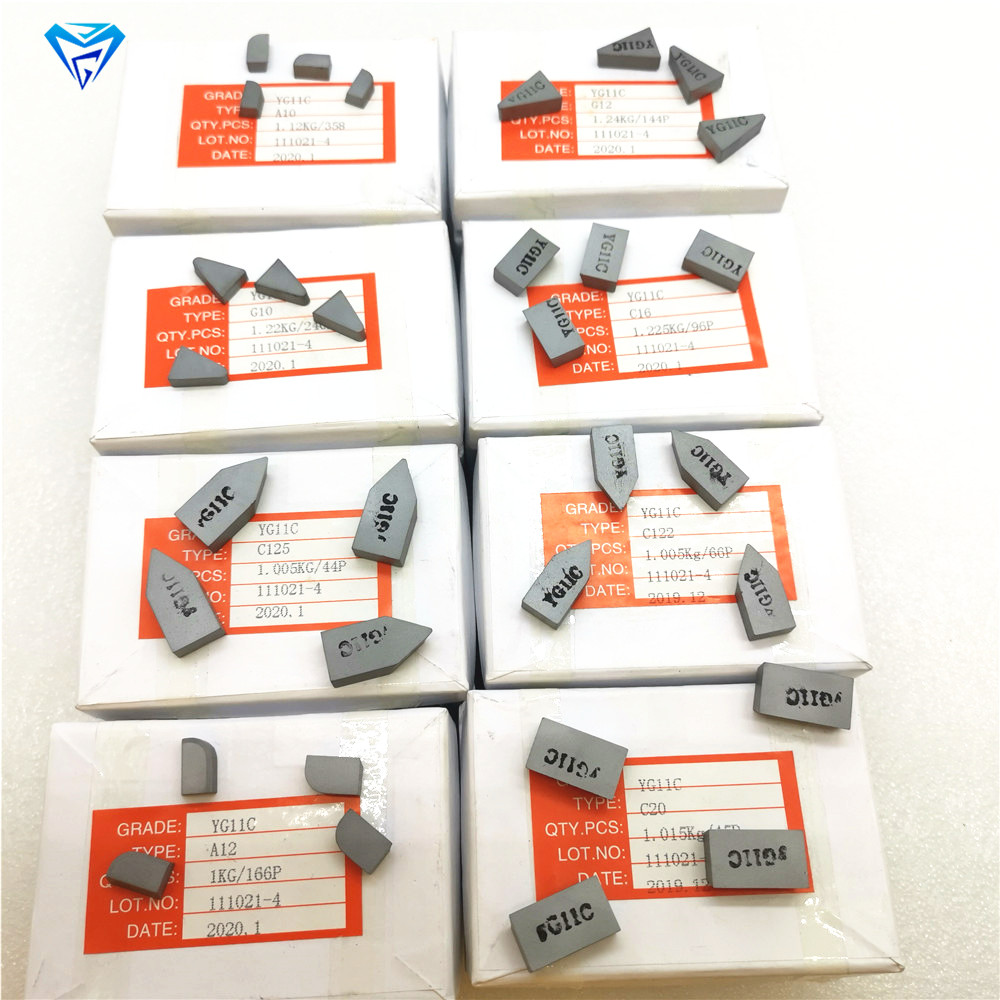

Main models: A&B5 / A&B6 / A&B8 / A&B10 / A&B12 / A&B16 / A&B50 / etc.
C5/C6/C8/C10/C12/C16/C20/C25/C32/C40/C50.
D3/D4/D5/D6/D8/D10/D12.
E4/E5/E6/E8/E10/E12/E16/E20/E25/E32/etc
F10 / F13 / F 16 / F20 / F25 / F60 / etc.

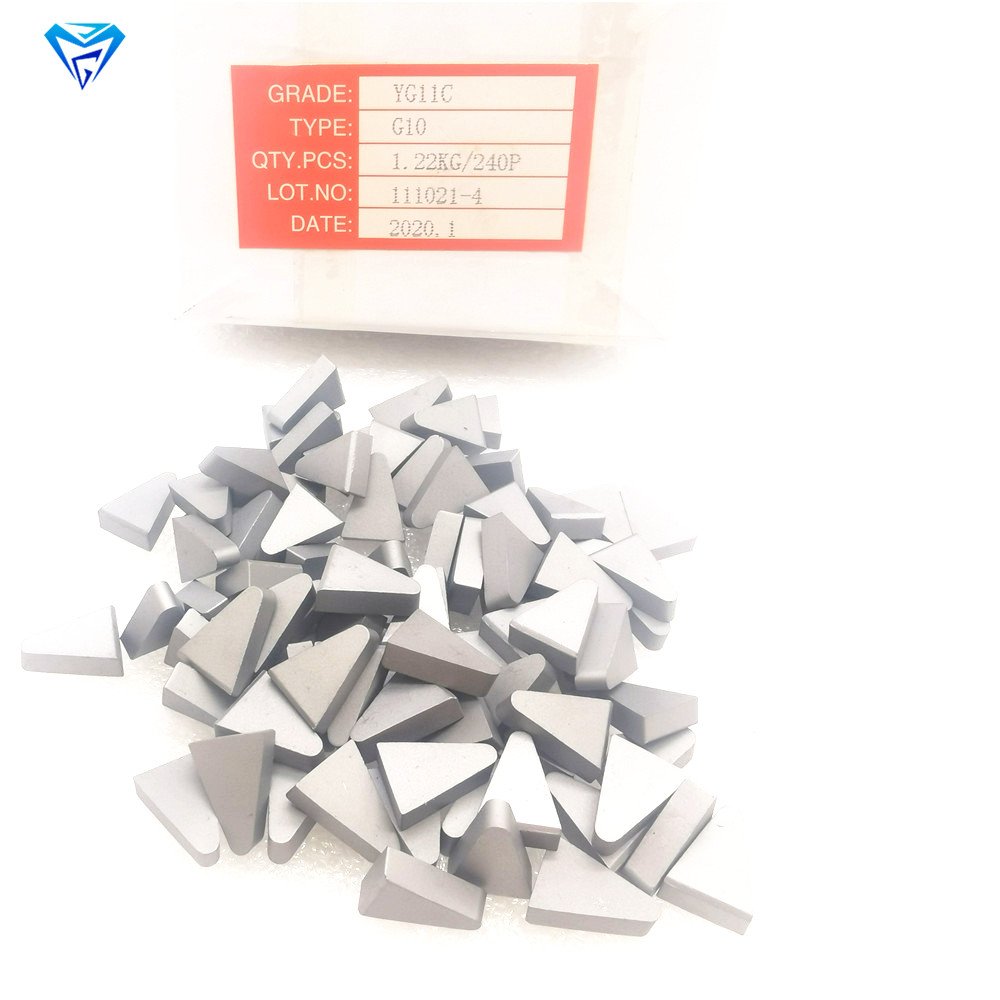

G8/G10/G12/G16/G20/G25/G30.
K110/K112/K114/K116/K118/K120/K122/K124/K126.
K030B/D, K032B/D, K034B/D, K036B/D, K038B/D, K040B/D, K044B, K046B, etc.

Other types, sizes and custom designs are available.

Some grades of tungsten carbide

International Organization for Standardization	grade	density g/cc	hardness Not less than HRA (high pressure)	TRS not less than (MPa)

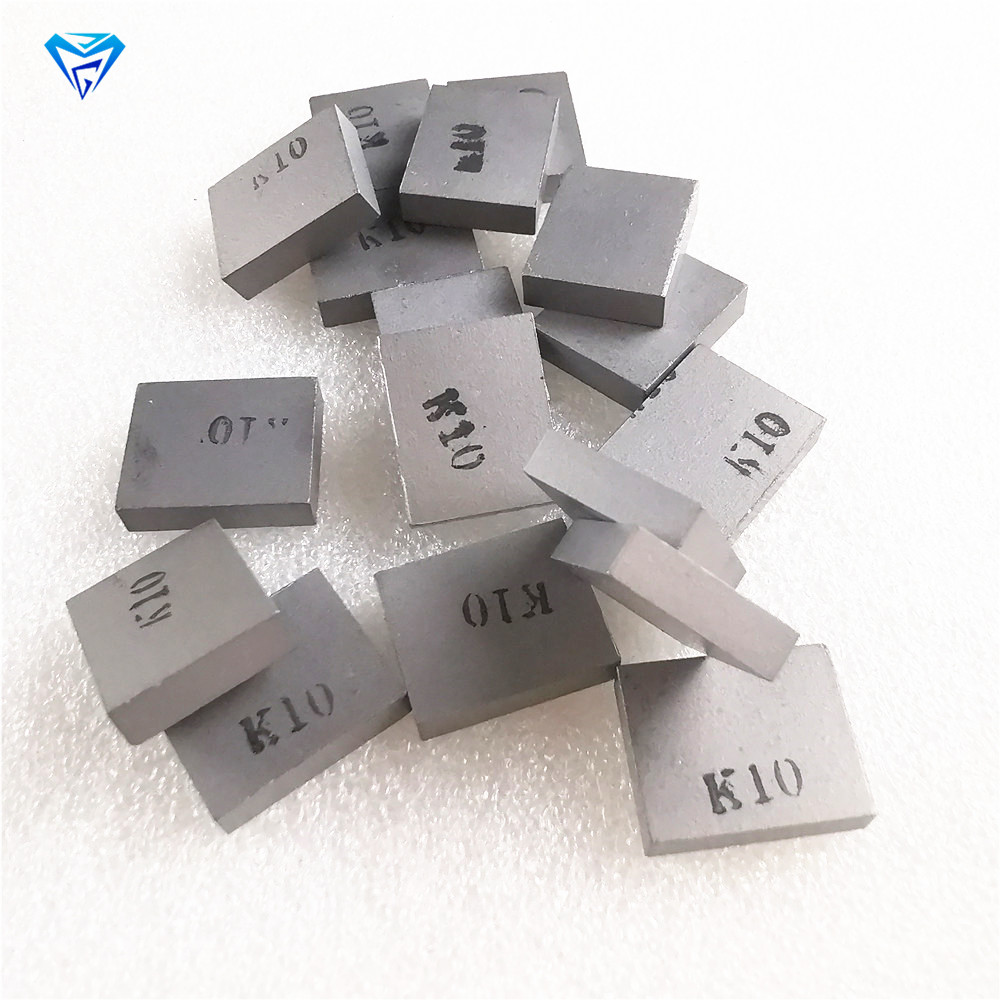

K10	YG6A	14.7	91.5	1510
K10	YG6X	14.8	91	1560
K15	YG6	14.9	89.5	1670
K20	YG8	14.6	89	1840
M10	YW1	13	91	1290
M10	YW3	12.9	92	1390
M10	YW4	12.3	92	1390
M20	YW2	12.9	90.5	1460
P10	YT05	12.6	92.5	1260
P10	YT15	11.3	91	1300
