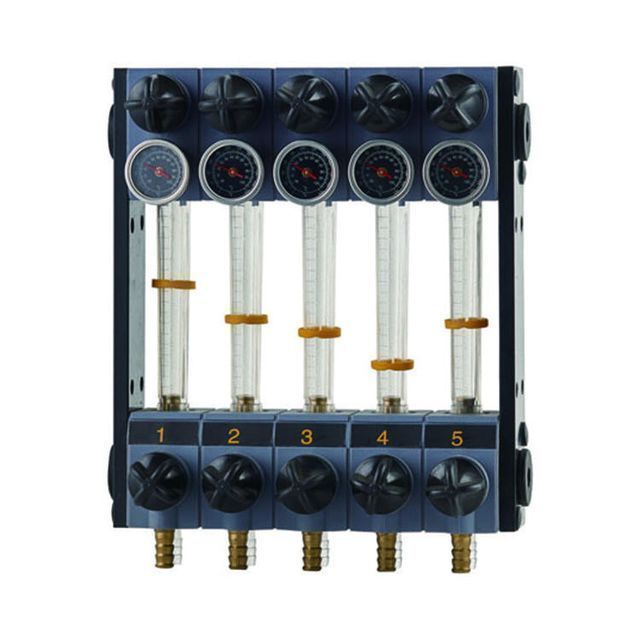

Water Pipe Cooling Conveyor Diverter Injection Molding Machine Water Distribution Manifold Injection Molding Machine

Supplier: Ningbo Beilun District Yongcheng Machine Tool Accessories Factory
Region: Zhejiang, China
Contact: Mr bo
Price: $256.00 / 1 - 10 pieces
$244.00 / 11 - 50 pieces
$232.00 / >=51 pieces
Min. Order: 1 piece

Click here to contact

Product details

Health status:	new	place of origin; place of origin:	Zhejiang, China
Core Components Warranty:	Not available	color:	Black
Main selling point:	multifunctional	Dimensions (LWH):	324015
payment terms:	letter of credit, wire transfer	Video external inspection:	if
product name:	Cooling water diverter	Marketing Type:	new
Material:	Stainless steel	application:	Metal
Applicable industries:	Manufacturing Plants, Mechanical Repair Shops, Energy & Mining	Packaging Details:	Carton
Screw Design:	Plasticizing extruder single screw barrel	Weight (kg):	4.8
Warranty:	unavailable	Core components:	Cooling water diverter
brand:	Yongcheng	Mechanical test report:	if
Showroom location:	not any

Product Description

Model Description:

Scope of application: Small and medium-sized laminating machine.

Technical features: flow rate 0-80/min; Standard: 3/8 pipe or 1/2 pipe molded brass sleeve ∅12mm, can use ∅10, ∅12 quick connector. Please read this manual carefully before using it for the first time to avoid personal injury and equipment damage due to improper operation. This product is suitable for mold cooling of various plastic molding equipment and die-casting machines with cooling temperature less than 80℃ and pressure less than 8bar. The specific standards are as follows:

temperature	greatest pressure
40℃	8bar
60℃	6bar
80℃	4bar

Note: 1. When the cooling water temperature exceeds 70℃, do not touch the shunt to avoid burns; 2. Please clean or repair the shunt under cooling and no water pressure.

Installation Precautions:

The size of the main inlet and outlet of this diverter is G3/4", and the length of the matching thread does not exceed 10mm. According to actual needs, you can choose left or right to install. Please pay attention to the 0-shaped drawing when taking over. The water pipe used to connect the mold should ensure its temperature resistance (above 80℃) and pressure resistance (above 8bar).

If you find that there is dirt inside the diverter, please clean and maintain it in time; 1. Clean (disassemble) the water gauge tube - turn off the water source - loosen the water gauge tube (turn the tube counterclockwise to disconnect the tube from the upper seat, and pull the tube out from the bottom ) -Clean the watermark tube with a cleaning brush -Replace the O-ring (in the upper seat position, fit with the inner wall of the tube) -Fix the watermark tube (the method is the opposite of loosening) 2 Replace the bad control valve - Turn off the water supply - Use two screwdrivers Pry up the valve handle (single word) - Loosen and remove the control valve with a wrench and clean the valve seat threads - Replace with a new control valve (new 0-ring is recommended) - Hit the handle with a wooden hammer to reset
