Warranty: | 12 months; | Brand Name: | bonny; |
Input Speed: | 500-3000RPM; | Gear ratio: | 3,4 ... 5.000; |
Rated Power: | 20-450KW; | Heat treatment: | Quenching and carburising; |
Port: | Ningbo, China; | Gearing Arrangement: | Planetary; |
Place of Origin: | Zhejiang China (Mainland); | Output Torque: | 1000 ... 1.100.000 Nm; |
Payment Terms: | L/C,T/T,Western Union; | Supply Ability: | 1000 Set/Sets per Month; |
Skype: | kemercathy; | Delivery Detail: | Shipped in 30 days after payment; |
Model Number: | BL300 series; | Packaging Detail: | plywood case; |
Model | BL300 Series |
Replace for | Brevini ED, ET, EQ, EM,EC and EL series Bonfiglioli 300 series Dinamicoil RE, RA series Reggiane Riduttori RRseries |
Ratio | 3.4-5000 |
Output Torque | 1000-450000N.m |
The installation and overall dimension of planetary gearboxes are strictly designed in accordance with Italy and American manufacturers, so they can be completelyinterchangeable with Brevini ED, ET, EQ, EM, EC and EL series, Bonfiglioli 300 series and Dinamicoil RE, RA series on performance and connection dimensions.They are the ideal product to replace those Italian products.
Features
1. Gear Unit Version:
in line or right angle (with screw bevel pair Gleason)
2. Output Configuration:
Foot and flange mounted
3. Output shaft:
solid with key, splined, splined hollow, hollow shaft with shrink disc
4. Gear Unit Input Configurations:
IEC-normalized Motor Adaptors or Solid Input Shaft
5. Main Brake Motor Features:
DC and AC brake
Hydraulic Brake:
Fast Braking and/or brake releasing through
6. Mounting dimension is available on request.
7. Brake, balance valve, shuttle valve and the distributor which can integrate all kinds of function valve are also available on request.
Type | Rated torque (Nm) | Rated power (Kw) | Input speed (Max rpm) | Ratio range for Inline gear | Ratio range for Right angle gear | Ratio range for Combined withworm gear | Design |
BL300 | 1000 | 20 | 3000 | 3.3-2700 | 7-800 | 400-9000 | A |
BL301 | 1750 | 30 | 3000 | 3.3-2700 | 7-800 | 400-9000 | A |
BL303 | 2500 | 40 | 3000 | 3.6-2900 | 9-900 | 400-9000 | A |
BL305 | 5000 | 60 | 3000 | 3.6-2900 | 9-900 | 400-9000 | A |
BL306 | 8500 | 75 | 2500 | 3.7-2900 | 9-900 | 400-9000 | A |
BL307 | 12500 | 100 | 2500 | 3.4-2500 | 13-800 | 400-9000 | A |
BL309 | 18500 | 130 | 2500 | 3.4-2500 | 13-800 | 400-9000 | B |
BL310 | 25000 | 150 | 2000 | 3.8-2500 | 40-900 | 400-9000 | B |
BL311 | 35000 | 180 | 2000 | 4-2200 | 18-800 | 400-9000 | B |
BL313 | 50000 | 200 | 2000 | 4-2200 | 18-800 | 400-9000 | B |
BL315 | 80000 | 250 | 1500 | 4-2000 | 70-900 | 400-9000 | B |
BL316 | 105000 | 270 | 1500 | 4-2000 | 50-600 | 400-9000 | B |
BL317 | 150000 | 300 | 1000 | 4-1900 | 70-900 | 400-3000 | B |
BL318 | 200000 | 340 | 1000 | 4-1100 | 200-700 | 400-9000 | B |
BL319 | 300000 | 380 | 500 | 4-1400 | 300-800 | 1000-9000 | B |
BL321 | 450000 | 450 | 500 | 4-1100 | 300-800 | 1000-9000 | B |
Meanwhile, we can also design and manufacture planetary gearbox according to your requirements.

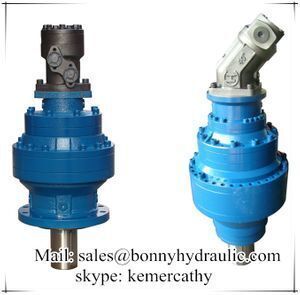

Product Picture for reference

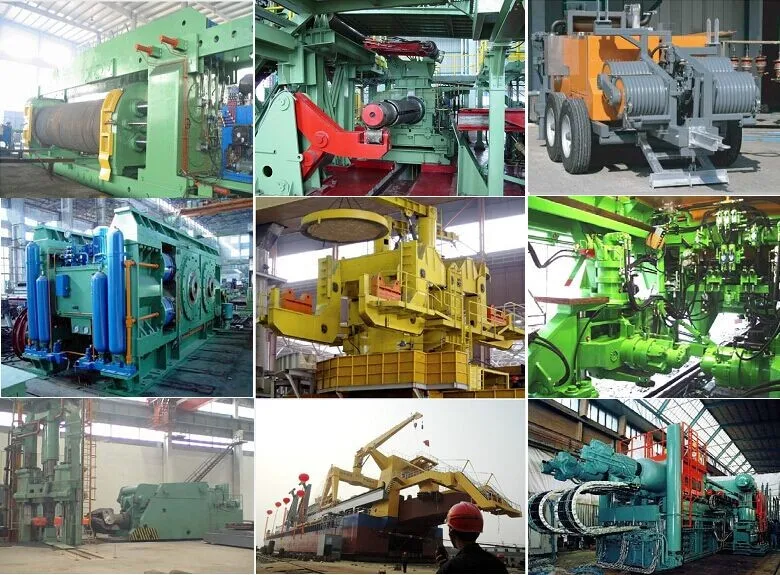

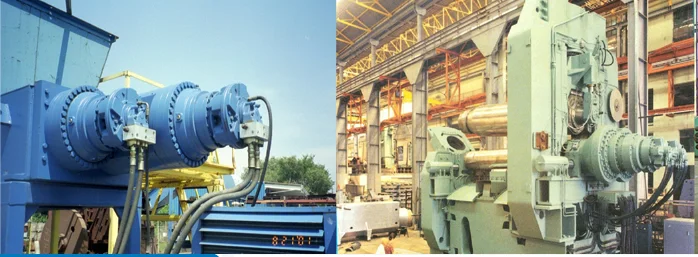

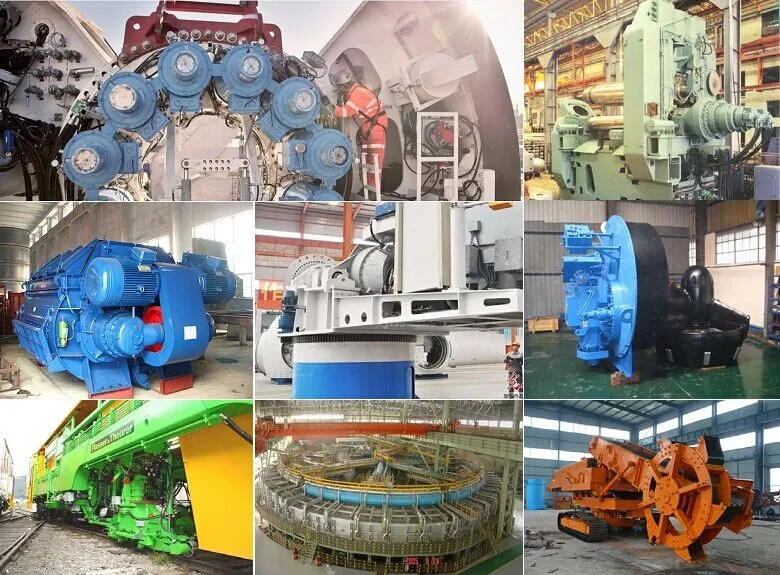

Application
