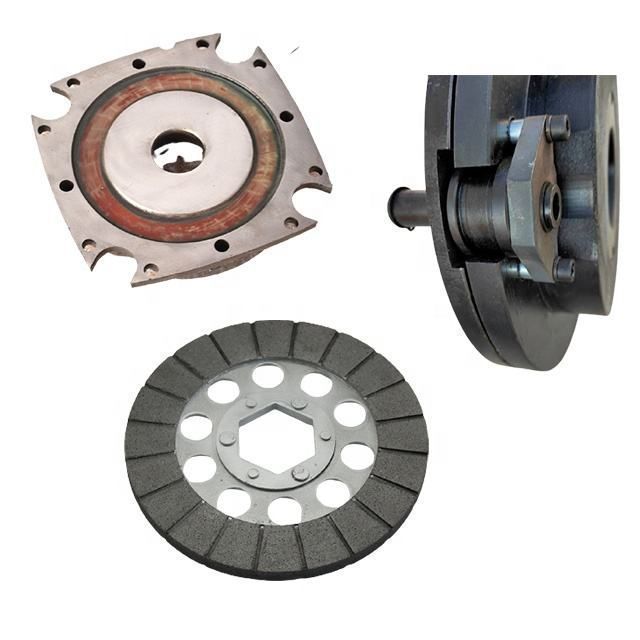

Construction Passenger Hoist Brake Disc Assembly

Supplier: Beijing Go Higher Construction Machinery Co., Ltd.
Region: Beijing, China
Contact: Ms Star Yang
Price: $15.00 /set
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services
After-sales service provided:	Video technical support, online support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services	Voltage:	220V/380V/415V
Unique Selling Points:	High operating efficiency	Packaging Details:	Spare parts carton complete set of suspended platform steel pallet;
custom made:	acceptable	Health status:	new
Loader Weight:	1T/2T/3T/4T	Mast part:	6506501508(mm) Weight: 146Kg Q345
Lifting speed:	high load moment	Model:	SC200/200, SC300, SC100/100
Supply capacity:	1000 sets per month	Motor Power:	3*11kw
Local service location:	not any	Dimensions (LWH):	31.52.5
place of origin; place of origin:	Beijing China	Core Components Warranty:	3 years
color:	optional	Maximum lift height:	400M
Showroom location:	not any	Core components:	engine
Applicable industries:	Hotels, Building Materials Stores, Mechanical Repair Shops, Manufacturing Plants, Construction Engineering, Energy and Mining, Others	Marketing Type:	normal product
application:	building construction, bridge	electronic system:	Schneider Products
brand:	Gog	Surface treatment:	Powder Coating/Hot Dip
Warranty:	3 years	Mechanical test report:	if
Key words:	SC200 200 Construction Lift	Rated load capacity (kg):	2000
Video external inspection:	if	port:	Qingdao/Tianjin/Shanghai

detailed picture

drive

Drive System

drive motor assembly

Function list

Name	Model	Rated load(kg)	Lifting speed	Type of safety device	Motor power (kw)	Inverter power (kw)
double cage	SC200/200	2*2000	0~36m/min	SAJ40-1.2	2311	2*37
				2*2000	0~40m/min	SAJ40-1.2	2211	2*37
				2*2000	0~53m/min	SAJ50-1.4	2213	2*45
				2*2000	0~63m/min	SAJ50-1.4	2311	2*75
				2*2000	0~96m/min	SAJ50-2.0	2318.5	2*110
single cage	SC200	2000	0~36m/min	SAJ40-1.2	3*11	37
				2000	0~40m/min	SAJ40-1.2	2*11	37
				2000	0~53m/min	SAJ50-1.4	2*13	45
				2000	0~63m/min	SAJ50-1.4	3*11	75
				2000	0~96m/min	SAJ50-2.0	3*18.5	110

1. Spare parts brands are optional;
2. The working height can be adjusted according to customer needs.
3. The voltage conforms to different national standards
4. Mast part:1) Steel 2) Galvanized

5. Mast section size: 650*650*1508, 1508*200

Product configuration
