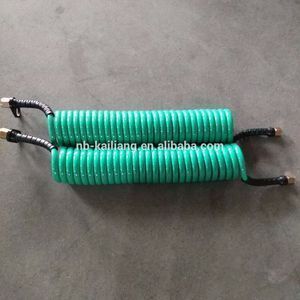

Small diameter plastic/nylon air brake coils/PA hose nylon recoil air tubing

Supplier: Ningbo Kailiang Automobile Parts Co., Ltd.
Region: Zhejiang, China
Contact: Ms Kathy Hu
Price: $2.67 / >=400 pieces
Min. Order: 400 pieces

Click here to contact

Product details

fittings:	M161.5,M221.5;	Car Model:	trailers, trucks;
Certification:	CCC;	Place of Origin:	Zhejiang China (Mainland);
tube size:	OD12mm ID9mm;	Port:	Ningbo;
OE NO.:	Customer;	Color:	green,red, yellow,black...;
Car Make:	TRUCK , TRAILER, BUS;	Brand Name:	JJW;
coil size:	OD80-85mm;	Packaging Detail:	plain carton;
Type:	Brake Hose;	Size:	22 coils;
Warranty:	2 years;	Model Number:	Customizable;
Supply Ability:	30000 Piece/Pieces per Month;	Payment Terms:	T/T,Western Union;

PA air brake hose has features of smooth inner wall,quick air breaking , less pressure lost, wear-proof,anti-aging and good flexible,etc. It is widely used in large scale on pipeline connections on various tractor trucks, semi-trailers, trailers and all kinds of air brake system,etc. The suitable temperature ranges from--40°C~120°C. According to DIN74324.

Mode No.	Turns No.	Mandrel(mm)	Woking Length(m)	End Fitings
QS-15	15	110	2.50
QS-18	18	85	2.00	Tube-linking nut M18×15
QS-18	18	110	3.00
QS-20	20	85	2.50
QS-20	20	110	3.25
QS-22	22	85	2.50
QS-22	22	110	3.50
QS-24	24	85	3.00
QS-24	24	110	3.75	Female fittting ZG1/2 M22×1.5
QS-26	26	85	3.50
QS-26	26	110	4.00
QS-28	28	110	4.10
QS-30	30	110	4.30
