Industrial Inkjet Online Coding,

Product details
Ink Type:fast drying inkMaterials used for packaging:Paper
Drive Type:electricalMechanical test report:Not available
Printing distance:1-5mmApplicable industries:Food and Beverage Factory
ink:42mlShowroom location:not any
Dimensions (L*W*H):128*90*36mmSupply capacity:200 sets per week
Marketing Type:New Products 2020Health status:new
application:boards, cartons, stones, pipes, cables,Print content:letters, numbers, symbols
Packaging Preview:Colors and Pages:monochrome
payment terms:Western Union, wire transferweight:1.5kg
Packaging Details:cartonCore Components Warranty:1 year
application:Batch number, production date, expiration date, name, etc.type of packaging:Movie
usage:Receipt Printer, Card Printer, Label Printer, Paper Printer, Tube PrinterWarranty:1 year
System language:English, Arabic, Turkish:type:coding machine
place of origin; place of origin:Zhejiang, ChinaPrint size:12.70mm
port:Ningbo or ShanghaiAuto grade:automatic
Main selling point:competitive priceVoltage:AC 100V-240V
External interface:USB, Wi-Fi, BluetoothVideo external inspection:if
Core components:programmable logic controller

Static Desktop Expiration Date Machine Inkjet Batch Code Printer Inkjet Printer

Product Description



shape feature
Stainless Steel Housing/Black Aluminum Housing and Color Touch Screen
aspect
128*86*42(mm)(controller size), 100*100*34mm(print head size)
weight
Controller 0.45KG, print head 0.25KG
printing direction
360-degree adjustment to meet various production needs
print pictures
Various logos, pictures can be uploaded through U disk
optional language
English Chinese
operating system
embedded operating system
Action menu
Easy-to-operate Digital Menu Select (DMS)
Plug and Play Design
HP TIJ 2.5 printing technology
printable image
Alphanumeric, Logo, Due Date, Date/Time, Shift Code,
Batch codes and barcodes, counters

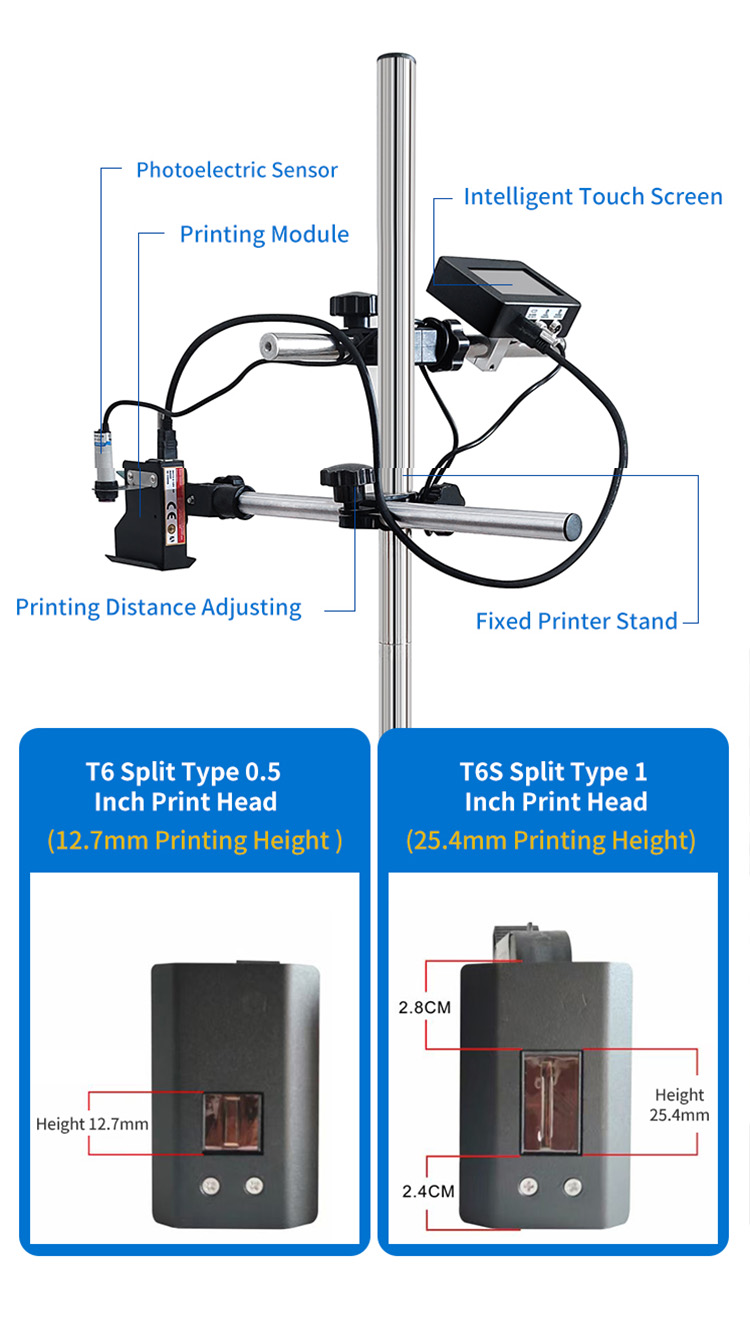

Printable lines and heights
Lines 1, 2, 3, 4. Total row height is limited to 12.7 mm (0.5 in)
highlands
2.7mm, 3.6mm, 5.5mm, 8mm, 10mm, 12.7mm
(0.11", 0.14", 0.22", 0.31", 0.39", 0.5")
printing speed
No more than 20m per minute
print distance
2-5mm (from nozzle to printing material)
auto print
Date, time, batch number, shift and serial number, etc.
storage
Store up to 1000 messages using SD card
ink color
black, white, red, blue, yellow, green, invisible
ink level
42ml (generally can print 800,000 words)
Voltage
AC 100~240V input, DC 16.8V/2A output
working conditions
Temperature 0-45℃ (20-30℃ best), humidity 40-60%Rh
External interface
USB, photoelectric interface, RS232.
printing material
Sheet, carton, stone, pipe, cable, metal, plastic products, electronics, fiberboard, light steel keel, aluminum foil, etc.

1. Original imported quick-drying ink cartridges, instant printing, quick-drying, detachable and replaceable, and clear printing
2.7-inch high-definition display and high-precision capacitive touch screen.
3. Support Bluetooth 4.0/Wi-Fi connection, system firmware can be upgraded remotely.
4. Can print deformable barcode/QR code/text.

5. Large-diameter inkjet nozzles can spray evenly on flat objects. The highest printing height is 12.7mm..
