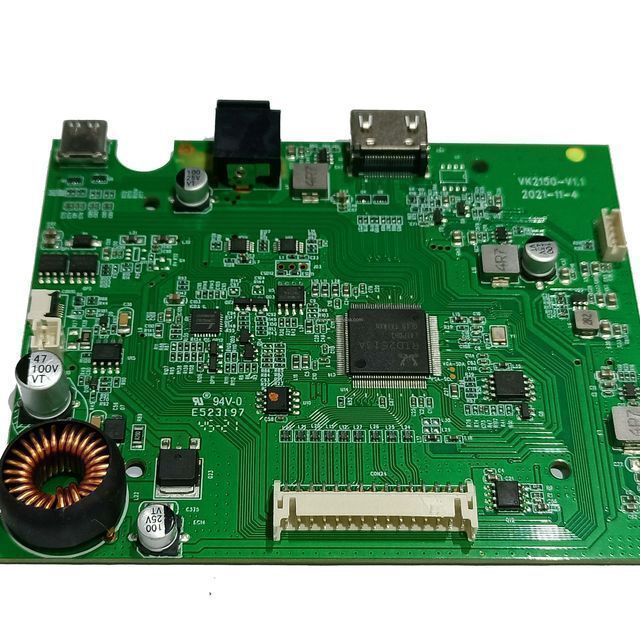

Type-C signal / HD-MI 21.5 inch LVDS screen 1920*RGB*1080 Display Driver board

  • Supplier: Shenzhen Mingsirui Technology Ltd.
  • Region: Guangdong, China
  • Contact: Mr Richard Wang
  • Price: $18.50 / 1 - 99 pieces
    $17.50 / 100 - 2999 pieces
    $17.00 / >=3000 pieces
  • Min. Order: 1 piece
Product details
brand:Microsoft SiriusSupply capacity:100000 bags per month
product name:TYPE-C HD-MI input control boardInsulation Thickness:ordinary board
place of origin; place of origin:Guangdong, ChinaBoard size:Length 122mm, width 90mm, plate thickness 1.2mm
type:A printed circuit boardProcessing Technology:Electrolytic foil
Material:copperPackaging Preview:
Matrix:A printed circuit boardport:Shenzhen Yantian Port
Insulation Materials:organic resinDisplay size:Customized according to your requirements
payment terms:wire transferModel:MSR-VK2150
color:greenPackaging Details:Each PCBA has an electrostatic bag, which is placed in a bubble bag, and then placed in an isolation box.
Specification
Model
MSR-VK2150
product name
21.5 inch LVDS screen Type-C/HD-MI signal 1920*RGB*1080 display driver board
color
green
layer
double sided
matrix
A printed circuit board
Material
copper
Insulation layer thickness
ordinary board
Processing Technology
Electrolytic foil
Insulation Materials
organic resin
size
PCB board length 122mm, width 90mm, PCB thickness 1.2mm
Specification
Combine standard HD-MI interface signal and TYPE-C port DP function signal input, convert it into standard LVDS 1920X1080 resolution display drive signal, call up rich OSD function menu, in display port mode, support 6, 8, 10, 12 Bit color depth transfer. Supports High Bandwidth Digital Content Protection (HDCP 1.4/HDCP2.2) in DisplayPort mode. Allows DisplayPort audio to be routed to the I2S/SPDIF output. In HDMI mode, support the latest HDMI12.0 (6GHz), in HD-MI mode, support the latest HDMI1.4, support 4:3 to 16:9 or 16:9 to 4:3 nonlinear scaling
interface:TYPE-C signal input interface/HD-MI signal input interface/handwriting interface/21.5-inch LVDS screen display interface

We can customize a version for our customers to exactly match your requirements!
Product Description

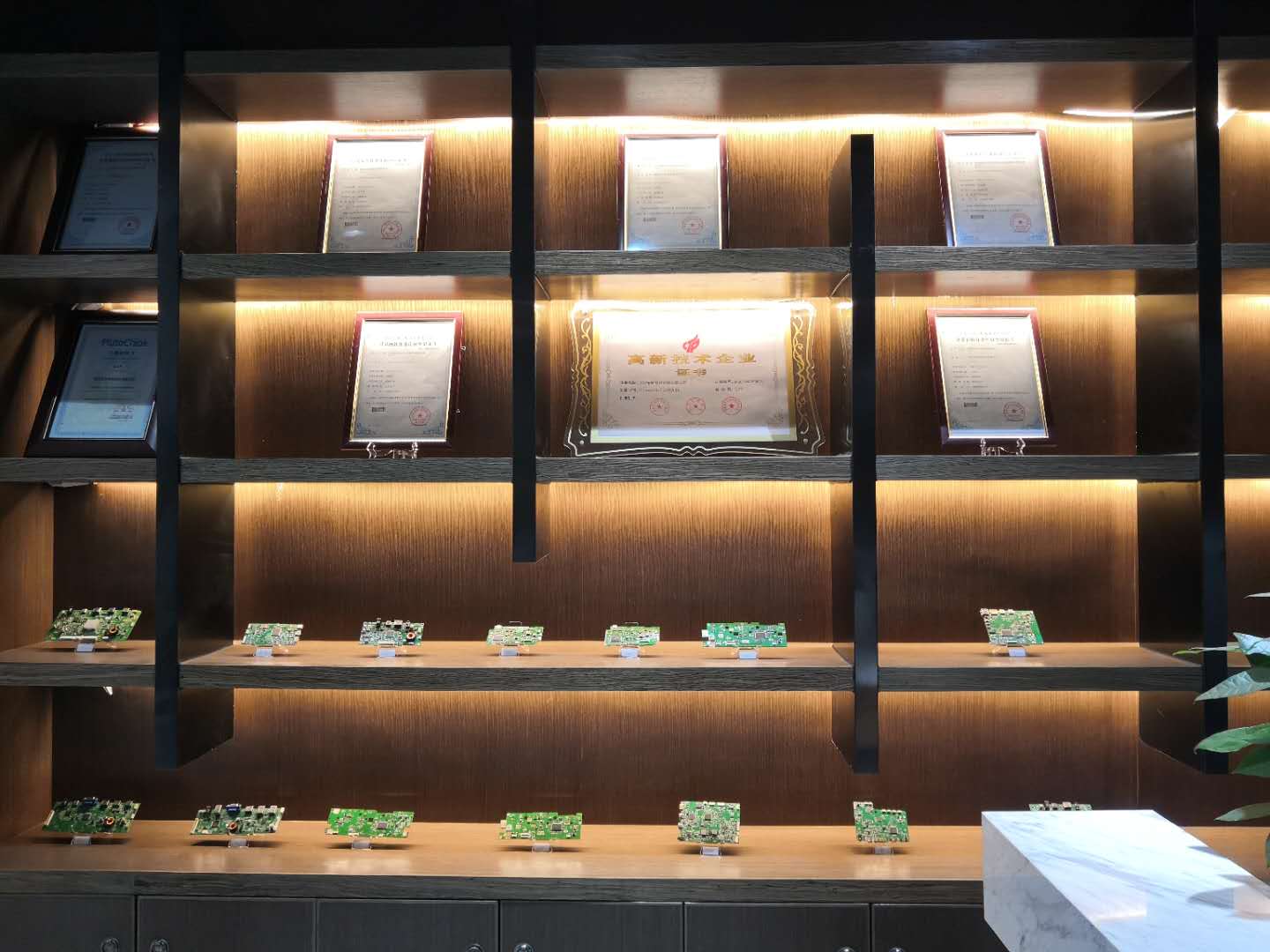

Sample room
