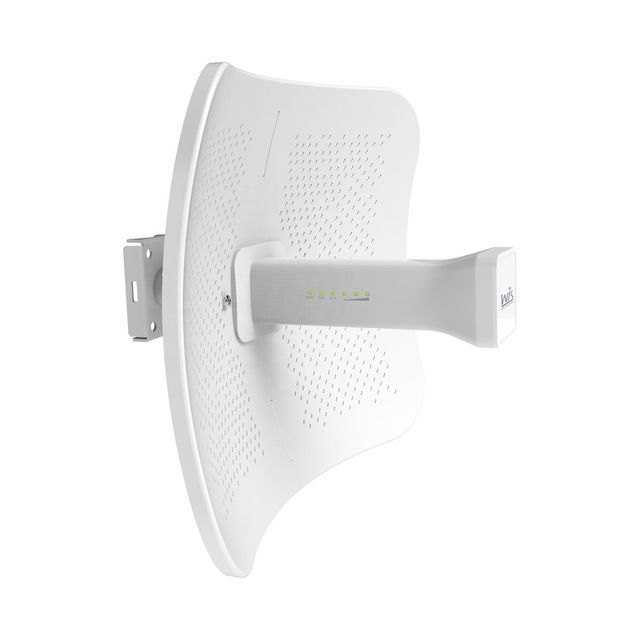

WIS-D523AC 5GHz 23dBi Wireless CPE High Power Outdoor Remote Bridge for Ubiquiti LBE-M5-23 PowerBeam, LiteBeam

Supplier: Lanbowan Communication Ltd.
Region: Guangdong, China
Contact: Ms Apple chan
Price: $53.00 / 2 - 49 pieces
$51.00 / 50 - 99 pieces
$49.00 / 100 - 129 pieces
$47.00 / >=130 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Frequency Range:	5GHz	model:	WIS-D523AC
place of origin; place of origin:	Guangdong, China	payment terms:	Western Union, wire transfer
port:	Shenzhen, Guangzhou, Foshan	use:	outdoor
Supply capacity:	1000 pieces per month	type:	LiteBeam
Wireless Speed:	867Mbps	Packaging Details:	4ptc/CTN
brand:	Smart network

Product Description

WIS-D523AC is an 867Mbps 2*2 MIMO outdoor wireless dish bridge for long distance point-to-point and point-to-multipoint solutions. It is the most cost-effective and ultimate solution for WISP CPE, offering incredible long distances, much better than any other vendor's solution.

feature

incredible distance
● Up to 25dBm transmit power

● Dish antenna gain 23dBi

● Radio-in-Feed design reduces cable losses

● Narrower beamwidth for improved noise immunity

revolutionary design

● Detachable antenna design ● 360 degree universal antenna alignment ● IP66 waterproof

Full functionality and performance

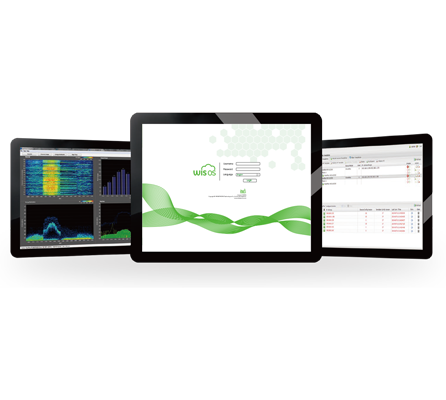

● Full WisOS support ● Automatic distance adjustment ● 20km+ availability ● Fully managed by WiController

Features and Benefits

- Compliant with 802.11 ac/n/a, speed up to 867Mbps - 23dBi dual polarized dish antenna for building a strong long-range wireless PtP link- High output transmit power and receive sensitivity optimization- 80/40/20MHz channel bandwidth optional- Simple to deploy and adjust with supplied mounting kit - Managed via web interface or via NMS WiController - Passive POE (24VDC) for flexible deployment - Weatherproof design for outdoor environments - Up to 16kV ESD protected

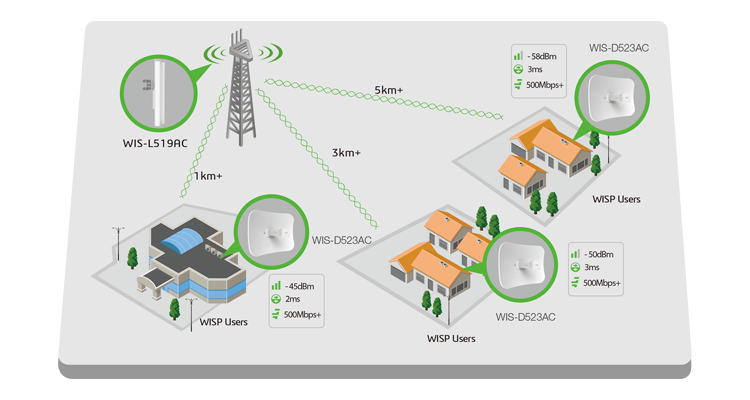

Network Diagram

Product parameters

radio	-802.11ac/n/a radio (Atheros 775MHz) - Speeds up to 867 Mbps - Frequency range: 5.150-5.250GHz 5.250-5.350GHz 5.470-5.725GHz 5.725-5.825GHz - Transmit power 27dBm±2 - Receive sensitivity 867Mbps: -67dBm@10% PER 300M: -74dBm@10% PER 54M: -78dBm@10% PER 1M: -98dBm@10% PER
antenna	- 23dBi Dual Polarized Dish Antenna - Beamwidth (HPBW) Horizontal: 10°, Vertical: 10° - Open space up to 1~20 km (subject to availability)
physical parameters	- Size: 350270255mm - Weight: 3 kg - Speaker Housing: ASA Weatherproof - ESD protection: 16kV - Working temperature: -40 ~70°C - Storage temperature: -40 ~85°C - Working humidity: 10%~95% non-condensing
strength	- 24VDC, 0.75A - Power consumption: 6W
Safety	- Integrated firewall - WPA/WPA2; WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP;
interface	- 1 x 10/100/1000 Base-T Ethernet (24VDC passive PoE)
lead	- switch - LAN: On/Off/Blink - WLAN: On/Off/Blink - RSSI signal: 1,2,3
Warranty	- 2 years
Certification	- CE, RoHS
Package Contents	- WIS-D523AC Horn Radio - Feed Receiver - Quick Setup Guide - Power adapter with passive PoE - Mounting brackets and kits
