Nickel edison iron battery for solar 12v 24v 300ah NI-FE battery

Ni-Fe battery NIFE battery 300 ah

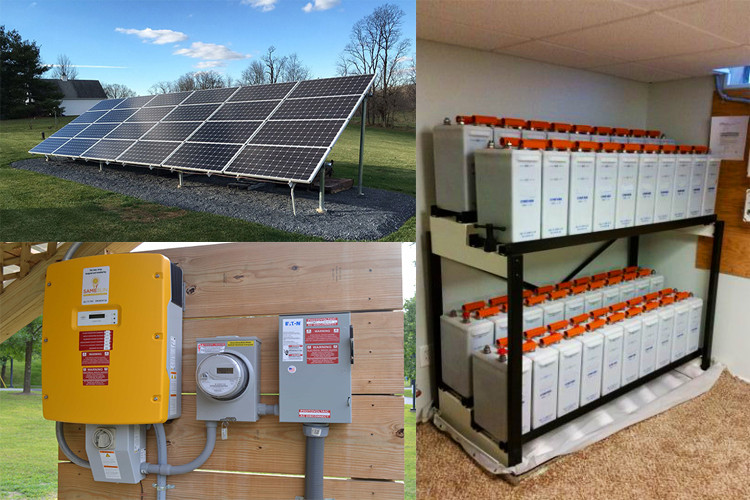

PThe V market has grown considerably over the past few decades. Now the battery selection is strict

for photovoltaic systems. The mainstream batteries are lead-acid batteries due to their cheap price. However,

Now more and more peopleBe aware of battery performance and environmental issues. its

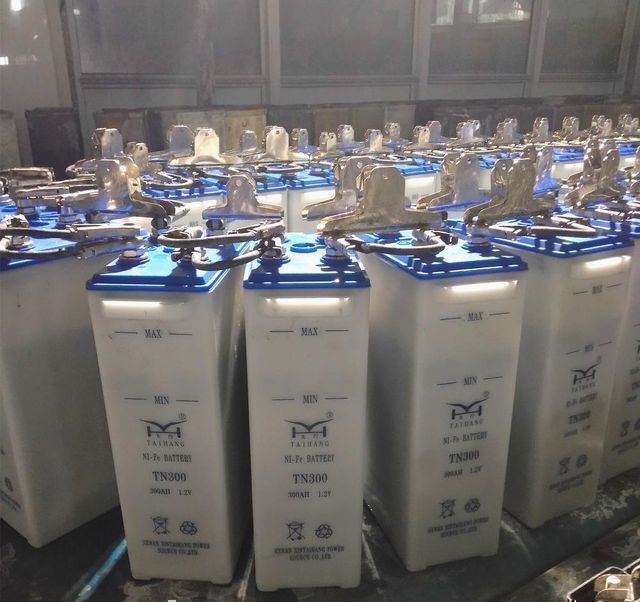

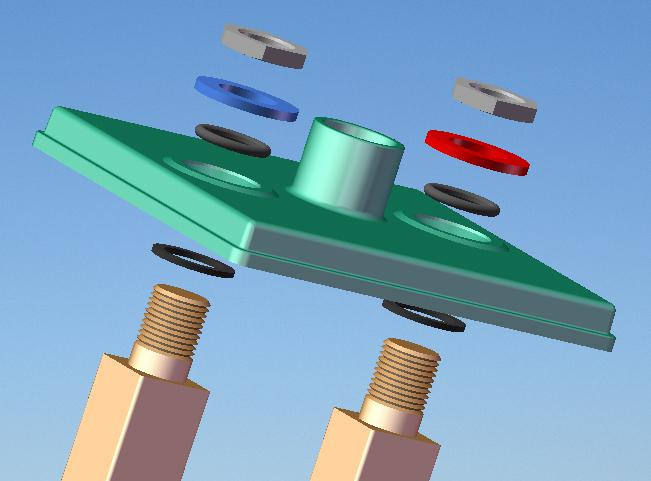

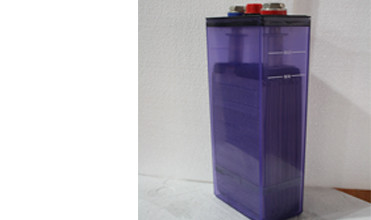

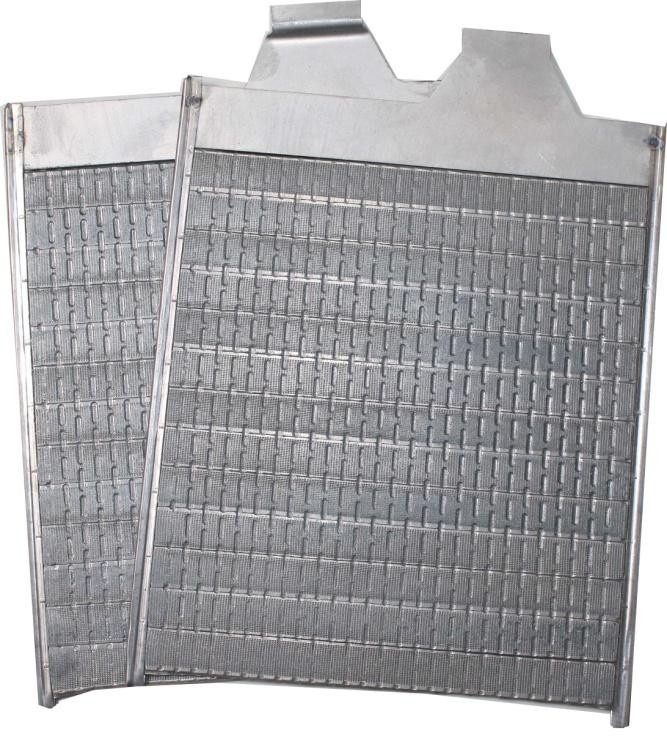

With the characteristics of long service life, 100% depth of discharge, and no pollution, nickel-iron batteries are becoming more and more popular in the photovoltaic market. TN series nickel-iron batteries produced by the companyHenan Xintaihang Power Co., Ltd. is designed with advanced technology. they have strongWelded sheet structure, ABS material container and special Flame Retardant Valve Regulated Air Plug. The rich electrolyte ensures a long maintenance period.

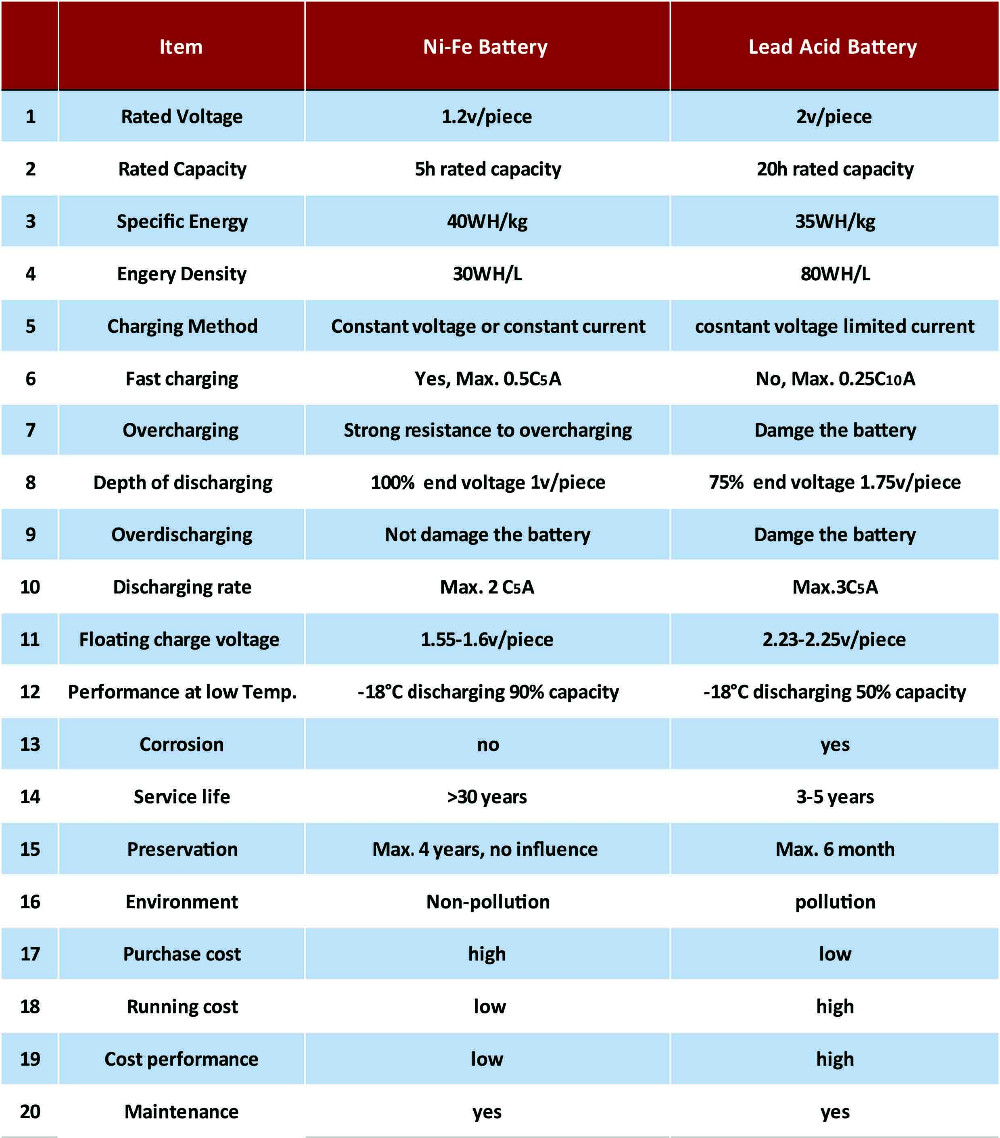

Comparison with lead-acid batteries

TOLL

initial fee
New batteries stored for more than 6 months
Should be charged at 0.2C5A for 12 hours and then discharged
At 0.2C5A to 1v/cell. Repeat the above fees and
Discharge for 3-5 cycles. If the discharge duration is not
Less than 5 hours and battery voltage not less than
1v/cell, the battery can be put into operation upon request
Charge normally.

C5 represents the output capacity of the battery after discharge
Cutoff voltage is 1.0V, 5 hours at 20°C.
i.e. - rated capacity
Normally, the battery should
Charge at normal rate (0.2C5A). in the case of
In case of emergency, fast charging method (0.5C5A) can be used
used. The battery must be charged at the normal rate
(0.2C5A) 12 hours overcharge.

freed

Please select the discharge method according to the table below.
