Brand New 06NA2300S5EA Carlyle Air Cooled Screw Compressor for Carrier 30HXC R134a Chiller
-
Supplier: Shanghai Xinchang Refrigeration & Heating Materials Co., Ltd. -
Region: Shanghai, China -
Contact: Mr Ben ZHANG -
Price: $7500.00 /piece -
Min. Order: 1 piece
| Condition: | Full New, 100% Genuine; | Delivery Detail: | 15 Days; |
| Supply Ability: | 100 Piece/Pieces per Month; | Brand Name: | Carrier Carlyle; |
| Application: | Refrigeration Parts; | Applications: | Air-Cooled Condensing; |
| Displacement: | 300CFM@60Hz; | Port: | Shanghai; |
| Certification: | UL; | Motor Voltage: | 400-3-50Hz; |
| Place of Origin: | Shanghai China (Mainland); | Payment Terms: | T/T; |
| Motor Cooling: | Economized; | Packaging Detail: | Packed in Wood Box; |
| Model Number: | 06NA2300S5EA-A00 / 06NA2300S5EC; | Refrigerant: | R134a, R22; |
| Type: | Refrigeration Compressor; |

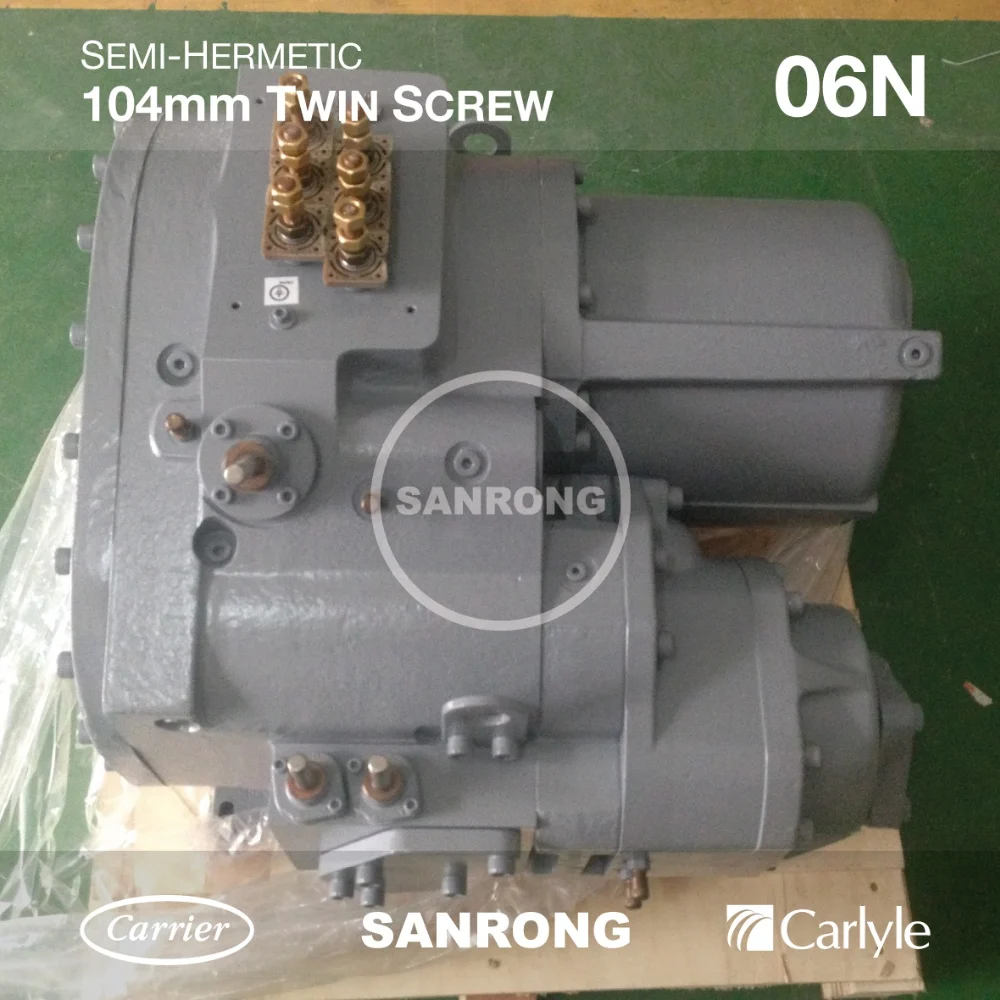

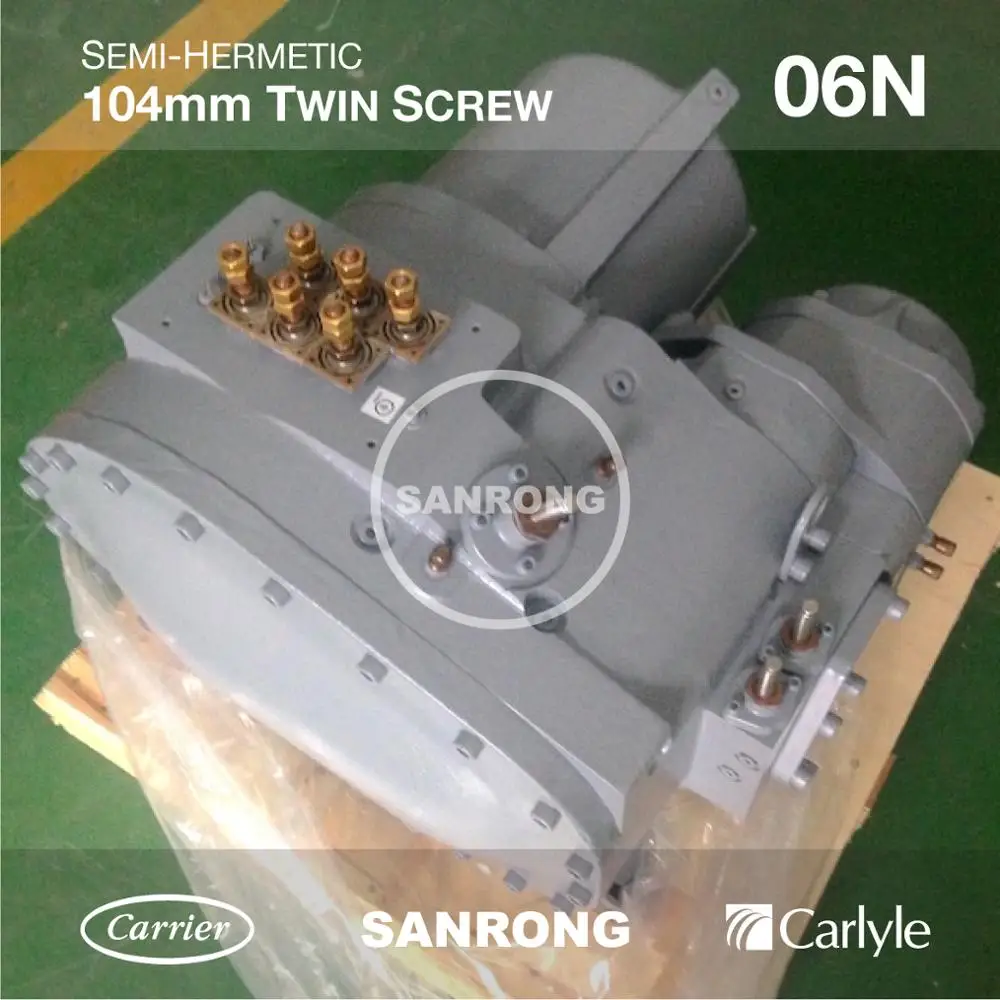

Carrier Carlyle 06N Semi-Hermetic Twin Screw Compressor
06NA2300S5EA Air-Cooled R134a, 104mm Twin Screw, 300CFM@60Hz, 400-3-50Hz, Economized
06NA2300S5NA Air-Cooled R134a, 104mm Twin Screw, 300CFM@60Hz, 400-3-50Hz, Non-Economized
100% Brand New, Warranty 12 Months, Made by Carrier Carlyle Shanghai Factory
The Carlyle 06N GTS104 family of Geared Twin Screw compressors utilize a common platform, 104mm diameter drive rotor. The family includes six displacements from 123 cfm to 300 cfm at a 60Hz drive frequency. Nominal capacities range from 33 to 70 tons with R134a at flooded chiller operating conditions. Optimized models are available for air cooled and water cooled condensers, as well as for economized and non-economized applications.
| Nominal Capacity of 06N Screw Compressor in R134a System | |||||||||
| 60Hz cfm | Gear Ratio | 06NA, Air-Cooled | 06NW, Water-Cooled | ||||||
| Non-Economized | Economized | Non-Economized | Economized | ||||||
| tons @50Hz | tons @60Hz | tons @50Hz | tons @60Hz | tons @50Hz | tons @60Hz | tons @50Hz | tons @60Hz | ||
| 123 | 1.214 | N/A | 33 | N/A | 38 | N/A | 35 | N/A | 40 |
| 146 | 1.466 | 33 | 40 | 38 | 46 | 35 | 42 | 40 | 48 |
| 174 | 1.782 | 40 | 49 | 46 | 56 | 42 | 51 | 48 | 59 |
| 209 | 2.145 | 49 | 57 | 56 | 66 | 51 | 60 | 59 | 69 |
| 250 | 2.557 | 57 | 70 | 66 | 81 | 60 | 74 | 69 | 85 |
| 300 | 3.094 | 70 | N/A | 81 | N/A | 74 | N/A | 85 | N/A |
Regular Models of Carlyle 06N Semi-Hermetic Screw Compressor
06NW Water-Cooled Condensing 06NA Air-Cooled Condensing
06NW2300S5EA 06NW2300S5EA-A00 06NA2300S5EA 06NA2300S5EA-A00
06NW2300S5NA 06NW2300S5NA-A00 06NA2300S5NA 06NA2300S5NA-A00
06NW2250S7NA 06NW2250S7NA-A00 06NA2250S7NA 06NA2250S7NA-A00
06NW2250S7EA 06NW2250S7EA-A00 06NA2250S7EA 06NA2250S7EA-A00
06NW2209S7NA 06NW2209S7NA-A00 06NA2209S7NA 06NA2209S7NA-A00
06NW2209S7EA 06NW2209S7EA-A00 06NA2209S7EA 06NA2209S7EA-A00
06NW5300S5EA 06NW5300S5EA-A00 06NA2209S7NC 06NA2209S7NC-A00
06NW5300S5NA 06NW5300S5NA-A00 06NA2174S7NA 06NA2174S7NA-A00
06NW2174S7NA 06NW2174S7NA-A00 06NA2174S7EA 06NA2174S7EA-A00
06NW2174S7EA 06NW2174S7EA-A00 06NA2146S7NA 06NA2146S7NA-A00
06NW2146S7NA 06NW2146S7NA-A00 06NA2146S7EA 06NA2146S7EA-A00
06NW2146S7EA 06NW2146S7EA-A00 06NA2123S6NA 06NA2123S6NA-A00
06NW2123S6NA 06NW2123S6NA-A00 06NA2123S6EA 06NA2123S6EA-A00
06NW2300S5EC 06NW2300S5EC-A00 06NA2300S5EC 06NA2300S5EC-A00
06NW2300S5NC 06NW2300S5NC-A00 06NA2300S5NC 06NA2300S5NC-A00
06NW2250S7NC 06NW2250S7NC-A00 06NA2250S7NC 06NA2250S7NC-A00
06NW2250S7EC 06NW2250S7EC-A00 06NA2250S7EC 06NA2250S7EC-A00
06NW2209S7NC 06NW2209S7NC-A00 06NA2209S7NC 06NA2209S7NC-A00
06NW2209S7EC 06NW2209S7EC-A00 06NA2209S7EC 06NA2209S7EC-A00
06NW5300S5EC 06NW5300S5EC-A00 06NA2209S7NC 06NA2209S7NC-A00
06NW5300S5NC 06NW5300S5NC-A00 06NA2174S7NC 06NA2174S7NC-A00
06NW2174S7NC 06NW2174S7NC-A00 06NA2174S7EC 06NA2174S7EC-A00
06NW2174S7EC 06NW2174S7EC-A00 06NA2146S7NA 06NA2146S7NA-A00
06NW2146S7NC 06NW2146S7NC-A00 06NA2146S7EA 06NA2146S7EA-A00
06NW2146S7EC 06NW2146S7EA-A00 06NA2123S6NC 06NA2123S6NC-A00
06NW2123S6NC 06NW2123S6NC-A00 06NA2123S6EC 06NA2123S6EC-A00
Carlyle 06N Semi-Hemetic Screw Compressor
06NA Air-Cooled
06NA2123S6EA 06NA2123S6EA-A00
06NA2123S6NA 06NA2123S6NA-A00
06NA2123T6EA 06NA2123T6EA-A00
06NA2123T6NA 06NA2123T6NA-A00
06NA2123X6NA 06NA2123X6NA-A00
06NA2146S7EA 06NA2146S7EA-A00
06NA2146S7NA 06NA2146S7NA-A00
06NA2146T6NA 06NA2146T6NA-A00
06NA2146W7EA 06NA2146W7EA-A00
06NA2146X7EA 06NA2146X7EA-A00
06NA2174S7EA 06NA2174S7EA-A00
06NA2174S7NA 06NA2174S7NA-A00
06NA2174W7EA 06NA2174W7EA-A00
06NA2174T6EA 06NA2174T6EA-A00
06NA2174T6NA 06NA2174T6NA-A00
06NA2174U5NA 06NA2174U5NA-A00
06NA2174X7EA 06NA2174X7EA-A00
06NA2174X7NA 06NA2174X7NA-A00
06NA2209S7EA 06NA2209S7EA-A00
06NA2209S7NA 06NA2209S7NA-A00
06NA2209W7EA 06NA2209W7EA-A00
06NA2209X7EA 06NA2209X7EA-A00
06NA2209X7NA 06NA2209X7NA-A00
06NA2209T6EA 06NA2209T6EA-A00
06NA2209T6NA 06NA2209T6NA-A00
06NA2250S7EA 06NA2250S7EA-A00
06NA2250S7NA 06NA2250S7NA-A00
06NA2250W7EA 06NA2250W7EA-A00
06NA2250X7EA 06NA2250X7EA-A00
06NA2250X7NA 06NA2250X7NA-A00
06NA2250T6EA 06NA2250T6EA-A00
06NA2250T6NA 06NA2250T6NA-A00
06NA2300S5EA 06NA2300S5EA-A00
06NA2300S5NA 06NA2300S5NA-A00
06NA9209S7NB 06NA9209S7NB-A00
06NA9250S7EB 06NA9250S7EB-A00
06NA9250S7NB 06NA9250S7NB-A00
06NW Water-Cooled
06NW2123S6NA 06NW2123S6NA-A00
06NW2123T6NA 06NW2123T6NA-A00
06NW2123X6NA 06NW2123X6NA-A00
06NW2146S7EA 06NW2146S7EA-A00
06NW2146S7NA 06NW2146S7NA-A00
06NW2146T6NA 06NW2146T6NA-A00
06NW2174S7EA 06NW2174S7EA-A00
06NW2174S7NA 06NW2174S7NA-A00
06NW2174T6NA 06NW2174T6NA-A00
06NW2174X7EA 06NW2174X7EA-A00
06NW2174X7NA 06NW2174X7NA-A00
06NW2209S7EA 06NW2209S7EA-A00
06NW2209S7NA 06NW2209S7NA-A00
06NW2209T6NA 06NW2209T6NA-A00
06NW2209X7EA 06NW2209X7EA-A00
06NW2209X7NA 06NW2209X7NA-A00
06NW2250S7EA 06NW2250S7EA-A00
06NW2250S7NA 06NW2250S7NA-A00
06NW2250T6EA 06NW2250T6EA-A00
06NW2250T6NA 06NW2250T6NA-A00
06NW2250W7EA 06NW2250W7EA-A00
06NW2250X7EA 06NW2250X7EA-A00
06NW2250X7NA 06NW2250X7NA-A00
06NW2300S5EA 06NW2300S5EA-A00
06NW2300S5NA 06NW2300S5NA-A00
06NW9123S6NB 06NW9123S6NB-A00
06NW9209S7NB 06NW9209S7NB-A00
06NW9250S7NB 06NW9250S7NB-A00
06NW9300S5NB 06NW9300S5NB-A00
06CC 2-Stage Compound Cooling Compressor
06CC550F100 06CC550F210
06CC665F100 06CC665F210
06CC675F100 06CC675F210
06CC899F100 06CC899F210
06D Semi-Hermetic Reciprocating Compressor
06DR1090GC3600 06DR1090GC3660
06DR0130CC3600 06DR0130CC3660
06DR3160CC3600 06DR3160CC3660
06DR7180DC3600 06DR7180DC3660
06DR8200DC3600 06DR8200DC3660
06DR7250DC0600 06DR7250DC0660
06DR2280DC0600 06DR2280DC0660
06DR3370DC0600 06DR3370DC0660
06DR5410DC0600 06DR5410DC0660
06DM8080GC3600 06DM8080GC3660
06DM3130CC3600 06DM3130CC3660
06DM3160CC3600 06DM3160CC3660
06DM3370DC3600 06DM3370DC3660
06DA8182AC3600 06DA8182AC3660
06DA8252DC0600 06DA8252DC0660
06DA3282DC0600 06DA3282DC0660
06DA5372DC0600 06DA5372DC0660
06DR0130CC3640 06DR0130CC3690
06DR3160CC3640 06DR3160CC3690
06DR7180DC3640 06DR7180DC3690
06DR8200DC3640 06DR8200DC3690
06DR7250DC0640 06DR7250DC0690
06DR2280DC0640 06DR2280DC0690
06DR3370DC0640 06DR3370DC0690
06DR5410DC0640 06DR5410DC0690
06DM3130CC3640 06DM3130CC3690
06DM3160CC3640 06DM3160CC3690
06DM3370DC3640 06DM3370DC3690
06DF8182AC3600 06DF8182AC3660
06DF8252DC0600 06DF8252DC0660
06DF3282DC0600 06DF3282DC0660
06DF5372DC0600 06DF5372DC0660
06DR7250DC06A0 06DR7250DC06B0
06DR2280DC06A0 06DR2280DC06B0
06DR3370DC06A0 06DR3370DC06B0
06DR5410DC06A0 06DR5410DC06B0
06DM3370DC36A0 06DM3370DC36B0
06DG8252DC0600 06DG8252DC0660
06DG3282DC0600 06DG3282DC0660
06DG5372DC0600 06DG5372DC0660
06E Semi-Hermetic Reciprocating Compressor
06ER150600 06ER4506A0
06ER165600 06ER4656A0
06ER175600 06ER4756A0
06ER099600 06ER3996A0
06EM150600 06EM4506A0
06EA265600 06EA5656A0
06EM175600 06EM4756A0
06EM199600 06EM4996A0
06EA250600 06EA5506A0
06EA265600 06EA5656A0
06EF265600 06EF5656A0
06EA275600 06EA5756A0
06EF275600 06EF5756A0
06EA299600 06EA5996A0
06EF299600 06EF5996A0
06ER750600 06ER7506A0
06ER765600 06ER7656A0
06ER775600 06ER7756A0
06ER799600 06ER7996A0
06EM750600 06EM7506A0
06E2265600 06E25656A0
06EM775600 06EM7756A0
06EM799600 06EM7996A0
06E2250600 06E25506A0
06E2265600 06E25656A0
06E6265600 06E65656A0
06E2275600 06E25756A0
06E6275600 06E65756A0
06E2299600 06E25996A0
06E6299600 06E65996A0
06E3265600 06E35656A0
06E7265600 06E75656A0
06E3275600 06E35756A0
06E7275600 06E75756A0
06E3299600 06E35996A0
06E7299600 06E75996A0
-
