Light Duty Keyed Drill Chuck 0.6-6mm Range 3/8-24UNF Taper Mount Drill Chuck with 1/4 Hex Shank 3/8 Thread Extension

Product details
After Warranty Service:Video technical support, spare partsMarketing Type:New Products 2021
Packaging Preview:Core Components Warranty:1 year
Core components:gearbox, engineSupply capacity:90,000 pieces per month
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramWarranty:1.5 years
Drill chuck:Drill chuck and drill chuck adapter conversionHealth status:new
Local service location:Canada, France, Brazil, Indonesia, Mexico, Thailand, Japan, Malaysia, Australia, Chile, United Arab EmiratesMechanical test report:if
color:dark greyapplication:Light duty key drill chuck 0.6-6mm range
Showroom location:Egypt, UK, Italy, Vietnam, Pakistan, India, KenyaPackaging Details:Plastic box, aluminum box, carbon box
product name:Keyless Drill Chuck AdapterVideo external inspection:if
Rig accessories:Keyless drill chuck B1-13type:Keyless three-jaw chuck
Applicable industries:Building Materials Stores, Mechanical Repair Stores, Farms, Home Use, Retail, Construction Works, Food and Beverage Stores, Othersport:Qingdao
brand:Heinet Tools Keyless Drill Chucks

Light Duty Keyed Drill Chuck 0.6-6mm Range 3/8-24UNF Taper Mount Drill Chuck with 1/4 Hex Shank 3/8 Thread Extension



Key drill chuck



1. Light or heavy.

2. Tapered or threaded.
3. Range from 1mm-16mm
4.Max.10.000 RPM without further balancing
5. Accuracy reaches 0.02mm to 0.03mm

6. Separate drill chuck or integrated drill chuck







order number. capacity Mountain D large Weight (kg)
mm mm
J2110 Key drill chuck 1-10 1/32-3/8 B12 42.5 70 0.34
J2113 Key drill chuck 1-13 1/32-1/2 B16 53 8 0.63
J2513 Key drill chuck 1.5-13 1/16-1/2 B16 44 78 0.45
J2516 Key drill chuck 3-16 1/8-5/8 B16 53 86 0.63
J2516A Key drill chuck 3-16 1/8-5/8 B18 53 86 0.63
J2116 Key drill chuck 3-16 1/32-5/8 B18 57 98 1.00
J2116A Key drill chuck 1-16 1/32-5/8 B16 57 93 0.82
J2120 Key drill chuck 5-20 1/32-5/8 B22 65 110 1.40
J2210 Key drill chuck 1-10 3/16-3/4 JT2 42.5 70 0.34
J2213 Key drill chuck 1-13 1/32-3/8 JT6 53 86 0.63
J2213A Key drill chuck 1-13 1/32-1/2 JT33 53 86 0.63
J2613 Key drill chuck 1.5-13 1/32-1/2 JT33 44 78 0.45
J2616 Key drill chuck 3-16 1/16-1/2 JT3 53 86 0.63
J2616A Key drill chuck 3-16 1/8-5/8 JT6 53 86 0.63
J2616B Key drill chuck 3-16 1/8-5/8 JT33 53 93 0.65
J2216 Key drill chuck 1-16 1/32-5/8 JT3 57 98 1.00
J2220 Key drill chuck 5-20 3/16-3/4 JT3 65 110 1.40













Haier Tools is a large-scale production and sales enterprise integrating production, processing and sales, and has the right to import and export by itself. Dezhou is the production, processing and sales base with the most intensive machine tool processing, the most complete varieties, and the most active market transactions in China, forming a large-scale and high-quality industrial cluster.

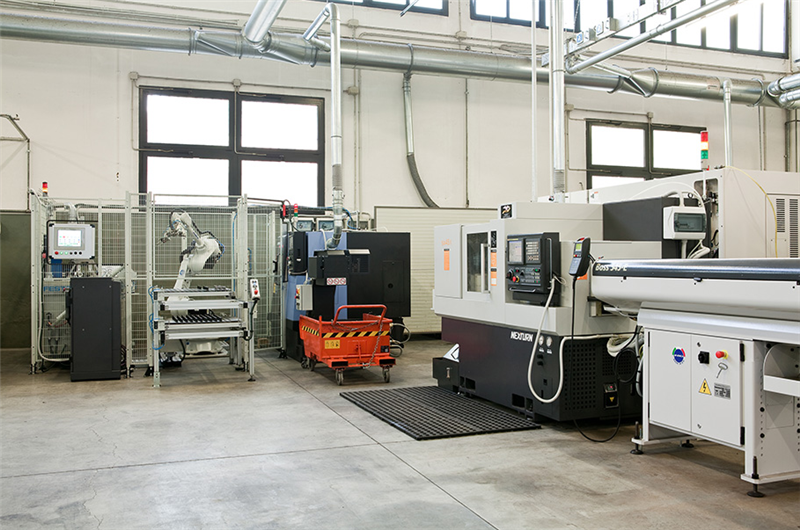

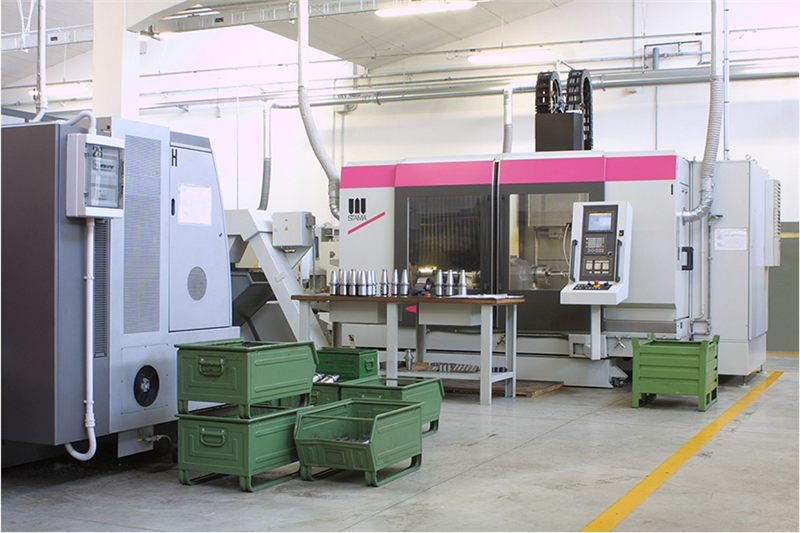

Haina tools are equipped with advanced imported equipment,Machining centers, CNC lathes, high-precision grinders, dynamic balancing machines, etc., have a group of high-level technical personnel, so that the company's product quality can be guaranteed. The main products are collets, CNC tool holders, drill chucks, pull studs, nuts and spanners/wrenches, CNC vices, end mills,Parallel blocks, etc.



Haina Tools always adheres to the tenet of quality first, customer first, and reputation first. With strong technical force, scientific management system, advanced processing and testing equipment, it provides customers with products that meet national standards.
