2m direct drive industrial large dynamic fan

  • Supplier: Fujian Huada Electric Co., Ltd.
  • Region: Fujian, China
  • Contact: Ms Sunny Ye
  • Price: $789.00 / 1 - 19 sets
    $766.00 / 20 - 99 sets
    $742.00 / >=100 sets
  • Min. Order: 1 set
Product details
place of origin; place of origin:Fujian ChinaSupply capacity:2000 sets per week
Voltage:220v/380v, 220V/380VWarranty:3 years
Coverage area:260㎡Wind speed:1-5m/s
strength:0.55kw,0.55KWPackaging Details:Plywood: 2200*2200*480
After-sales service provided:Video technical supportbrand:FJ Diamond
Applicable industries:Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Farms, Restaurants, Construction Engineering, Energy and Mining, Fitness Centers, Waiting Rooms, Logistics Centers and Warehousesnoise:39 dB
Rotating speed:240 rpmBlade material:Aluminum alloy
air flow:1000 m3/minpayment terms:L/C,Western Union,T/T
type:otherport:Xiamen
Blade material:Aluminum alloyPackaging Preview:
Install:Detacheddiameter:2m
Drive Type:direct drive

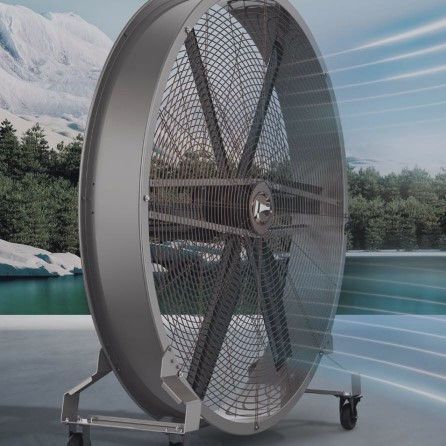

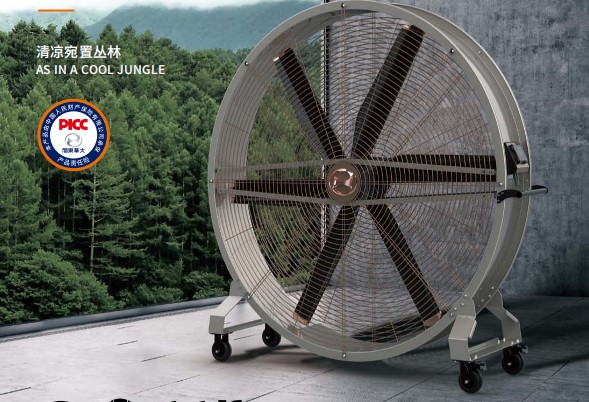

Permanent magnet variable frequency drive large movable fan
The unique wing design of HDY series PM VFD active fans, straight blade diameter from 1 to 2m, adopts aerodynamic principles and advanced technology to manufacture blades and wings, and forms a circulating flow field through powerful air stirring ability, generating a breeze like nature System, the body will feel the three-dimensional wind from all directions, increase the area of ​​sweat evaporation, and improve comfort. At the same time, it avoids the use of traditional high-speed fans perennial wind direction, which causes various problems to human health and greatly improves the comfort of the environment.

HDY series fans can adjust the air volume according to the actual needs of different occasions, and the wind speed can be adjusted arbitrarily within the range of 1m-6m/s. In the open space, the maximum air volume distance of the industrial energy-saving mobile fan is 28 meters.
Technical data
Model
Diameter (m)
Voltage (v)
Frequency (Hz)
Power (Watts)
Speed ​​(rpm)
Wind speed (m/s)
Air volume (m³/min)
Covered area (㎡)
Noise (dB)
HDY-2-32
2
220/380
50/60
550
240
1-5
1000
260
39
HDY-1.5-32
1.5
220/380
50/60
370
400
1-5
700
150
39
HDY-1-32
1
220/380
50/60
250
600
1-5
400
80
39

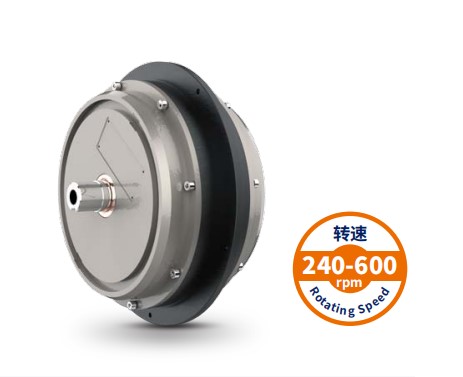

Permanent Magnet Synchronous Motor
1 No rotor loss 2 High efficiency and precision 3 Large power factor 4 Improve the power grid operating environment. 5 FM width (0~200HZ)
6 Small size and light weight 7 Energy saving and high efficiency

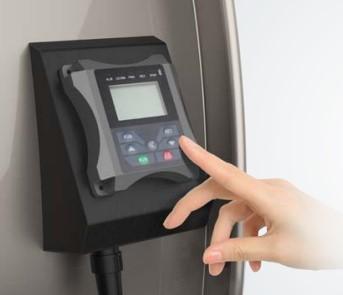

controller
1 The system has no position vector control, anti-electromagnetic interference, anti-radiation, small size, light weight and beautiful appearance.
2 The function of the system is simple, and the 4 buttons are easy to operate (start, stop, accelerate, decelerate).
3 The system has overvoltage, undervoltage, voltage loss regulation, current, phase loss, overload, collision, overheating, lightning strike, abnormal
Protect.

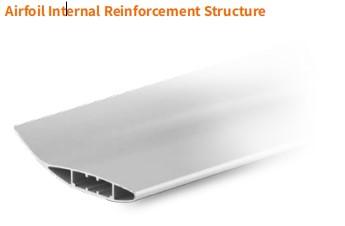

fan blade
It is extruded and stretched from aluminum-magnesium alloy, which has the advantages of high strength, good toughness, light weight, long life and safe use. The surface of the fan blade is treated with T5+ bright surface oxidation, which enhances the corrosion resistance and oxidation resistance of the fan blade, and can cope with special environmental operations.

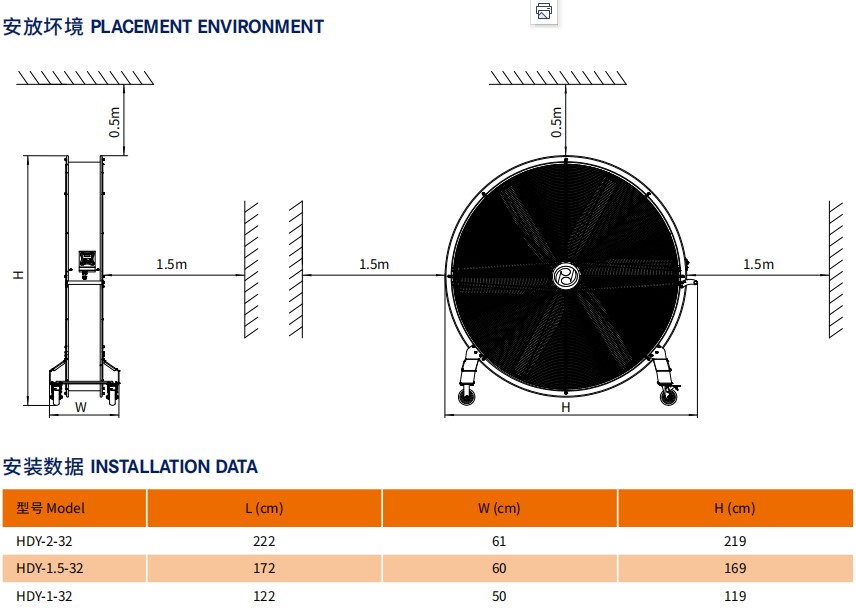

resettlement environment

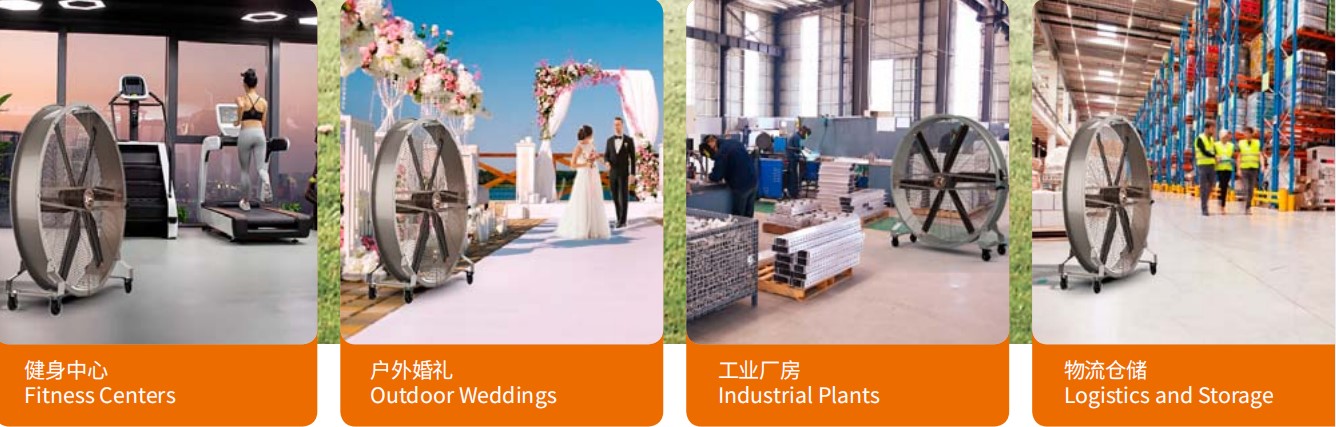

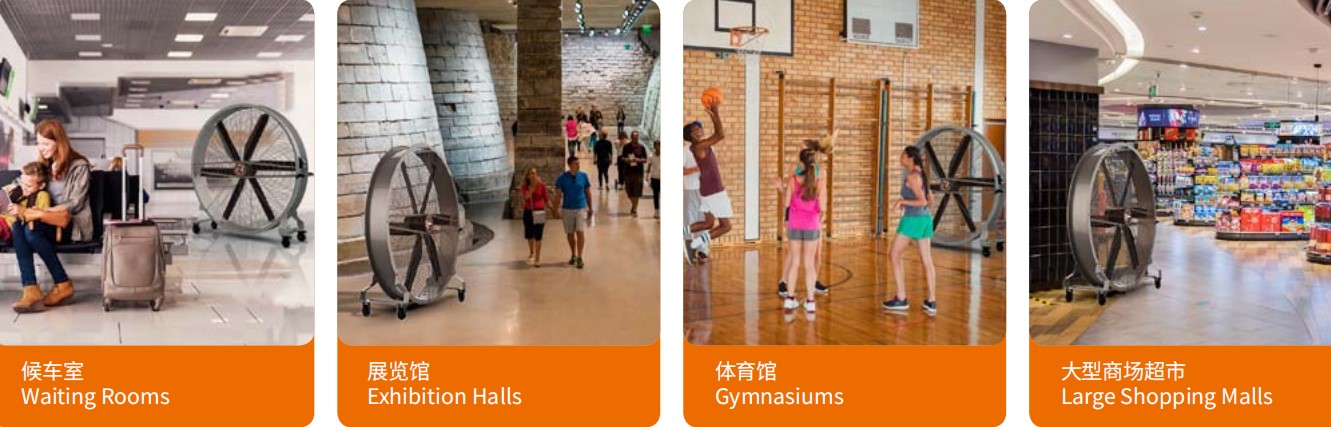

application
1 Widely used in fitness centers, outdoor wedding venues, industrial plants, logistics warehousing, waiting rooms, exhibition halls, gymnasiums and other large space places, as a new type of ceiling fan for space ventilation and personnel cooling. It can push a large amount of air to the ground to form a certain height of flow air layer, which helps the overall air circulation; like the natural wind system and enjoy the intimate experience of natural wind.

2 Universal indoor and outdoor casters allow you to effortlessly move it anywhere you need it.

3 No need for on-site installation, all pre-installed and debugged at the factory, eliminating the tedious installation and maintenance-free use

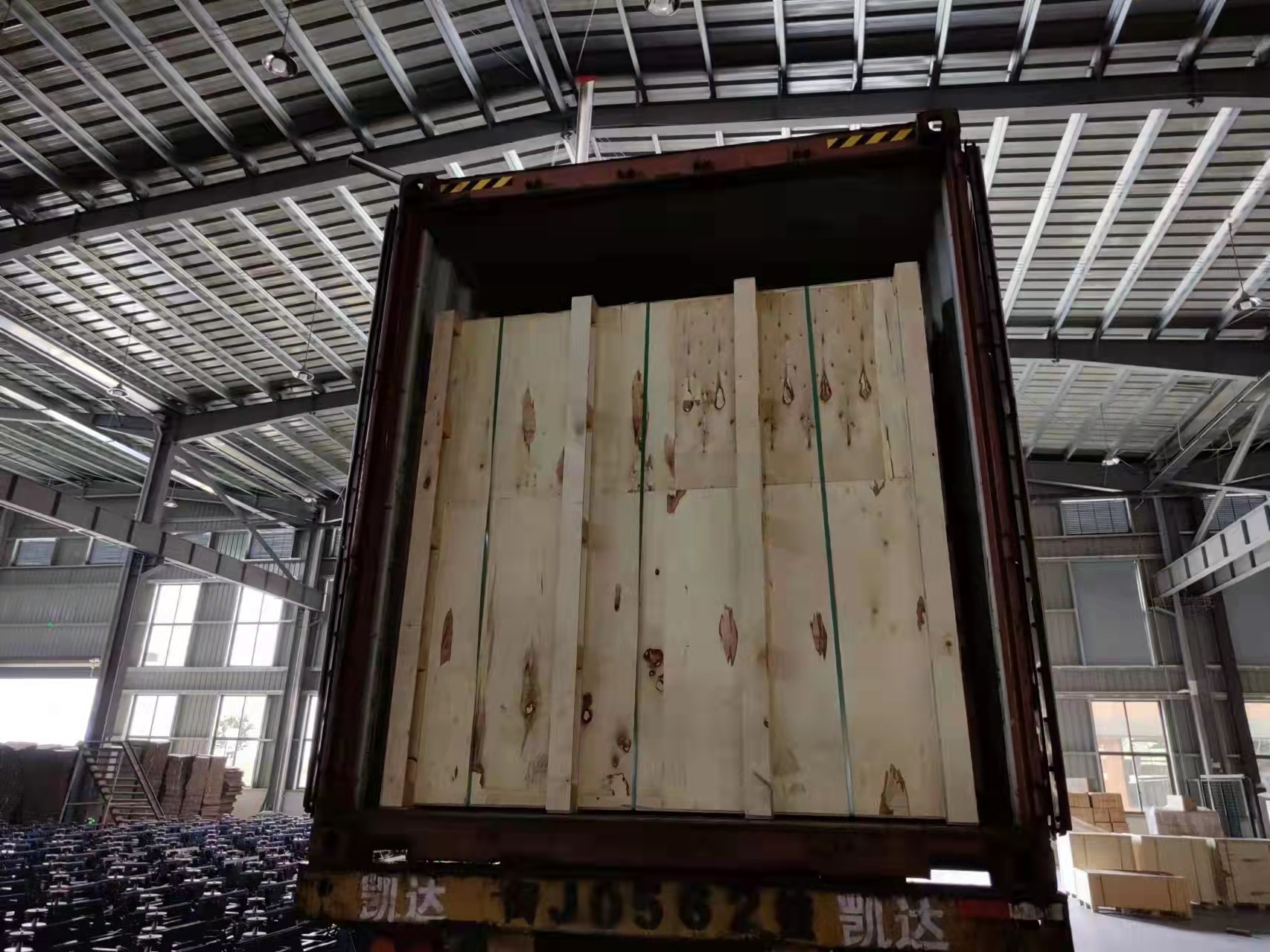

Package
Company Profile
Fujian Huada Motor Factory was established in 1998 and registered as Fujian Huada Motor Co., Ltd., located in Fujian Province. It is a modern enterprise integrating scientific research, production, sales and service. It covers an area of ​​50,000 square meters, including 40,000 square meters of standard workshops. Huada has been focusing on the research and development of high-temperature motors and high-temperature fans for more than ten years; strictly control the production process and create high-quality products. Products include HVLS fan, MSW series high temperature motor, GKF series flue-cured tobacco fan, GKW series all-aluminum high temperature and high humidity fan, CRF series grain drying fan, DJF series multi-stage high pressure fan, DRF series diversion type high temperature fan , HTF series of high temperature fire smoke exhaust fans, SWF series of mixed flow fans and various high temperature centrifugal fans and HDY series of large-scale activities fans.

In addition, our products have also passed the CCC certification, the EU CE certification. Selling well at home and abroad, Huada enjoys a high reputation in the domestic complete drying industry. GKF series fans were rated as industry standard by the State Tobacco Administration in 200. The variable speed multi-stage flue-cured tobacco asynchronous motor project won the third prize of Ningde Science and Technology Progress Award and the second prize of Fu'an Science and Technology Progress Award.

Fan range:

HVLS fans: 3m, 3.7m, 4.3m, 5m, 6.1m, 6.7m and 7.3m

Axial fans: 300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm and 1000mm

Moving fan: 1m, 1.5m, 2m
