OEM spray booth car spray booth paint furnace spray booth

Product details
Name:car spray boothWarranty:1 year warranty
Types of fans:5.5KWSupply capacity:100 sets per month
Disc diameter:standardcustom made:available
Packaging Details:in wooden boxcolor:Customization
strength:35.5KWplace of origin; place of origin:Shandong China
No-load speed:0.35m/spayment terms:Western Union, T/T, MoneyGram
type:Spray boothCertificate:EU standard
filter:High efficiency filterLighting system:LED lights
application:Makeup / Bridal / Everyday EyelashesHeating system:RIELLO Brand Diesel Burner/Infrared Lamp
External Dimensions:7000*5150*3250mmVoltage:220V/380V
brand:mageexpiration of pay:wire transfer
port:QingdaoInternal dimensions:6900*3900*2600mm
Product Description

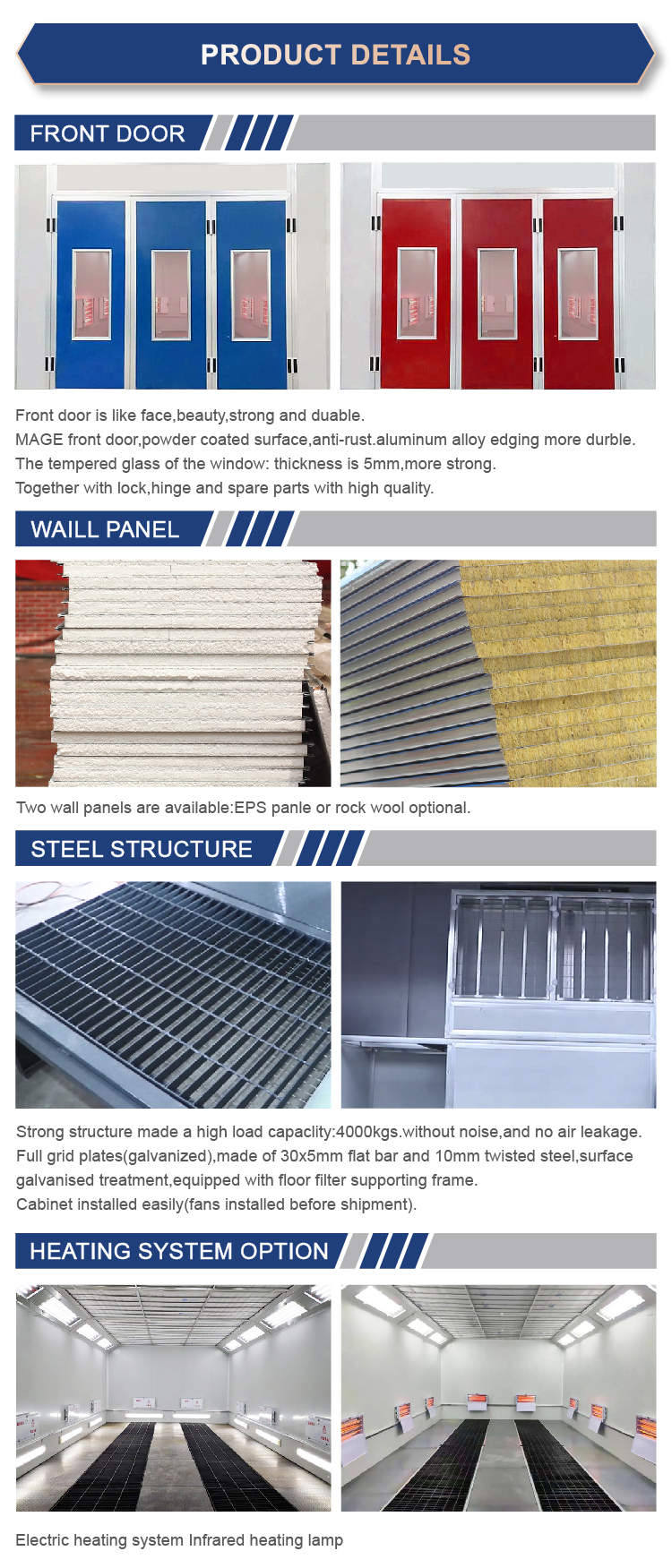

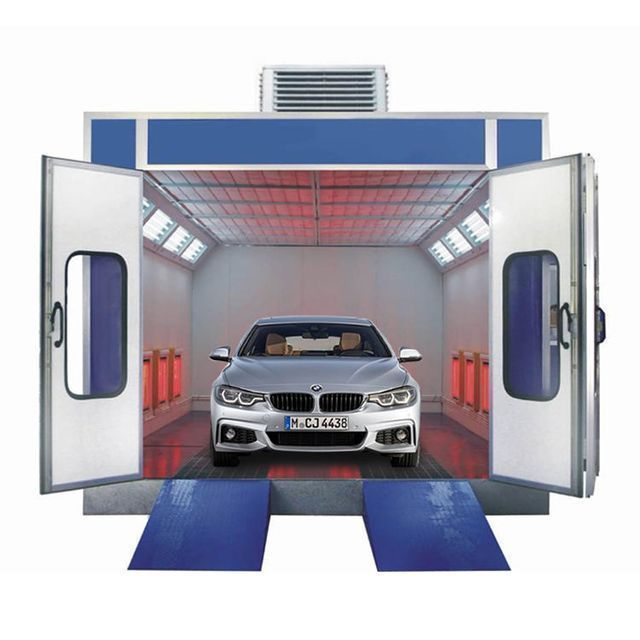

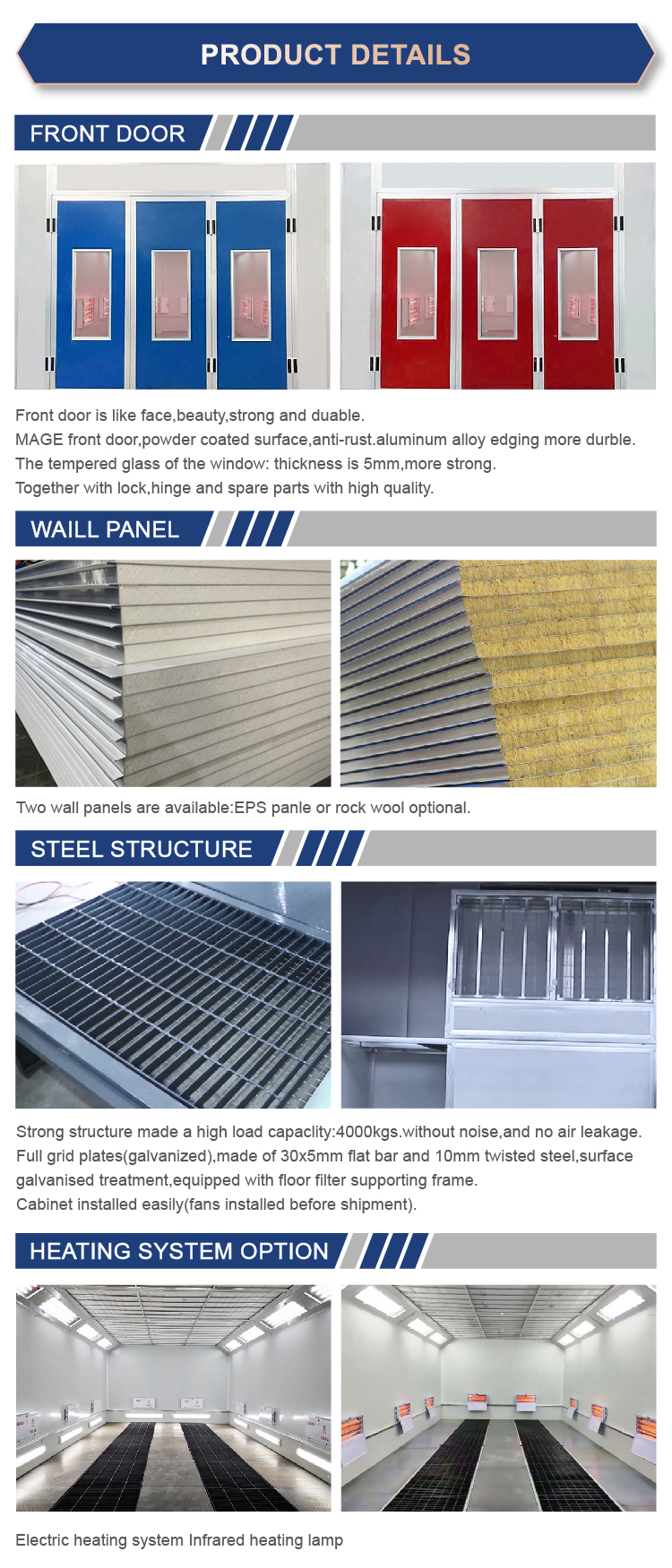

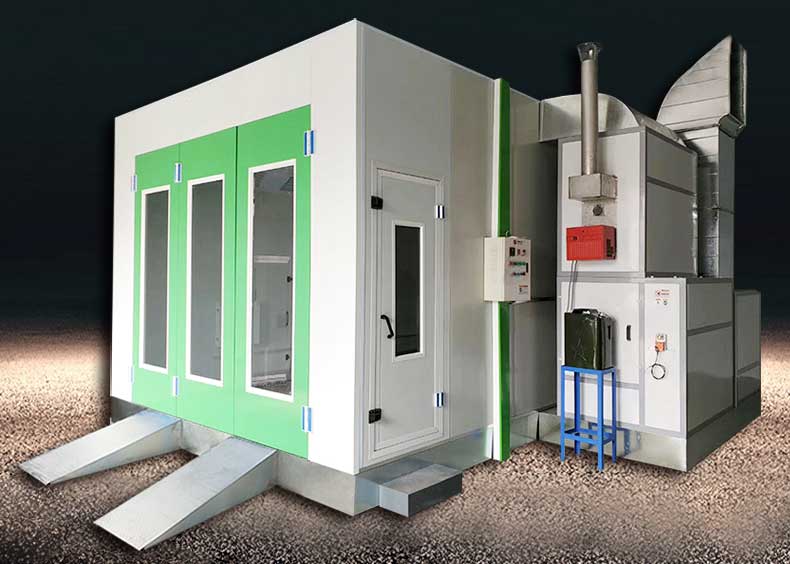

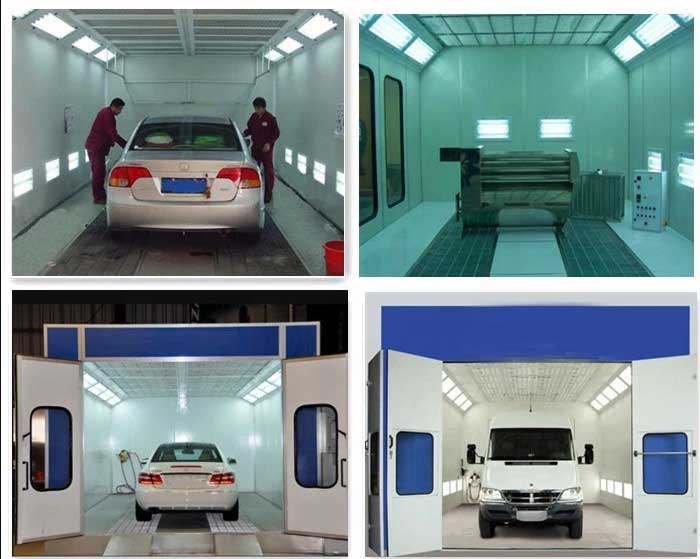

Spray boothProvides a pressure-controlled enclosed environment for vehicle painting.
As we all know, dust-free, suitable temperature and wind speed are necessary conditions for painting.
Then this spray booth can provide an ideal painting environment; this can be controlled by several groups
Ventilation, heating system and filtration system etc. The hot air produced by the burner helps the paint booth maintain a
Appropriate temperature, airflow and light.

usCan provide rock wool wallboard, EPS wallboard, electric heating, diesel heating, natural gas heating, various filtration systems. We can also design a suitable sprinkler booth for you according to your actual site. Contact us and you will be pleasantly surprised.
MAGE Auto Equipment is a professional manufacturer and supplier of paint booths and related equipment.
Our position as a clear market distributor highlights expertise spanning a wide range of applications, from high volume conveyor belt production, body repairs and large special projects.

A powerhouse of workshop and body shop productivity, we produce paint booths that meet and exceed the highly specific needs of the aerospace industry as well as the relentless demands of industry and manufacturers.

Our spray booths operate around the world, creating the ultimate clean air environment for spraying and ensuring fast dry times for fast, energy-efficient production. We can also customize for customers according to specific requirements.

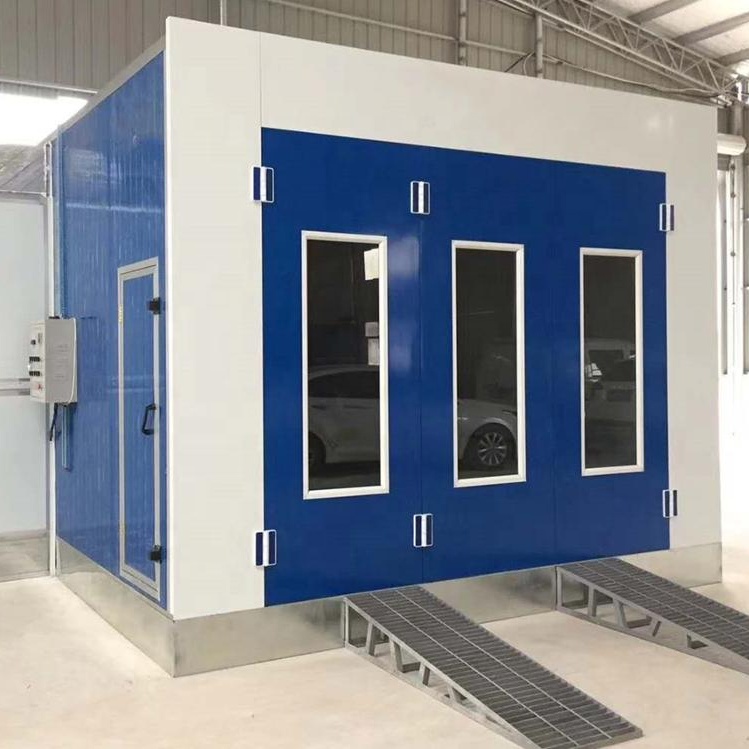

Standard Size Automotive Paint Booth Specifications
Dimensions (mm)
7000*5150*3250mm
Inner diameter (mm)
6900*3900*2600mm
Gate (mm)
2900*2570mm (W*H)
Personal door(mm)
700*1800mm
strength
35.5kw/11kw
Voltage
380v/3ph/50hz or customized








Cabinet system


wall panel
EPS color steel skin panel, 50mm thick, steel 0.426mm thick, tongue and groove type, composite structure, galvanized steel roof
control panel.


basement
The basement is designed with high-quality galvanized C-shaped steel and assembled with square pipes. 2-row flat steel round steel grill, 30*4mm; 3-row diamond plate, galvanized.
entrance door
Folding door, 3 pieces, size 2900mm(W)*2470mm(H), with 5mm thick tempered glass window.


personal door
Size 650mm(W)*1700mm(H), with 5mm thick tempered glass window. (There is a pressure lock on the door, which will automatically
Open when the indoor air pressure is too high. )
slope
A pair of galvanized ramps, size 1800*650mm.



air circulation system
intake fan
Two 3KW double-inlet centrifugal fans with a total air volume of 20,000m³/h.
exhaust fan
One 4KW exhaust fan with a total air volume of 12500m³/h.
fan cabinet
Fan cabinet made of painted profiles and powder-coated steel sheet; exhaust pipe made of high-quality galvanized steel;
Professional flange.
roof system
beam
Made of 40*60 galvanized square tube with support; and 40*40mm angle iron connected by rivets.


2-layer structure
Plenum chamber made of galvanized steel with powder coating. Roof filter support frame made of 25*25 and 15*15
Galvanized square tube with powder coating.
Purification system


intake filter
The intake filter is a high-quality inlet filter that can capture items larger than 10μm.


cell strainer
High-efficiency filter made in Italy to filter items larger than 5μm.
floor filter
The ground filter is glass fiber filter, TSP≤14mg/m³.

Heating system


Electric heating system
8 groups of infrared curing lamps for heating, 3 lamps/unit, 1kw/lamp, each unit has a cover, a total of 24 tubes. infrared thermal radiation
It has the characteristics of high permeability, high efficiency, no noise and no pollution.
diesel heating system
RIELLO G10 diesel burner with heat exchanger, made of 1.5mm stainless steel SUS304.
Lighting system
ceiling light
8 units, 32 total, 36w LED light with light fixture.


Control System
switch control panel
Push-button control box with master switch
Spray baking switch, lighting switch, emergency stop, fault alarm, temperature timer, timer, etc.
