Supply capacity: | 5000 pieces per month | brand: | Thermon |
Packaging Details: | carton | usage: | lathe |
strength: | electrical | Outer diameter: | 80/100/120/160/250mm |
Number of jaws: | 3,4 | Material: | cast iron, stainless steel |
type: | egocentric | Chuck structure: | hard |
Claw type: | upper jaw | model: | K11 100 |
payment terms: | Western Union, wire transfer | application: | milling machine |
port: | Shanghai | Certification: | ce |
Warranty: | 3 years | product name: | Self-centering chuck |
thing: | Centering Lathe Manual Lathe Chuck | place of origin; place of origin: | China |
Custom Support: | OEM |

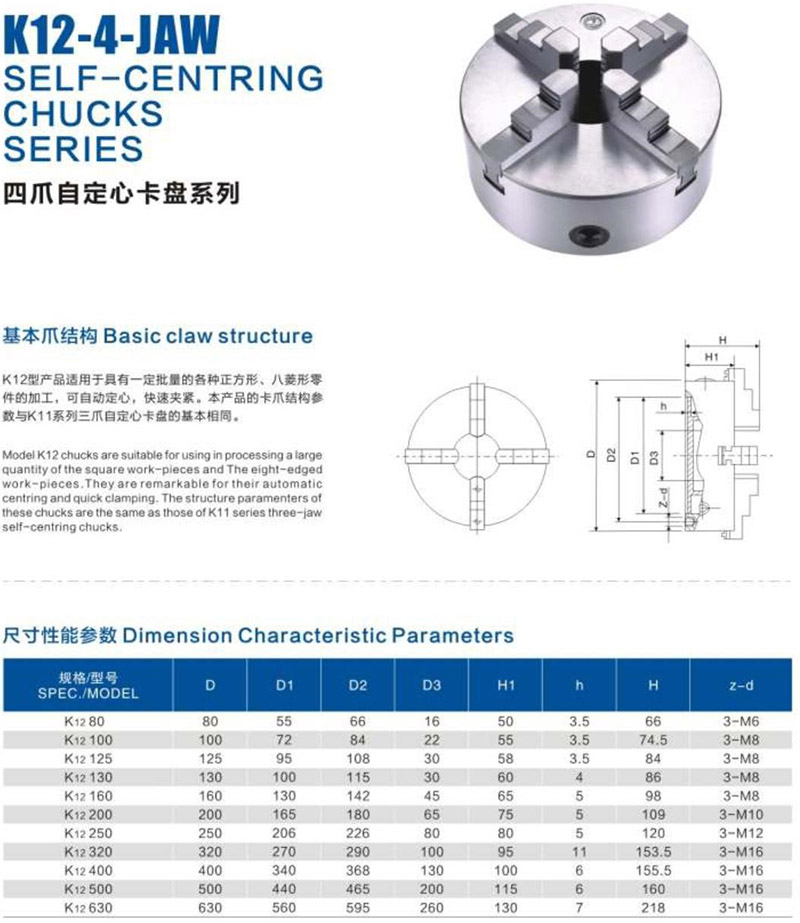

Model | D1 | D2 | D3 | H1 | H | z | d | H | Gross weight (kg) | Package dimensions |
80 | 55 | 66 | 16 | 50 | 3.5 | 3 | M6 | 66 | 2.2 | 12*12*12cm |
100 | 72 | 84 | twenty two | 55 | 3.5 | 3 | M8 | 74.5 | 3.5 | 14*14*13cm |
125 | 95 | 108 | 30 | 58 | 4 | 3 | M8 | 84 | 5.3 | 16*16*14cm |
130 | 100 | 115 | 30 | 60 | 4 | 3 | M8 | 86 | 5.5 | 17*17*16cm |
160 | 130 | 142 | 45 | 65 | 5 | 3 | M8 | 95 | 8.3 | 22*22*17cm |
200 | 165 | 180 | 65 | 75 | 5 | 3 | M10 | 109 | 15.5 | 28*28*19cm |
250 | 206 | 226 | 80 | 80 | 5 | 3 | M12 | 120 | 26.2 | 31*31*21cm |
315 | 260 | 285 | 100 | 90 | 6 | 3 | M16 | 153 | 46 | 39*39*22cm |
400 | 340 | 368 | 130 | 100 | 6 | 3 | M16 | 172 | 65 | 47*47*23cm |
500 | 440 | 465 | 200 | 115 | 6 | 3 | M16 | 202 | 86 | 57*57*24cm |
*For general purpose applications
*Material is cast iron.
*Reels are forged, balanced and hardened.

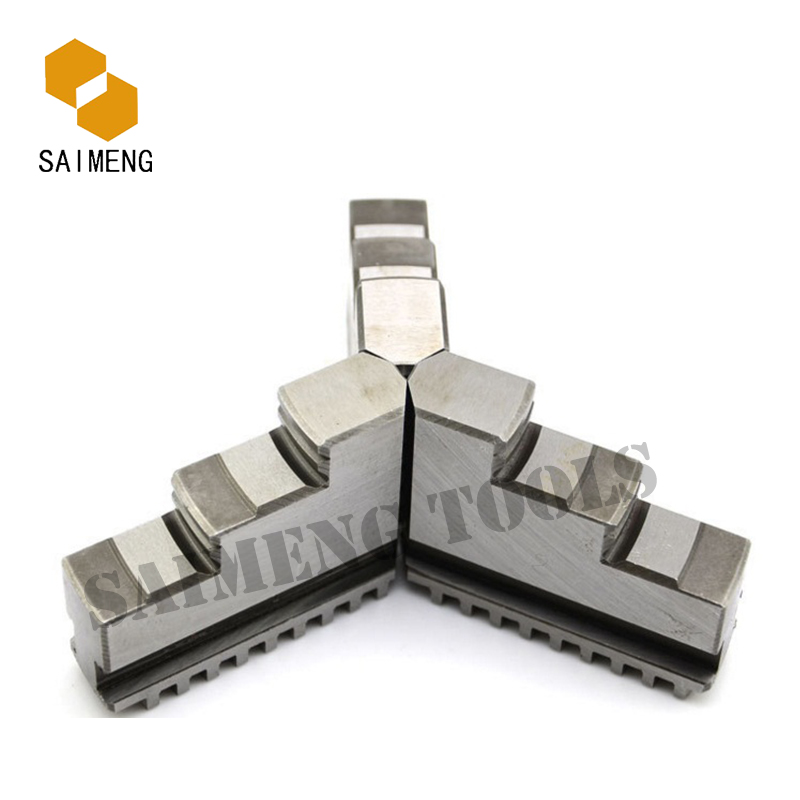

*All supplied with two sets of solid jaw internal and external steps.

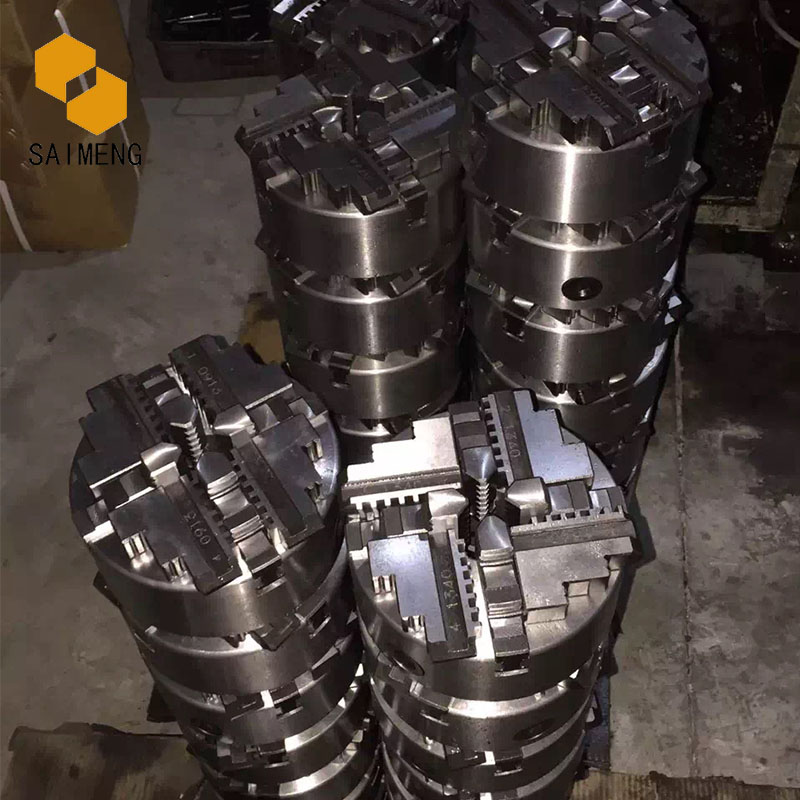

* Four claws are also available.

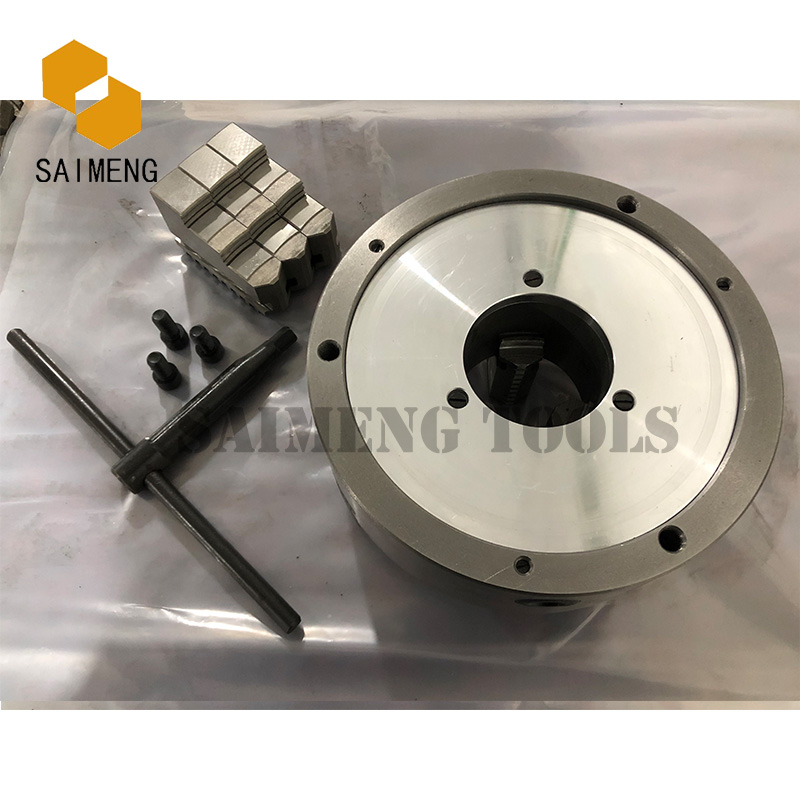

*Short cylindrical center mount.
*Self-centering chuck with stepped jaws.
*Suitable for the clamping and processing of thin-walled parts, especially for the processing of various tools.
We have the following advantages:
1. High quality, reasonable price, n, more secure.
2. We have our own factory and warehouse, so we can ship after the first payment.
3. Timely reply: your inquiry about our tool, we will reply you within 24 hours.
4. We can give you the best price under the same conditions in China.
5.OEM & ODM accepted: We can produce tools according to your drawings.
3. Protect your sales area, design concept and all your private information.
7. We are very serious and professional sellers, we assure you that we can have very perfect cooperation, and we are willing to establish long-term business relationship with all customers (including agency sales) on the basis of equality and mutual benefit.
Our company has accumulated rich experience in tool manufacturing over the years. Currently, we can export tools all over the world, such as turning tools, milling cutters, boring tools, tool holders, bars, bits, drill bits, nuts, wrenches, screws and other machine accessories, etc., and have gained a good reputation in on the international market.
We look forward to your inquiries and cooperation, if you are interested in purchasing our products, please feel free to contact us
