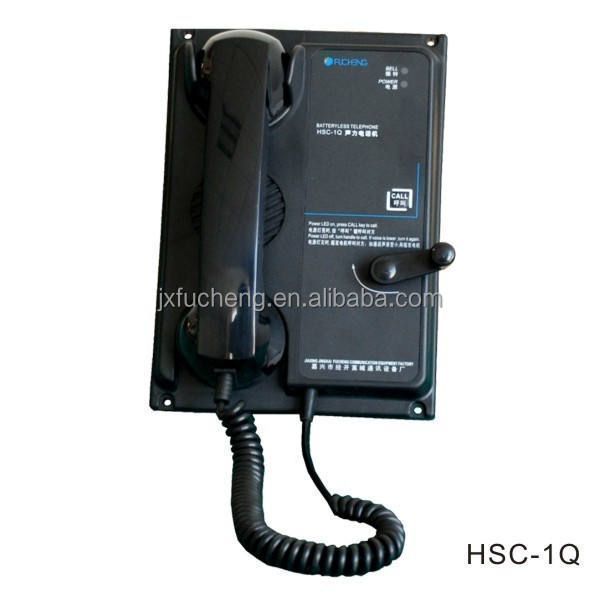

Direct Dial Flush Marine Voice Activated Telephone

Product details
payment terms:L/C,D/A,T/T,Western Unionbrand:Fucheng
model:HSC-1Qplace of origin; place of origin:China
Product Description

HSC Voice Telephone System

HSC series voice-activated telephones are designed in accordance with CCS specifications, and are used as voice-activated telephones and ordinary battery telephones for onboard communication. Its characteristics are that it is loud and clear regardless of whether there is an external power supply, and it is easy to use.





feature

Enhance your voice for communication

Users can communicate using a voice powered telephone with a 24VDC power supply. The phone automatically becomes a talking call when the power is lost.



push-to-talk

A call button on the panel of the HSC phone. When 24VDC power is on, press this key to make another call without turning the generator. When the power supply is between 15V and 35V, the phone can be used normally. Rotate the generator to communicate when power is lost.





Anti-noise function

Noise-cancelling sound-powered phone with noise-cancelling earphones. Can be used in 110dB noise environment.



flash signal unit

For use in noisy areas such as engine rooms. Voice powered telephones have terminals attached to them. When the telephone call signal is to be sent to the E/R alarm indicator, the FR-100 relay box should be connected.







System diagram

There are three types of system configurations.

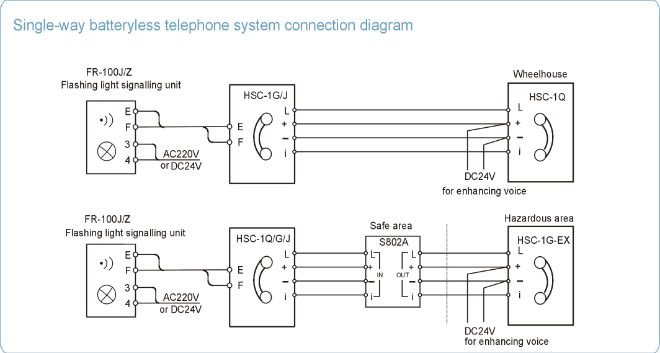

1. One-way audio telephone



Two one-way voice powered telephones can be connected for communication. When the cables of the HSC-1Q are connected through the cab console, the connecting cables should be screened and well grounded.

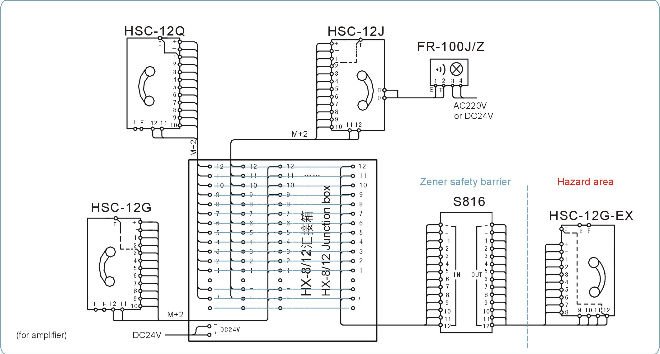

2. Selective voice powered telephone

A selective call telephone system consists of a number of multiple telephones. Any phone can be dialed

other. Several pairs of phones can communicate simultaneously. The capacity is 4 to 12 lines.

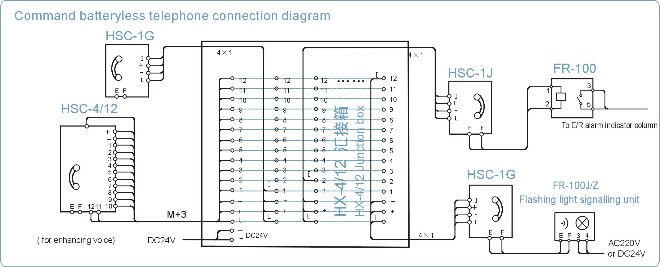

3. Command voice phone calls

The command voice-powered telephone telephone system consists of one command telephone and several multi-channel telephones. The command telephone can communicate with multiple telephones. Multiple phones cannot call each other. When the phone is commanded to communicate with other phones, other phones can cover.

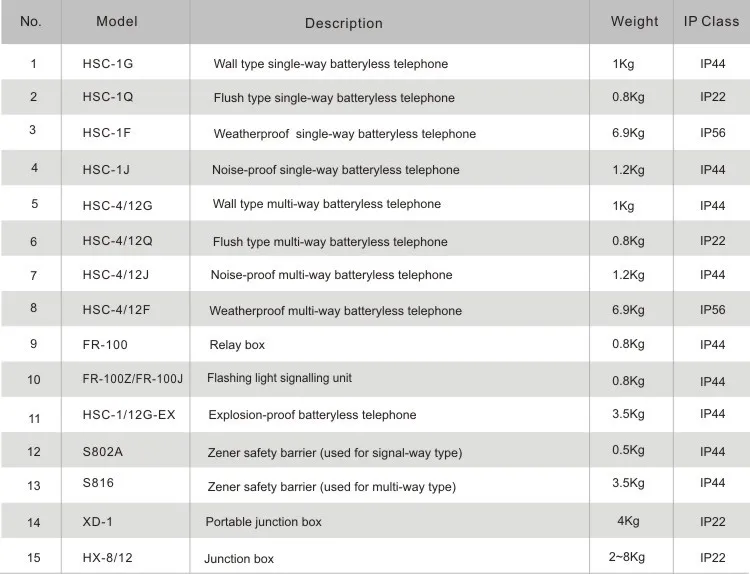

Product List
