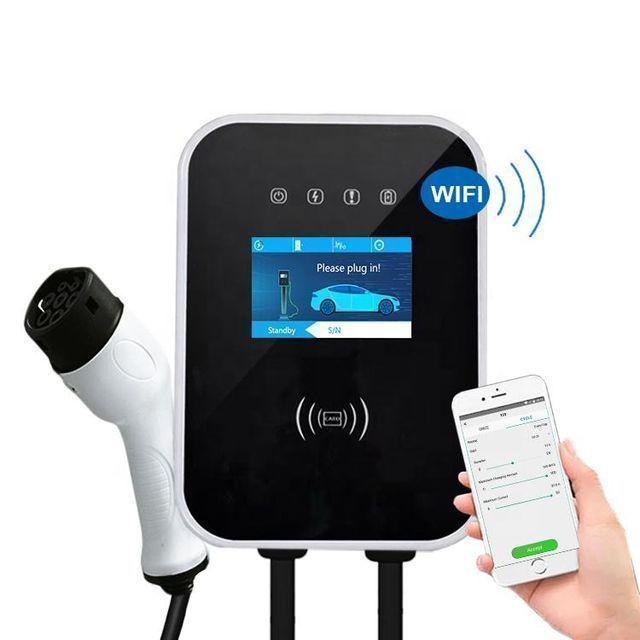

BC Car Wallbox 32a Electric Vehicle Charging Station Ev Charger 7.4kw with 5m Cable

Supplier: Chengdu Baichuan Electronics Co., Ltd.
Region: Sichuan, China
Contact: Mr Baichuan BC
Price: $268.00 / 1 - 49 sets
$258.00 / 50 - 199 sets
$245.00 / 200 - 499 sets
$238.00 / >=500 sets
Min. Order: 1 set

Click here to contact

Product details

Output current range:	0~32A	model:	BC-EV32P
Model:	common	year:	common
cable length:	5M/10M/15M	Voltage:	200-400V
Connector type:	IEC 62196 / SAE J1772	Charging port:	Invalid
Power Plug Type:	Schuko/Nema/UK Plug/Au Plug/CEE	design style:	modern
type:	7kW	Charging power:	7KW/11KW/22KW
product name:	Car Wallbox 32a Electric Vehicle Charging Station Ev Charger 7.4kw	Supply capacity:	10000 sets per month
brand:	Baichuan	port:	Shanghai/Guangzhou/Chengdu
combination:	APP,WIFI,Bluetooth	Warranty:	1 year

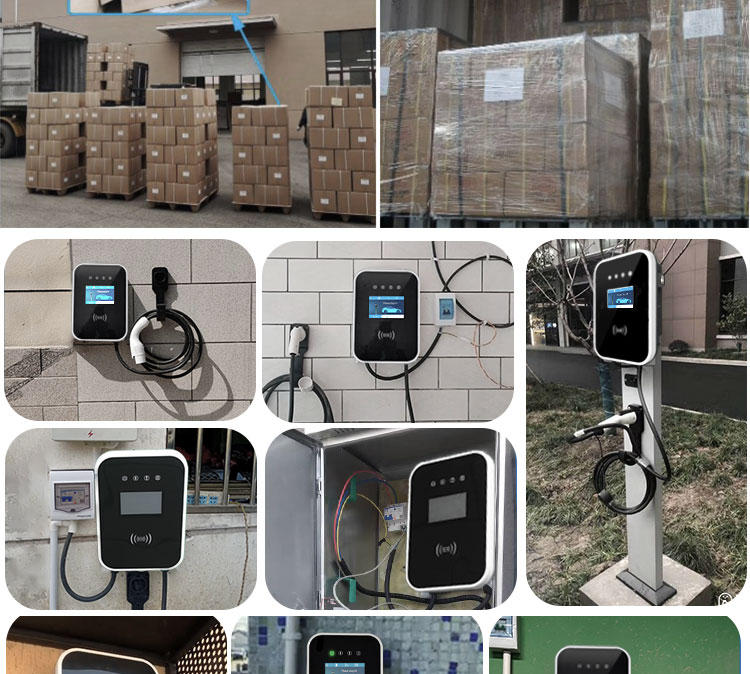

Install:	Wall-mounted	Start method:	"Plug and Play" or RFID cards
place of origin; place of origin:	Sichuan, China	Function:	Electric vehicle charging
Intellectual Property Code:	Protection class 65	Auto Parts:	common
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	connect:	Type 1, Type 2
Input voltage range:	230V±15%, single phase	Packaging Preview:

Product Description

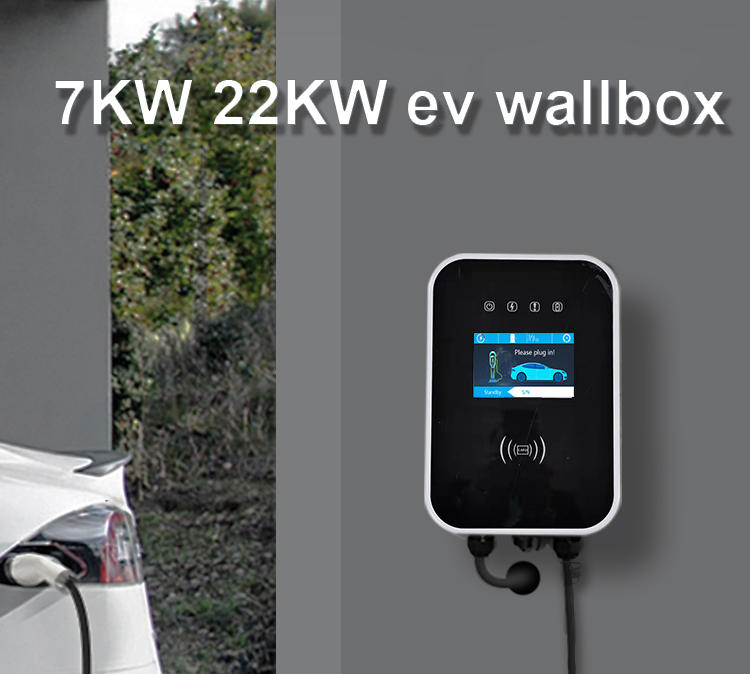

Ev Charger 32A Type2 Level2 EVSE Wallbox Electric Vehicle 7.4kw Wall Charger Ev Car Home

Product parameters

Wall Mounted Electric Vehicle Charger Power Specifications
	EU standard
Type of charging connector	IEC 62196-2 (Type 2) or SAE J1772 (Type 1)
AC Power Input Ratings	Stage 1	three phase
AC Power Input Ratings		230V±15%	380V±15%
AC Power Output Ratings	7kw/32A	11kw/16A
AC Power Output Ratings			22kw/32A
frequency class	50/60 Hz
User Interface and Controls
emergency stop button	Yes	Plug and charge	Yes
RFID card charging	Yes	App charging	optional
4.3-inch LCD screen	optional	wireless function	optional
Protect
Overvoltage protection	Yes	Undervoltage protection	Yes
Overload protection	Yes	Short circuit protection	Yes
Leakage Protection	Yes	Ground protection	Yes
Over temperature protection	Yes	surge protection	Yes

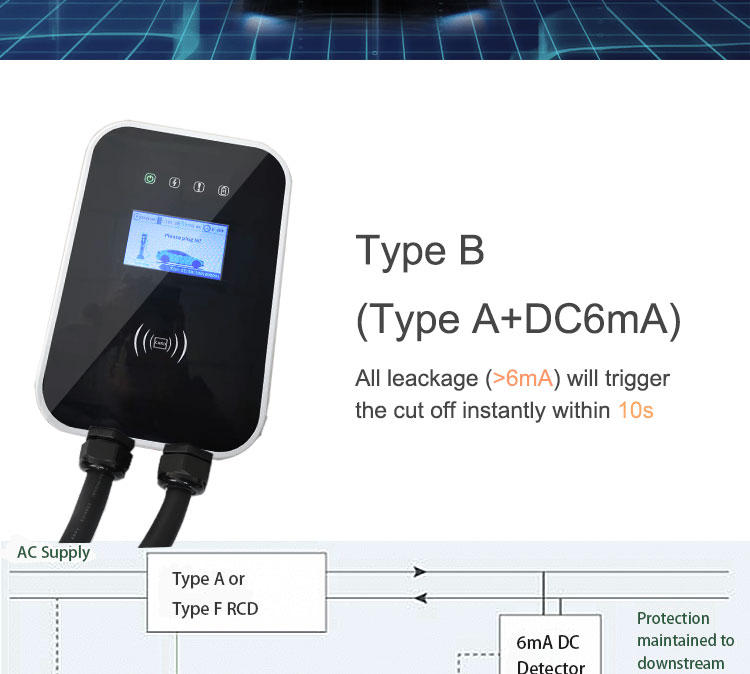

RCD	Type A+DC6MA
environmental
Storage temperature	-40 ~ 70℃	Operating temperature	-20 ~ 50℃
Working humidity	Up to 95% non-condensing	high	≤2000m
cooling method	Free cooling
BC-EV32P Wall Box Machinery
intellectual property code	IP65	Dimensions (H×W×D, mm)	420×310×240
weight	7kg	Charging cable length	5m or customized
Shell material	Front panel: PC/ABS flame retardant material

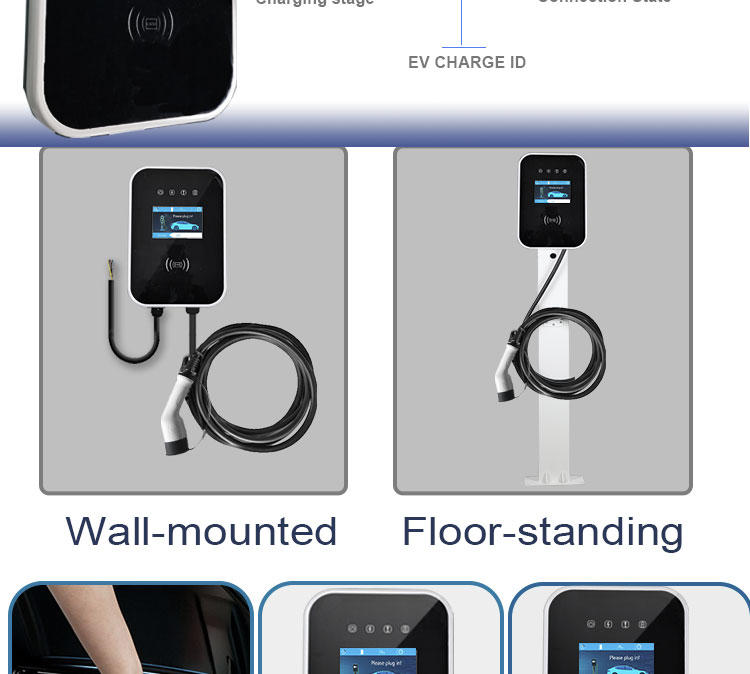

BC-EV32T Mounting Pole (Optional)
Dimensions (H×W×D, mm)	1500×150×60	weight	<7kg
Shell material	Metal

Welcome to contact us for more details.
PS: support customization
