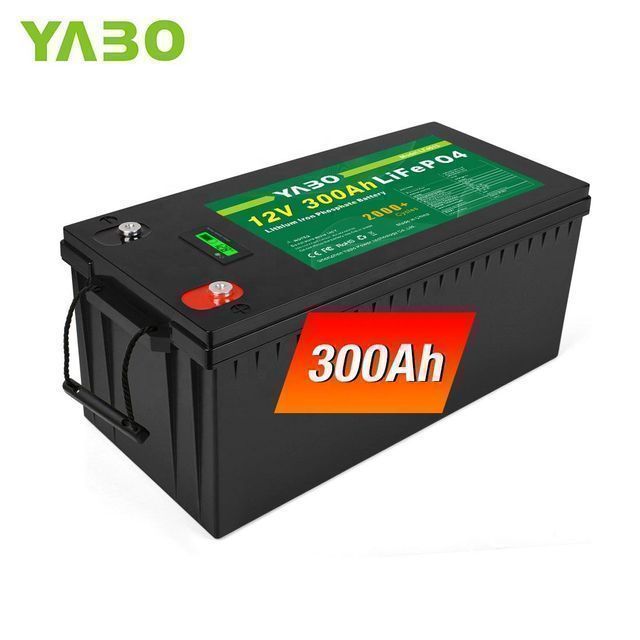

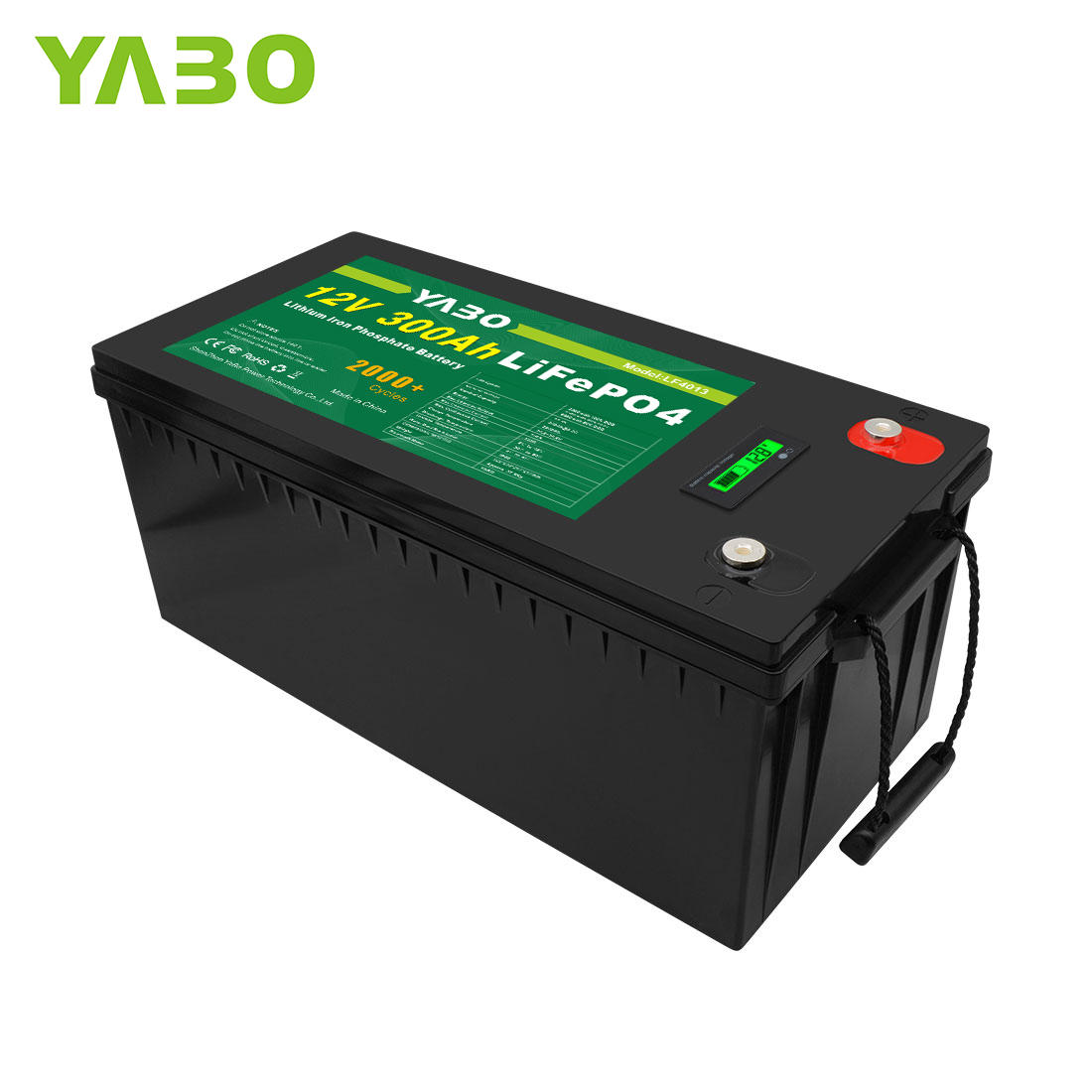

YABO LiFePO4 BMS Lifepo4 Battery 12V 48V 120Ah 150Ah 170Ah 200Ah 300Ah LiFePO4 Lithium Ion Battery 12V

Click here to contact

Product details

place of origin; place of origin:	Guangdong, China	Packaging Details:	1. We usually use carton for packing. 2. Packing according to customer requirements.
Discharge cut-off voltage:	10v	TOLL:	Yes
weight:	About. 27.5kg	model:	LF4013 LCD 12V 300Ah

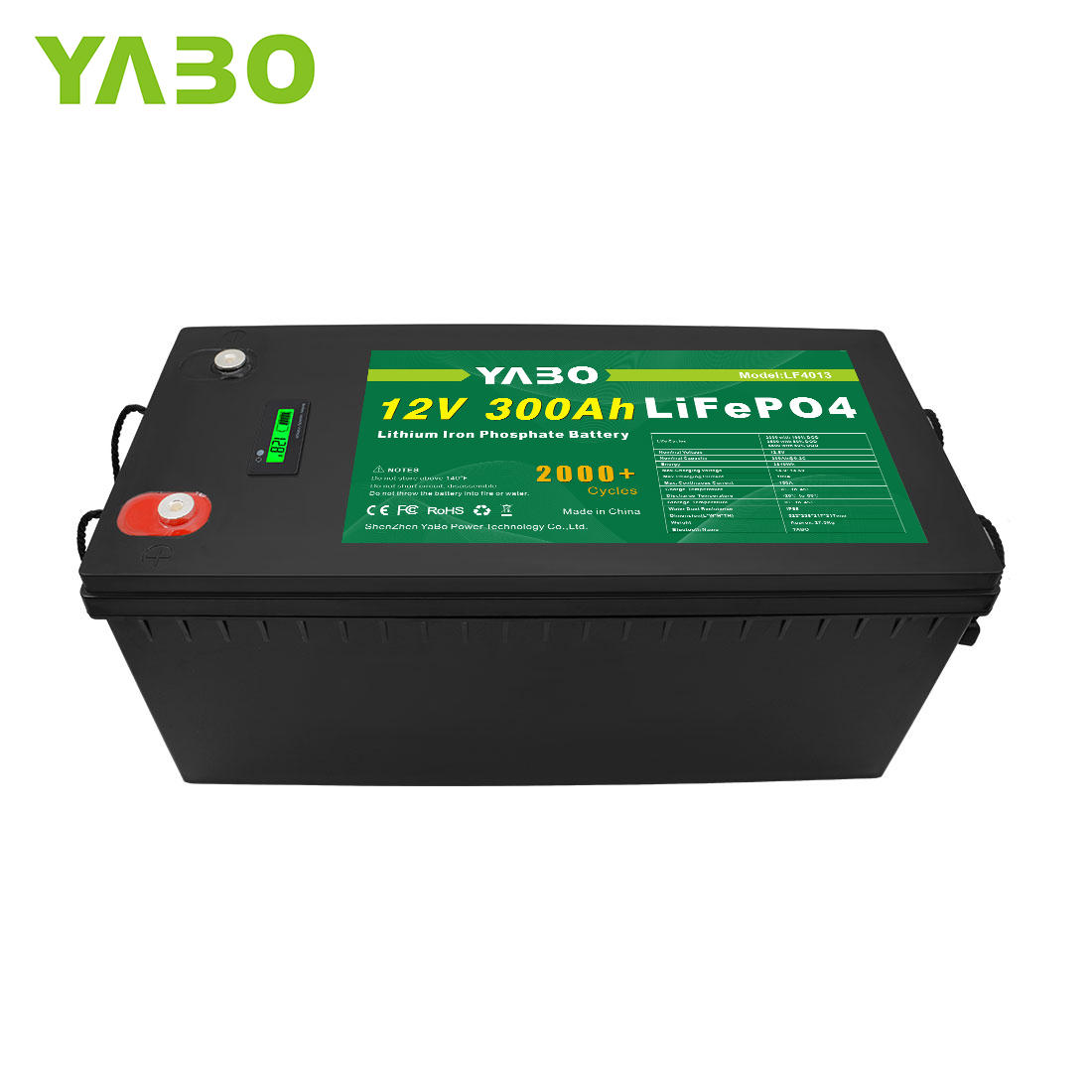

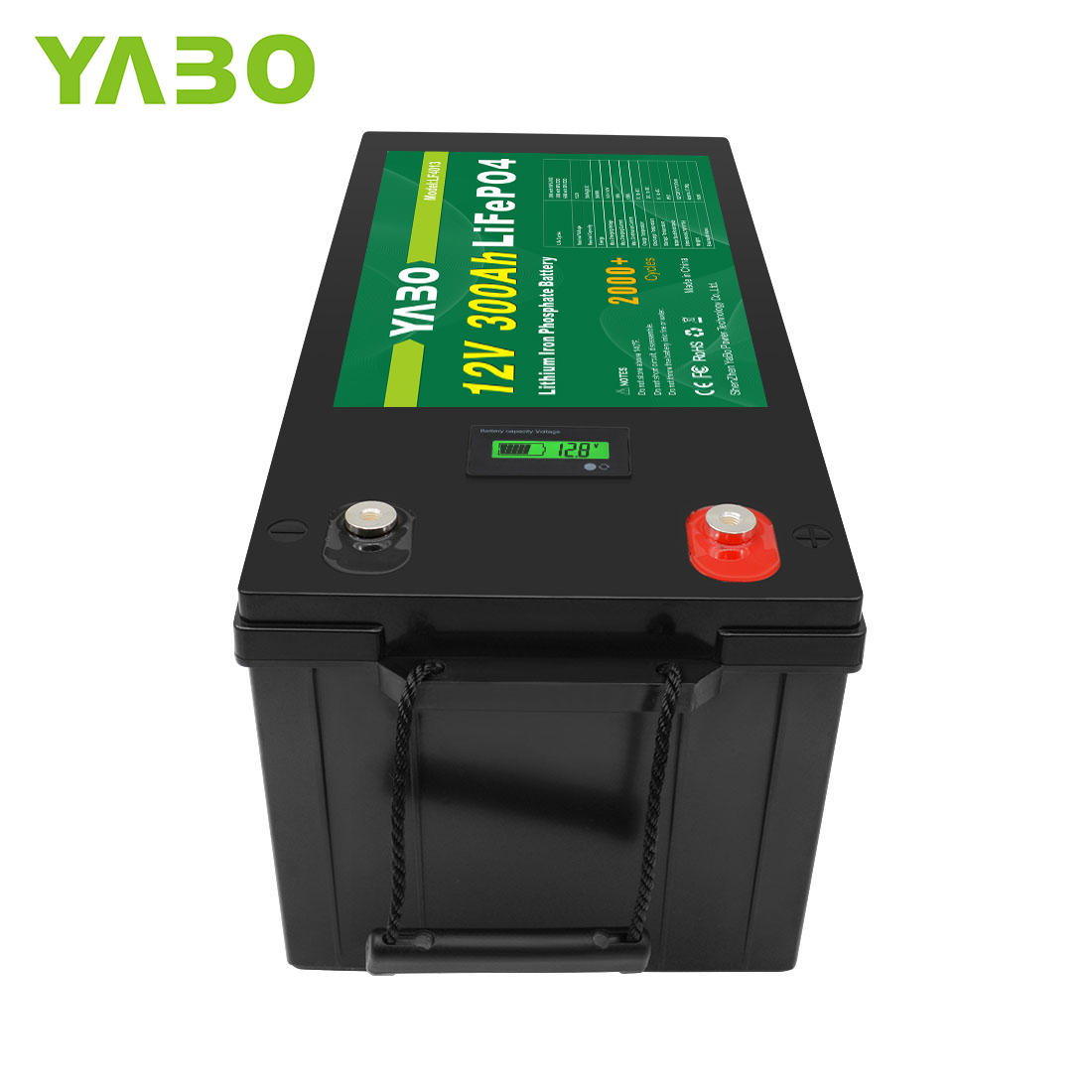

standard:	12.8V	product name:	12.8V 300Ah LiFePO4 battery
terminal:	M8	Certification:	ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB
case:	plastic	Battery size:	Prism 4S1P
Supply capacity:	100,000 pieces per week	brand:	Yabo
OEM/ODM:	acceptable	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Discharge rate:	200A	Charging ratio:	150A
Maximum pulse current:	200A(<3S)	application:	Boats, golf carts, submarines, solar storage systems, uninterruptible power supplies, UPS, solar and wind energy systems
Waterproof and dustproof:	IP55	maximum. Continuous discharge current:	100A
port:	Shenzhen/Hong Kong	Warranty:	3 years
Anode material:	LFP	Charging voltage:	14.6±0.2v

Product Description

electric feature	standard	12.8V
		Nominal capacity	300Ah@0.2C
		vitality	3840Wh
		Internal resistance	≤35mΩ
		cycle life	2000 cycles @ 0.2C charge/discharge until 70% capacity
		self-discharge	≤3.5% per month at 25℃
Standard charge	Maximum charging voltage	14.0~14.6V
		charging mode	At a temperature of 0℃~45℃, charge to 14.6V with a constant current of 0.2C, and then change continuously with a constant voltage of 14.6V until the current does not exceed 0.02C
		recharging current	100A
		Maximum charging current	100A
Standard emissions	Discharge current	100A
		maximum. continuous current	100A
		Maximum pulse current	200A(<3S)
		Discharge cut-off voltage	10.0
operating conditions	charging temperature	0°C to 45°C (32°F to 113°F) @ 60±25% RH
		Discharge temperature	-20°C to 60°C (-4°F to 140°F) @60±25% RH
		Storage temperature	0°C to 45°C (32°F to 113°F) @ 60±25% RH
		Waterproof and dustproof	IP55

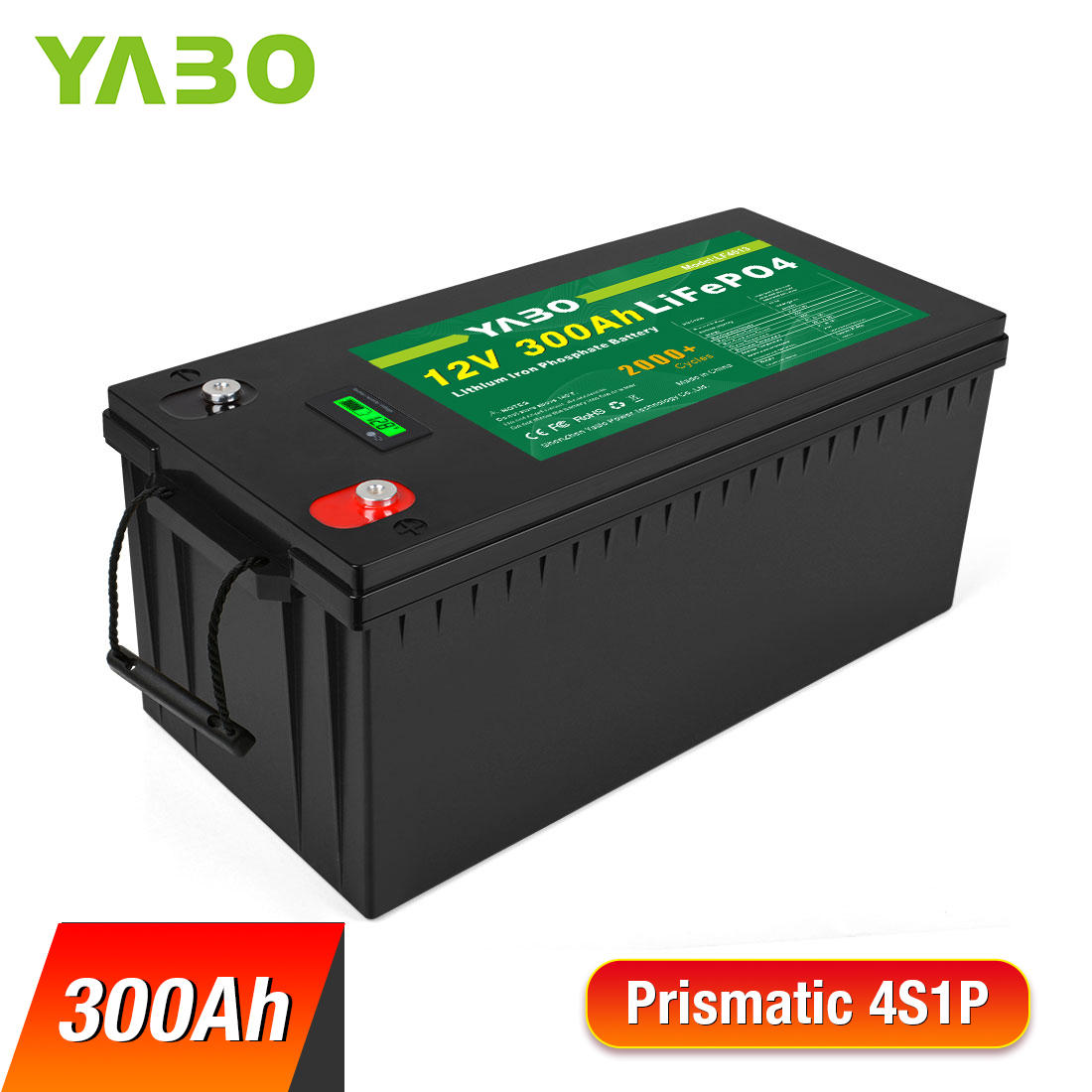

structure	Cells and Formatting	4S1P, Prismatic
		casing	plastic

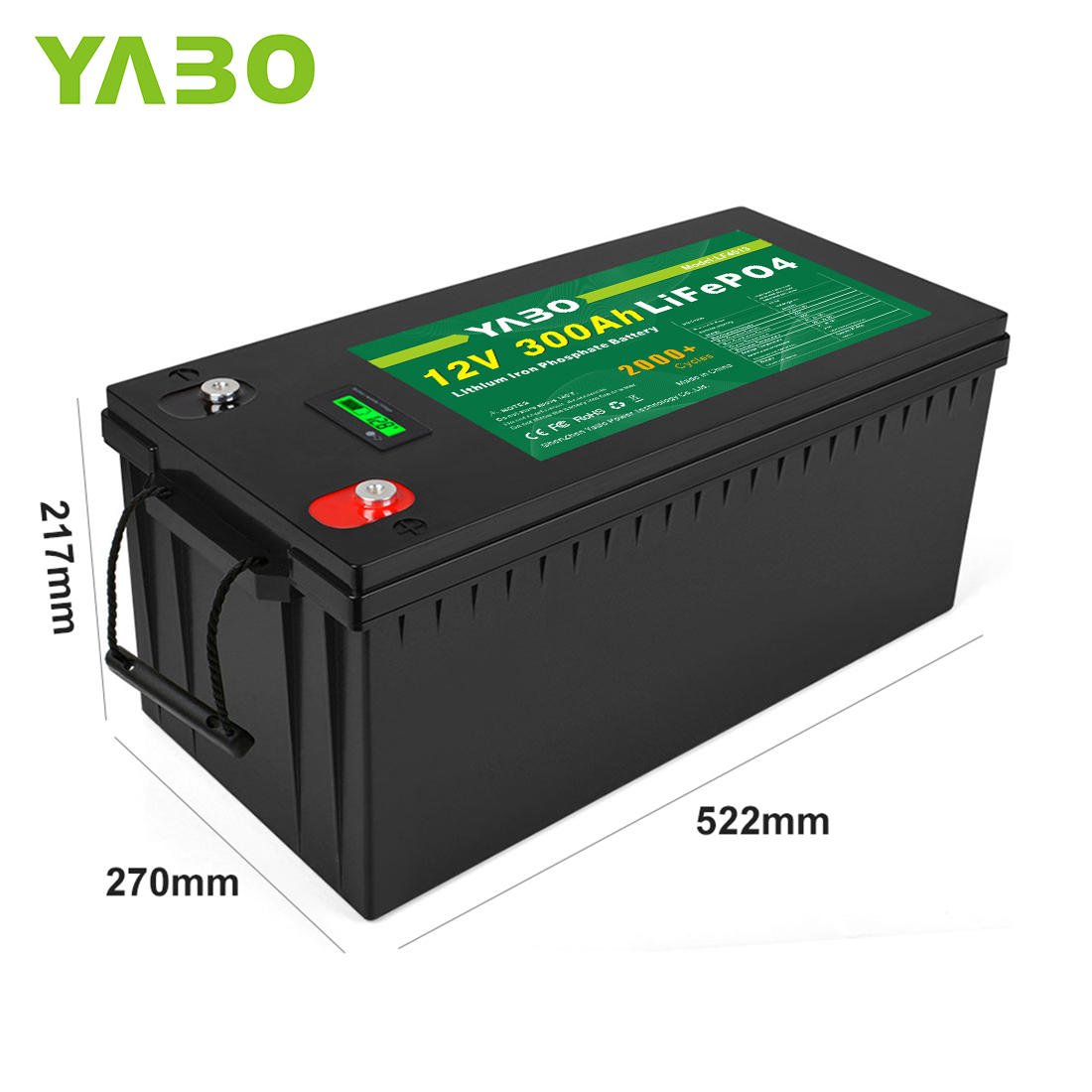

		Size (LWH*H)	522270217*217mm
		weight	About. 27.5kg
		terminal	M8
