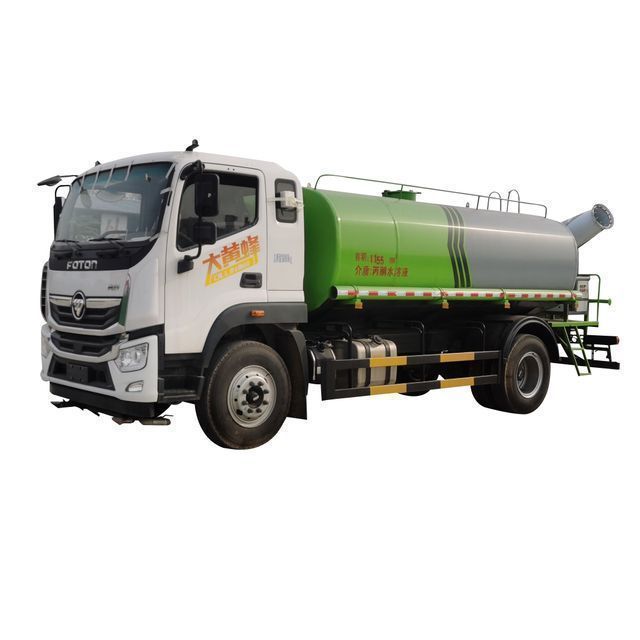

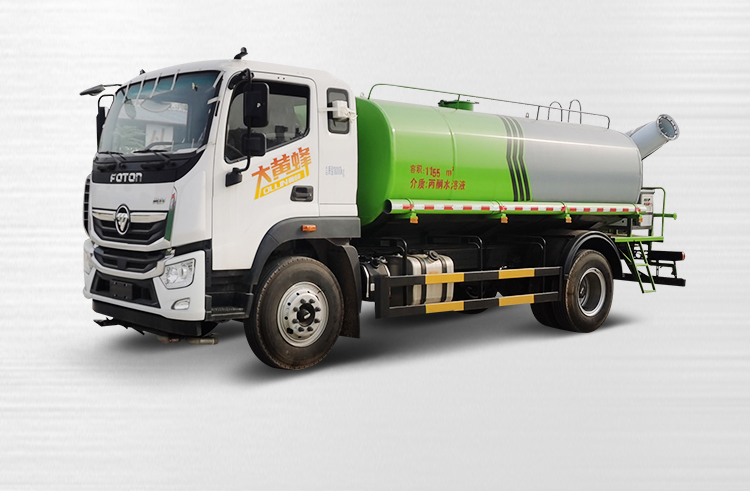

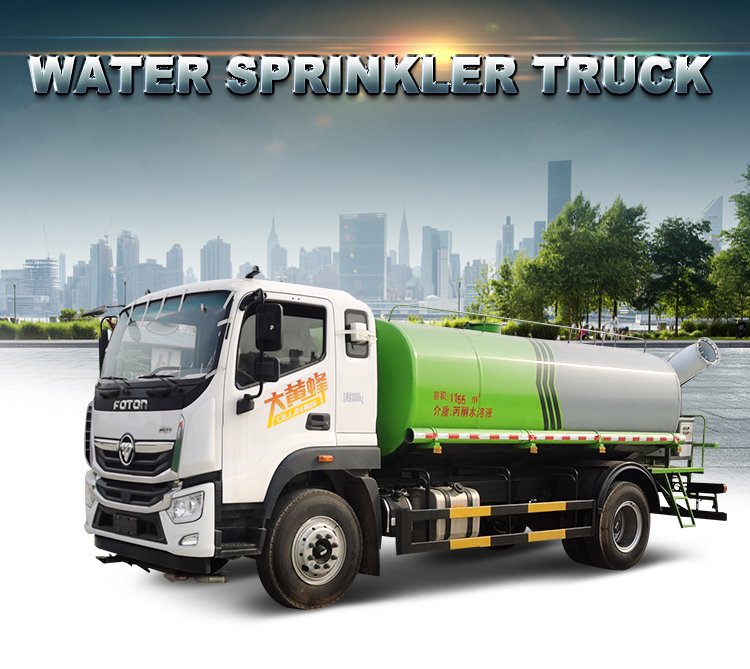

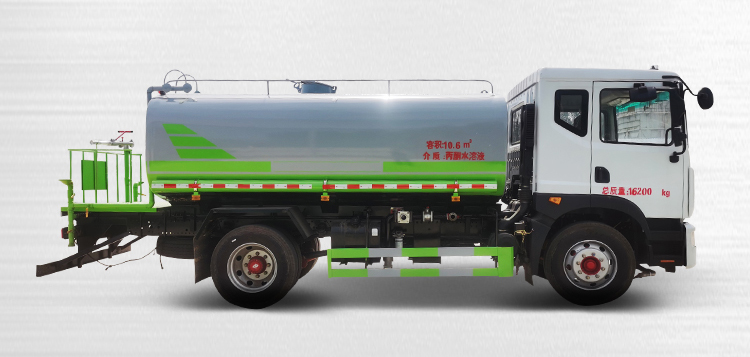

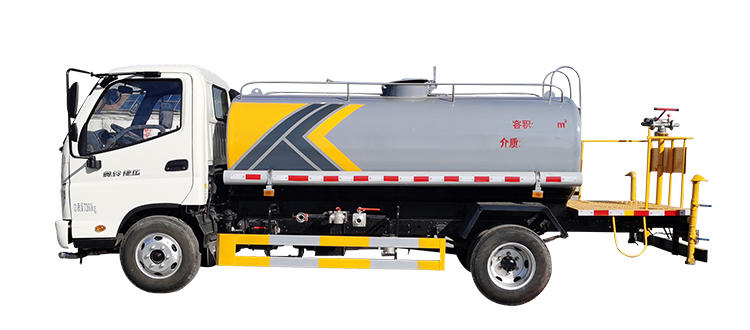

Heavy Duty Multifunctional Road Sprinkler Street Sprinkler Water Tanker

Supplier: Shandong Zhongzheng Special Purpose Vehicle Co., Ltd.
Region: Shandong, China
Price: $10000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Front suspension/rear suspension:	1270/2430(mm)	place of origin; place of origin:	Shandong China
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Marketing Type:	New Products 2020
Engine capacity:	4 - 6L	gasoline:	diesel engine
Emission Standards:	Euro 2	Supply capacity:	1000 units per month
Sprinkling area (m):	12 - 16m	Core Components Warranty:	1 year
Axle load:	6500/11500	Showroom location:	not any
Video external inspection:	if	Core components:	Engines, motors, pumps
Warranty:	1 year	Weight (kg):	6830 kg
Type of gasoline:	diesel dye	Applicable industries:	Urban road flushing, green plant watering, drinking water transportation, firefighting functions
Drive Wheel:	4X2	driver:	2/3 (person)
Transmission type:	automatic	Rated load mass:	11040/10975(kg)
Mechanical test report:	if	Top speed:	100,90 (km/h)
port:	Qingdao, Tianjin, Shanghai	volume:	12.1m³
Gross vehicle weight:	18000	Health status:	new
brand:	Zhongzheng	Packaging Details:	Container or can be packed according to your requirements
Dimensions (L x W x H) (mm):	820025503100(mm)

Product parameters

The cab can be selected with the chassis, and the style of the rear spray device is optional. The total volume of the tank is 12.1 cubic meters, the effective volume is 11.55 cubic meters, the size of the tank: 4600 × 2350 × 1500 (mm), the conveying medium: acetone aqueous solution, the density: 950kg/m3; Protection material Q235, welded connection, the height of the rear protection section is 140mm, the width of the section is 60mm, and the height of the lower edge from the ground is 450mm. The main device of the car is the tank body and the spray device assembly, which is used for urban and rural landscaping operations. Only chassis 4500 wheelbase (mm) is used for modification. The speed limiter is optional with the chassis, and the speed limit is 90km/h.

product name	Green forest sprinkler
total mass	18000(kg)
Rated load mass	11040/10975(kg)
Curb weight	6830(kg)
volume	12.1m³
driver	2/3 (person)
aspect	8200×2550×3100(mm)
front suspension/rear suspension	1270/2430(mm)
Axle load	6500/11500
top speed	100,90 (km/h)
engine model	YCK05240-60/F4.5NS6B220/YCS04200-68/YCS06245-60A/D47TCIF1/YCS06270-60/X6.2NS6B260/B6.2NS6B260
shift	5132/4500/4156/6234/4714/6234/6200 (ml)
power/horsepower	176/239&162/220&147/199&180/244&169/229&199/270&191/259(kw)/(PS)
Type of gasoline	diesel dye

Product Details

tankThe tank material is mostly made of carbon steel plate to make the tank roll forming, with stable performance and long service life.

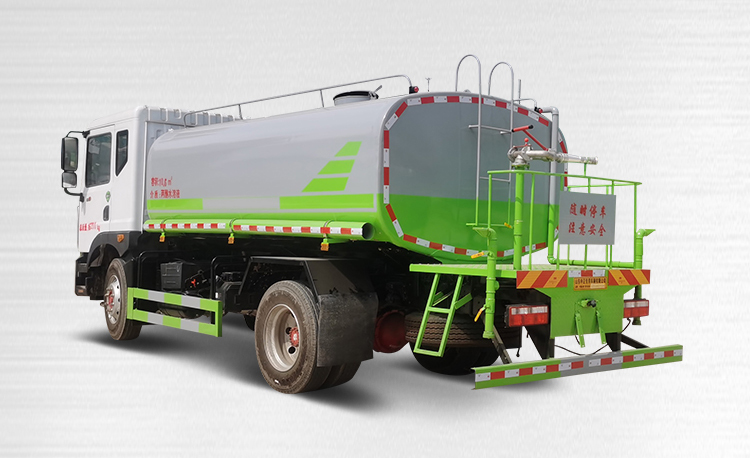

Various spraying functionsFront flush, rear spray, side spray, etc., the spraying is comprehensive and the operation is simple.

fetalThe use of industrial vehicle tires has large bearing capacity and good friction, which greatly increases the service life of the vehicle.

Self-contained suction pumpEquipped with high-power spray pump, with fire joint, with self-flow valve, with self-priming function.

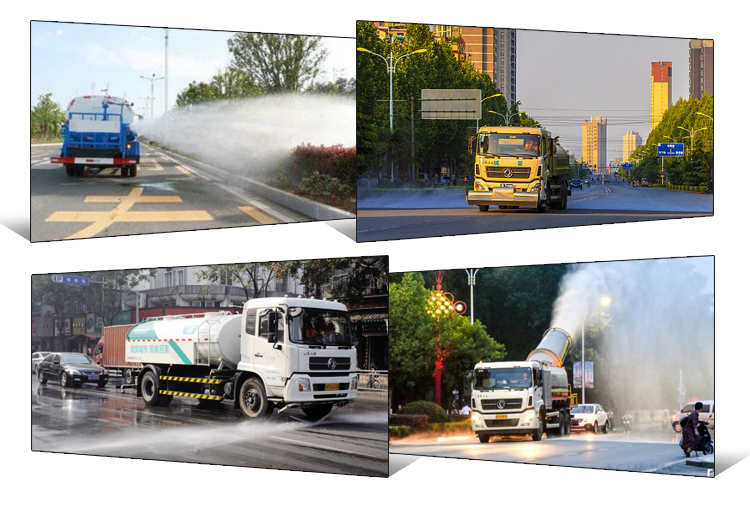

application

Mainly used for flushing of urban roads, watering and greening of trees, green belts, lawns and dusty construction sites. It is also used for functions such as drinking water delivery and fire protection.
