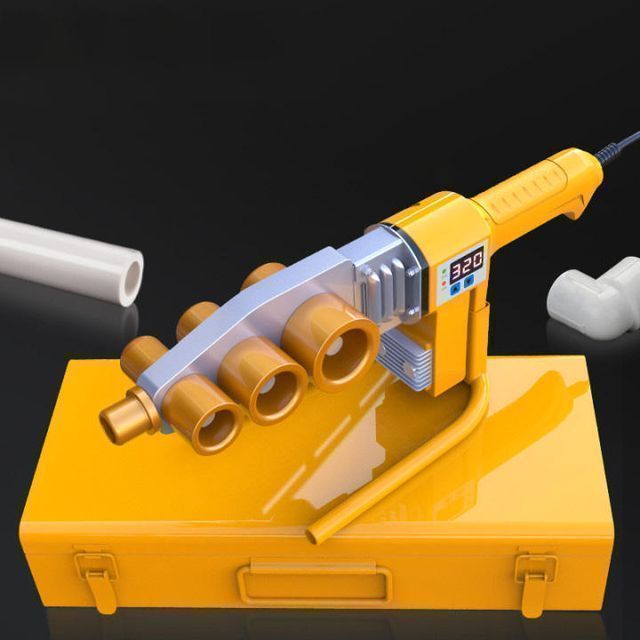

WHAMX 20mm 110mm Slotted Plastic Water Pipe Heater Machine

Supplier: Hangzhou Hereditary Technology Co., Ltd.
Region: Zhejiang, China
Price: $7.90 / 1 - 49 pieces
$7.60 / 50 - 99 pieces
$7.40 / 100 - 999 pieces
$6.90 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Video external inspection:	if	Key words:	Ultrasonic Plastic Welding Machine
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Mechanical test report:	if
Warranty:	1 year, 1 year	brand:	WHAMX
Supply capacity:	10000 pieces per month	Health status:	new
Marketing Type:	New Products 2020	Weight (kg):	1.73 kg
product name:	high frequency welding	frequency:	50 Hz
Welding area:	20-110MM	Voltage:	220V
place of origin; place of origin:	China	After-sales service provided:	Video technical support, free spare parts, online support
Welding materials:	PP HDPE PE PVC EVA	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Food Stores, Printing Stores, Food and Beverage Stores, Advertising Agencies
application:	PVC pipe	Function:	Welding Welding Embossing Joint Splicing
type:	semi-automatic	aspect:	345.514cm

product category

Product Description

Water pipe welding time reference

1. Accurately grasp the heating time and water pipe welding time reference

If the heating time is too short, it is easy to cause uneven heating of the pipe. This makes matching difficult. Heating time is too long. PLPE accessories are easy to melt, causing excessive loss of gelatinous substances. The selection of heating time can refer to the table below.

Pipe diameter/mm	Melting time/sec	Pipe diameter/mm	Melting time/sec
20	5	63	twenty four
25	7	75	30
32	8	90	40
40	12	110	50
50	18

2. Do not rotate when docking

Key points of hot-melt connection of pipes and fittings: After the heating time is reached, immediately remove the pipes and fittings from the heating jacket and the heating head at the same time, and insert the marked depth on a straight line that does not rotate, and an irregular shape is formed at the joint. flange
