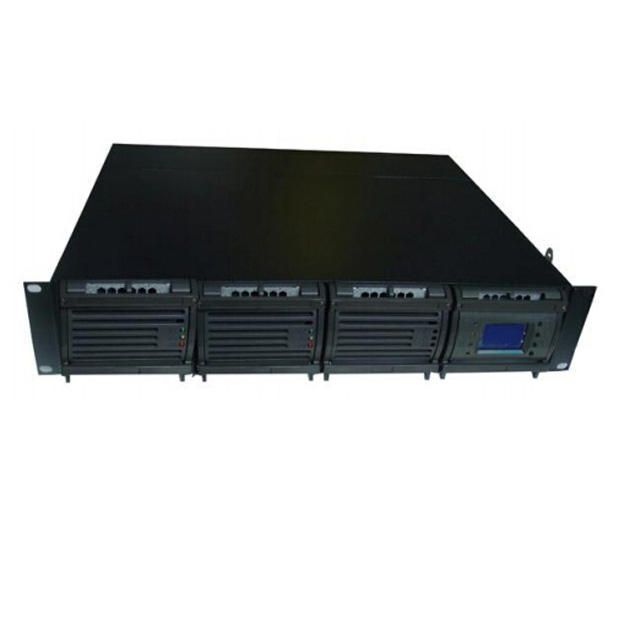

220 VDC industrial battery charger rectifier system

SET-24V/48V/220V/110V series power modules are compact battery charging rectifiers
Connect with the back.
Rectifiers are specially designed for high voltage power plants and substations.

Thanks to the modular concept and high expandability, the user is able to equip the power supply with
Configure additional modules according to his actual power. The charger is very user-friendly,
Swap and upgrade can be done while the system is running.

The device obtains its operating parameters through the system RS 485 communication bus.
After successful login, the central monitoring unit controls and monitors the equipment. in case of interruption
Due to the failure of the monitoring unit, the module operates continuously with internal default values.
Therefore, the power supply of the connected load and the charging of the battery are guaranteed without any
interrupt.
The stepless temperature control fan speed changes with the output power of the module, minimizing the
noise and extended fan life. The rectifier requires a 1Ph AC power connection.

The rectifier power supply circuit is divided into active PFC and DC to DC converter, which can make wide
Input voltage range (85V-290V) and high efficiency. High power density has reached international
advanced level.

enter

output
