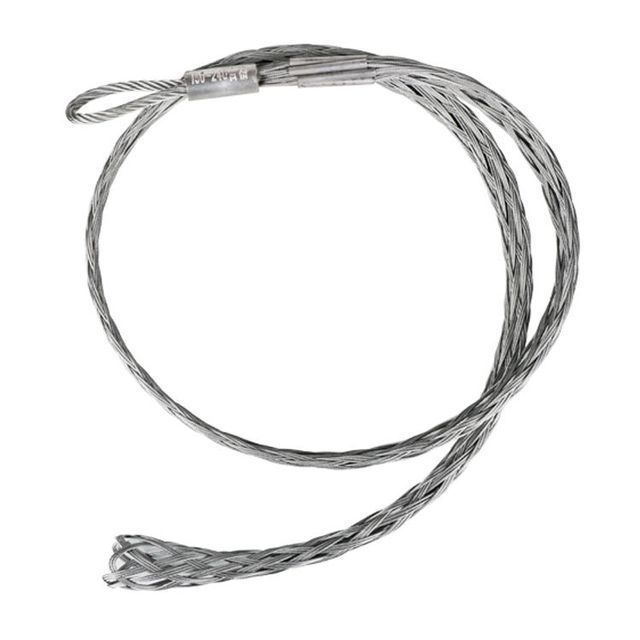

20kN High Strength Single Conductor Wire Mesh Clip Cable Pull Clamp Cable Pull Socks

Product details
model:SLWbrand:Haoxin
port:Shanghai or Ningbo PortPackaging Details:Standard export packing or on request 20kN high strength single-ended conductor wire mesh grip cable pull cable grip cable pull socks
Ultimate load:40kNMaterial:steel
Classification:single headpayment terms:L/C, Western Union, T/T, MoneyGram, Paypal
product name:Wire mesh clipsCable pull clipsCable pull socksApplicable conductors:120-150mm²
type:wire rope clipplace of origin; place of origin:Jiangsu, China
specified load:20kNusage:Line construction
Supply capacity:5000 pieces per monthcolor:silver
feature:High tension and light weightsurface:Galvanized
application:power construction

20kN High Strength Single Conductor Wire Mesh Clip Cable Pull Clamp Cable Pull Socks

Product Description

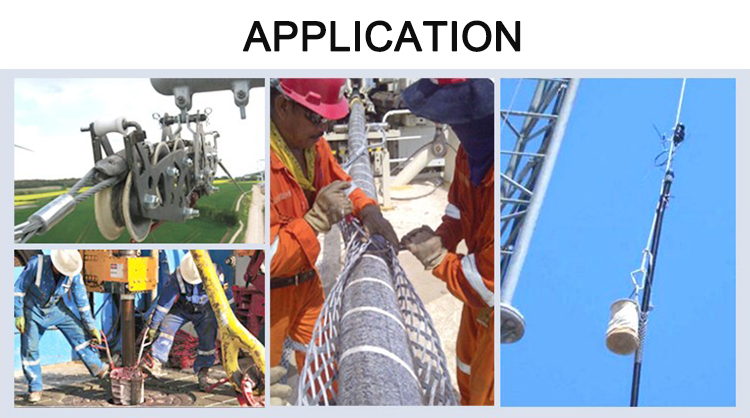

application:

It is used for traction and installation of power cables and communication cables, and conductor traction in the construction of power transmission and transformation lines. It can also be used in oil fields, mainly for the replacement of crane wire ropes. When in use, one end is connected to the new rope and the other end is connected to the old rope. Through the rotation of the hoisting winch, the old rope can be replaced, which greatly saves labor. The single-ended wire mesh clip is a plug-in flexible connector used to connect wire ropes or traction plates to conductors.



usage:

When starting power construction, all kinds of steel-cored aluminum stranded wires, insulated conductors, ground wires, optical fibers, optical cables, and optical cables can be connected through various types of pay-off devices, which have the advantages of light weight and high tension. It has the advantages of load, no damage to the line, easy to use, etc. It is the most ideal tool in power construction.

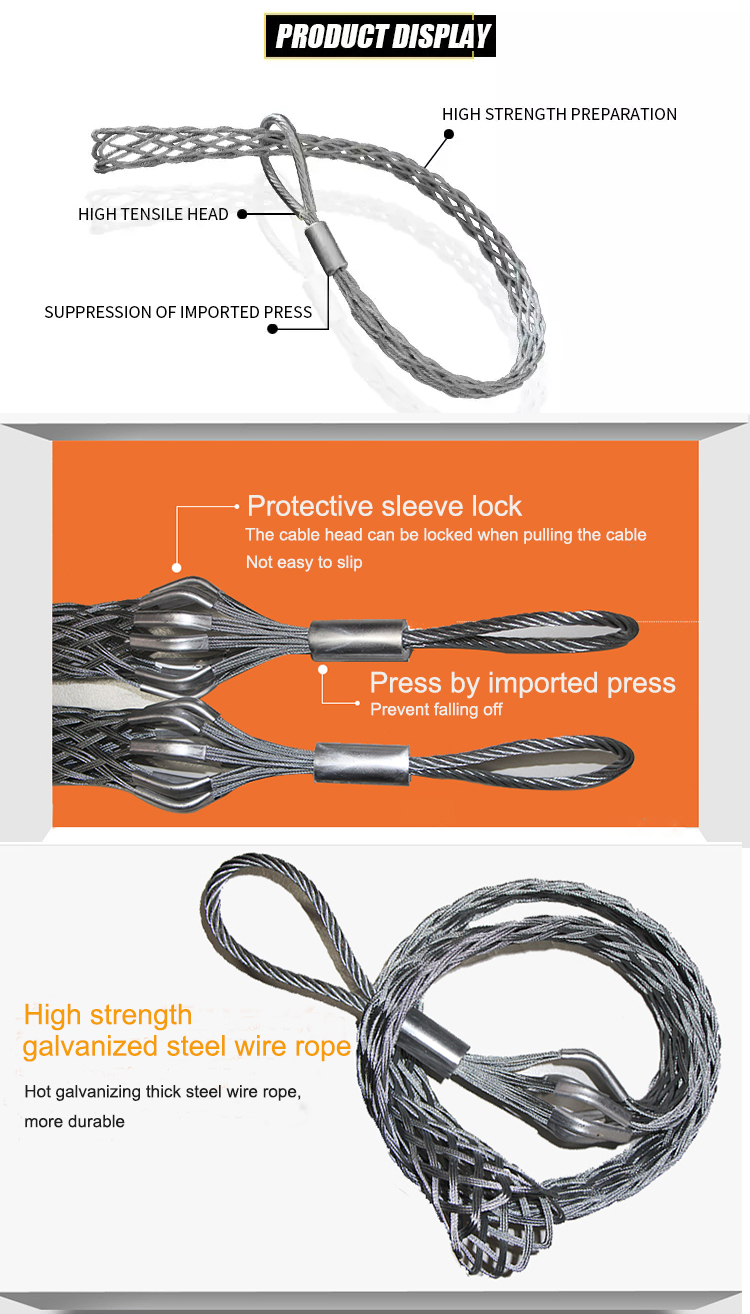

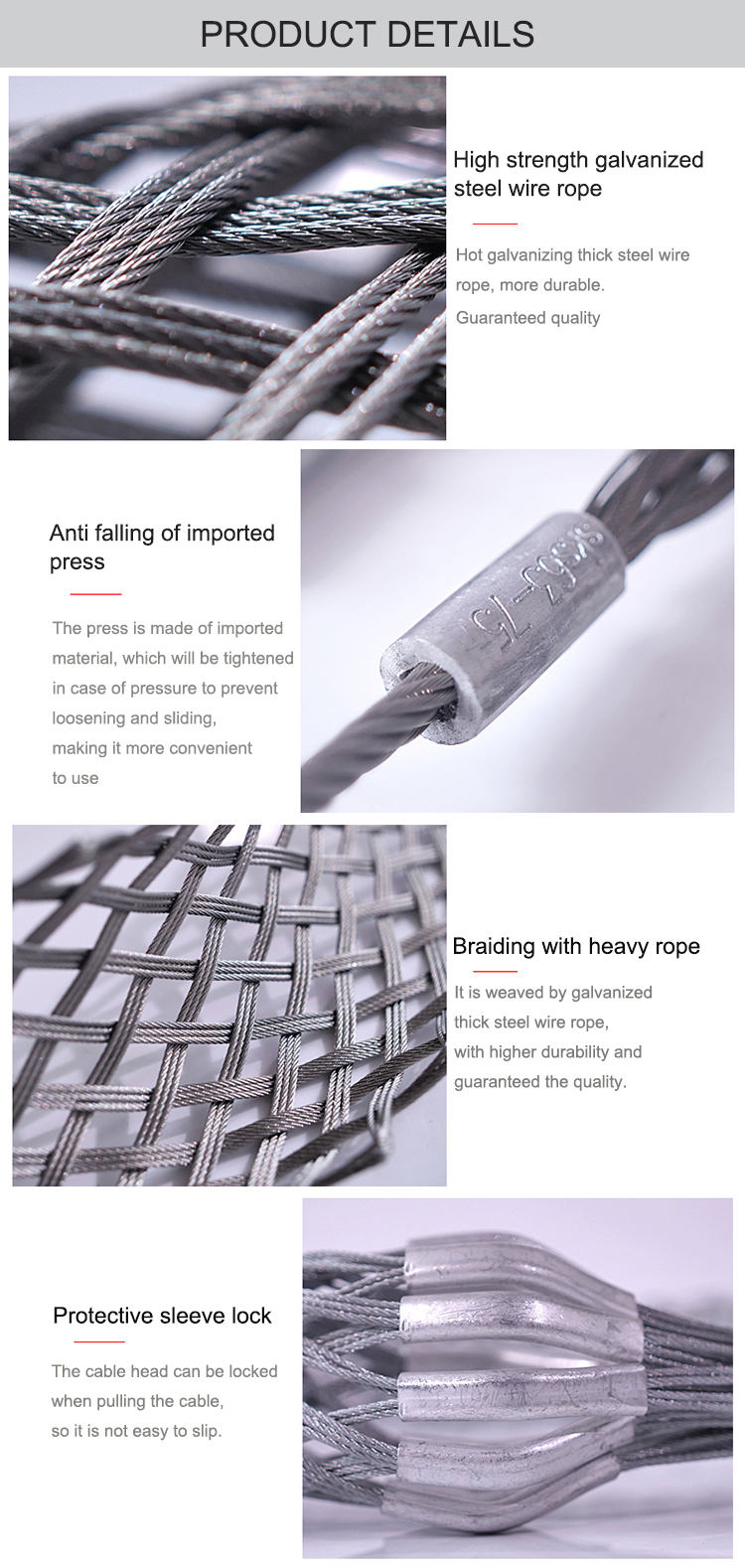

feature:

According to the density of wire rope strands, it can be divided into three types: multi-strand, double-strand and single-strand, and the free state is one-way tapered type.

Product parameters

Single-ended temporary fishnet splices are specially designed to temporarily connect aluminum, steel or copper conductors to drawstrings. They consist of variable pitch wires that effectively disperse the clamping effect on the conductor.

20kN High Strength Single Conductor Wire Mesh Clip Cable Pull Clamp Cable Pull Socks

Model Applicable conductors specified load ultimate load
SLW-1.5 70-95mm² 15kN 30kN
SLW-2 120-150mm² 20kN 40kN
SLW-2.5 185-240mm² 25kN 50kN
SLW-3 300-400mm² 30kN 75kN
SLW-4 500-630mm² 40kN 100kN
SLW-5 720mm² 50kN 125kN
SLW-7 900mm² 70kN 175kN
SLW-8 1000-1120mm² 80kN 200kN



If you are interested in this, please contact me and "send" your inquiry.

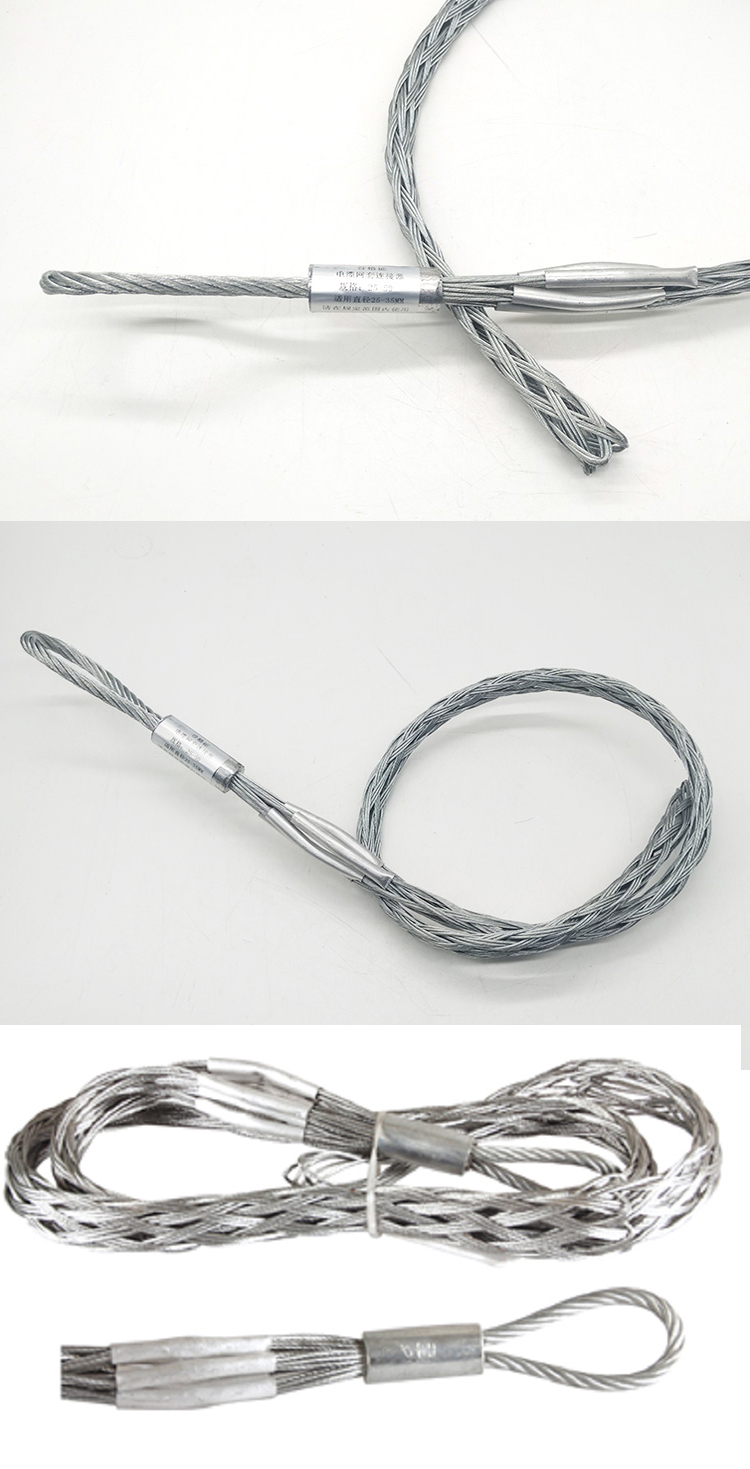

product photo
