port: | Qingdao | efficiency: | 90% |
Certification: | Chief Executive | color: | OEM |
place of origin; place of origin: | Shandong China | Warranty: | 2 years |
Dimensions (L*W*H): | 48*46*27CM | application: | plating |
Electroplating Rectifier: | high frequency rectifier | Voltage: | 380V |
Health status: | new | type: | High Frequency Switch Mode Rectifier |

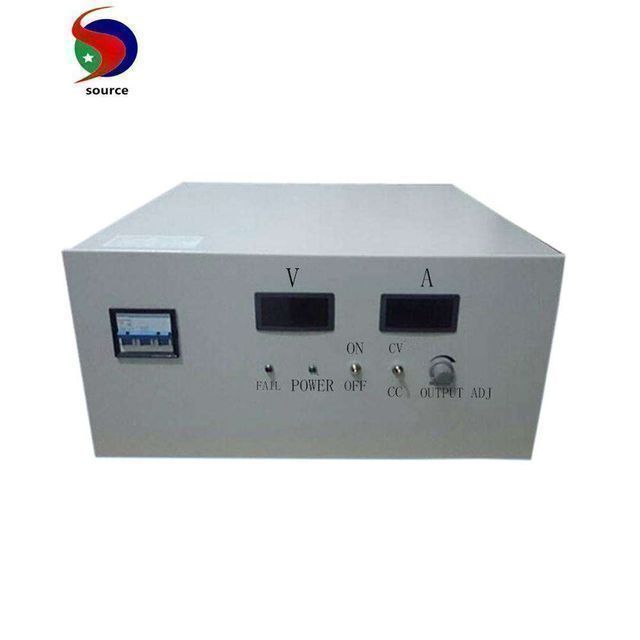

product name: | 500A precious metal electroplating rectifier | payment terms: | T/T, Western Union |
After-sales service provided: | Free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, video technical support, online support | strength: | 6KW |
brand: | resource | Supply capacity: | 500 pieces per month |
Packaging Details: | carton | weight: | 27kg |
We are professional and creative manufacturers. Our reliable rectifier quality is sure to meet your requirements.
Advantage:
1) Small size, light weight and high efficiency
2) High frequency pulse current output
3) Flexible use and simple operation
4) Perfect protection function
5) Additional functions: 0-5v, 4-20ma, 0-10v, rs485, PLC interface, timer, ammeter, slow start, touch screen
Follow ISO 9001 quality standard, CE certificate
Input voltage | 3-phase 380VAC, or OEM 415V, 440V, 480V, 600VAC |
The output voltage | 0-12v dc adjustable |
Output current | 0-500a adjustable |
Output Power | 6KW |
Adjustment range | 0-100% voltage and current continuously adjustable |
Output adjustment method | Switch mode, PWM pulse control |
machine efficiency | ≥90% |
Constant voltage control accuracy | Within 1.0% of rated output voltage |
Constant current control accuracy | Within 1.0% of rated output current |
Insulation resistance | 5MΩ or more |
cooling system | forced air cooling Optional water cooling |
Operating temperature | -15-45℃ (overheating self-protection) |
ambient temperature | -30-65℃ |
Relative humidity | 30-85% |
Protect | Overheating, overcurrent, overvoltage, phase loss, over load, input over/under voltage |
control method | 6m cable remote control box , front panel control, PLC interface, touch screen can be OEM manufacturing |
