High Quality Smart ACB DW45 3200A 4000A

Supplier: Yueqing Kampa Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Wendy Dong
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Rated current:	630A-6300A	Breaking capacity:	80KA/60KA/42KA/60KA, 80KA/60KA/42KA/60KA
pole:	3 or 4 poles	brand:	Campa
Certificate:	Chief Executive	Packaging Details:	1 x 1 wooden box
Rated voltage:	400/690V	Operation Type:	manual operation, automatic operation
Rated current:	630A-6300A	place of origin; place of origin:	Zhejiang, China
payment terms:	L/C,Western Union,T/T,Paypal	Protect:	other
Rated current:	630-6300A	Frame Rating Voltage Rating:	3200V
model:	DW45	port:	Ningbo/Shanghai
product name:	Smart ACB	Rated voltage:	400/690V
Supply capacity:	100000 pieces/month	Minimum order quantity:	1 item

Product Description

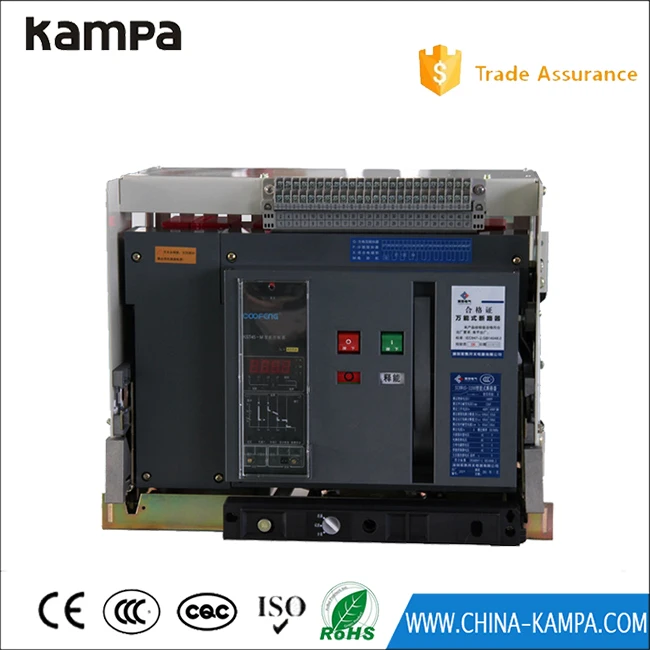

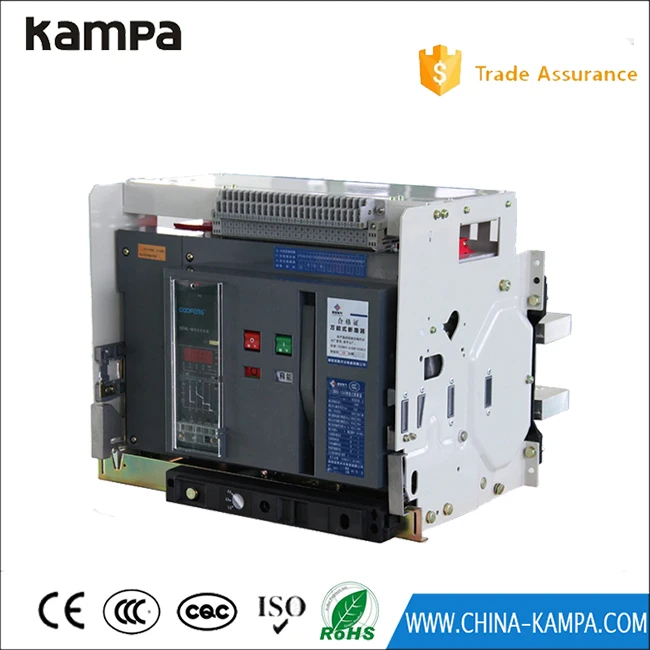

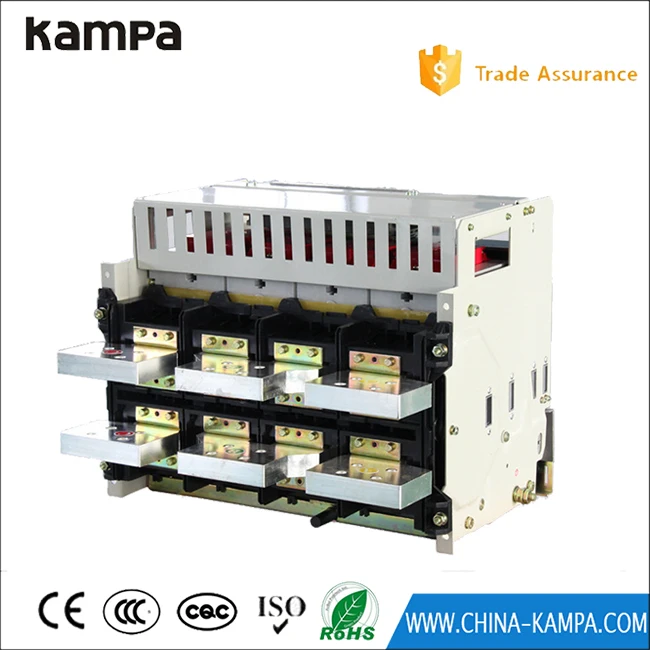

1. DW45 air circuit breaker picture

2. Application of intelligent air circuit breaker (ACB)

DW45 series universal circuit breakers (hereinafter referred to as circuit breakers) are suitable for
It is suitable for AC 50Hz circuits with rated voltages of 400V, 690V and rated currents below 6300A.
Mainly used for distributing electrical energy and protecting circuits and power supplies
Equipment is protected against overload, undervoltage, short circuit and single-phase grounding. and
Intelligent selective protection function to improve the reliability of circuit breakers
power supply to avoid unnecessary power outages. circuit breaker suitable for
Power stations, factories and mines (690V) and modern high-rise buildings, especially suitable for
Intelligent building power distribution system. The circuit breaker complies with IEC60947-2 and
GB14048.2. All series are certified by CCC.

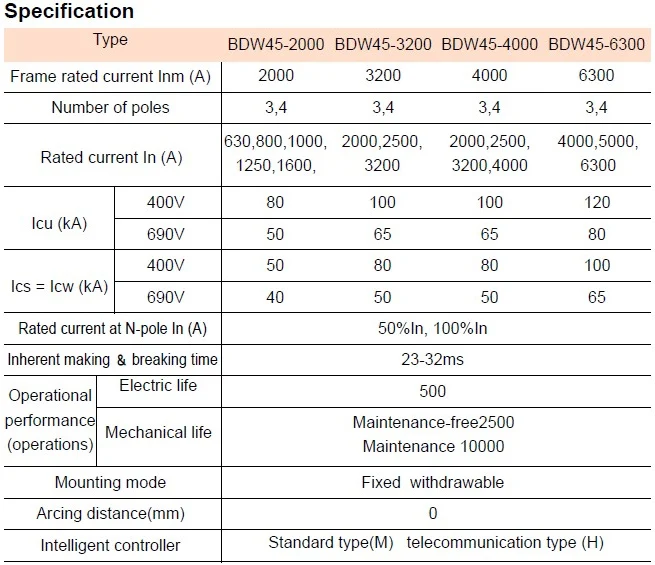

3. Features of Intelligent Air Circuit Breaker (ACB)

Rated AC current	630A-6300A
short circuit breaking capacity	80KA-120KA
Rated voltage	Below AC690V
two types	Withdrawable and fixed
Equipped with a variety of intelligent controllers with different functions.
Both 3-pole and 4-pole air circuit breakers are available.	IEC60947-2, GB14048.2
standard

4. Classification of intelligent air circuit breakers (ACB)
1. Our air circuit breakers can be installed in two forms: fixed and withdrawable
2. Number of poles: 3 poles and 4 poles
3. Operation type: manual operation, automatic operation
4. Trip type: intelligent controller, undervoltage instantaneous (or delayed) trip and shunt trip
5. Classification of intelligent controllers: L type (basic type), M type (standard type), H type (communication type)
