High-precision ER32 collet punch ZCYQ80A punch two-way

Supplier: Pingyuan Haotian Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Sophie Song
Price: $360.00 /set
Min. Order: 1 set

Click here to contact

Product details

Material:	40CR, 40CR	Clamping range:	2-20
Name:	ER32 collet punch ZCYQ80A two-way punch	hardness:	HRC48-52
brand:	HT-tools	Packaging Preview:
Local service location:	not any	Mechanical test report:	if
Model:	Emergency room	After Warranty Service:	Online support
Marketing Type:	normal product	Applicable industries:	Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Printing Shops, Construction Works
Packaging Details:	1. Carton	accuracy:	0.005mm
Using the calf:	20mm/er16 collet	Video external inspection:	if
Health status:	new	port:	trade assurance
Core components:	engine	Card:	HT-tools
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Certificate:	SGS
type:	Universal accessories	Showroom location:	not any
Supply capacity:	500 sets per month	Advantage:	stable quality
Supply size:	4.6.8.10.12.16.20	payment terms:	T/T Trade Assurance
Warranty:	unavailable

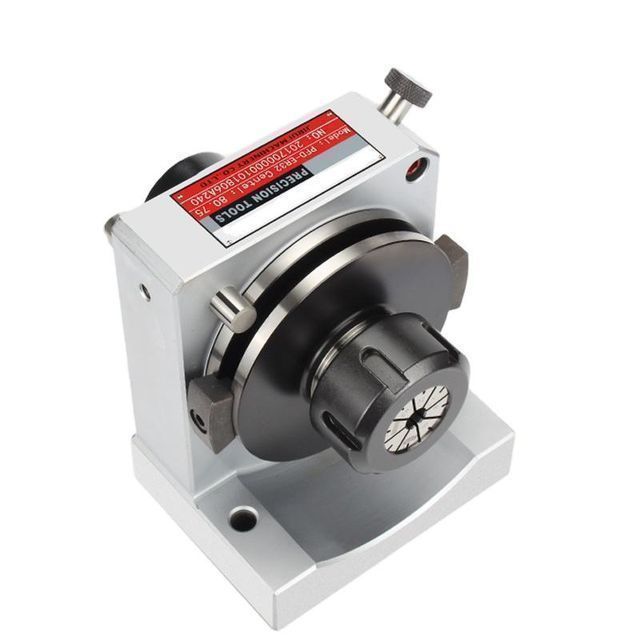

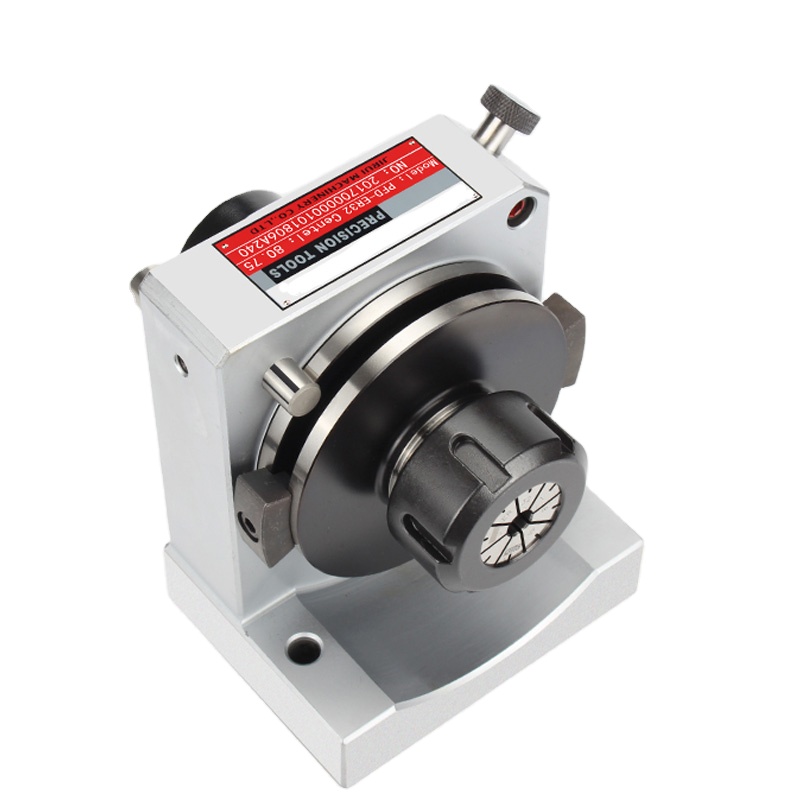

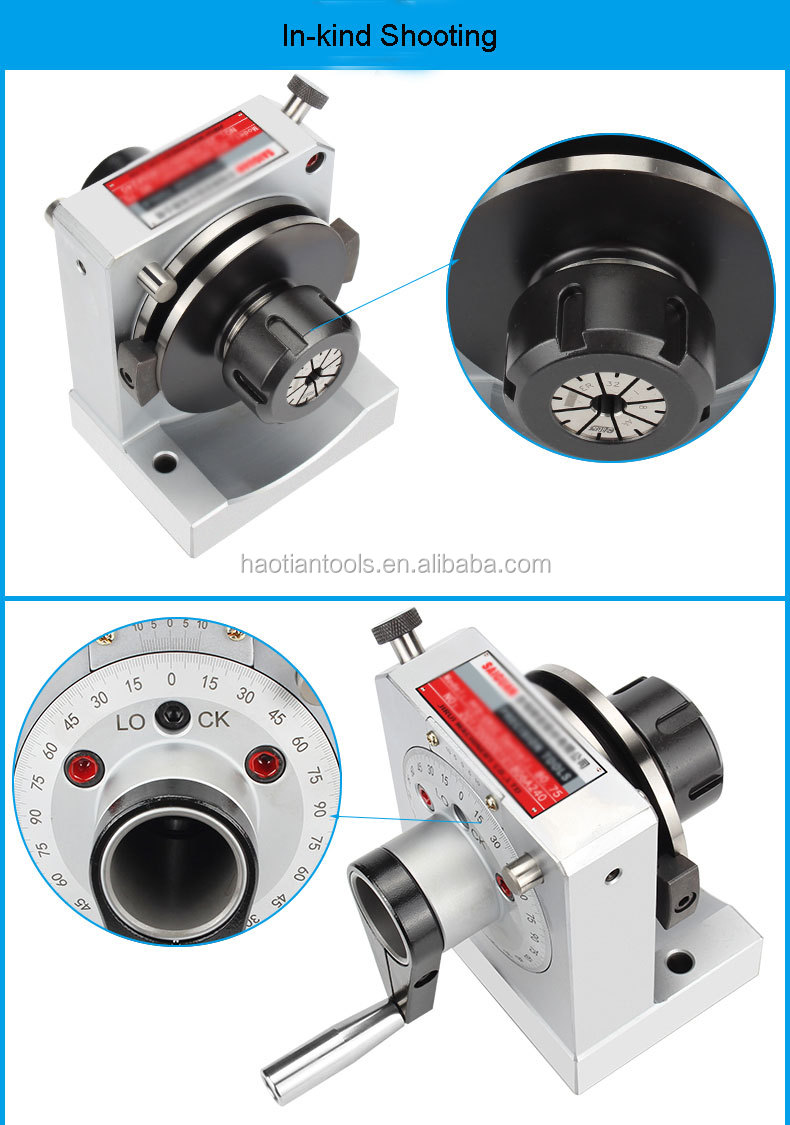

High-precision ER32 collet punch ZCYQ80A punch two-way

Main technical dates:

Clamping diameter: 2-20

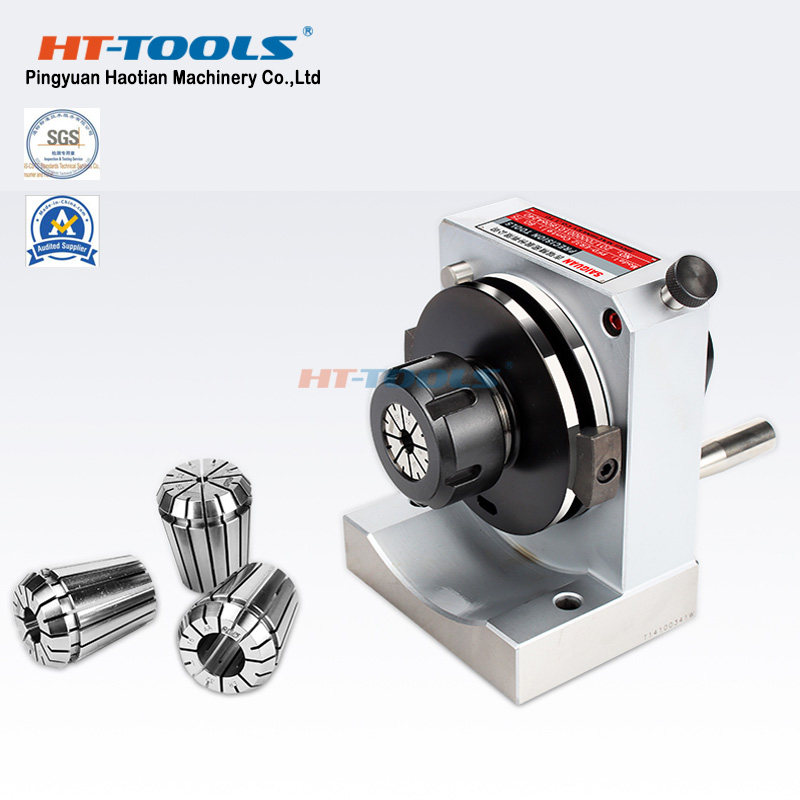

Supply ER32 collet size: 4, 6, 8, 10, 12, 16, 20.

For workpieces with a diameter of less than 4mm, use a shank 20mm/ER16 collet holder.

Fast and stable clamping of workpieces during machining without checking the center.

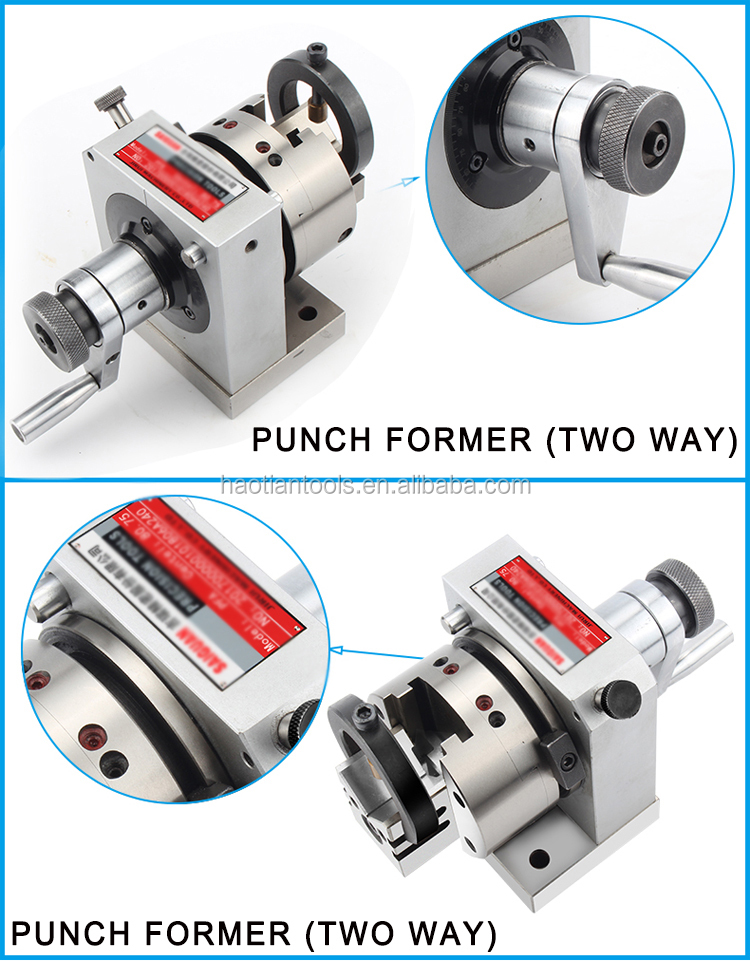

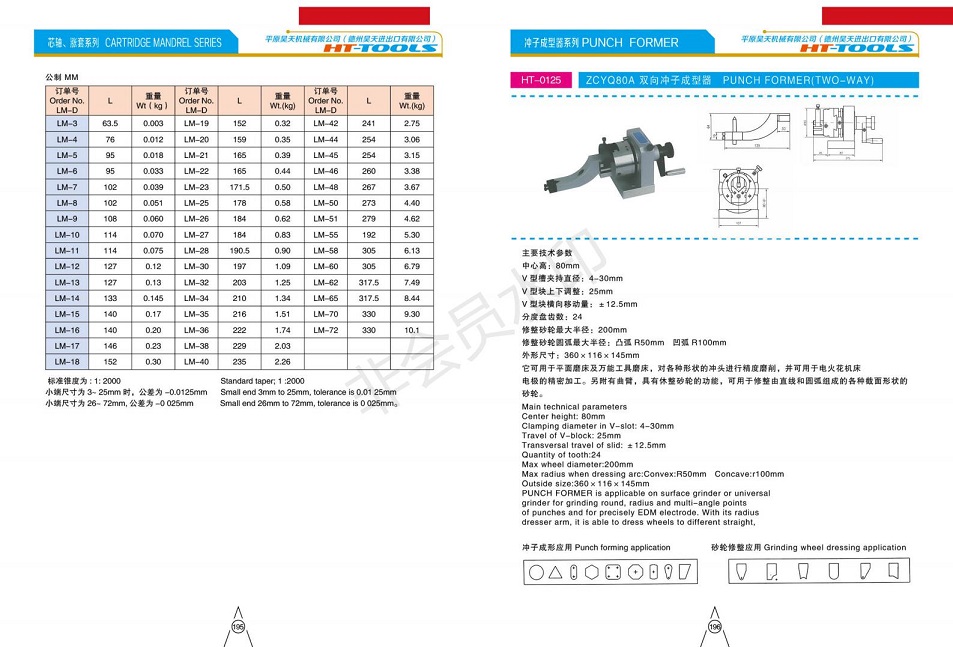

ZCYQ80A Punch Union

Main technical data:

Center height: 80mm

V-groove clamping diameter: 4-30mm

V block stroke: 25mm

Slider lateral stroke: +-12.5mm

Number of teeth: 24

Maximum wheel diameter: 200mm

Maximum radius of trimmed arc: Convex: R50mm Concave: R100MM

Dimensions: 360x116x145mm

The punch forming machine is suitable for surface grinder or universal grinder, grinding the round point, radius and multi-angle point of the punch, and for precision EDM electrode. Its radius dressing arm can dress the grinding wheel into different straight and circular contours.
