YTH 5 in 1 Self Adjusting Manual Repair Tool Wire Stripper Wire Cutter Crimper Automatic Wire Stripper

Product details
Custom Support:OEM, ODMplace of origin; place of origin:Jiangxi, China
color:as a picture or any regular colormodel:YTH-803
port:Ningbo/ShanghaiPay:By T/T, L/C, Western Union, E-checking, etc.
size:210x110x33mmMaterial:Chrome vanadium alloy steel and PP+TPR, steel
Maxillofacial:sawtoothFunction:Strip/Crimp/Cut
Name:multifunction pliersbrand:YTH
Supply capacity:1,000,000 pieces/monthgrade:DIY, Industrial

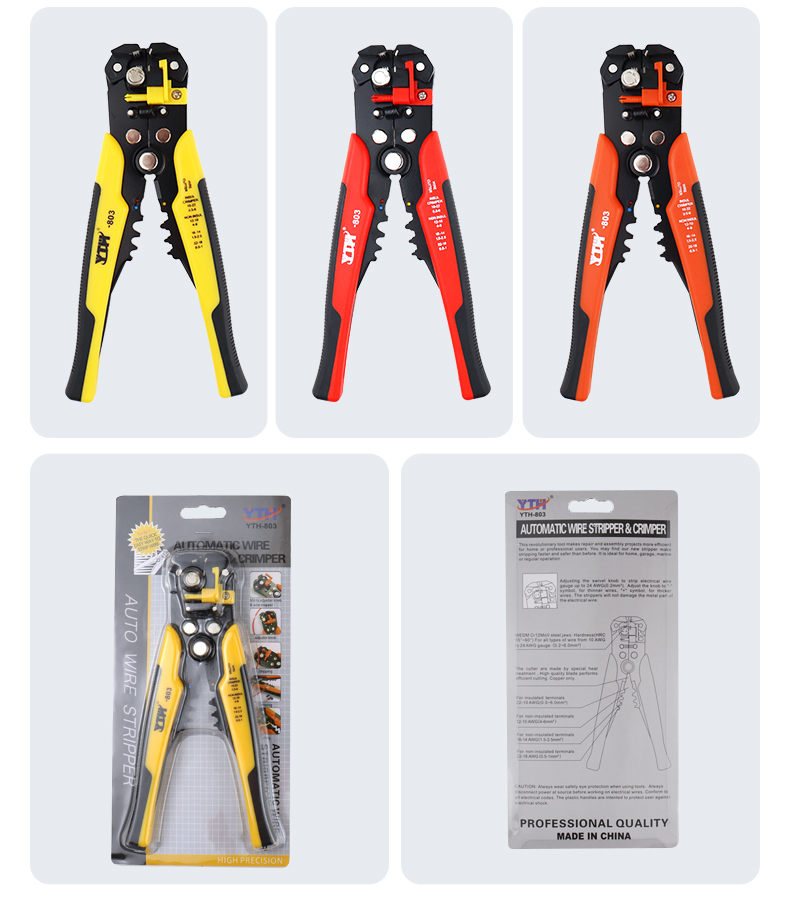

Packaging Details:Blister box/white box/brown box/custom boxHandle Material:PVC
Peeling Capability:24-10AWG / 0.2-6mm2application:Core wire, flat wire, network cable, multi-strand sheathed wire..., multi-function
ODM/OEM:usablepayment terms:L/C,Western Union,T/T,E-checking

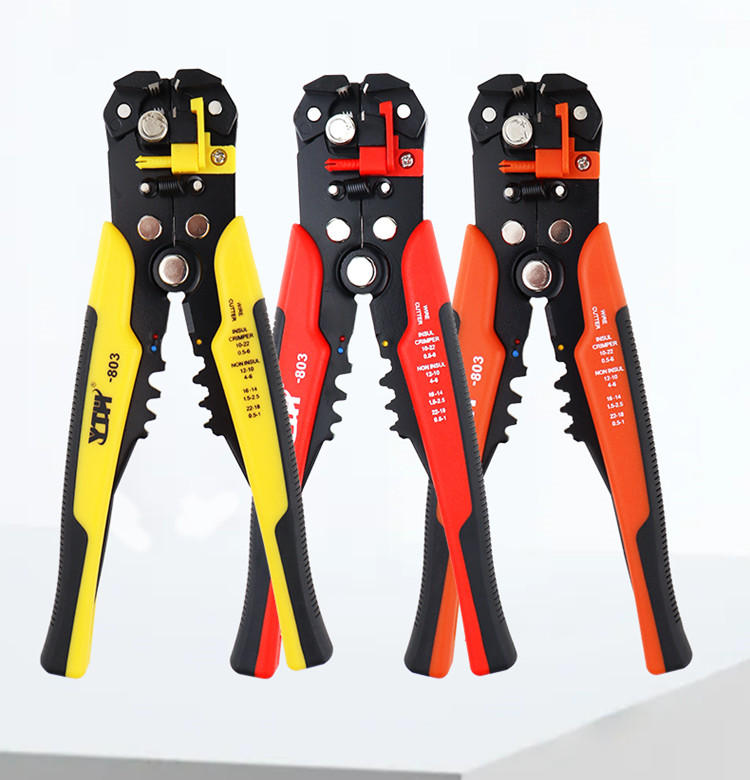

color:red/yellow/orangePackaging Preview:
Specification
Card
YTH
size
205x105x33mm
Material
High quality chrome vanadium alloy steel and PP+TPR
color
As shown
Function
Strip/Crimp/Cut
Stripping ability
24-10AWG / 0.2-6mm²
Crimping Capability
Insulated terminal 22-10AWG/0.5-6mm2
Non-insulated terminals 12-10AWG/4-6mm2 , 16-14AWG/1.5-2.5mm2, 22-18AWG/0.5 -1mm2

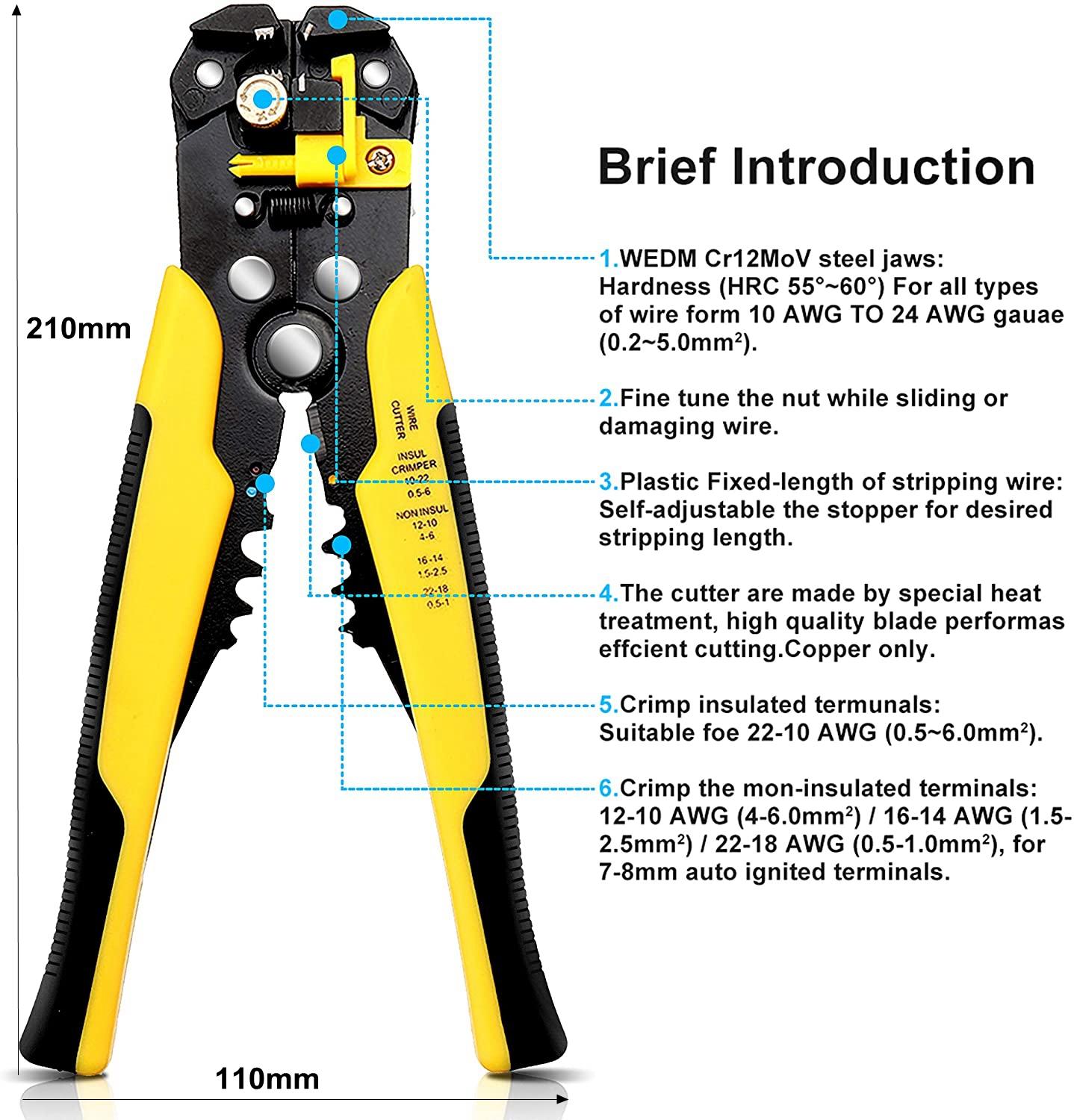

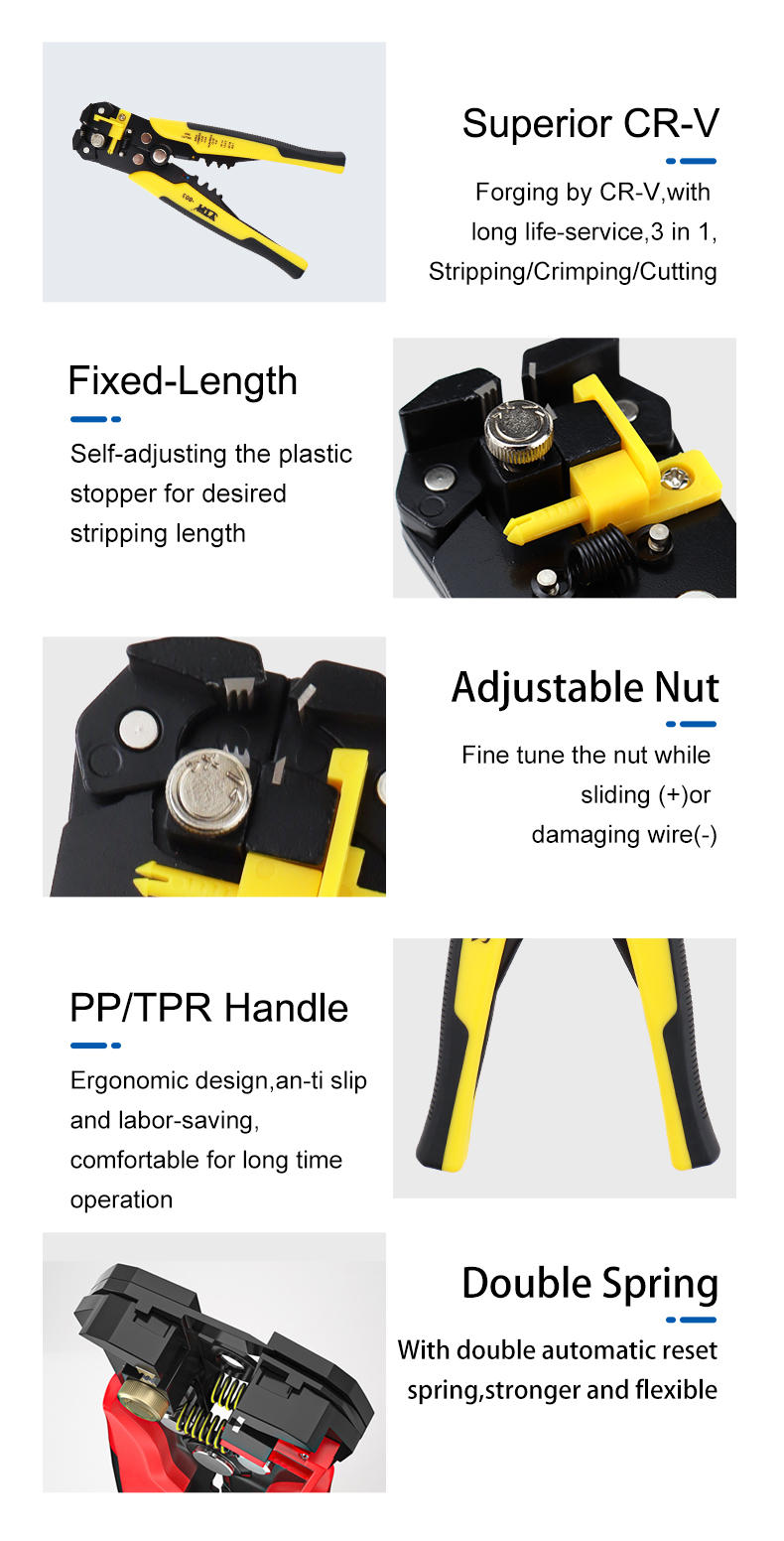

feature
1. Made of high quality chrome vanadium alloy steel,High hardness, good toughness and durability; the main body is made of high-quality tool steel, which is convenient for cutting and precision crimping
2. Bat-shaped fixture design, more stable grip, not easy to slip when demoulding
3.The stripping adjustment button is designed to adjust the tightness of the bite force according to the size of the wire,
Easy and fast to use
4. Handle: PP+TPR two-color package, comfortable grip, ergonomic, suitable for long-term use
5. Hardness: HRC55-60
application

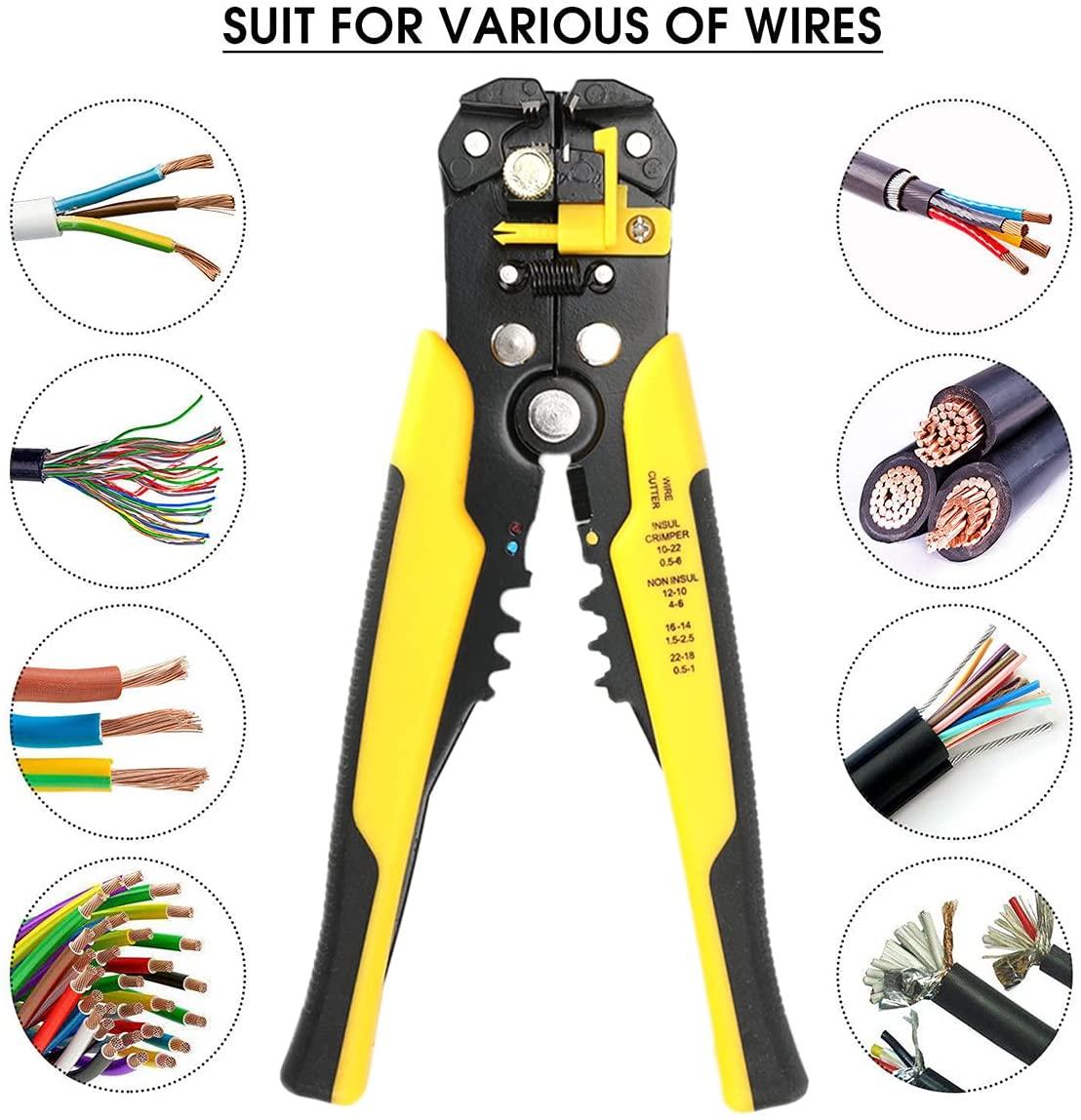

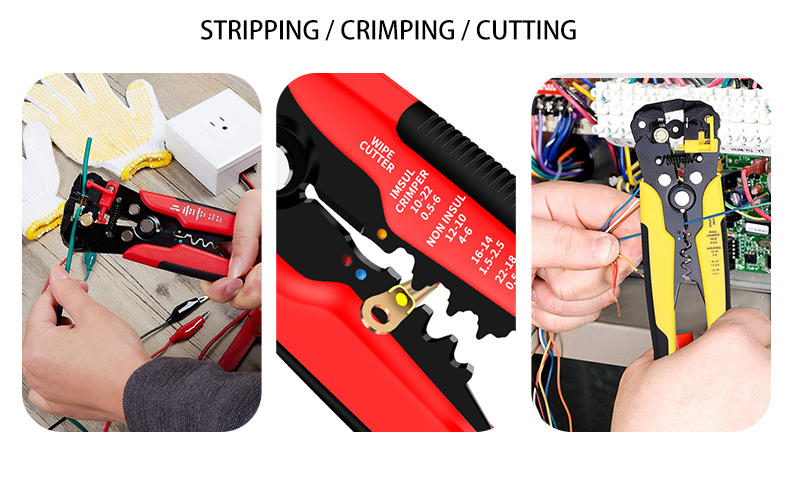

Used for stripping sheathed cores, wires, flat wires, network cables, and stranded sheathed wires; cutting wires; crimping bare terminals and insulated terminals; suitable for factories, homes and other scenarios.

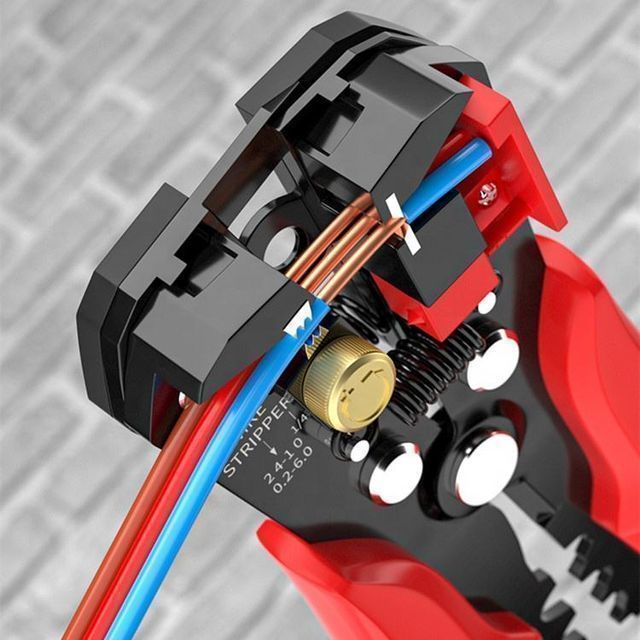

How to use the adjusting screw:
1. Turn the adjusting screw to adjust the bite force of the blade, counterclockwise to decrease and clockwise to increase.
2. When stripping thin wires, adjust the screw counterclockwise.
3. If the wire is broken, please adjust the screw counterclockwise.
4. If it is difficult or impossible to peel off, please adjust the screw clockwise.
notes
1. Please do not store the pliers in a high temperature place for a long time.
2. Due to manual measurement, please allow 1-3cm error and make sure you don't mind before ordering.
3. Due to the difference of different monitors, the picture may not reflect the actual color of the item.
