ABB S11-1250/10 ABB Transformer

Supplier: Wuhan Wofoto Electric Co., Ltd.
Region: Hubei, China
Contact: Mr Vincent Mei
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Coil Structure:	Toroidal;	Usage:	Power;
Primary voltage:	10kV;	Port:	Shenzhen/Hongkong;
Supply Ability:	10 Set/Sets per Month;	Place of Origin:	China (Mainland);
Model Number:	S11-1250/10;	Brand Name:	Original;
Packaging Detail:	Wooden case;	Phase:	Three;
Power:	1250kVA;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

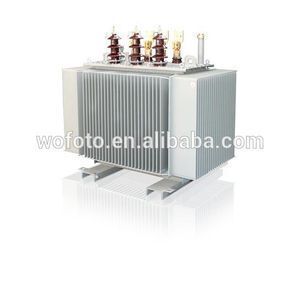

ABB S11-1250/10 Oil-filled transformers

ABB transformers

ABB offers a complete range of power and distribution transformers designed to grant the reliability, durability, and efficiency required in utility, industrial, and commercial applications. ABB is a major transformer manufacturer throughout the world and offers both liquid-filled and dry-type transformers as well as services for complete life-cycle support, including replacement parts and components.

Technical Specifications

Type	Rated Power [kVA]	No-load Loss [W]	Load Loss Dy/Yy [W]	Short-circuit Impedance [%]	L [mm]	W [mm]	H [mm]
S11-100	100	200	1580/1500	4	890	610	1010
S11-125	125	240	1890/1800	4	910	610	1140
S11-160	160	280	2310/2200	4	960	780	1090
S11-200	200	340	2730/2500	4	1030	810	1150
S11-250	250	400	3200/3050	4	1030	870	1120
S11-315	315	480	3830/3650	4	1030	870	1260
S11-400	400	570	4520/4300	4	1440	950	1200
S11-500	500	680	5410/5150	4	1440	1080	1280
S11-630	630	810	6200	4.6	1600	1130	1280
S11-800	800	980	7500	4.6	1715	1175	1420
S11-1000	1000	1150	10300	4.6	1720	1175	1500
S11-1250	1250	1360	12000	4.6	1840	1265	1590
S11-1600	1600	1640	14500	4.6	1850	1285	1600
S11-2000	2000	1940	18300	5.5	1910	1350	1620
S11-2500	2500	2290	21200	5.5	1950	1350	1750
S11-3150	3150	2800	25000	5.5	2190	1480	1900
