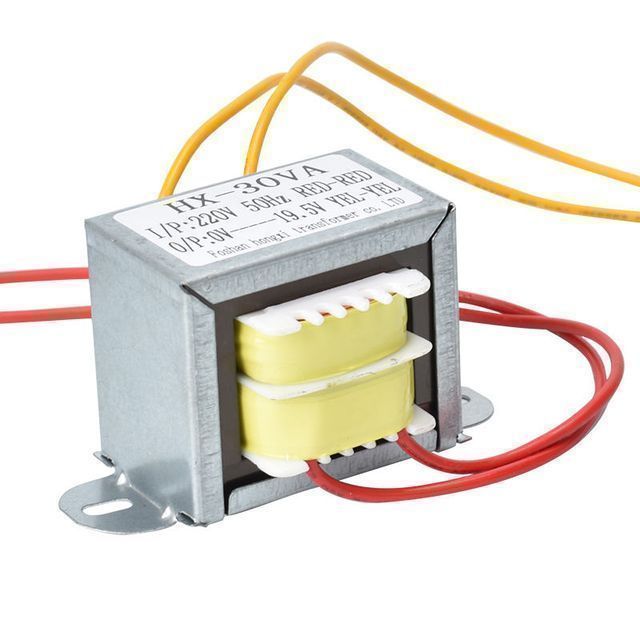

Electronic power transformer 30VA EI57*35 Low frequency transformer

Supplier: Foshan Hongxi Transformer Co., Ltd.
Region: Guangdong, China
Contact: Mr Feng Qin
Price: $2.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

nuclear:	Silicon core	model:	EI57*35
brand:	red stream	payment terms:	Letter of Credit, T/T, Western Union, MoneyGram
Material:	copper	type:	dry
Supply capacity:	1,000,000 pieces/month	place of origin; place of origin:	Guangdong, China
Packaging Details:	1. Carton on pallet 2. Make plywood around the carton 3. Use stretch wrap to protect the pallet	stage:	single
port:	Foshan/Guangzhou/Shenzhen	Coil structure:	ring
Rated Capacity:	30VA	frequency:	50Hz
usage:	low frequency	Delivery Details:	Ships within 0 days after payment
Input voltage:	220V	application:	Chemical equipment, photovoltaic, wind energy inverter
Certification:	Chief Executive

Purchase information

We can custom develop various products according to your company's specifications and parameters.

You can list your needs to us so that we can provide an accurate answer for your company.

Questions such as:

1. We offer the following transformers, including EI transformers, BK-Control transformers, toroidal transformers or whatever else you can name.

2. What is the working power of the transformer?

3. What is the input voltage and output voltage?

4. A transformer can output multiple sets of voltages, what is the output power of each set of voltages in V or VA?

5.Which products are mainly used for?

6. What type of products do you mainly use in your transformers? If you can provide SPEC, we can customize specific products.

7. We can evaluate the product price according to the basic information you provide, welcome to contact us.

common property

Product size: outside: inside: high: (according to customer requirements)
Power range: 5W-5000W (all can be done)
Input/Output: Customized (according to customer requirements)

This single-phase transformer is widely used in DVD, audio, TV, small adapter, beauty equipment, instrumentation equipment, stage lighting, lighting control circuit, air conditioning equipment control circuit, medical equipment, monitoring equipment, automation equipment control circuit, mechanical equipment, Energy saving equipment.

strength	core model	long	width	High	after range	Hole spacing	Overall length	weight
strength	core model			a (mm)	B(mm)	C(mm)	depth (mm)	E(mm)	F(mm)	Kilogram
1W	EI 28*13	30	25	27	13	0.6-2.5	EI76	70-97
2W	EI 35*15	37	33	32	17	2.3-7.7	EI83	86-123
3W	EI 41*17	43	36	36	18	7-10	EI120	84-120
5W	EI 41*20	50	41	36	twenty two	17-34	EI176	130-200
8W	EI 48*18	50	40	44	twenty one	14-21	EI185.8	110-160
10W	EI 48*24	50	45	44	26	61	74	0.36
12W	EI 48*26	50	50	44	26	61	74	0.4
15W	EI 57*25	60	51	51	27	72	85	0.52
20W	EI 57*30	60	56	51	32	72	88	0.62
25W	EI 57*35	60	61	51	37	72	90	0.82
30W	EI 66*32	59	58	58	35	82	96	0.96
40W	EI 66*32	69	58	58	35	82	96	0.96
50W	EI 66*36	69	61	58	40	82	100	1.05
80W	EI 76*42	79	69	68	45	96*18.5	109	1.56
100W	EI 86*43	89	74	75	47	102*18.5	118	2.08
200W	EI 96*45	96	86	81	45	76*69	96	2.66
300W	EI 96*60	96	100	81	60	79*84	96	3.41

notes: The above specification parameters are for reference only, if you need the actual parameter size, please ask us for detailed information.

Product Description

Foshan Hongxi Transformer Co., Ltd. is a professional manufacturer of low-frequency transformers, reverse transformers, 220V to 110V power supply voltage transformers, power transformers\toroidal transformers, EI transformers, and has a complete and scientific quality management system. Products are widely used in public broadcasting, professional amplifiers, teaching instruments, stage lighting, packaging machinery and other fields. The company has strong technical force and perfect production testing and testing equipment. Over the years, we have been guided by technology, survived by quality, and taken service as our responsibility, and have won the trust and praise of the majority of users. The integrity, strength and product quality of Foshan Hongxi Transformer Co., Ltd. have been recognized by the industry. Welcome friends from all walks of life to visit, guide and negotiate business.
