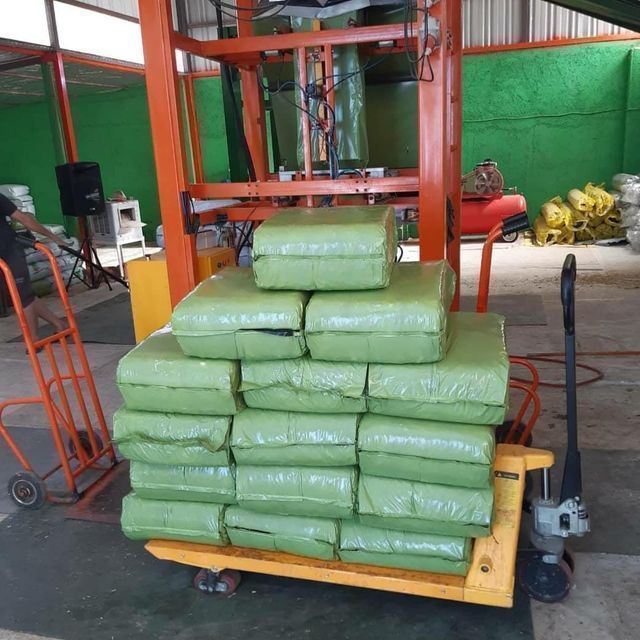

Machine for silage packaging Full Automatic 30kg - 40kg

Supplier: Royermak Makina Ic Ve Dis Ticaret Limited Sirketi
Region: Konya, Turkey
Contact: Mr Guclu
Price: $0.22 /piece
Min. Order: 1 piece

Click here to contact

Product details

Showroom location:	Turkey, Germany	Mechanical test report:	if
type:	square baler	Warranty:	1 year
port:	Mersin	Packaging Preview:
payment terms:	Western Union, wire transfer	Video external inspection:	if
application:	silage	place of origin; place of origin:	turkey
Main selling point:	automatic	weight:	4000kg
Health status:	new	brand:	Royemark
Marketing Type:	New Products 2022	Applicable industries:	factory, farm
Core components:	programmable logic controller	Core Components Warranty:	2 years
Dimensions (LWH):	225013501400mm

introducemachine:

This machine is one of the packaging machines used in industry, agriculture and other fields. Feed corn silage packing machine RYER40 has the type of material packing and similar capabilities in the field of agricultural customers. The weight of the output package varies depending on the type of input material. Different parameters that determine the output package weight. Valid parameters to determine the output package weight; such as material density, moisture, dry matter content, material recycling rate, material viscosity percentage, etc. For example, the world feed corn standard, the edible size is 3-5 cm, the dry matter level is 25-30%, and the moisture is 70-75%.

Machine main frame

The main frame is the most important part of the equipment, where all tasks and main operations and activation of the production process are done

conveyor

This section assumes the task of transferring material from the hopper output to the top of the main frame (inside the weighing system)

Hoppers and associated conveyors

Hoppers and associated conveyors

This part has two important tasks.

Responsible for the uniform conveyance of materials on the conveyor, so that the machine can work under the condition of uniform weight.
Do not stay in front of the operator for long periods of time.
Second, it has the task of transferring the material from the hopper to the equipment elevator, which operates during the transfer process. It also opens the material and prevents it from clumping.

Vertical SpecificationsPacking Machine

The weight of the whole machine is about 4 tons
Power required by the machine:

3 Phase, 380V, 50Hz, 32A

Air pressure air pump 700 liters at least 7 times at most 9 times
Hydraulic oil volume between 140 and 160 liters, maximum pressure 130 bar, hydraulic oil type 46
Plastic type uses laminated polyethylene, widths 127 and 100 microns (high heat seam)
The size of the machine after installation is 5.5*11*5 meters

Advantages of packaging compared to silos

Ordinary silos that are prepared in the ground for annual consumption by other methods should be opened on one side. Over time, these silos have been affected by various atmospheric factors and pests and animals, losing much of their original quality, but The silo machines offered by the pack are in small packs that can be stored, transported and consumed very easily even in very small farms, nomads, shepherds, ostrich breeders and traditional ranchers. Once opened, it can be eaten every day without fear of contamination or loss of quality and quantity. Building land silos and buying bulk corn for a year's consumption during harvest requires very high mobility, whereas in a packing system a farmer prepares a week or month's supply of feed corn for her animals
