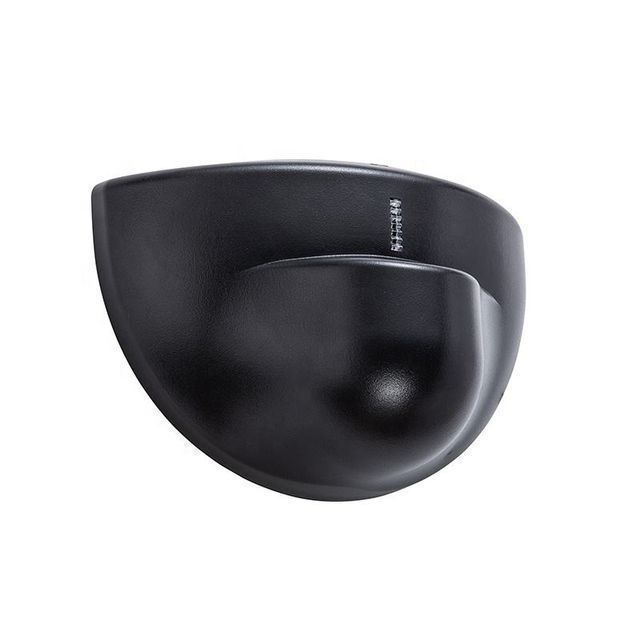

Doortec MS04 Microwave Motion Sensor Switch Door Open/Close Sensor Door Accessories Microwave Motion Sensor

Product details
payment terms:Western Union, wire transfermodel:MS04
Packaging Details:carton, bubbleDimensions / Dimensions:120*80*50mm(W*H*D)
describe:Doortec MS04Current Ratings - AC:12V~24V
Supply capacity:5000 pieces per monthtype:microwave sensor
Operating temperature:-20°C~55°CMaximum inspection range:4*2 meters
Current - Supply (Max):1Abrand:Doortec
Power consumption:<2WRated Current - DC:12V~30V
port:Ningbo & ShanghaiCover color:black, silver, gray
place of origin; place of origin:Zhejiang, Chinafrequency:50Hz~60Hz
Product Description

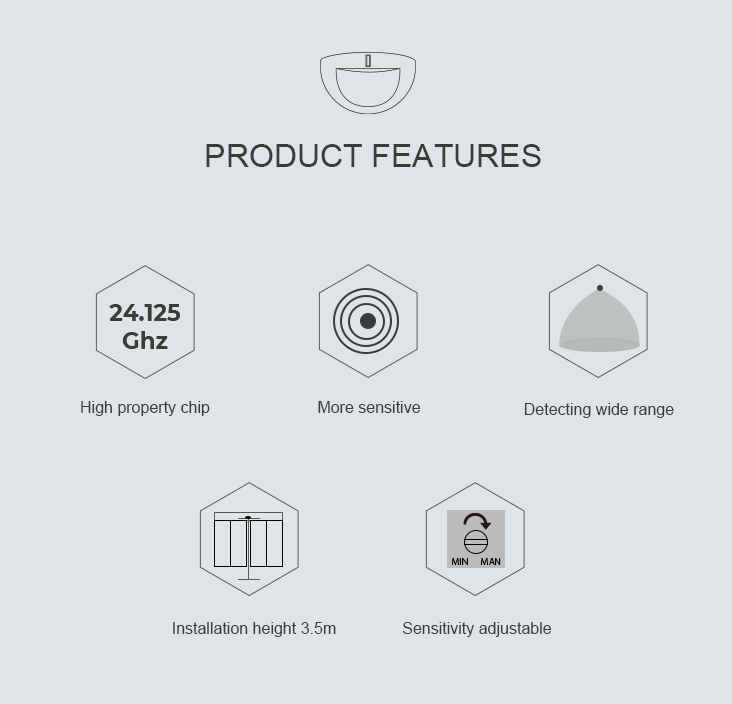

Basic Microwave Sensor
1. High-performance chips
2. More sensitive

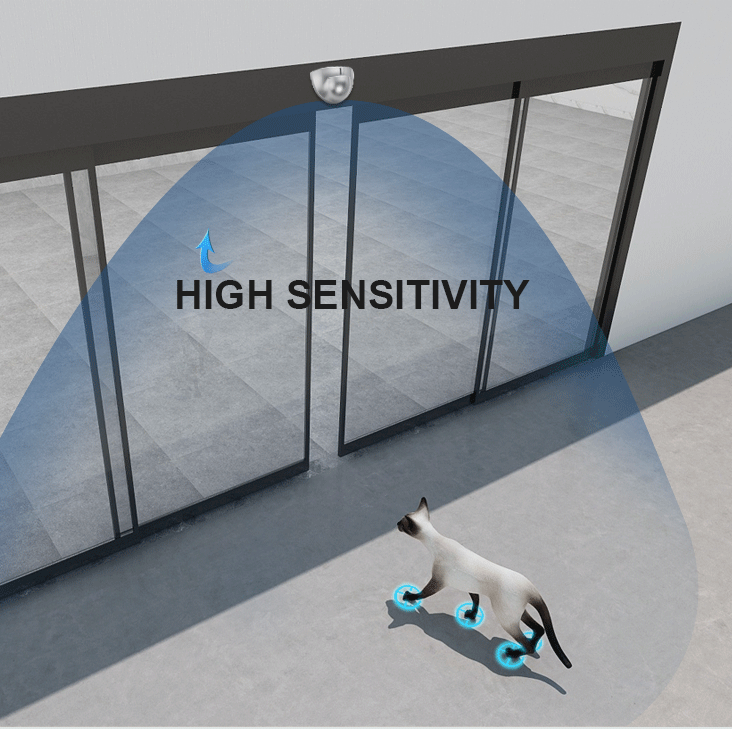

3. Wide detection range
4. Adjustable sensitivity

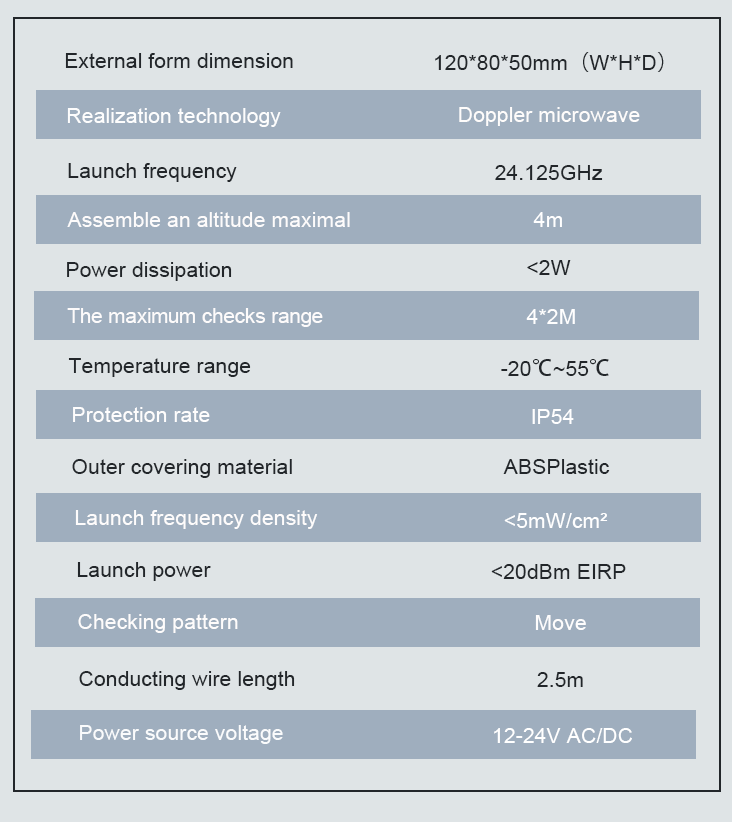

Dimensions
120*80*50mm(W*H*D)
Implementation technology
Doppler microwave
transmit frequency
24.125GHz
Gather the highest altitude
4M
Power consumption
<2W
Maximum inspection range
4*2M
temperature range
-20℃-55℃
Protection rate
IP54
outer cover material
ABS plastic
Transmission frequency density
<5mW/cm²
transmit power
<20dBm EIRP
check mode
move
wire length
2.5m
voltage
12v-24v AC/DC
