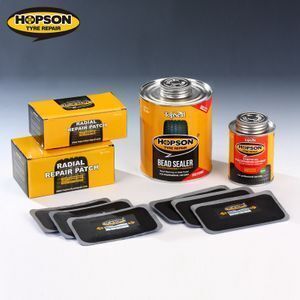

Superior Radial Tire Repair Patch 75*125MM

Supplier: Ningbo Hopson Chemical Industry Co., Ltd.
Region: Zhejiang, China
Contact: Mr Marshell Lin
Price: $0.60 /piece
Min. Order: 1 piece

Click here to contact

Product details

Warranty:	2 Years;	Main Material:	Rubber;
Supply Ability:	1000000 Carton/Cartons per Month;	Type:	Hand Tool;
Port:	Ningbo, Shanghai;	Packaging Detail:	10pcs/box, 24boxes/ctn. standard export carton;
Place of Origin:	Zhejiang China (Mainland);	Payment Terms:	L/C,T/T;
Size:	75*125 mm, 2 ply;	Type:	Radial tyre repair patch;
Brand Name:	HOPSON TYRE REPAIR;

Superior Radial Tire Repair Patch 75*125MMGeneral Info.

Product name: Radial Tyre Repair Patch

Item No.:RP-T751

Specification: 75×125mm, 2 ply

Packaging: 10pcs/box, 24box/ctn

Quality Assurance

Delivery Lead Time: 20-30days once order is confirmed

Selling Points

1. Each reinforcing ply individually end-wrapped to defect tire flexing stresses in a unique manner.

2. Tie-gum construction eliminates the potential for delamination common in competitive products.

3. Designed to vulcanize chemically or in low temperature systems

4. Gray vulcanizing gum, blue poly backing

Quality Guaranteed

Excellent quality, similar to Rema Tip Top and Tech; Samples can be sent for customer's testing and evaluation.

Description

HOPSON offers a variety of radial-ply repair units to meet the diverse demands of today's passenger, truck, and OTR tire applications. HOPSON radial repair patches are thick, rubber-reinforced patches which allow placement on the tyre in any direction. A special compounding and design allow the repair unit to flex and resist heat, assuring a permanent repair.

Part No.	Size(mm)	Description	Box Qty	Case Qty
RP-T451	45×75	1 Ply	20	24
RP-T601	60×110	1 Ply	10	24
RP-T651	65×80	1 Ply	10	24
RP-T701	70×120	1 Ply	10	24
RP-T751	75×125	2 Ply	10	24
RP-T752	75×145	2 Ply	10	24
RP-T753	75×165	2 Ply	10	24
RP-T754	75×220	2 Ply	10	24
RP-T755	75×250	2 Ply	10	24
RP-T1001	100×125	3 Ply	10	12
RP-T1002	100×200	4 Ply	10	12
RP-T1250	125×150	4 Ply	10	12
RP-T1251	125×170	4 Ply	10	12
RP-T1252	125×250	5 Ply	10	12
RP-T1253	125×330	5 Ply	10	12
RP-T1801	180×230	5 Ply	10	8
RP-T1802	180×440	5 Ply	5	4

INSTRUCTIONS

Inspect tyre for repairability using tyre manufacturer of HOPSON LAB guideline. If repairable, mark injury with crayon and carefully remove injuring object.
Probe injury to determine exact size and direction, removing all deris.
Select the appropriate repair patch for injury and type of tire. Apply prebuff cleaner to repair area and use rubber scraper to remove dirt and mold lubricants. Using carbide cutter, drill injury channel 3 times from inside then 3 times fron outside, making sure all damaged and rusted cables have been removed and only good rubber remains.
Cement the injury channel with Chemical Vulcanizing Cement and install the appropriate vulcanizing insert. Trim flush with the tire innerliner. Mechanically buff outlined repair area to a velvet-like texture. Remove buffing dust with a clean brush or vacuum. Apply Chemical Vulcanizing Cement to buffed area, working into rubber and ALLOW TO DRY THOROUGHLY.
Remove backing and center repair patch over injury and thoroughly stitch down from center out to remove trapped air.
Finish repair by applying Inner Liner Sealer around edge of repair patch and to overbuff area.
