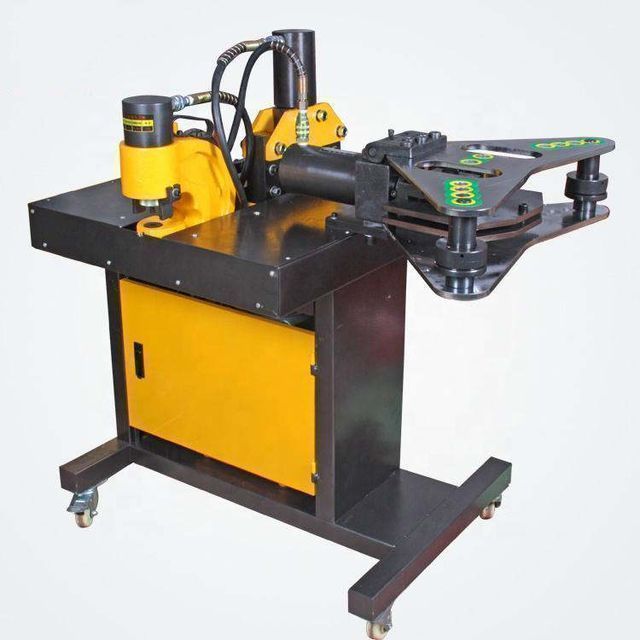

DHY-401 Punching Cutting Horizontal Vertical Bending 4 in 1 Busbar Processing Copper Hydraulic Busbar Machine

Product details
maximum. Width (mm):200 mmDimensions (L*W*H):80x80x120cm
model:DHY-401/DHY-200/DHY-150application:Busbar punching and bending
Main selling point:easy to operateSupply capacity:500 sets per month
port:Ningbo or ShanghaiCutting range:up to 200x12 mm / up to 150x12 mm
Packaging Preview:Biggest Curved Angel:90 degrees
CNC or not:normalMaximum bending force:350KN
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramMaximum thrust:350KN
Punching range:up to 200x12 mm / up to 150x12 mmFunction:cutting, bending, punching
Voltage:220V/380VMaximum cutting force:200KN
Showroom location:not anybrand:Jere
Warranty:1 yearCore components:pump, motor
Material:otherMechanical test report:if
Weight (kg):210Applicable industries:Energy and Mining
Bending range:up to 200x12 mm / up to 150x12 mmHealth status:new
place of origin; place of origin:Zhejiang, ChinaVideo external inspection:if
Marketing Type:Hot Products 2022Core Components Warranty:1 year
maximum. Thickness (mm):12 mmproduct name:busbar machine
Product Description
Packaging and Delivery
busbar machine
