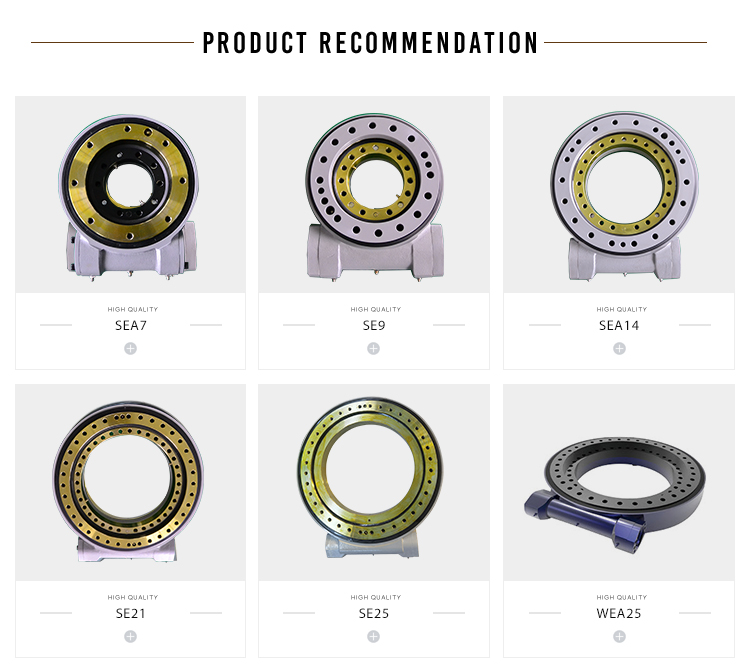

product name: | SEA7 Slewing Drive | Gear Options: | External gear only |
Material: | 42CrMo, 50Mn, ductile iron | Warranty: | x1 year |
Packaging Details: | Plywood case | Seal Type: | fully sealed |
Minimum order quantity: | 1 | model: | VE9 |
type: | Slewing ring | place of origin; place of origin: | Jiangsu, China |
port: | Nanjing | color: | based on customer's needs |
Supply capacity: | 10000 pieces per week | Applicable industries: | Energy and Mining, Industrial Robots |
payment terms: | wire transfer | feature: | cross roller |
brand: | SRT |

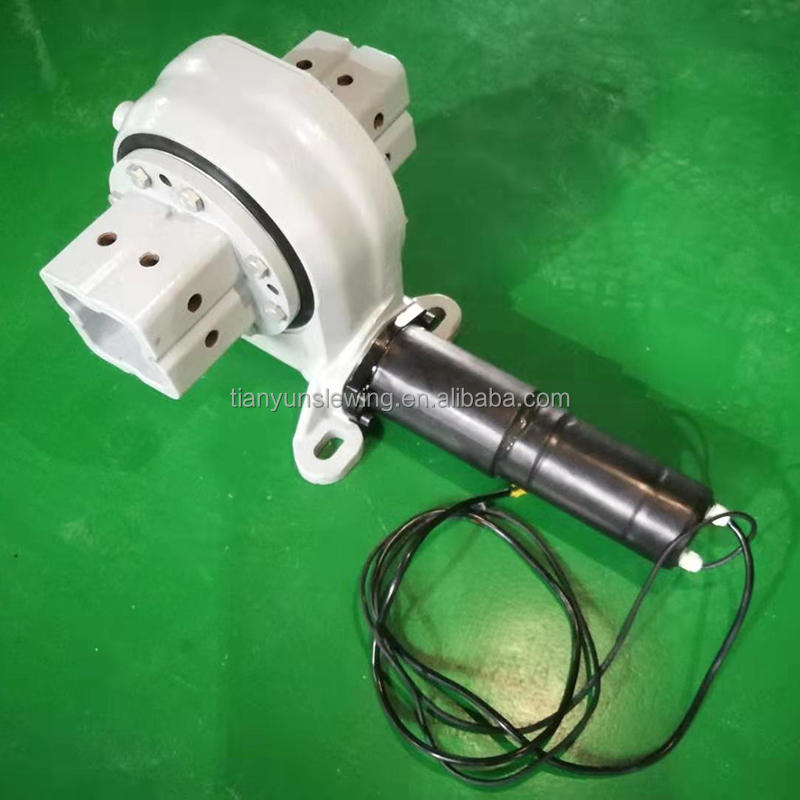

product name: | VE series slewing drive |
Material: | 42CrMo, 50Mn, ductile iron |
color: | based on customer's needs |
Warranty: | 1 year |
Minimum order quantity: | 1 |
type Slewing Drive Data | 3'' | 5'' | 7'' | 9'' | 12'' | 14'' | 17'' | twenty one'' | 25'' |
Rated output torque/kN.m | 0.4 | 0.6 | 1 | 6.5 | 7.5 | 8 | 10 | 15 | 18 |
Overturning moment/kN.m | 1.1 | 1.8 | 13.5 | 33.9 | 54.3 | 67.8 | 135.6 | 203 | 271 |
Static load rating, axial/kN | 30 | 76 | 133 | 338 | 475 | 555 | 970 | 1598 | 2360 |
Static load rating, radial/kN | 16.6 | 22.6 | 53 | 135 | 190 | 222 | 390 | 640 | 945 |
Dynamic load rating, axial/kN | 9.6 | 13.8 | 32 | 81 | 114 | 133 | 235 | 385 | 590 |
Dynamic load rating, radial/kN | 8.4 | 11.8 | 28 | 71 | 100 | 117 | 205 | 335 | 470 |
gear ratio | 62:1 | 62:1 | 73:1 | 61:1 | 78:1 | 85:1 | 102:1 | 125:1 | 150:1 |
self-locking gear | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
weight/kg | 12 | 20 | twenty one | 49 | 61 | 64 | 105 | 149 | 204 |
Applicable panel area / m2 | 3-5 | 6-9 | 10-17 | 18-30 | 31-45 | 46-60 | 61-95 | 96-120 | 120-165 |
