Remote LCD VGA KVM over IP

  • Supplier: Shenzhen Kinan Technology Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Hazel Lee
  • Price: $1237.50 / 1 - 9 pieces
    $1113.75 / 10 - 49 pieces
    $907.50 / >=50 pieces
  • Min. Order: 1 piece
Product details
Supply capacity:2000 pieces per monthKVM dongle:VGA, DVI, HDMI and DP KVM adapters available
feature:IP-based KVMCertification:FCC, CE, RoHS
brand:KeenanResolution:1280x1024
screen size:17 inchesPort selection:Button, UI interface, Web
Warranty:2 yearsInterface Type:RJ45
payment terms:Western Union, Wire Transfer, Paypalproduct status:in stock
place of origin; place of origin:Shenzhen, ChinaPay:T/T, PayPal, Western Union, other negotiable payment methods.
user:1 local user, 1 remote usermodel:HT1708
Computer connection:8 portsPackaging Details:1 piece/carton
Monitor connection:1 portOEM/ODM:usable
gross weight:19kginput power:100V~ 240Vac , 50~60Hz , <1.5A
Product Description

 feature:

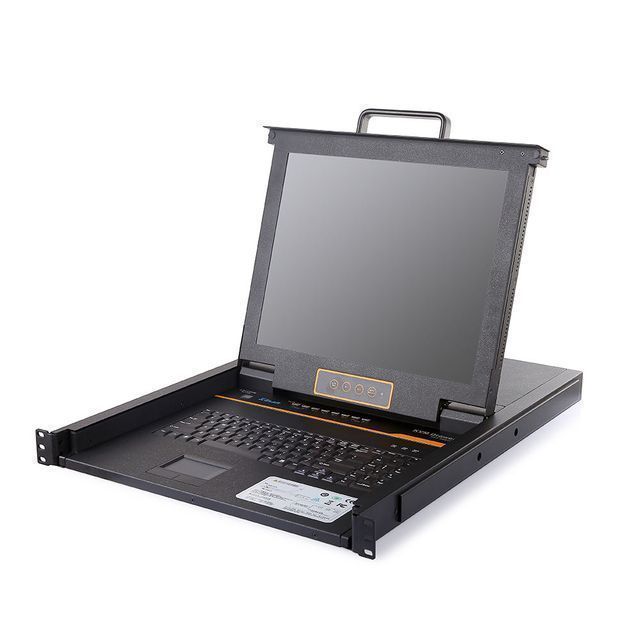

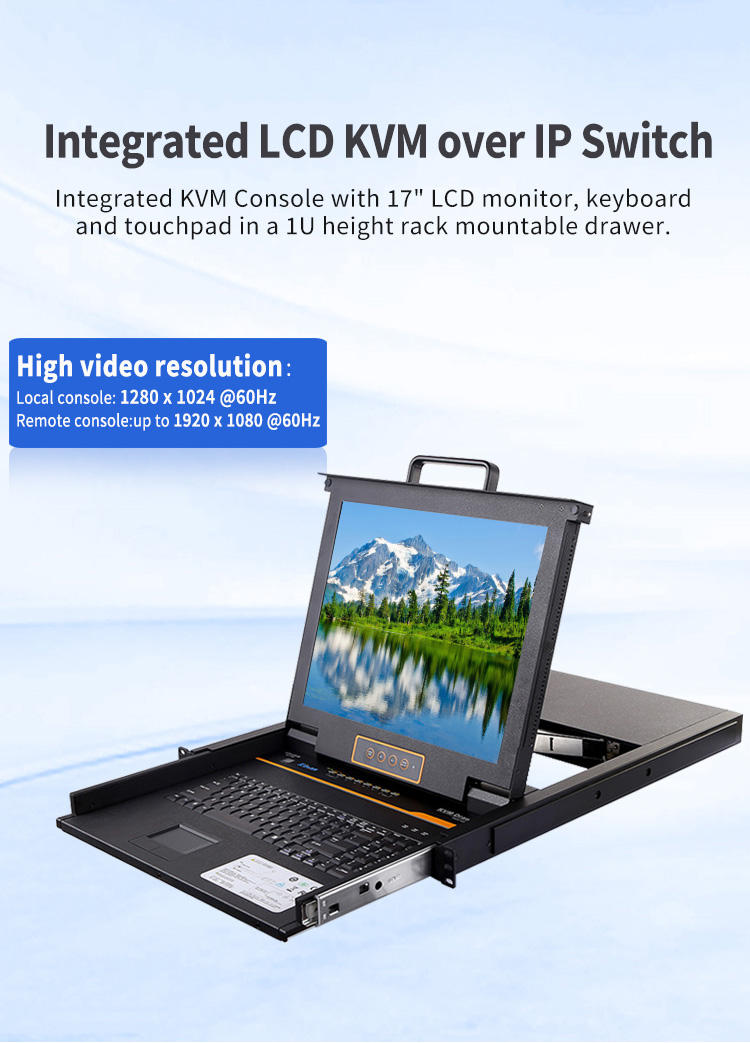

  • Integrated KVM console with 17" LCD monitor, keyboard and touchpad in 1U height rack mount drawer
  • High video resolution - up to 1280 x 1024 @60Hz for local and remote consoles

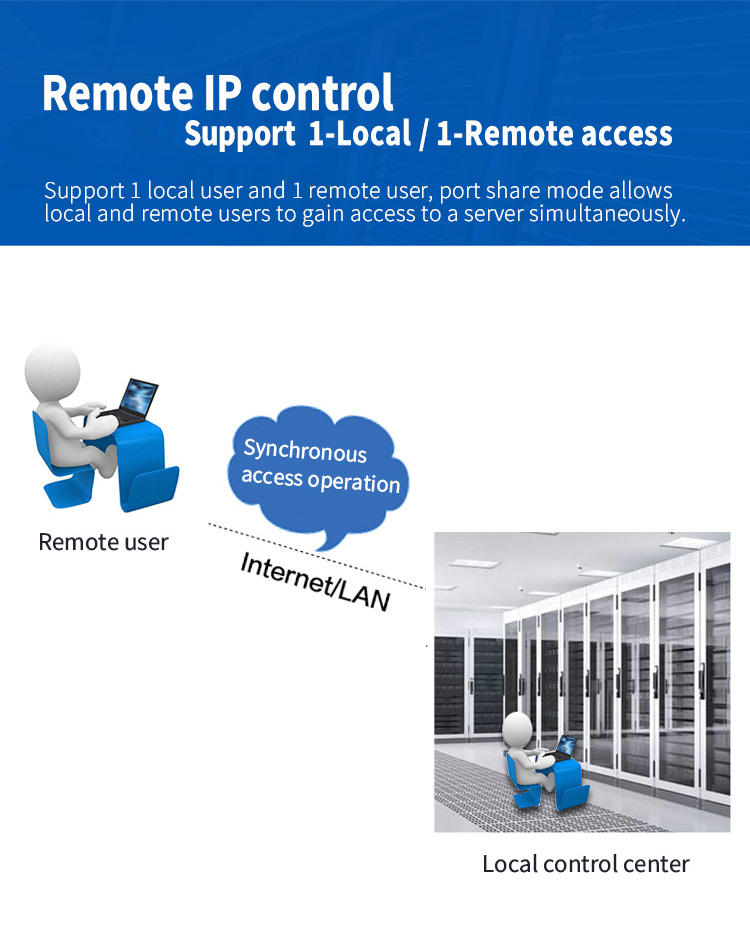

  • 1 local user and 1 remote user

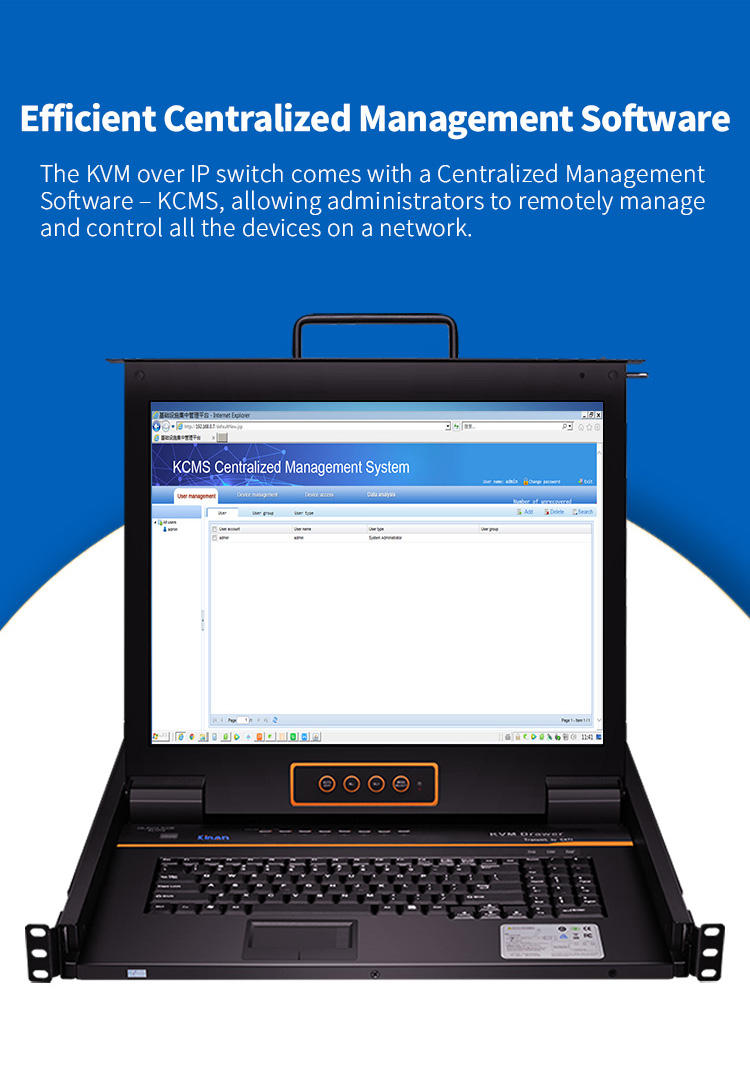

  • Allows centralized management of computers/servers from anywhere
  • Supports servers with VGA/DVI/HDMI/DP ports
  • Support mouse and video sync mode
  • Hot-swappable - computers can be added or removed without shutting down the switch
  • Compatible with Windows, Sun, Unix and Linux
  • Support firmware upgrade
  • No software required, no complicated installers, and no compatibility issues.



Specification: HT1708

Model

HT1708

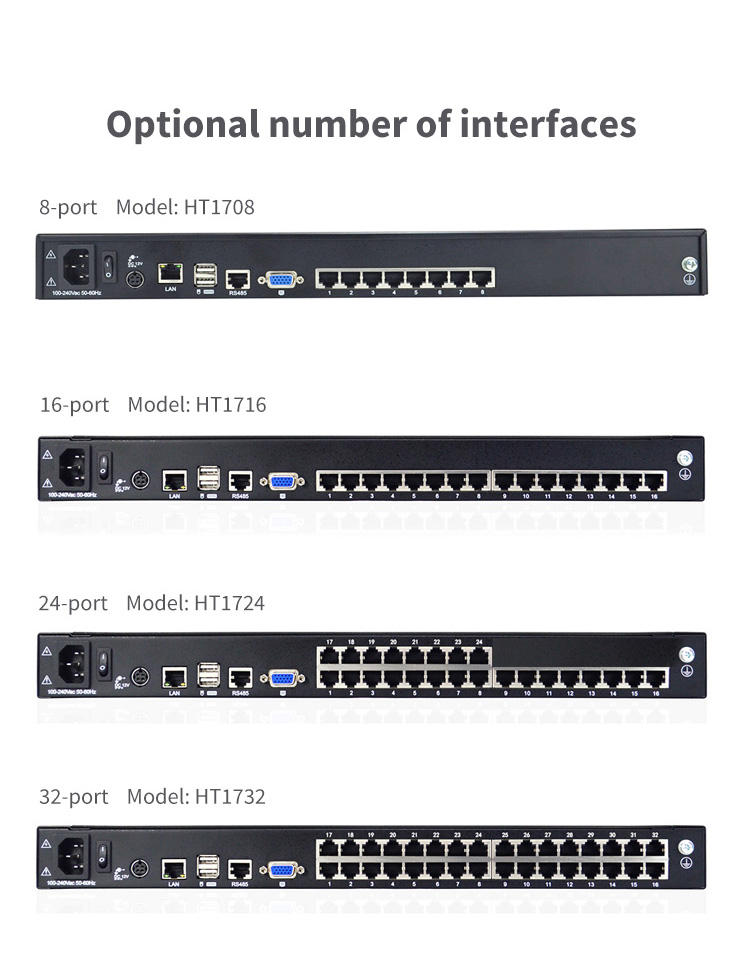

computer connection

direct

8

maximum

8

port selection

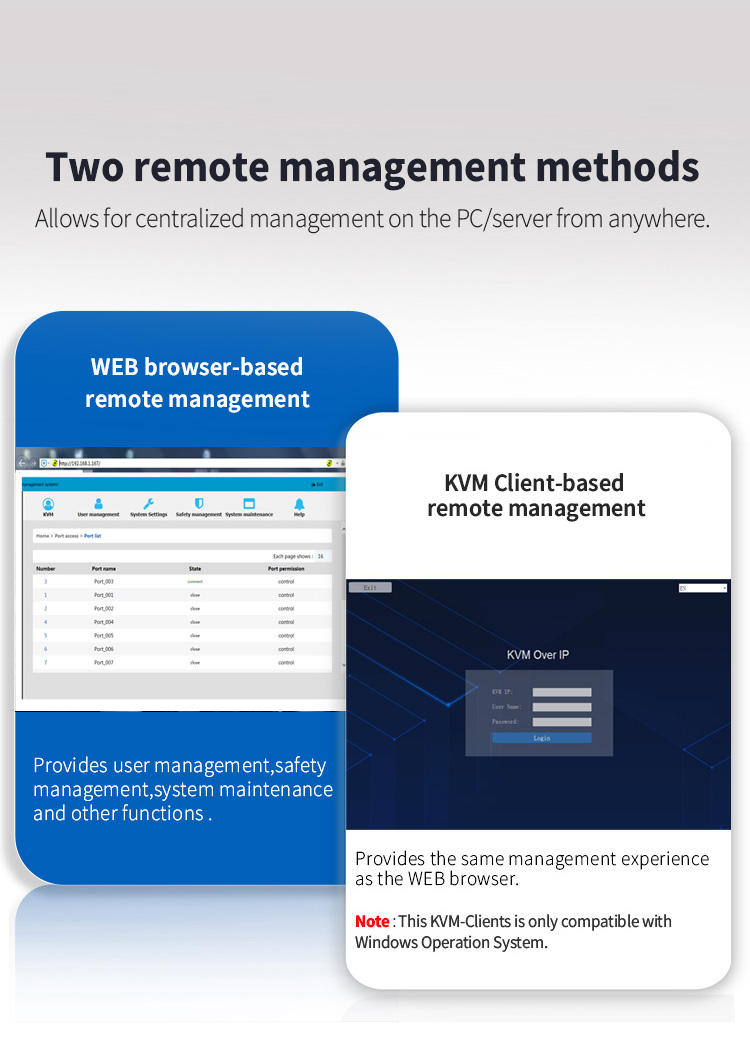

Button, UI interface, Web

LCD Monitor

model

SXGA Thin Film Transistor

Viewable range

17"

best resolution

1280×1024@60Hz

display color

167,000

brightness

250cd/m² (typ.)

Contrast

1000:1 (typ.)

Pixel pitch (mm)

0.264(H) × 0.264(W)

mouse

X/Y resolution

>1000 dots/inch, (40 dots/mm)

trackball

Support trackball function

keyboard

99 keys

(82-key main keyboard + 17 independent small numeric keyboard)

secluded

remote control

KVM Control (ActiveX Control)

management interface

network

Safety

DES encryption

best resolution

1280×1024@60Hz

input power

100V~ 240Vac, 50~60Hz, <1.5A

energy consumption

23W

Operating temperature

0~50℃

Storage temperature

-20~ 60℃

humidity

0~80% RH, no condensation

net weight

13kg

Product size (W×D×H)

448mm×581mm×42.5mm

Package size (W×D×H)

765mm×615mm×185mm

Optional power input

-36V—-72V DC
