chc rtk 2022 latest RTK GNSS Base and Rover CHC x7/ibase GPS device price Chcnav i73 i83 i90 rtk gps

Supplier: Tianjin New Starr Technology Trade Co., Ltd.
Region: Tianjin, China
Price: $9450.00 / 1 - 4 sets
$9300.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

aspect:	152mm*78mm	Operating temperature:	-45℃+75℃
Storage:	8GB	Packaging Details:	Carton
Initialize reliability:	99.9%	place of origin; place of origin:	Tianjing, China
payment terms:	wire transfer	Storage temperature:	-55℃+85℃
weight:	1.15Kg	slope:	0-60 degrees
Packaging Preview:		Warranty:	1 year
Number of channels:	1408	Supply capacity:	5000 boxes per year
Electronic Bubbles:	support	IMU update rate:	200 Hz
port:	Hongkong	Custom Support:	ODM
model:	X7

Product Description

physical properties

aspect:152mm*78mm

Weight: 1.15Kg

Material:magnesium alloy

Working temperature: -45℃+75℃

Storage temperature:-55℃+85℃

CControl Manual

CPU: Octa-core 2.0Ghz processor

Battery:14 hours battery life

operating system:Android 10

Waterproof and dustproof: IP68

Recommended Products

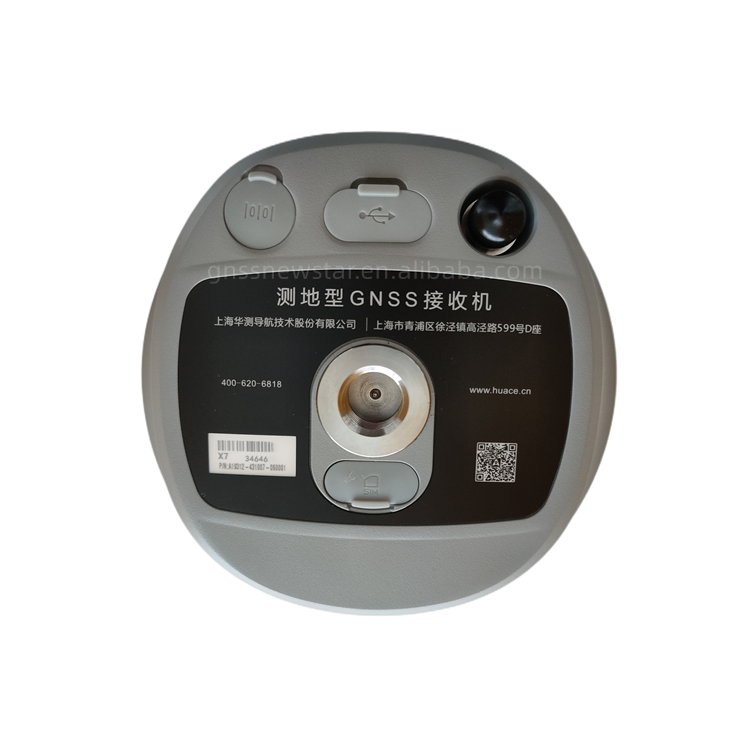

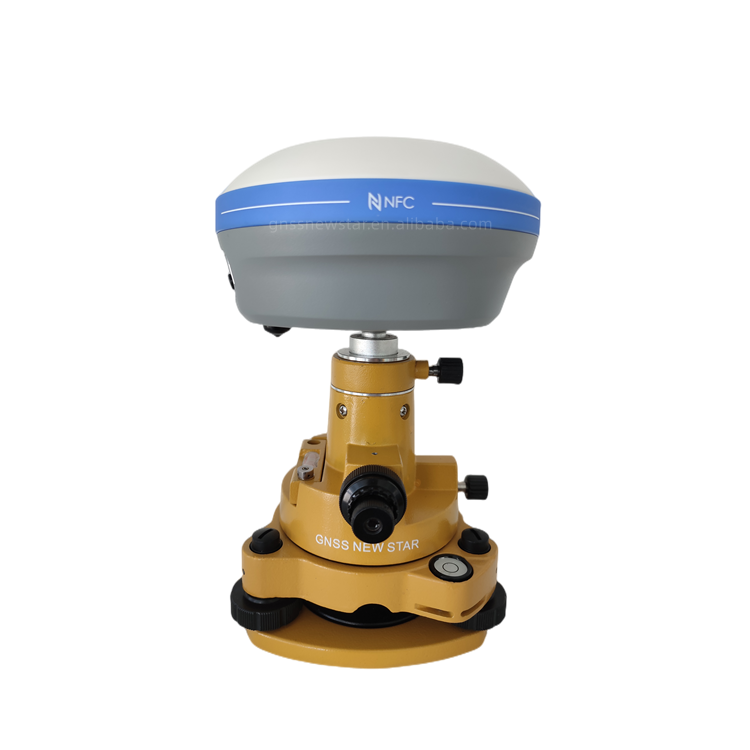

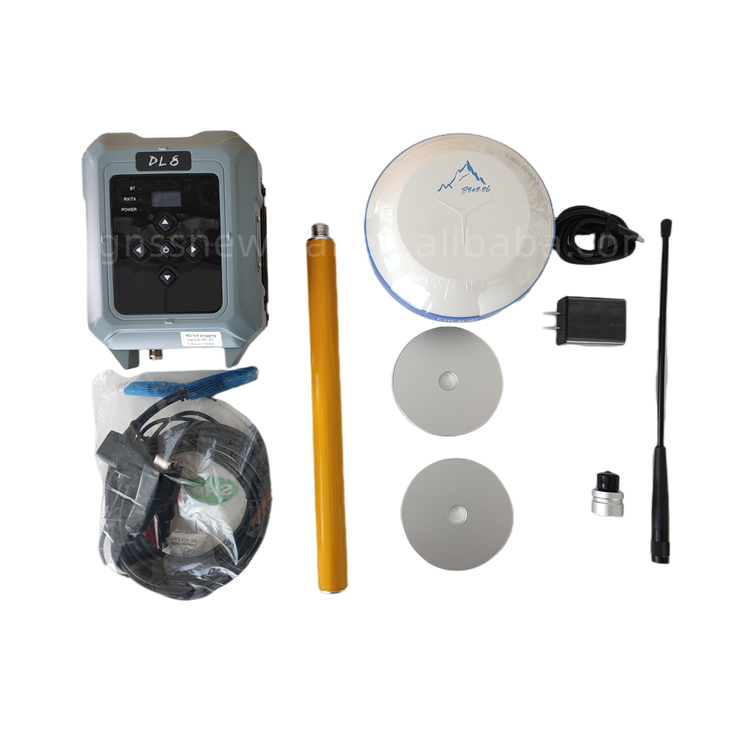

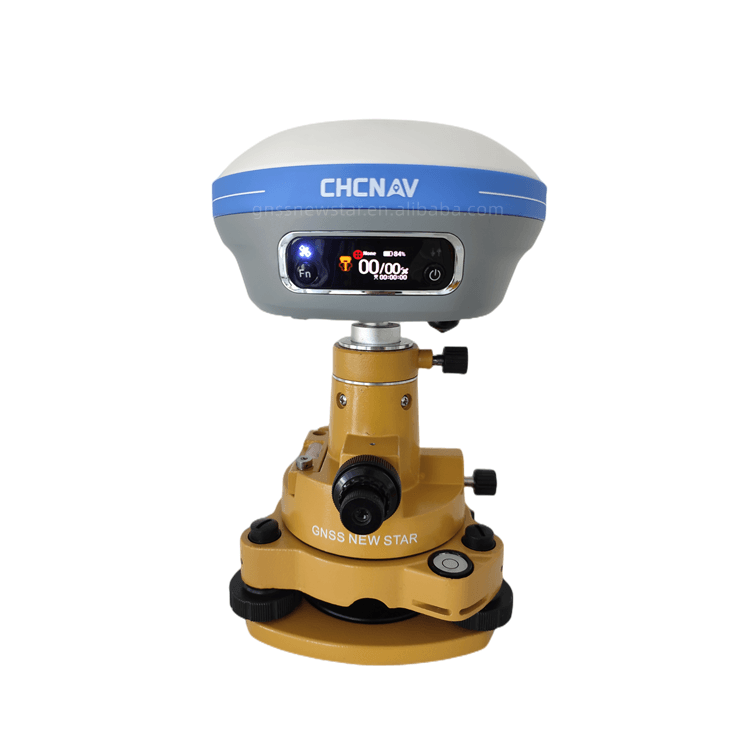

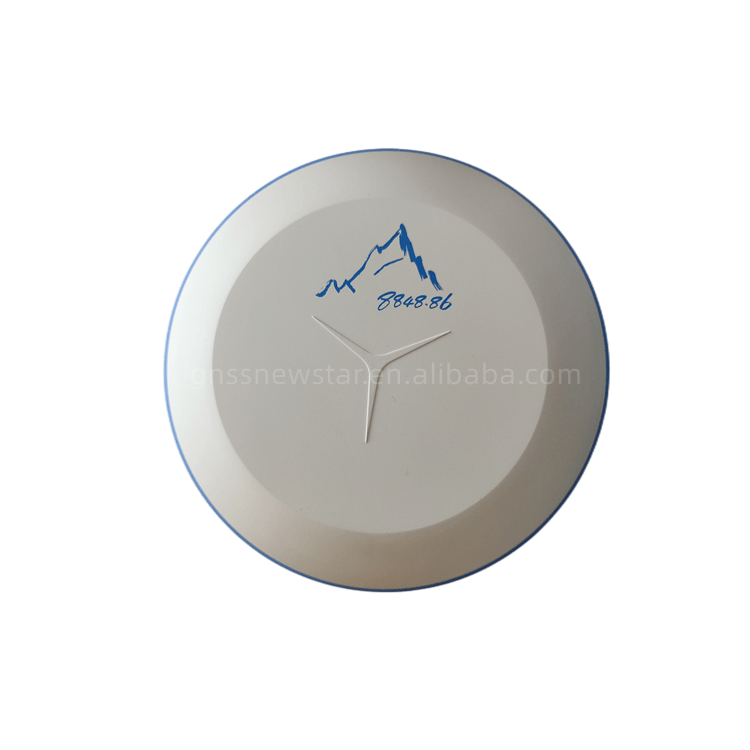

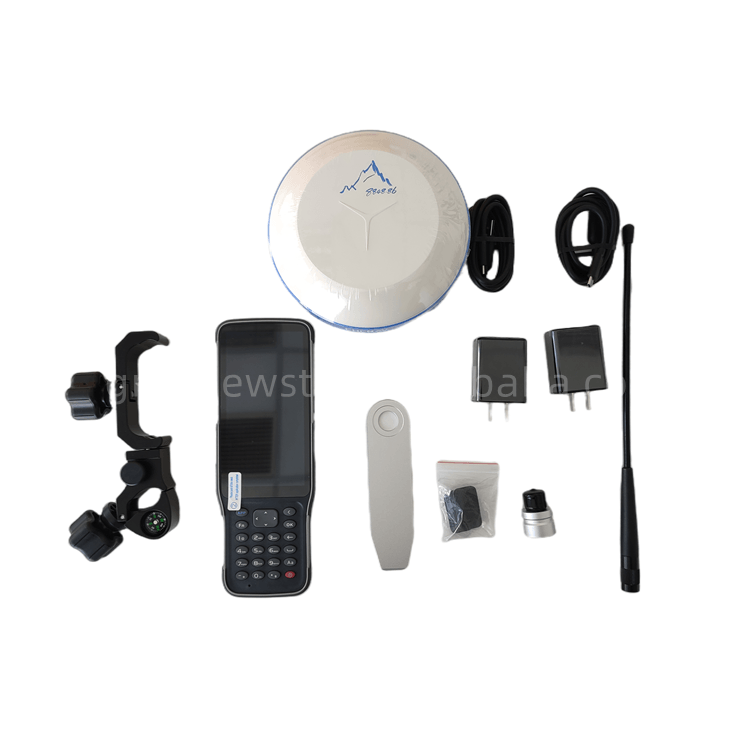

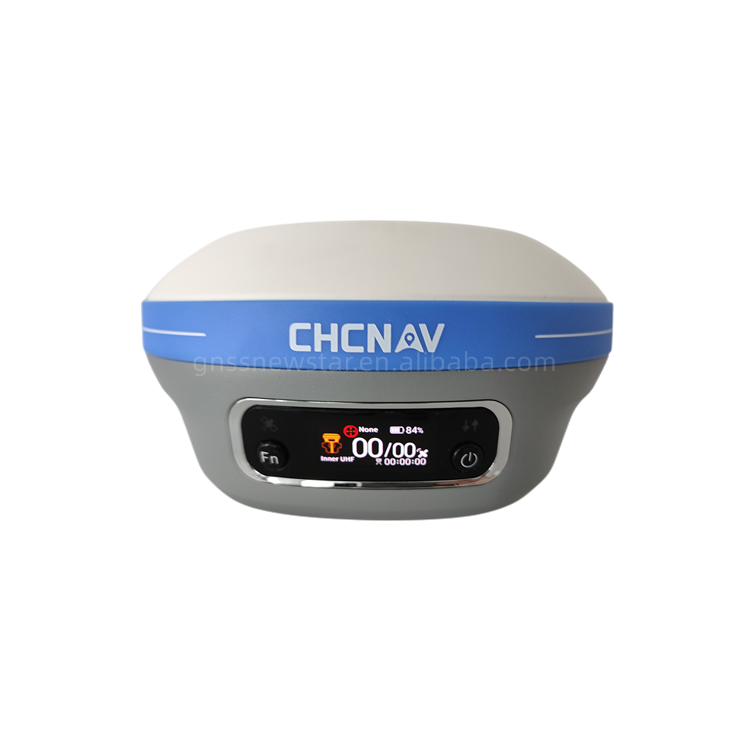

detailed picture

Specification

Satellites and Accuracy	satellite system	GPS+BDS+GLONASS+GALILEO+QZSS,
	satellite system			Support Beidou three generations, support five-star twenty-one frequency
		number of channels	1408
		Initialize reliability	99.90%
		RTK accuracy	Plane Accuracy: ±( 8 + 1.0×10-6×D) mm
		RTK accuracy		Elevation accuracy: ±(15 + 1.0×10-6×D) mm
		static precision	Horizontal accuracy: ±(2.5+ 0.5×10-6×D) mm
		static precision		Elevation accuracy: ±( 5 + 0.5×10-6×D) mm
GNSS+Inertial Navigation	IMU update rate	200 Hz
		slope	0-60 degrees
		Tilt compensation accuracy	10 mm + 0.7 mm/° tilt (30° accuracy within <2.5cm)
User interaction	LCD screen	Quasi-Retina screen, clear and transparent even in direct sunlight
		indicator light	1 satellite light + 1 differential data light
		button	Fn function key + power/confirm key
		Web page	Support PC/mobile web page
physical properties	aspect	Φ152mm*78mm
		weight	1.15Kg
		Material	magnesium alloy
		Operating temperature	-45℃+75℃
		Storage temperature	-55℃+85℃
		waterproof breathable membrane	Prevent water vapor from entering the equipment in harsh environments such as sunlight and sudden heavy rain
		Waterproof and dustproof	IP68 (protection against 1 meter immersion in water for 30 minutes)
		Anti-collision	IK08 (mechanical impact and 2.5kg steel hammer without damage, 3 meters drop resistance)
Electrical parameters	Battery	Mobile station typical 18 hours battery life
		fast charge	Support fast charge, up to 15w fast charge
		External power supply	(9-28) V DC
		storage	8GB
		electronic bubble	support
Wireless communication	wireless connection	Support Wi-Fi data link
		radio	Built-in transceiver station, maximum support 2w transmit power,
		radio		Support CTI/TT450/transparent transmission protocol
Control Manual	Model	HCE600 Android Measurement Manual
		operating system	Android 10
		CPU	Octa-core 2.0Ghz processor
		the Internet	4G full Netcom, built-in eSIM for three-year mapping traffic
		LCD screen	5.5-inch HD display
		Battery	14 hours battery life
		Waterproof and dustproof	IP68
Advanced Features	Smart function	Supports super dual transmission, super dual reception, one key fix
Advanced Features		Smart service	Support CTI cloud service, provide cloud storage, function code sharing, and provide intelligent road data editing function
