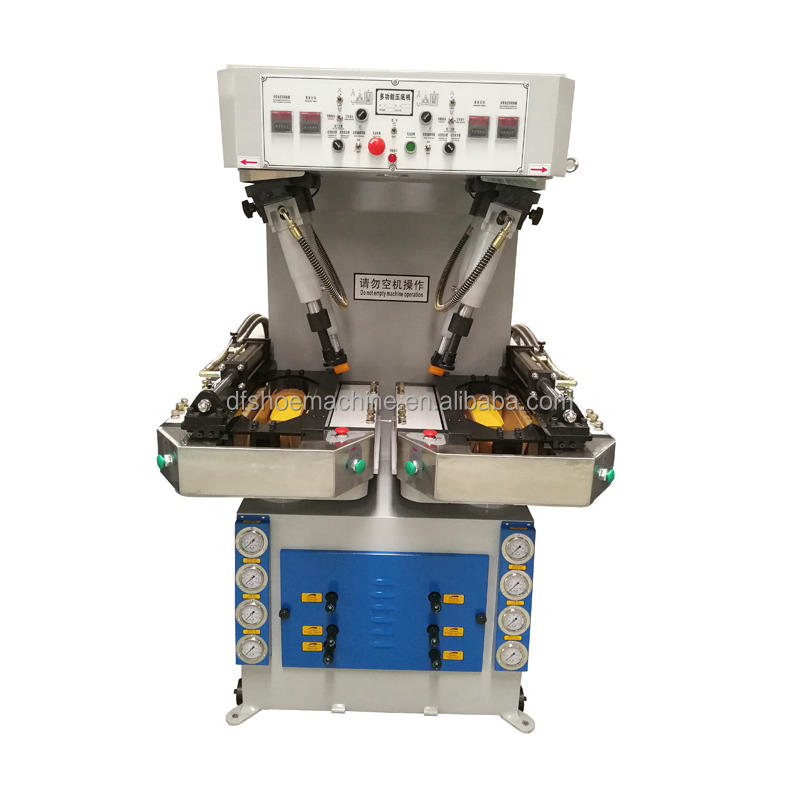

Heavy duty sole press hydraulic sneaker sole press

Automatic shoe press in shoe machine

The machine is completely controlled by the hydraulic system. Suitable for outsole attachment of jogging shoes, wall sports shoes, casual shoes. The operations of outsole pressing and front and rear pressing can be done simultaneously or separately.
The heavy pressure to help the footwear industry upgrade.
1\When the cylinder rises, there is a prepared fuel tank to supplement oIL, which makes the rise faster, saves operation time and increases efficiency.
2\The pressure rod mechanism adopts a hydraulic automatic balance system, the height of the pressure rod does not need to be manually adjusted, and the operation is simple.
3\The automatic declination setting design of the pressure bar mechanism makes the shoe positioning easy and the boots positioning evenly.
4\When the front and rear pressing mechanism retreats, a special circuit device is used to control the retreating stroke, and the appropriate retreating distance is positioned according to the shoes of different sizes.
5\Each process has a pressure adjustment function to make the pressing effect perfect.
6\Automatic balance bar and swing connection mechanism
The height of the connecting rod is controlled by the hydraulic automatic balance system, no adjustment is required
When the height of the shoe last is different, the fixing rod can also be installed to ensure that the pressure of the two fixing rods is almost the same, and the fixing force of each point of the sole is the same. The fixed rods can swing at the same time. The last is easy to take out. This design is superior to older fixed link machine designs.
7\Side-loading mechanism The side-loading adopts full hydraulic control. There are nine rubber foam pressing objects for tight pressing according to the shape of the shoe. Each foam press is controlled by a separate air cylinder, and the pressure reaches 250-300kgs. The two foam presses are available at the front and at the back, respectively, to ensure optimum side-fit performance.
8\DF-818 special function
One. There are eighteen pressure pads at the bottom of the pressing mechanism, and the pressure pads are controlled by the cylinder to move up and down to fix different shoe types.
b. The pressure pads can be replaced with different heights or modified to fit different shapes of outsole, no need to use models, thus saving a lot of cost.
