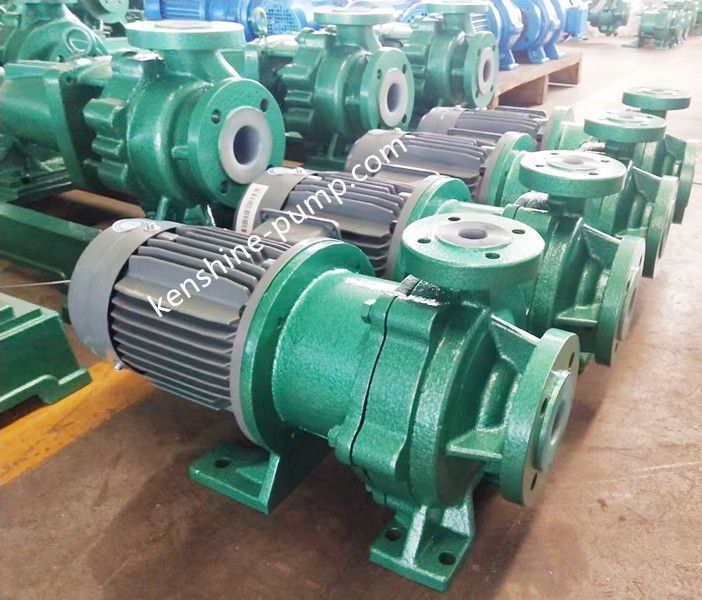

CQB-F fluoroplastic lined magnet coupled chemical transfer centrifugal pump for acid

Supplier: Kenshine Pump Mfg Co. , Ltd
Region: Jiangsu, China
Contact: Ms Xin Shine
Price: $1950.00 /set
Min. Order: 1 set

Click here to contact

Product details

Fluoroplastic magnetic driving chemical industrial pump

The flow parts of CQB-F fluorine plastic magnetic chemical pump are for fluorine plastic (F46/PFA/FEP/PTFE/ETFE/PVDF etc.) materials. Pump outer casing is for metal material (cast iron or carbon steel) to be enough for supporting pipeline weight and resisting mechanical impact.

Flow parts of CQB-F fluoroplastic liner magnetic pump are made of fluoroplastic (F46/FEP/PFA) and have a very good corrosion resistance.

CQB-F fluoroplastic liner magnetic pump can transport any concentration of acid, alkaline, oil, rare and valuable liquid, toxic liquid, volatile chemical medium. It is especially suitable for the transport of flammable, leaky and explosive liquid chemical medium.

Sliding bearing of magnetic pump can be impregnated graphite, filled with polytetrafluoroethylene, engineering ceramics, etc. Because engineering ceramics have good heat resistance, corrosion resistance and friction resistance, the sliding bearings of magnetic pump are mostly made of engineering ceramics. Because the engineering ceramics are very brittle and the expansion coefficient is small, the bearing clearance shall not be too small to avoid shaft holding accident.

CQB-F Fluoroplastic chemical industry magnetic pump has the advantages of compact structure, beautiful appearance, small volume, low noise, reliable operation and so on. CQB Fluoroplastics magnetic driving centrifugal chemical pump can continuously transport acid, alkali, oxidant and other corrosive media with arbitrary concentration. Applicable temperature: -30℃-120℃
