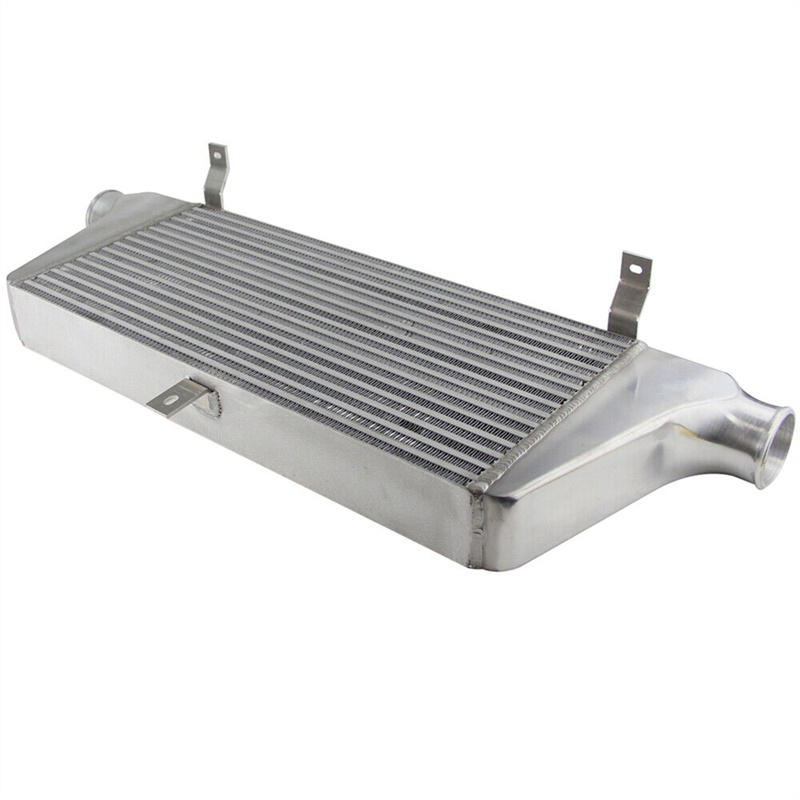

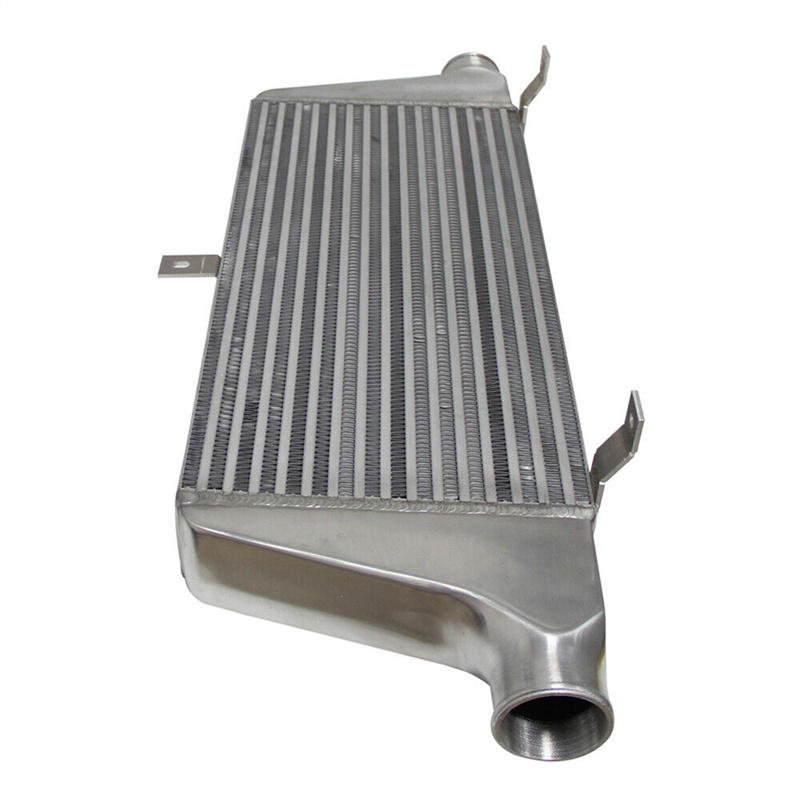

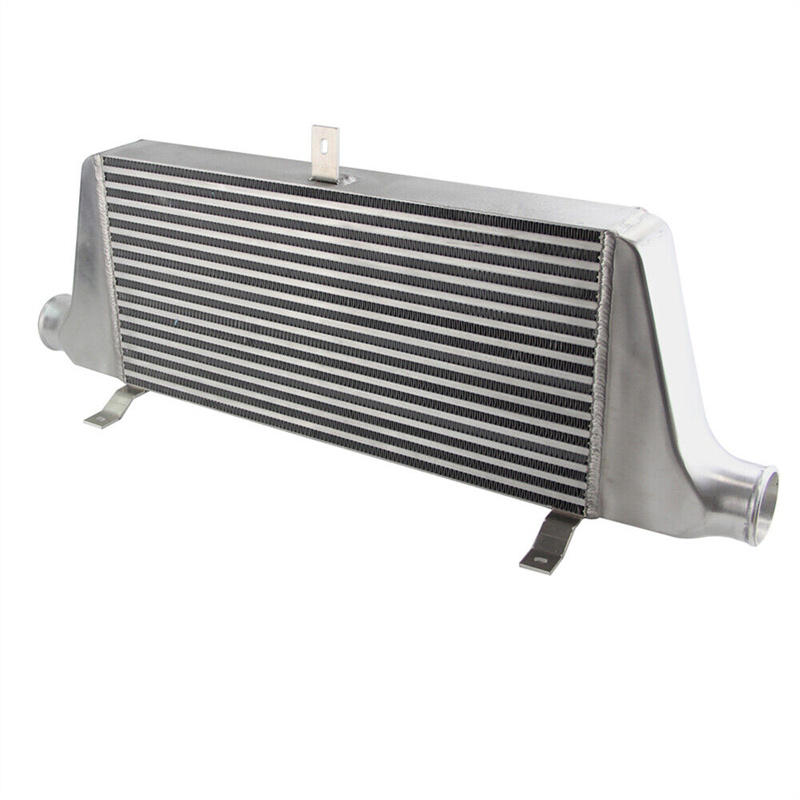

Front Mount Aluminum Intercooler for Nissan Silvia S14 S15 SR20DET Turbo 93-02

Nissan Silvia 200SX 240SX S14 S15 SR20DET Intercooler

include:

Nissan Silvia S14/S15

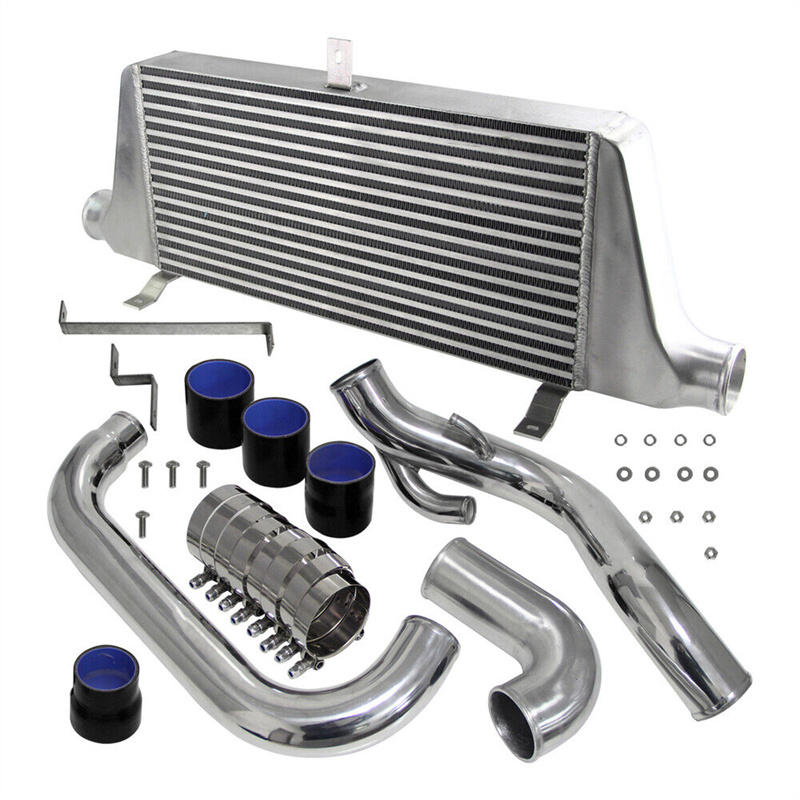

SPEC-R HG Intercooler Kit
Car brand: Nissan
Model: Silvia
Car Year: S14/S15
Year: 1993/10 - 2002/8
describe:

Intercooler:

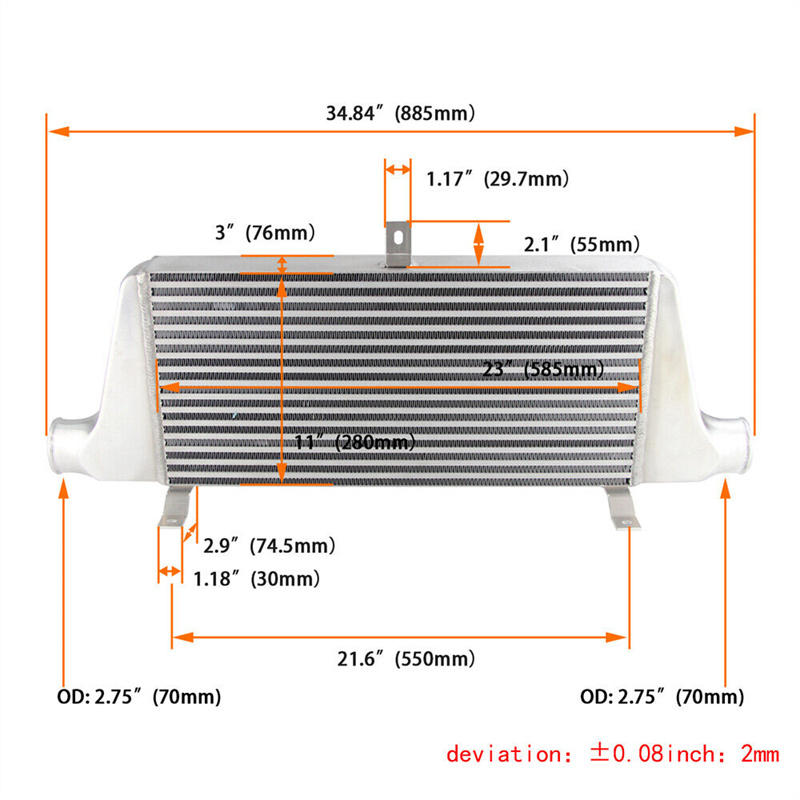

Overall size: 274x885x76mm
Core size: 274x590x76mm
Inlet/Outlet: 2.75"
- Maximum support 650HP
- Fully polished alloy intercooler
- Ultra-low intercooler pressure drop: 0.5-1 psi at 23 psi (2.8-4 psi at normal bar and plate intercooler at 23 psi)

Instructions are not included.
Professional installation is strongly recommended

include:

1 intercooler only (excluding aluminum tubes)

notes:

1. The factory fog lights need to be removed and installed. Installation of AT models has not been confirmed.

2. Can be installed to OEM turbo and GReddy (T517/518) turbo kit. The battery needs to be replaced during installation (34B19L).
Core Type/Core Size Type 24/H274mm/L590mm/W76mm
3. Drill holes on the fuselage when installing.
4. Can be installed together with the oil cooler kit.
5. It can be installed together with the piping group.
6. The bumper rib needs to be modified before installation.
7. The bumper needs to be modified during installation.
