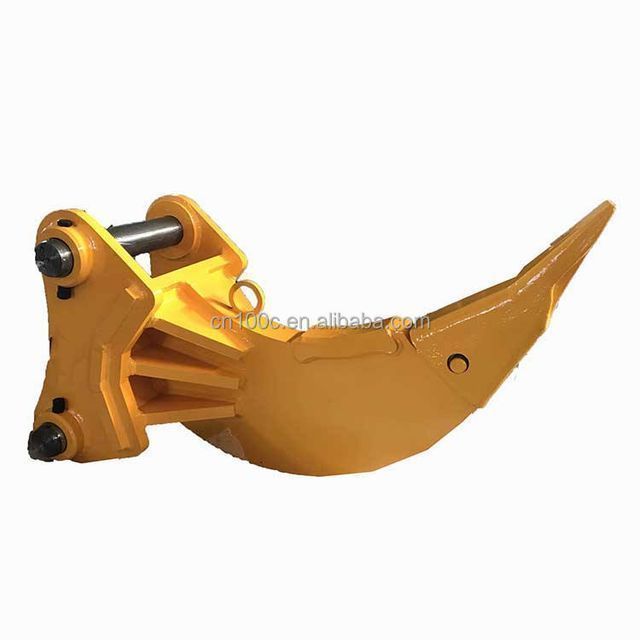

High Strength Hard Rock Excavator Ripper Factory Heavy Industry Equipment

Supplier: Yantai Baicai Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms gillian zhou
Price: $230.00 /set
Min. Order: 1 set

Click here to contact

Product details

Tooth model:	FR50	weight:	60
Pin Diameter:	40-50	Pin distance:	265mm
Video external inspection:	if	Showroom location:	not any
Packaging Preview:		Health status:	new
total height:	390mm	Plate thickness:	50mm
model:	BC02	Applicable industries:	Mechanical Repair Shops, Energy & Mining, Construction Engineering
Core components:	High hardness steel	Overall width:	375mm
Warranty:	6 months	product name:	excavator scarifier
brand:	pterosaur	Supply capacity:	500 sets per month
Mechanical test report:	if	Applicable excavators (tons):	4-6
port:	Qingdao	After-sales service provided:	Yes
Marketing Type:	normal product	Bucket width:	150-180mm
color:	customer request	Packaging Details:	Wooden pallet, wooden box, iron pallet or as your request
payment terms:	L/C,Western Union,T/T,MoneyGram	place of origin; place of origin:	Shandong

Product Description

Technical data:

	unit	BC02	BC04	BC06	BC08	BC10	BC14	BC17	BC20	BC24
Pin-to-pin distance	mm	265	310	390	465	520	570	custom made
overall width	mm	375	420	570	665	740	820	820	1660	1800
total height	mm	390	950	1180	1260	1380	1470	1520	custom made
pin diameter	mm	40-50	50-55	60-70	70-80	80-90	80-90	90-110	custom made
Bucket width	mm	150-180	180-220	200-315	300-350	360-420	360-420	400-500	custom made
plate thickness	mm	50	55	65	80	90	90	90	120	120
tooth model	Name	FR50	DH150	DH200	D85C	4T5502-2			PC700	PC1000
weight	Kilogram	60	160	245	420	620	775	825	custom made
suitable carrier	Ton	4-6	5-9	9-16	16-23	23-30	30-39	40-49	50-64	65-90

A: Heavy duty tooth
Equipped with heavy duty replaceable teeth to ensure optimum effect and wear resistance;
B: Nose Guard
The ripper adds a blade to the protective ripper to prevent breaking, shattering.
C: wear plate
The board is made of NM400 material to ensure service life
D: Reinforcing plate
Strengthen the overall structure to prevent the separation of the cracked soil body and the ear plate

1--Material: Q345/Q460/NM400/Hardox400

2--Number of teeth: one, two, three

3--Best quality and fast delivery

4--Professional manufacturer with more than 10 years experience

application

Fragmentation of hard, subhard and weathered rocks. It is typically applied to any area with frozen, rocky or paved ground that prevents further excavation.

Packaging and Shipping

1. The inner layer is a stretch film

2. Outside is the export wooden box

3. According to customer requirements

Delivery Time: Usually 3-7 days after down payment (1-5 sets). We can arrange sea or air freight from any port in China according to your requirements.

Serve

1. 7 days * 24 hours email and telephone after-sales service

2. Provide local market information and trends and how to develop the market

3. Your inquiry will be replied within 24 hours on working days

4. Our customer-oriented sales and technical teams are always at your service

5. Warranty: The hydraulic breaker is guaranteed for 14 months, beyond the warranty period, all spare parts are provided to you at our cost price (excluding freight).

6. Do you want to customize your brand hammer? OEM available MOQ is 1 piece.
