GAMICOS 4-20mA liquid fuel water ultrasonic level sensor

Product details
Selling Units:Single item;Probe blind area:500~800mm;
Delivery Detail:0 days after payment;Range:≤15M(3m,5m,7m,10m,15m);
Protection:IP65 (Customized: IP66, IP67);Working temperature:0~+50°C;
Title:GUT740 0-5V 0-10V liquid water Ultrasonic level sensor;Single gross weight:1 KG;
Output:4~20mA,1~5V, 0-5v,0-10v,RS485;Theory:ultrasonic sensor;
OEM:Acceptable;Model Number:GUT740;
Place of Origin:Shaanxi China (Mainland);Single package size:30X20X17 cm;
Power suply:DC24V/300mA;Package Type:standard export packaging;
Brand Name:GAMICOS;

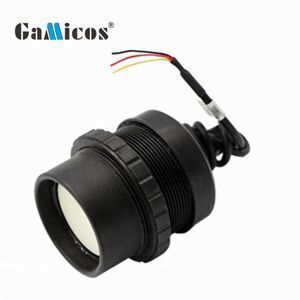

GAMICOS 4-20mA liquid fuel water ultrasonic level sensor

GAMICOS, We are specialized in pressure / level measurement. Ultrasonic level sensor has the characteristics of non-contact,high accuracy, easy install, is one of the mainstream products of our company.



Why you choose and trust us?

♦ Trade Assurance75 Transactions, total amount is above $ USD 200,000+ (from Jan to Jun, 2017)

 Near 50% buyers found pressure sensor and contact us, GAMICOS in ALIBABA

♦ View GAMICOS 7000+, Send inquiry 300+ (from Jan to Jun, 2017)





Related Products









Introduction of ultrasonic level sensor

 GUT740 ultrasonic level transmitter uses SMD components and ASC chip, which makes the circuit compact and concise. The circuit board is plated and has high stability and longterm reliability.

♦Widely used in liquild\solid level and ullage measurement.





Specification



Item

Specification

range

≤15m

Blind

≤300~350mm(according to sensor can Customize:200mm)

Accuracy

±0.5%F·S(Customized:0.25% F·S)

Output signal

4~20mA three wire system,4~20mA four wire system,1~5V,RS485,RS232,

1~10V (OEM)

Beam angle

9°,15°,12°(according to sensor can Customize)

Operating temperature

0~50°C (Customize )

Power Supply

DC24V/ DC12V/AC220V(OEM)

Cable way

Water proof connector ,down-lead 0.5m

Defend grade

IP65(Customized:IP66,IP67,IP68)

Mounting model

screw, or sifter clamping

Thread size:M68×2.0mm





Application&Installation

You can choose to measure the liquid/solid level or the ulage.







Our Service

  • Standard export package: each unit has individual box and all boxes are packed in standard packages
  • As the clients requirement

  • Service standards: we are committed to providing a high quality,and responsive services to all clients
  • The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
  • Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
  • Excellent package: each unit has individual box and all boxes are packed in standard packages.
  • OEM available
