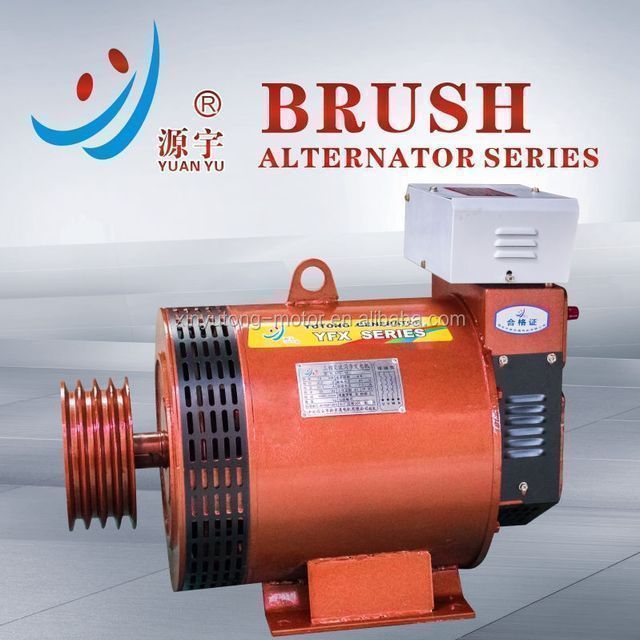

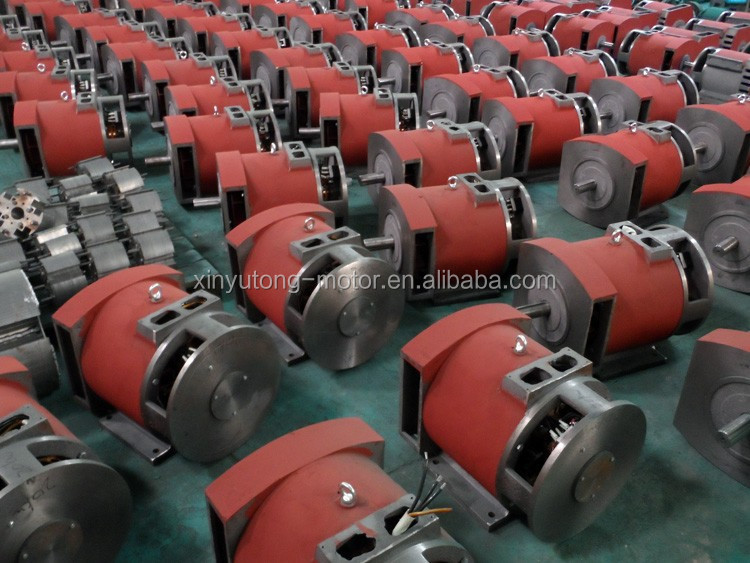

New STC three phase 380V with AVR 7.5KW 10kw 12 kw 15kw brush alternator

Supplier: Fujian Gooall Power Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Jack Xiao
Price: $90.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power factor:	0.8	Name:	brushed alternator
output type:	AC three-phase	rated power:	3KW to 50KW
Delivery Details:	10 days to 30 days after receiving your deposit	control box:	Lights, Voltmeters, Switches
frequency:	50HZ ,60HZ	Rated voltage:	380V
payment terms:	Letter of Credit, T/T, Western Union, MoneyGram	Protect:	IP22
Packaging Details:	In wooden crates or plywood crates etc. All requested by the client.	brand:	Yuanyu
speed:	1500 rpm, 1800 rpm	Warranty:	12 months
place of origin; place of origin:	Fujian China	Certification:	CE, ISO9001
Supply capacity:	500 sets per month	Rated current:	5.4A--90.2A
Relative air humidity:	≤ 90%	insulation:	Class B
color:	custom made	port:	Fuzhou
Copper wire:	100% full copper wire	model:	ST, STC series

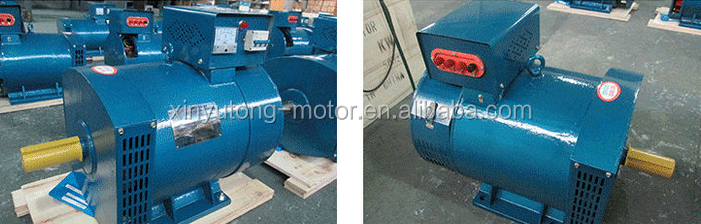

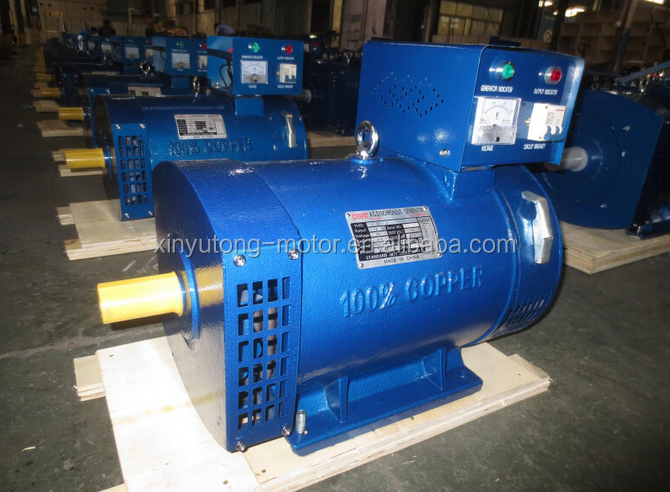

Sale New STC Three Phase 380V with AVR 7.5KW 10kw 12 kw15kw Brush Alternator

introduce:

1. ST and STC generators are used in towns, villages, construction sites, mountain areas and pastures as lighting power sources. It can also be used as a backup power supply for emergency power supply. 2. The generator is a drip-proof rotating magnetic field harmonic excitation system, which adopts a star connection to the neutral point. 3. The rated line voltage is 400V; the phase voltage is 230V; the frequency is 50Hz; the power factor is 0.8 (lag). We can supply generators with 60Hz and other voltages upon request. 4. It can be connected with the prime mover directly or through the V-belt, and it can rotate forward and reverse continuously at the rated speed. 5. When the slip of the prime mover is 3% and the load changes in the range of 0-100%, the power factor is 1.0-0.8, and the constant voltage is kept excellent. After a sudden load change (increase or decrease), the generator will soon return to normal operation. 6. The generator can directly start the no-load squirrel cage induction motor without any starting device.

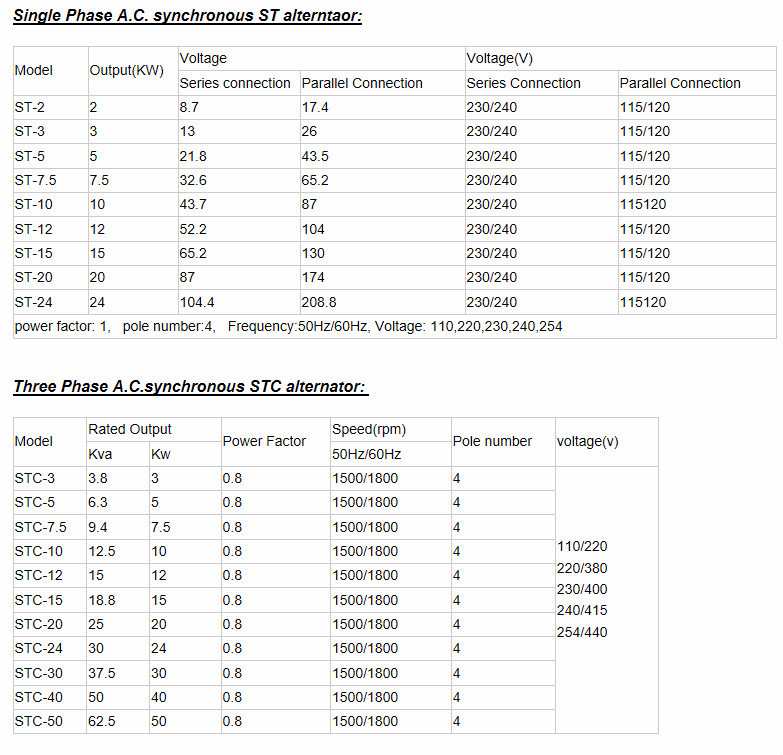

Product Description
