Trend WiFi VoIP Phone GXV3240

Product details
Packaging Details:Original carton packaging (spot trend WiFi VoIP phone GXV3240)standard:SIP RFC3261, TCP/IP/UDP, RTP/RTCP, etc.
port:ShanghaiSupply capacity:Weekly 200 In Stock Trend WiFi VoIP Phone GXV3240
type:Facetimepayment terms:Wire Transfer, Western Union, Paypal
model:GXV3240aspect:196.5mm (W) x 206.2mm (L) x 85.2mm (H)
Graphical display:4.3 (480 272) capacitive (5 points) touch screen TFT LCDBluetooth:Yes, integrated. Bluetooth 4.0 + EDR
Wifi:Yes, integrated. 802.11 b/g/nbrand:trend
camera:Tiltable Megapixel CMOS Camera with Privacy ShutterVoice Codec:Support iLBC, Opus, G.729 A/B, etc.
weight:Unit weight: 0.92kg; Package weight: 1.45kgplace of origin; place of origin:Guangdong, China
HD Audio:Yes, both handset and speakerphone support HD (wideband) audiocolor:Black

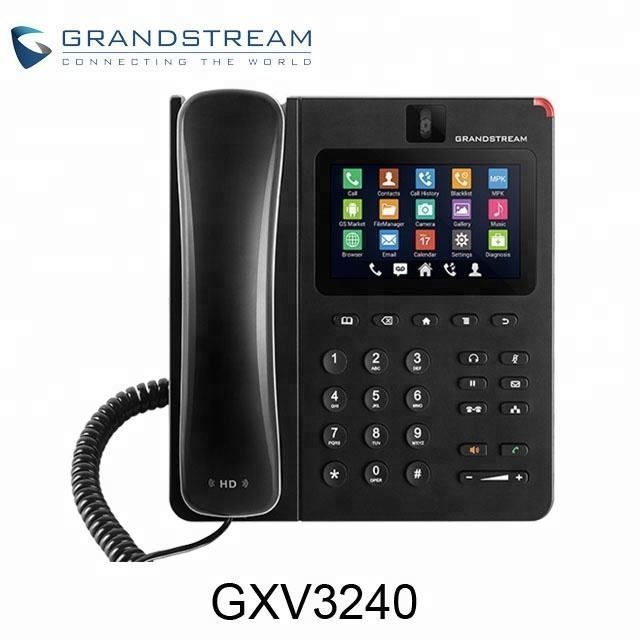

Trend WiFi VoIP Phone GXV3240

Product Description



The GXV3240 IP Video Phone with Android™ provides a powerful voice, video and multimedia business communications experience to keep employees connected and updated. Give users the benefits of a desk phone and tablet in one hybrid solution with this intuitive and customizable multimedia workstation. Desktop productivity is maximized with its 6-line, multi-platform video conferencing support, 4.3-inch touchscreen, and app integration through the Google Play Store. Stay productive and customize your phone with access to thousands of AndroidTM valueapplications, including powerful business productivity applications such as Skype and Google Hangouts. Other features include integrated Bluetooth for pairing headsets and mobile devices, for contacts/calendar exchange and call forwarding, gigabit ports, integrated WiFi, and more. Besides its value as an IP voice and video phone, the GXV3275 is a great addition to any IP surveillance or access control solution. Pairing it with GDS, Grandstream's door phones or third-party devices, SIP door openers or IP cameras allows users to control these third-party devices in the office or apartment directly from the GXV3275. From a surveillance perspective, the GXV3275 can make and receive SIP video calls from IP surveillance cameras to issue security alerts/alarms or check the camera's live video feed.

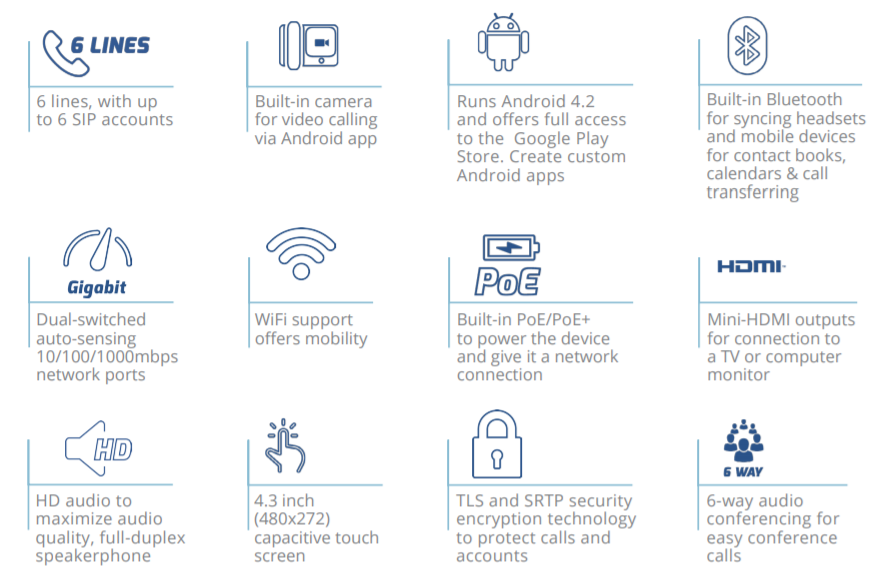

Features



  • 6 lines and 6 SIP accounts, up to 6 voice conferences and 3 video conferences
  • Dual switched Gigabit ports and integrated WiFi (802.11b/g/n)
  • 1 megapixel CMOS camera
  • 4.3" (480x272) capacitive touchscreen
  • Runs Android version 4.2 and provides full access to the Google Play Store
  • Bluetooth for headset and paired mobile device, USB port, SD card slot, mini-HDMI output for connecting to TV monitor, EHS for Plantronics headset
  • Create an Android application for your business that runs on the GXV3240 using Google's APIs and Grandstream's SDK toolkit

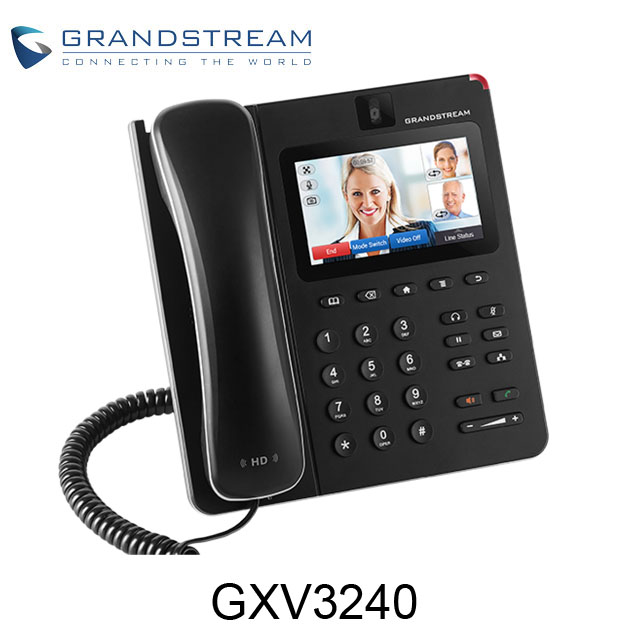

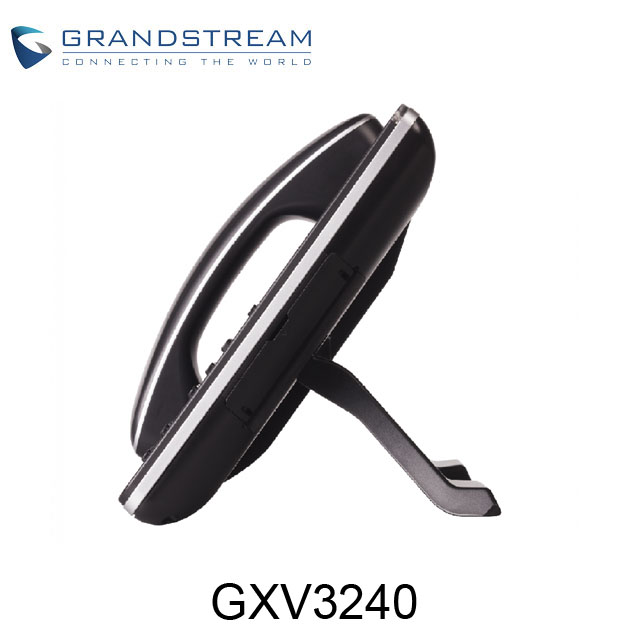

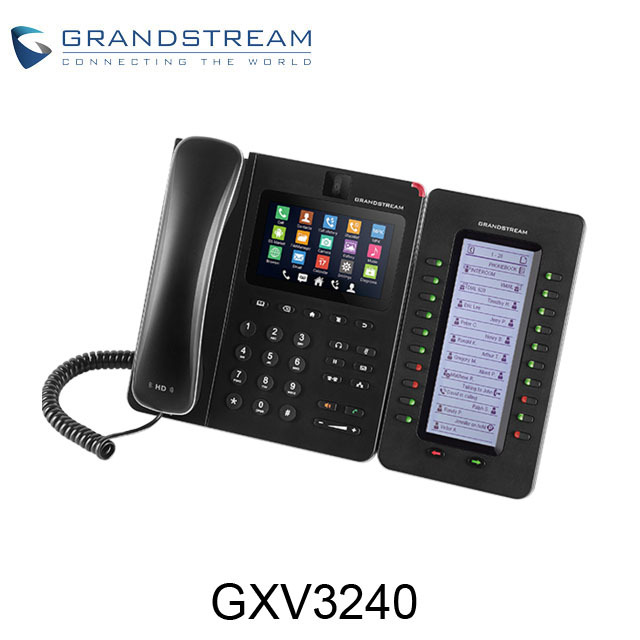

product photo



Specification



Protocol/StandardSIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP , TR-069, 802.1x, TLS, SRTP (pending)
Network InterfaceDual switched 10/100/1000 Mbps ports with integrated PoE
Graphical display7" (1024×600) capacitive (5 dots) touch screen TFT LCD
cameraTiltable Megapixel CMOS Camera Privacy Shutter
BluetoothYes, integrated. Bluetooth 4.0 + EDR
WifiYes, integrated. 802.11b/g/n
Auxiliary port2 function keys VOLUME +/-, 3 Android dedicated keys for HOME, MENU and BACK
function keysPHONEBOOK, BACKSPACE, HEADSET, MUTE, HOLD, MESSAGE, TRANSFER, CONFERENCE, SPEAKERPHONE, SEND/REDIAL, VOLUME 11 function keys. 3 dedicated Android keys for HOME, MENU and BACK
voice codecSupports G.711μ/a, G.722 (broadband), G.726-32, G.729 (pending), iLBC, Opus (pending), in-band and out-of-band DTMF (in-audio, RFC2833, SIP messages)
Video Codecs and FeaturesH.264 BP/MP/HP, video resolution up to 720p HD, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conferencing, anti-flicker, auto focus and auto exposure, PIP (Picture-in-Picture) , screen display, camera module, still picture capture/storage, video recording, visual voice message indicator
telephone functionHold, Transfer, Forward (Unconditional/No Answer/Busy), Call Park/Pickup, 6-way Audio Conference, Shared Call Appearance (SCA)/Bridged Line Appearance (BLA), Virtual MPK, Downloadable Phone Book ( XML, LDAP), Call Waiting, Call Logging, Boss & Secretary Virtual Keys, Flexible Dial Plan, Desk Rotation, Personalized Music Ringtones, Server Redundancy and Failover
sample applicationSkype, Google Hangouts, Microsoft Lync, Web Browser, GoToMeeting, Facebook, Twitter, Youtube, News, Weather, Stocks, Internet Radio, Pandora, Last.fm, Yahoo Flickr, Photobucket, Alarm Clock, Google Calendar, Mobile Data Import/Via Export API/SDK such as Bluetooth can be used for advanced custom application development
application deploymentAllows development, download and running of various Android OS 4.2 compliant applications in embedded devices with configuration control
HD AudioYes, both handset and speakerphone support HD (wideband) audio
base bracketYes, integrated stand with multiple adjustable angles. Wall-mounted
service qualityLayer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
SafetyUser and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted profiles, TLS, SRTP (pending), HTTPS, 802.1x media access control
multi-languageEnglish, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, etc.
Upgrade/ConfigureFirmware upgrade via TFTP/HTTP/HTTPS or local HTTP upload, mass configuration using TR-069 or AES encrypted XML configuration file
Electricity and Green Energy EfficiencyUniversal power adapter included: Input: 100-240VAC 50-60Hz; Output: 12VDC, 1.5A (18W);
 Integrated PoE+ (Power over Ethernet) 802.3at, Category 4
physicalDimensions: 252mm (W) x 211mm (L) x 84mm (H)
 Unit weight: 1.08kg
 Packing weight: 1.77kg
temperature and humidityOperating temperature: 0oC to 40oC
 Storage: -10oC to 60oC
 Humidity: 10% to 90% non-condensing
Package ContentsGXV3275 phone, handset with cord, base, universal power supply, network cable, lens cleaning cloth, quick installation guide, manual, GPL license
obeyFCC: Part 15 (CFR 47) Class B; UL 60950 (Power Adapter)
 CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, EN62479, RoHS
 RCM: AS/ACIF S004; AS/NZS CISPR 22/24; AS/NZS 60950; AS/NZ 4268
Packaging and Shipping
  • Terms of trade: FOB, CIF, CFR, etc.
  • Price terms: L/C, D/P, T/T, Western Union, PAYPAL
  • Payment terms: T/T in advance
  • MOQ: 1 piece
  • FOB Price: US $1 - 1,000 / Piece
  • Port: Shanghai
  • Delivery time: within 5 working days after receiving payment.
  • Shipping method: express, air, sea
  • Supply Ability: 200 Pieces/ Piece per Week
  • Sample Availability: Yes (Not Free)
  • Packing information: original carton packaging
