Warranty: | 1 Year; | Raw material: | Wood or Bamboo; |
Place of Origin: | Jiangsu China (Mainland); | Brand Name: | LUBAN; |
Certification: | ISO9001/CE; | Type: | Bamboo/Wooden Toothpick Bbq/Incense Stick Making Machine; |
Color: | Silvery; | Applicable Industries: | Manufacturing Plant,Farms,toothpick making machine; |
Packaging Detail: | Wooden case bamboo/wooden toothpick bbq/incense stick making machine; | Port: | Qingdao, Ningbo, Guangzhou; |
Function: | Stick Processing Machine; | Dimension(L*W*H): | 3000*950*1200mm; |
Usage: | Making Bbq Stick; | Supply Ability: | 100 Set/Sets per Month toothpick making machine; |
Voltage: | 220V/380V; | Application: | Making toothpick,BBQ sticks,incense sticks,etc; |
Package: | Wooden Case Bamboo/Wooden Toothpick Bbq/Incense Stick Making Machine; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Capacity: | Capacity: 1 million pieces every 8 hours; | Condition: | New; |
Weight: | 500kg; | Shape of toothpick: | One Head OrTwo-head Sharp Toothpick; |
Payment Terms: | L/C,T/T,Western Union,toothpick making machine; | Power(W): | 3kw; |
Name: | toothpick making machine; |
⊃Machine Application of toothpick making machine
This production line could make bamboo and wooden toothpick (one pointed and two pointed toothpick), BBQ sticks(skewers), incense sticks, match sticks and so on.Different diameters,different length,almost all.
⊃Material Information of toothpick making machine
Bamboo Or Wood
Δ!: Not too soft; not too many joints; no many burrs when
filament shaping
Good choice like above:moso bamboo,birch wood,beech wood,and so on
Δ!: You could send some samples to us for testingin advance.
⊃Final Product of toothpick making machine

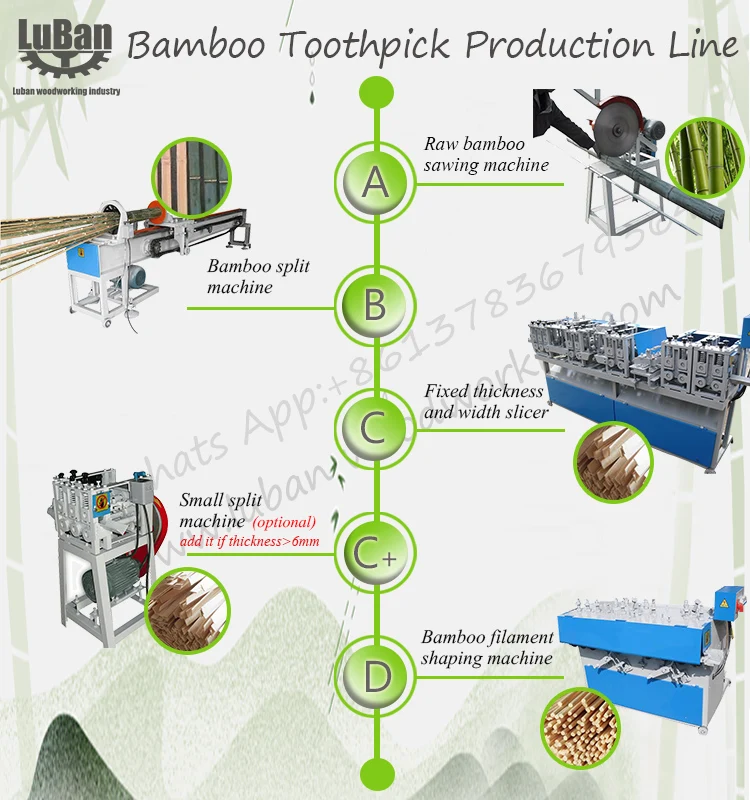

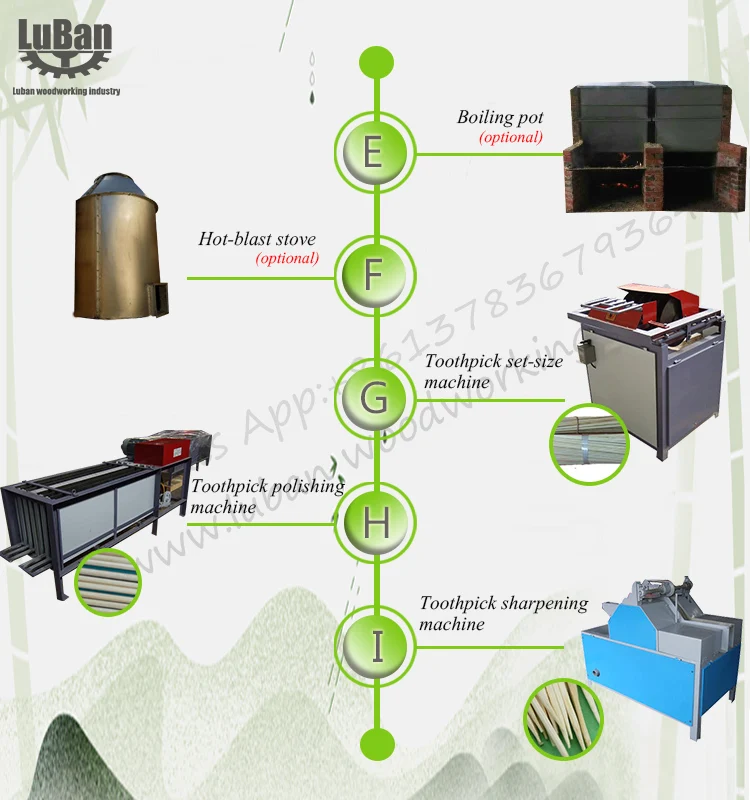

⊃Flow Chart of toothpick making machine
Item | Name | Quantity(set) | Power(kw) | Remark |
1 | Raw Bamboo Sawing Machine | 1 | 1.5 | |
2 | Bamboo Split Machine | 1 | 4 | |
3 | Fixed Thickness&Width Slicer | 1 | 8.9 | |
4 | Small Slicer(add it if thickness>6mm) | 1 | 1.1 | optional |
5 | Bamboo Filament Shaping Machine | 1 | 9.5 | |
6 | Boiling Pot | 2 | / | optional |
7 | Hot-blast Stove(for drying) | 1 | 3 | optional |
8 | Toothpick Set-size Machine | 1 | 3 | |
9 | Toothpick Polishing Machine | 1 | 3 | |
10 | Toothpick Sharpening Machine | 1 | 1.75 | |
11 | Toothpick Can Packing Machine | 1 | / | optional |
12 | Individual Packing Machine(3-edge cover) | 1 | 0.37 | optional |
14 | Individual Packing Machine(4-edge cover) | 1 | 3 | optional |
11 | Multi Knife Sharpen Machine | 1 | 0.55 | |
Total | 8-14 | 32.2-39.67 |
Capacity: 1 million pieces every 8 hours
⇒Factory Running And Operation Requirement
Area: machine operation warehouse 200m2,
bamboo storage 200m2
bamboo filament sunshine drying 400m2(2 drying houses
could replace it,each house 30m2)
Person: 6-10 persons
Electric Power: 32-40kw
>>The main spare parts for three year,others for 1 year.
>>5% money will be as guarantee fund for quality.Paid once
finished all installation and working normally.
>>We could send the spare parts to you by courier.
>>We could make the guiding pictures and videos to you for
solution.
>>We could arrange technologists to help on site.
>>We could arrange to visit the most advanced local factory for
communication and learning.
>>We could make the design for your warehouse building for
free.
>>We will share the advanced production technology for free.
⊃FAQ
◊ How do you guarantee I can receive the goods that ordered
after make the payment?
Please rest assured that you will receive the goods in time, we
are a legally established company supervised by the
government, and is registered in customs of China and
China Chamber of International Commerce. What is
more important, honesty and trustworthiness is our basic
principle and our company life.
◊ How to make the payment?
Normally, when the order value is below USD10,000, we
accept the payment by T/T or Western Union or Cash, L/C will
be accepted when the order value is over USD10,000.
For T/T, the customer can choose 100% in advance or 30% in
advance, and pay the 70% balance before shipment.
◊ Suitablity of motor?
As there are many volatage standards in different countries in
the world, so the original motor equipped on the machine
would not suitable to be used with the customer's
local power supply, when this situation happend, please send
us your exact information of the power supply available, then
we can modify the motor accordingly.
LUBAN brand,bamboo/wooden toothpick bbq/incense stick making machine,famous,advanced and with top quality in China.We had specialized in wood and bamboo technology and equipment for more than 25 years,serviced for thousands of customers all over the world.
We are so happy to supply the total solution for your project.
