Delivery Detail: | 0 days after payment; | Warranty: | 1 year; |
Single gross weight: | 1,000 KG; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Weight: | 1430kg; | Name: | China wooden toothpick making machine For Sale With Factory Price; |
Certification: | iso; | Function: | to cut the wood into wood sticks; |
Single package size: | 200X200X200 cm; | Dimension(L*W*H): | 110x650x110/1250x700x1200mm; |
Applicable Industries: | Manufacturing Plant; | Voltage: | 380v; |
Brand Name: | Dahlia; | Selling Units: | Single item; |
Packing: | Wooden Package; | Condition: | New; |
Raw material: | Wood; | Place of Origin: | China; |
Power(W): | 21.68kw; |
wholesale China wooden toothpick making machine For Sale With Factory Price
Technical Data:
Item | Main Motor Power | Machine Dimension | Machine Weight |
Wood Material Slicer | 0.55kW 7.5kW 0.37kW | 1250×700×1200mm | 410kg |
Wood-wool Shape Former | 0.55kW 2.2×2kW 0.18kW | 1200×700×1250mm | 410kg |
Wood-wool Ruler Fixer | 0.75kW | 1500×750×1050mm | 150kg |
Toothpick Ruler Fixer | 3.0kW 0.37kW | 880×700×1100mm | 160kg |
Toothpick polisher | 1.5kW | 1400×1200×1450mm | 210kg |
Put toothpick in order | 0.55kW | 1300×600×900mm | 120kg |
Toothpick Nib | 0.75*2kW 0.37kW 0.12kW | 1450×750×1250mm | 400kg |
Multifunctional Blade Sharpener | 0.37kW | 850×550×1100mm | 90kg |
Introduction
1 | These machines are used for making both side sharp or single sharp toothpicks. |
2 | Firstly, the wood is processed into a dry square billet of 140, 105, 70 or 35 cm, 6 cm wide and 3.5 cm thick by woodworking band saw or woodworking circular saw, and then the billet is put into pieces and formed into wires. |
3 | The general specification is φ2.2mm x 65mm. |
4 | Capacity: 500000 pcs/8 hours, and need 4-6workers. |
5 | It can be product 1.2 million pcs/m³(φ2.2mm x 65mm) |
6 | The packing machine is for printing and packing ,200-500 package/min( 2 pcs/package) |

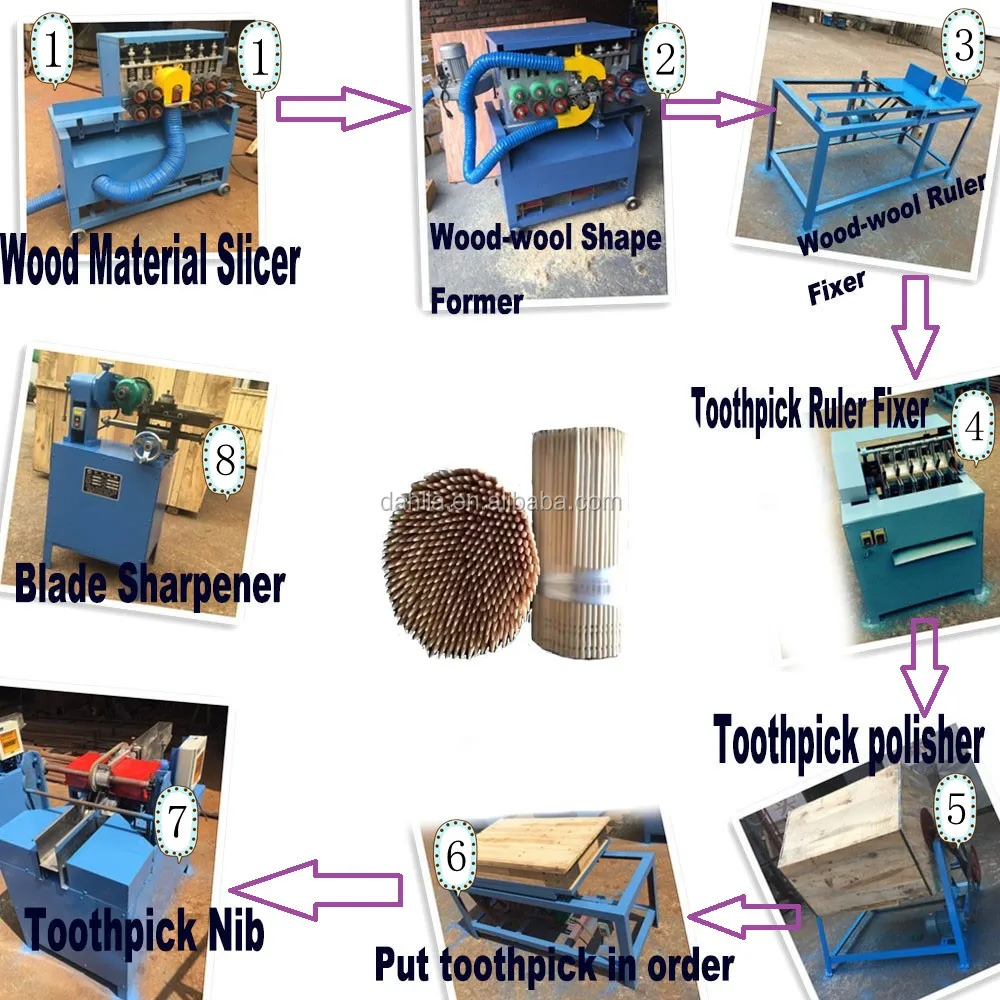

The whole process:
First process log into standard dry square billet - Slice wood into wood chips - Cutting wood slices into wood wool(poor color appropriate to bleaching, drying) - Set-size cut ting - Polishing - Remove the unqualified toothpicks - Sharpening the toothpicks - Remove the unqualified toothpicks - Packing - Warehousing (factory).
\
