Standard oil and gas well truck-mounted inclined well workover rig

Supplier: RG PETRO-MACHINERY GROUP CO., LTD.
Region: Henan, China
Contact: Mr Sam Xue
Price: $1000000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local service location:	not any	usage:	oil well
Video external inspection:	if	Showroom location:	not any
Core components:	Gearbox, Motor	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Packaging Details:	Products are packaged in wood or according to customer requirements	model:	Inclined well workover rig
Health status:	new	brand:	RG
color:	customer request	place of origin; place of origin:	Henan, China
After-sales service provided:	Online support, video technical support, on-site installation and commissioning training, on-site maintenance and repair services	Applicable industries:	Energy and Mining
Supply capacity:	8 sets per month	type:	Rotary drilling rig
Mechanical test report:	if	port:	Tianjin, Qingdao, Shanghai
Certification:	API	custom made:	accept
Marketing Type:	Hot Products of 2019	Core Components Warranty:	1 year
Warranty:	1 year	Power Type:	diesel engine
Function:	Drilling and milling	engine:	diesel engine
feature:	high efficiency

Product Description

feature:

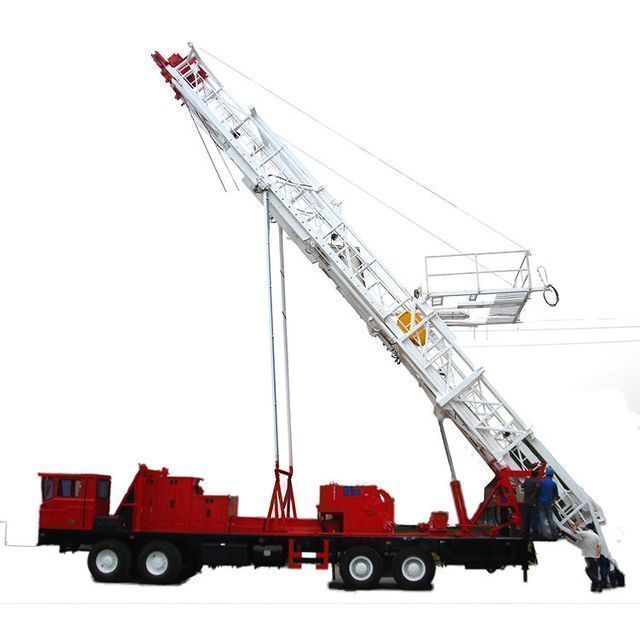

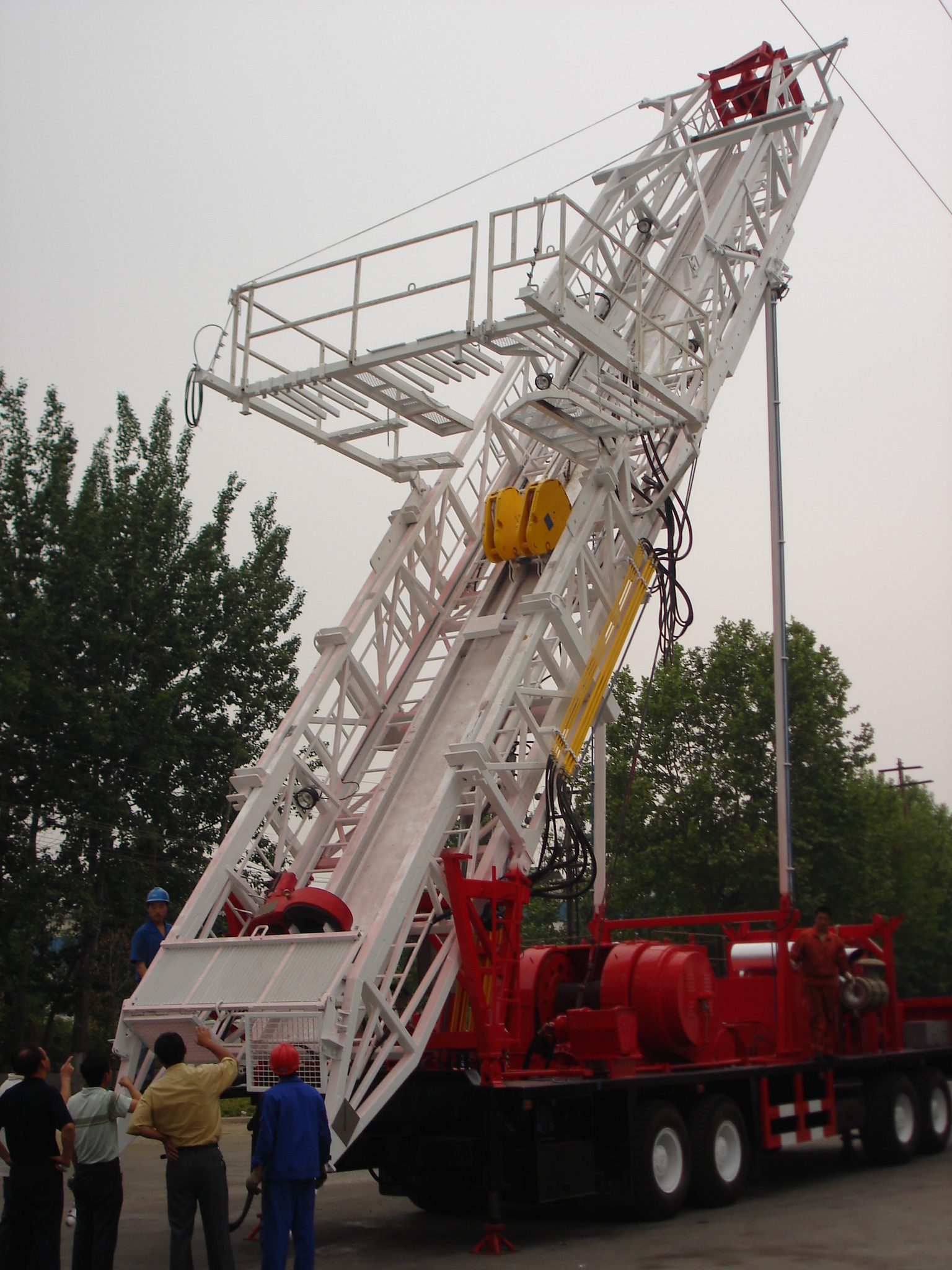

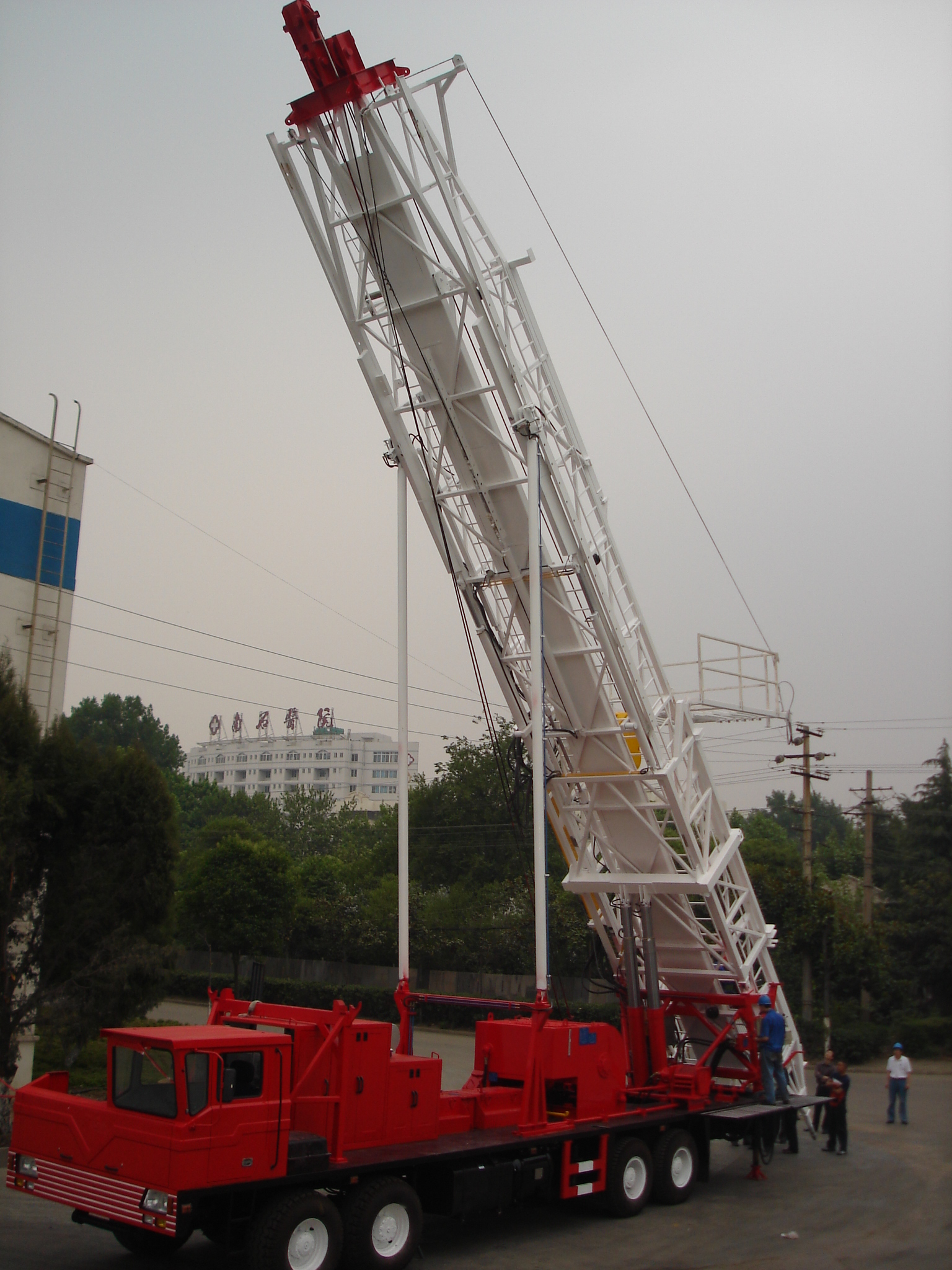

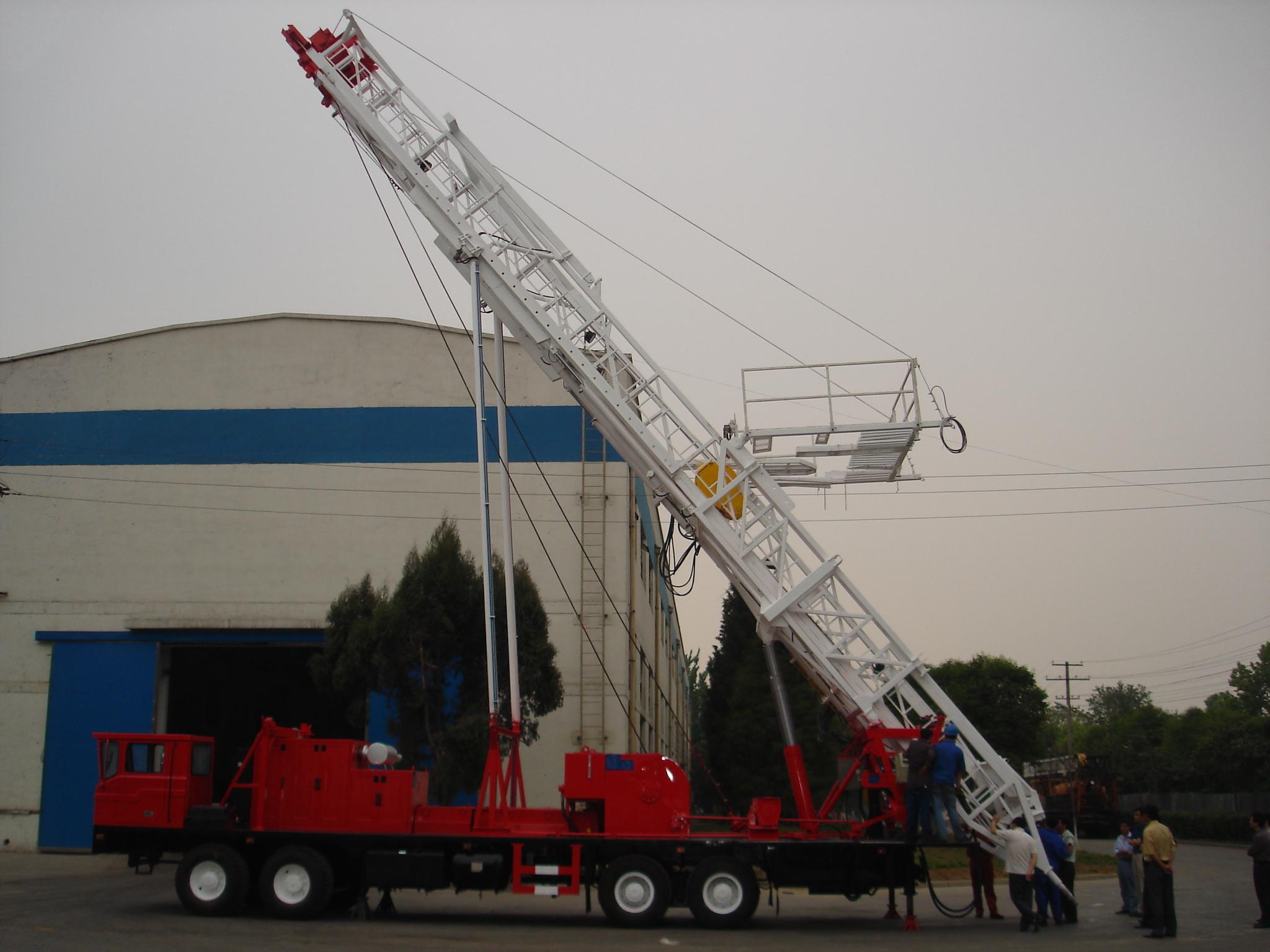

The deviated well workover rig can be used for maintenance and workover operations of oil, gas and water deviated wells with an inclination of 45°~80° and a well depth of less than 5000 feet. The chassis is a heavy-duty 8*4 drive chassis with hydraulic steering system, which has good cruising performance. The whole machine can move longitudinally and laterally, and has the function of stepless adjustment, which makes the wellhead centering quick and convenient. The sub-deck and light working platform adopt hydraulic lifting and mechanical locking, which is safe and reliable. These workover rigs can also be used for deviated well drilling when equipped with a powered rotary unit.

Specification

Model	XXJ700
Maximum hook load (kN)	700
Rated hook load (kN)	400
Rated workover depth (73mm)m	2000
winch power kW	269
line	6
Cable diameter (mm)	twenty two
Mast Height (m)	twenty one
Maximum hook speed (m/s)	1
mast inclination	45°～80°
main brake	Band and Disc Brakes
auxiliary brake	224WCB
carrier model	XD40/8×4
Minimum ground clearance (mm)	311
Minimum diameter of turning circle m	27
Emission Standards	country five
