Rated short-circuit breaking current: | 50 kA | port: | Ningbo, Shanghai or any port in China |
website: | www.sinogp.com | place of origin; place of origin: | Zhejiang, China |
Rated voltage: | 7.2kV | model: | GPVC-7.2 |
Main circuit resistance: | ≤250+R use | Breaking capacity: | 50 |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Number of poles: | 3 |
Packaging Details: | Press plywood case | mechanism: | spring energy charging |
brand: | General practitioner, green energy | Motor voltage: | DC/AC 110V 220V |
Rated voltage: | 7.2kV | Rated frequency: | 50 Hz, 60 Hz |
Mechanical life: | 30000 times | stage: | three |
Supply capacity: | 10000 sets/year | Bill: | 42kV/85kV |
Rated current: | 315A | | |

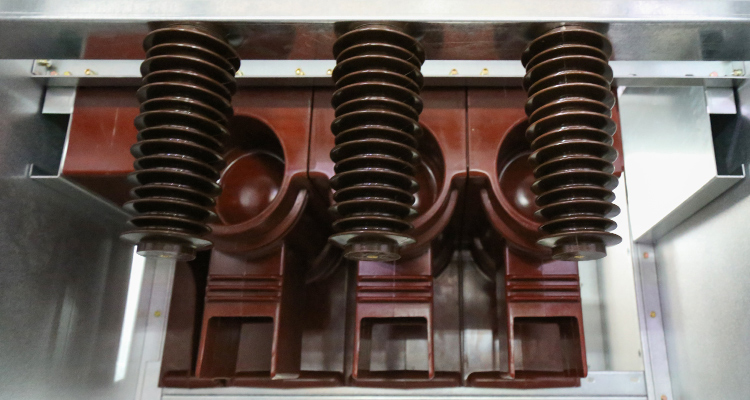

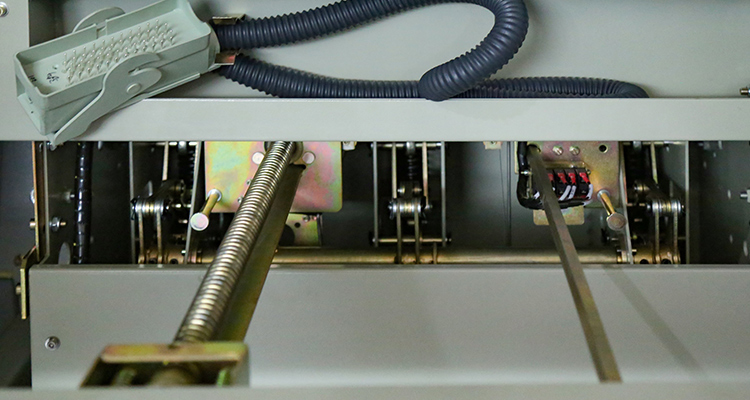

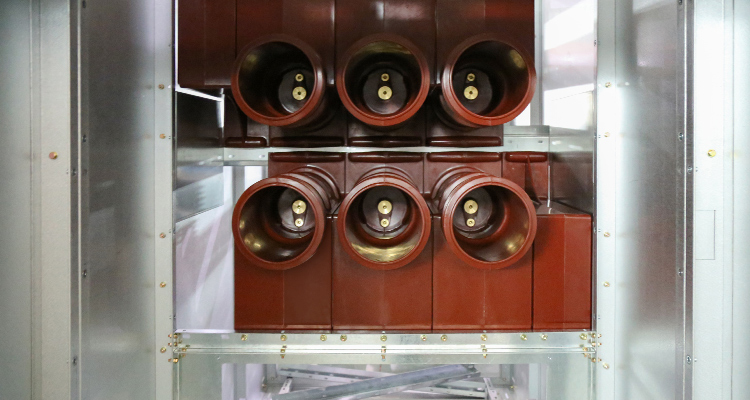

Product display

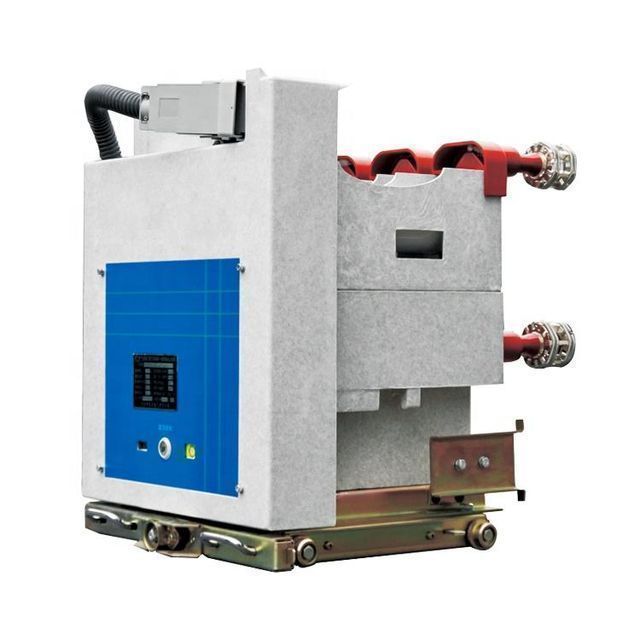

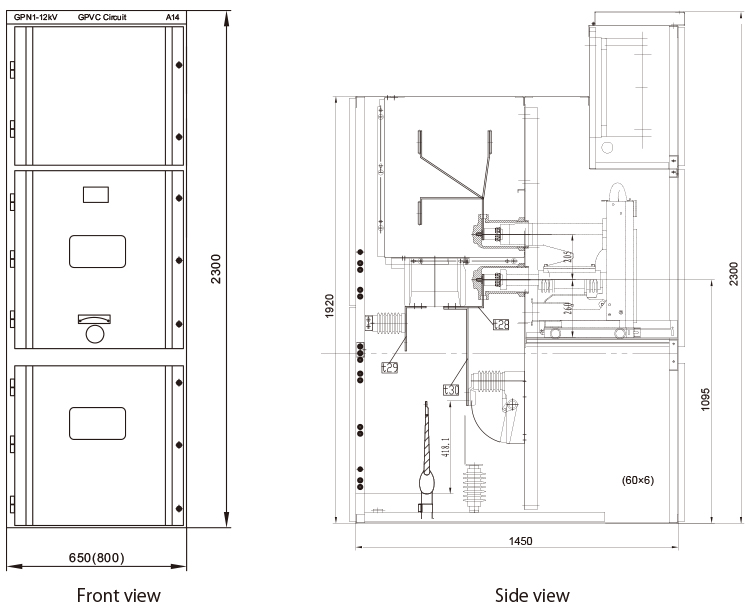

GPVC(R)-12 removable embedded vacuum contactor and its fuse combination
Product Description
GPVC vacuum contactor is a new generation of medium-voltage vacuum switch element series products developed by our company in combination with advanced product technology and experience at home and abroad. GPVC products are the exact same size as ABB's VC contactors and can be installed in a minute. 650mm center-mounted switchgear.
application
GPVC vacuum contactor with high voltage fuse can break a wide range of short-circuit fault current. It is used in AC systems with a voltage of 3.6~12kV, a frequency of 50Hz/60Hz, and a large number of opening and closing operation cycles, especially suitable for frequent switching occasions. The ideal tool for operation. It is widely used in the protection and control of electrical equipment (such as high-voltage motors, transformers, capacitor banks, induction furnaces, etc.) in thermal power plants, metallurgy, petrochemicals, mining, ships and other fields. GPVC vacuum contactors are available in three configurations: electrical retention, mechanical self-retention and permanent magnet retention. The control electromagnet realizes the closing operation of the contactor through the operating mechanism, and the opening operation is realized by the opening spring.
Technical features:
GPVC vacuum contactors can provide two levels of rated voltage 3.6~7.2kV (GPVC7) and 12kV (GPVC12), which can be used together with fuses:
GPVC7 - from 6A to 315A
GPVC12 - from 6A to 160A
Click to consult GP for technical details and prices
Technology and Details
The main technical parameters | | | | | |
thing | | unit | data | | |
Rated voltage | | kV | 3.6 | 7.2 | 12 |
1min power frequency withstand voltage | | kV | 20 | 32 | 42 |
Lightning impulse withstand voltage | | kV | 46 | 60 | 75 |
Rated current | | One | 400 | 315 | 200 |
Rated short-time withstand current (4s) | | Ka | 4
|
|
|
Rated peak withstand current | | Ka | 10
|
|
|
Expected short-circuit breaking current | | Ka | 50
|
|
|
Expected short-circuit closing current | | Ka | 130
|
|
|
Main circuit resistance | | Micro Ou | ≤ 250+R fuse
|
|
|
maximum. divert current | | One | 4000 | 4000 | 3200 |
Rated current breaking times | | Second-rate | 250,000
|
|
|
Mechanical life | Mechanical hole | Second-rate | 300,000
|
|
|
| Electric hold type | Second-rate | 500,000
|
|
|
Main circuit resistance |
| Micro Ou | ≤ 150
|
|
|
Rated current (A) | | ~400 | ~400 |
| Vacuum Contactor-Fuse Combination-GPVC | 1 | 1 |
| Current transformer LZZBJ | 3 | 3 |
| Voltage transformer JDZ10 or JDZX10 |
|
|
| High voltage fuse XRNM-10 | 3 | 3 |
| Grounding switch GPJN15-12 |
| 1 |
| Voltage monitoring device | According to user requirements | According to user requirements |
| Comment | motor driven | motor driven |

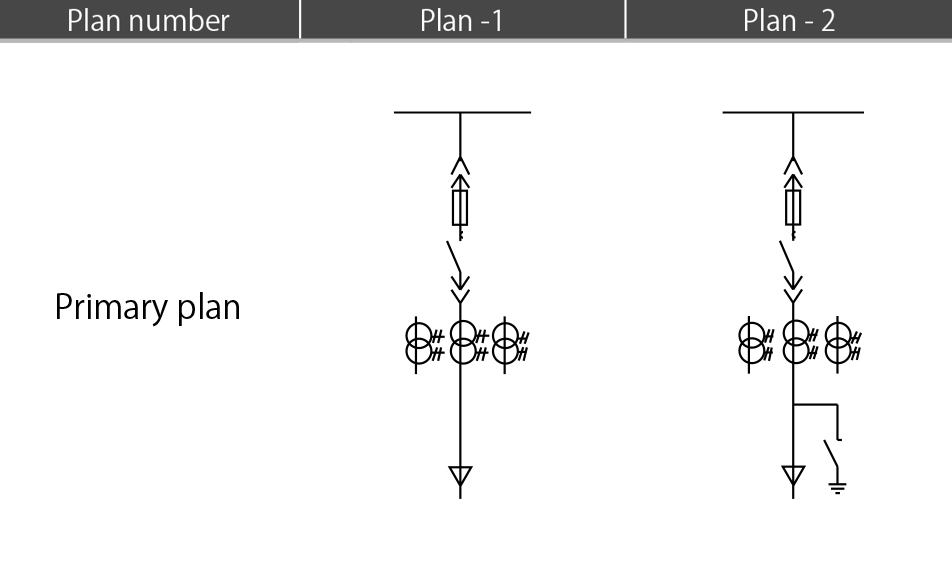

Ordering Instructions
Note: Please consult GP for VCB drawings and prices.
Production equipment and testing equipment
Strict quality control system
*Strict partial discharge detection and control for the whole machine and components
*Partial discharge test room background: ≤0.5pC
*1.1Un ≤10pC Partial discharge of the whole machine
Ensure the insulation reliability of the equipment under long-term operation!
